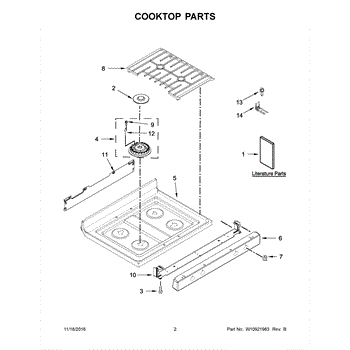

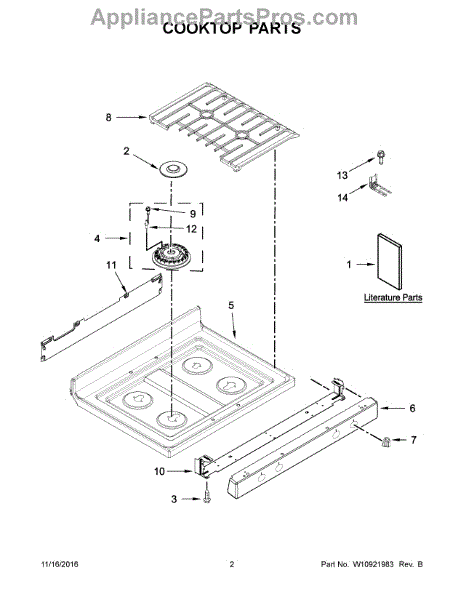

Parts for Maytag MGR8650FZ0: 02 - Cooktop Parts

This factory screw secures panels, brackets, or trim within your appliance. Replacing a missing or stripped fastener restores a tight fit, reduces vibration and rattles, and helps keep components aligned for reliable, long-term performance.

• Fastens panels, brackets, or trim to the appliance cabinet/frame
• Replaces damaged, rusted, or missing hardware
• Helps eliminate vibration noises, gaps, and loose-fitting parts
• Supports proper alignment of adjoining components

• Disconnect power; turn off gas/water supplies where applicable.
• Match to the original screw from your model's parts diagram before installation.
• Start threads by hand to avoid cross-threading; use the correct driver bit for the head.
• Tighten snugly—do not overtighten to prevent stripping threads or cracking plastic bosses.

The Surface Burner Base is an OEM part for Whirlpool ranges and cooktops. This component is a critical part of the stove's burner assembly, housing the gas outlet and providing a stable platform for the burner cap and flame spreader. It is specifically designed to handle the rigors of daily cooking, ensuring an even and controlled flame that enhances your cooking precision.

Symptoms of a failing Surface Burner Base include:

• Uneven flames or poor heat distribution
• Difficulty in lighting the burner
• Gas leaks detected around the burner area
• Visible signs of corrosion or damage to the base

Common causes for burner base issues can include continual exposure to high temperatures, spills that lead to clogging or corrosion, and normal wear and tear.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Burner and Electrode is an OEM part for Whirlpool cooktops and ranges. This component is essential for igniting the gas burner, ensuring efficient and reliable cooking performance. The burner provides a stable flame for cooking, while the electrode generates the spark needed to ignite the gas. Includes the igniter. The compatible screw is part number WP3368921 / AP6008125

You should replace the surface burner and electrode if they become faulty. Causes of a bad surface burner and electrode can include regular wear and tear, food residue buildup, or damage from high heat. A malfunctioning burner or electrode can lead to ignition issues and inefficient cooking.

Symptoms of a bad surface burner and electrode include:

• The burner not igniting or taking multiple attempts to light
• Weak or inconsistent flames
• Clicking sound without ignition when trying to light the burner
• Uneven cooking or hotspots on cookware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Includes ignitor

The Whirlpool Range Knob is an OEM replacement part designed for Whirlpool ranges. This stainless steel knob allows you to control the different functions and settings of your range, such as adjusting the temperature or selecting the cooking mode.

Over time, the knob may become worn, cracked, or damaged, making it difficult to accurately set or adjust the desired settings on your range. A faulty knob can hinder your ability to control the range effectively and may impact your cooking experience.

Symptoms of a faulty Range Knob may include:

• Knob becoming loose or spinning freely
• Difficulty in turning or adjusting the knob
• Knob cracked or broken, preventing proper usage
• Inaccurate alignment or marking on the knob

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ovens and ranges.

The Burner Grate is an OEM part for Whirlpool gas ranges. This heavy-duty grate sits above the burners to safely distribute heat from the elements below.

Causes may be normal wear and tear from regular cooking use. Accidental damage from cookware is also possible over the years.

Symptoms of a faulty burner grate include:

• Warping or sagging over time affects pan placement and heat distribution
• Broken or missing wires that compromise safety
• Rough or sharp surfaces that could damage cookware
• Discoloration or buildup from prolonged heat exposure

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Electrode is an OEM part for Whirlpool gas ranges. This part ignites the gas in the surface burner, providing the flame necessary for cooking. The electrode generates a spark that lights the gas when the burner knob is turned on.

Causes of a bad electrode can include wear and tear from frequent use, buildup of food residue or grease, or physical damage from cleaning or accidental impact.

Symptoms of a bad electrode include:

• The burner not igniting
• Weak or intermittent sparking
• Clicking noises without the burner igniting
• Uneven or weak flame from the burner

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


The Wire Harness is an OEM part for Whirlpool ranges. It is an intricate network of electrical wires that distributes power to components like the oven control board, temperature sensor, displays, buttons, lights, and more. Proper operation of these systems relies on an intact and functioning wire harness.

Causes of a bad wire harness can include cracked insulation, and exposed or severed wires due to stress and movement over time. The harness may also develop shorts, abrasions, or disconnects in wiring due to normal wear and repeated use of the oven door.

Symptoms of a bad wire harness include:

• Sudden failure of control buttons, lights, or displays
• Unstable or fluctuating oven temperatures
• Electrical burning smells when the oven is in use
• Intermittent or complete lack of power to oven systems

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges.

This replacement wire harness routes power and signals between oven components so controls and safety devices communicate reliably. It helps restore proper electrical connections for safe, consistent operation. What it does:

• Replaces a damaged or burned harness to restore electrical continuity to controls and sensors
• Carries power and signal lines between control board, switches, and safety devices
• Addresses symptoms like intermittent power, no response from controls, or visible wiring damage
• Helps prevent shorts or arcing caused by frayed or loose connector ends

• Disconnect power before servicing to avoid shock or injury
• Inspect connectors and routing; replace if pins or insulation are damaged
• Secure harness away from heat sources and moving parts to prevent premature wear
