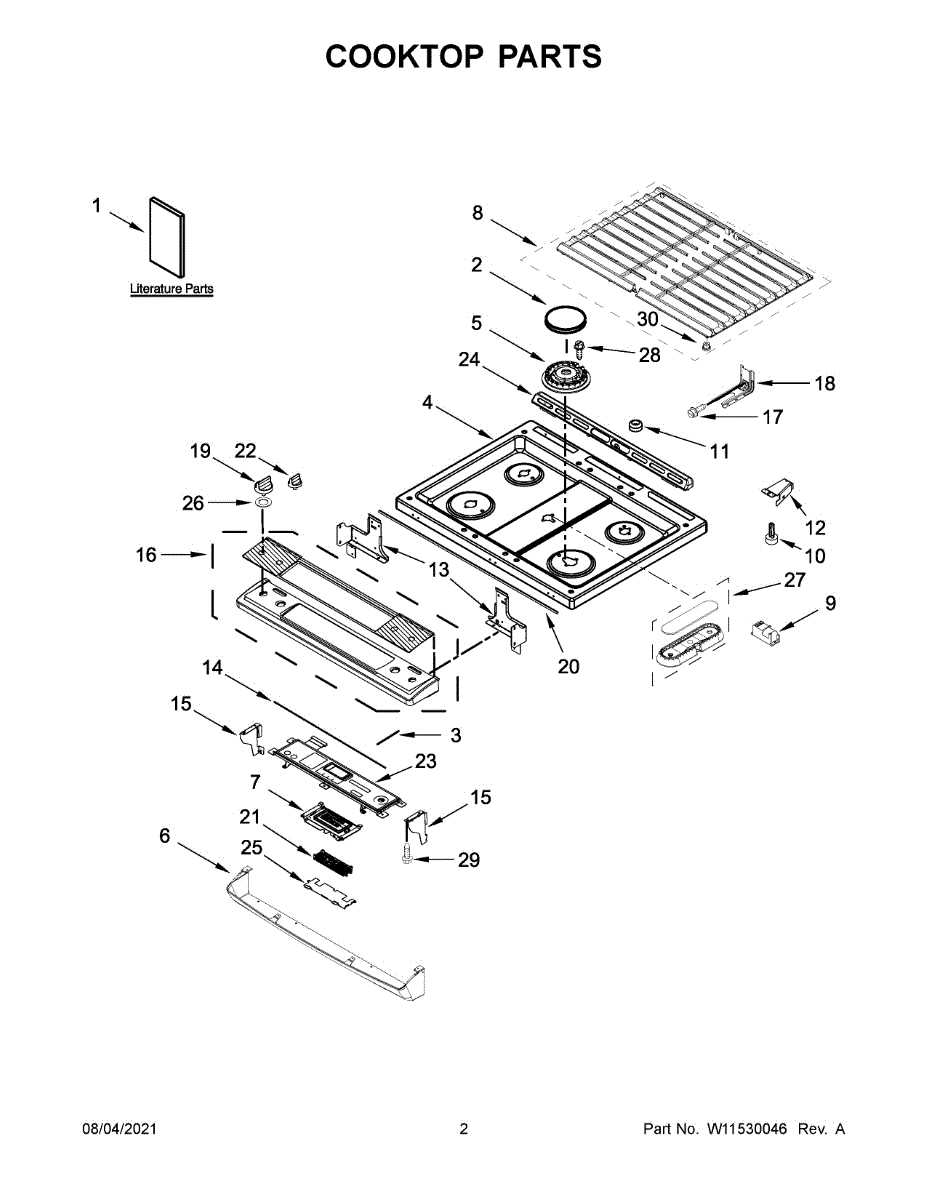

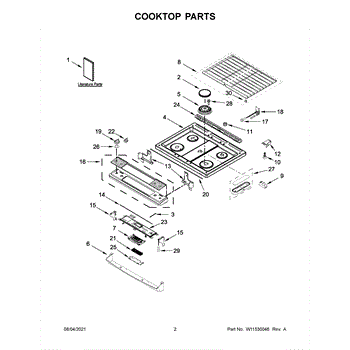

Parts for Maytag MGS8800FZ2: Cooktop Parts

This mounting bracket secures a component or panel to the appliance frame, keeping it aligned and stable during operation. Replace a cracked or bent bracket to stop looseness, rattling, or shifting and restore proper support.

• Anchors the specified component or panel to the chassis
• Maintains correct position and spacing for reliable operation
• Helps reduce vibration and noise from a loose mount
• Common symptoms: broken or missing bracket, bent metal, sagging/misaligned component, difficulty fastening parts

• Disconnect power before service; shut off water supply if applicable
• Note orientation and fastener locations; transfer existing screws/clips if needed
• Support the component while removing/installing the bracket to prevent strain
• Tighten fasteners evenly; avoid overtightening to prevent damage

This part is a replacement oven control board. It provides control over the various functions of the oven, such as bake, broil, temperature control, timers, and more. It also includes the display that shows temperature, function, timer, and clock-related information. The control board is exposed to high heat and moisture regularly, which can damage soldered components causing the board to fail. Signs of a failing or damaged oven control board include difficulty changing temperatures or oven function, or a complete lack of operability. To replace the oven control board, the user should first turn off the circuit breaker or unplug the oven. Next, remove the front cowling and control knobs to access the controls beneath, and remove that board, as well. The oven control board is the bottom-most component in the stack. Reassemble the oven in reverse order after installing the new board.This is a genuine OEM part and it is sold individually. It fits Kenmore, Whirlpool, and Maytag ovens with the controls at the front.

This spark module supplies the high-voltage pulses that ignite the surface burners on a gas cooktop or range. Replacing a failing module helps restore consistent clicking and spark so burners light promptly and reliably.

• Supplies high-voltage to up to five surface igniters (5+0 configuration)
• Sends spark when a burner control is turned to Lite
• Failure symptoms can include no spark on all or multiple burners
• May also cause intermittent/weak spark or continuous clicking

• Disconnect power and shut off gas before servicing
• Note wire locations; move one connector at a time to matching terminals
• Mount securely in the original position and ensure proper grounding
• After replacement, if only one burner won't ignite, inspect that burner's switch and igniter

This spark ignition module generates the high-voltage pulses that light the burners' igniters on a gas appliance. Replacing a failed module restores consistent ignition so burners light reliably when you turn the control to ignite. What it does

• Converts line voltage to high voltage to create the ignition spark at each burner igniter
• Distributes spark pulses to multiple burners during lighting
• Common failure symptoms include no spark on all or several burners, intermittent/weak sparking, or clicking without ignition
• Helps eliminate the need to light burners manually

• One spark ignition module

• Disconnect power and shut off gas supply before servicing
• Access the module, note wire positions, and transfer connectors one at a time to the new module
• Mount securely and ensure all terminals are fully seated; avoid pinching or chafing wires
• Reassemble, restore power and gas, and verify proper ignition on all burners

• If only a single burner won't spark, check that burner's igniter and spark switch/wiring first; the module typically affects multiple burners.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

This replacement bumper cushions and protects the appliance door or panel, helping stop metal-on-metal contact, reduce noise, and prevent chipping or wear. Simple, low-profile part that restores smooth, quiet door operation. What it does:

• Cushions door or panel to prevent hard impacts and protect finishes
• Reduces rattling and vibration-related noise during operation
• Helps the door close more softly and sit flush with the cabinet
• Prevents premature wear where edges contact the cabinet

• Disconnect power to the appliance before starting any repair.
• Inspect the damaged bumper and surrounding area, then remove the old bumper by hand or with a non-marring tool.
• Press the new bumper into the original mounting location until fully seated; no special tools normally required.
• If the bumper mounts to a clip or bracket that's damaged, replace the bracket.

This oven door gasket seals the oven cavity to keep heat and moisture in for even cooking and energy efficiency. A worn or damaged gasket can cause heat loss, longer cook times, or visible smoke/odor. What it does:

• Creates a tight seal between the oven door and cavity to retain heat and moisture
• Helps maintain consistent bake and roast temperatures for even cooking
• Reduces heat escaping that can trigger longer cook cycles or cycling issues
• Limits smoke and food odors from leaking into the kitchen

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per the manufacturer instructions if needed to access the gasket channel
• Inspect the gasket channel for debris and clean before installing the new gasket for a proper seal
• The gasket is fully seated along the door perimeter and check for pinched or twisted sections

This end cap panel is a replacement trim piece that restores the finished edge and protects the appliance cabinet where panels meet. It helps maintain a clean look and keeps edges covered after repair or panel replacement. What it does

• Covers and protects the outer edge of a cabinet or control panel section to prevent exposed edges and wear
• Restores a flush, finished appearance after removing or replacing surrounding panels
• Helps keep dirt and moisture from reaching internal edges and seams
• Matches OEM fit and attachment points for reliable alignment

• One end cap panel

• Designed to snap or screw into existing mounting points — handle gently to avoid cracking plastic
• Turn off and unplug the appliance before removing nearby panels
• Inspect adjacent clips or fasteners and replace if damaged to ensure secure fit
• No special tools typically required; a screwdriver and trim tool may be helpful

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

The Trim Vent is an OEM component specifically designed for Whirlpool gas ranges. Located at the rear of the unit above the oven cavity, the trim vent serves an important safety and ventilation purpose.

Constructed of heat-resistant sheet metal with a powder-coated finish, the trim-vent features an internal layered baffle system and a rear-mounted exhaust fan. This facilitates the extraction of hot oven emissions and fumes up and out of the kitchen space.

This exhaust vent adheres to all codes and regulations regarding temperature ratings and venting performance. It attaches securely to the framework of the gas range with mounting brackets.

Symptoms of a bad trim-vent include:

• Excessive heat or smoke escaping from the oven cavity
• Improper venting of emissions leads to buildup of residue
• Detached, bent, or corroded vent body

Color: Black

This OEM part is also compatible with KitchenAid, Jenn-Air, Amana, Kenmore, and select GE gas range models.

This mounting bracket secures appliance components to the cabinet or chassis, restoring proper alignment and support. Designed to replace damaged or missing brackets, it helps reduce vibration and prevent parts from shifting during use. What it does

• Provides a stable anchor point for internal components or panels
• Restores proper alignment and fit between the appliance cabinet and mounted parts
• Helps reduce vibration and rattling caused by loose or broken supports
• Commonly replaced when bracket is bent, cracked, or missing

• Inspect adjacent fasteners and mounting holes; replace any stripped screws or damaged hardware
• Use appropriate tools and mounting hardware for secure installation; torque to OEM recommendation if available
• Disconnect power before working on electrical appliances and follow all safety guidelines

The Bushing is an OEM replacement part for Whirlpool wall ovens. This component acts as a sleeve to reduce friction and ensure smooth movement in various mechanical parts of the oven, such as door hinges or rotating elements. Properly functioning bushings help maintain the alignment and durability of these parts over time.

Causes of a bad Bushing can include wear and tear from repeated use, lack of lubrication leading to increased friction, or damage caused by misalignment or heavy loads. A failing bushing can lead to inefficient operation or damage to connected components.

Symptoms of a bad Bushing include:

• Squeaking or grinding noises during oven door movement
• Difficulty opening or closing the oven door smoothly
• Misalignment of moving parts

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Display Wire Harness is an OEM part for Whirlpool ranges. It connects the control panel display to the range’s main control board, allowing for communication between the user interface and the appliance’s electronic system. This harness ensures that the display panel accurately shows information such as temperature settings, timer functions, and error codes.

Causes of a bad display wire harness can include regular wear and tear, electrical issues, or damage from heat exposure or physical impact. When the wire harness fails, it can disrupt the flow of information between the control panel and the main control board, affecting the operation and display functions of the range.

Symptoms of a bad Display Wire Harness include:

• The display panel not lighting up
• Inaccurate or flickering display readings
• Buttons on the control panel not responding
• Error codes appearing on the display

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Keypad Wire Harness is an OEM part for Whirlpool ranges. This component is essential for connecting the keypad to the control board, enabling communication between user inputs and the range's operational functions.

Causes of a bad keypad wire harness can include wear and tear from regular use, exposure to heat and moisture, or physical damage due to mishandling or accidental impact. Electrical issues such as short circuits or frayed wires can also lead to malfunctioning.

Symptoms of a bad keypad wire harness include:

• Unresponsive keypad buttons
• Intermittent or inconsistent range operation
• Error codes related to keypad communication
• The range not powering on or off correctly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
