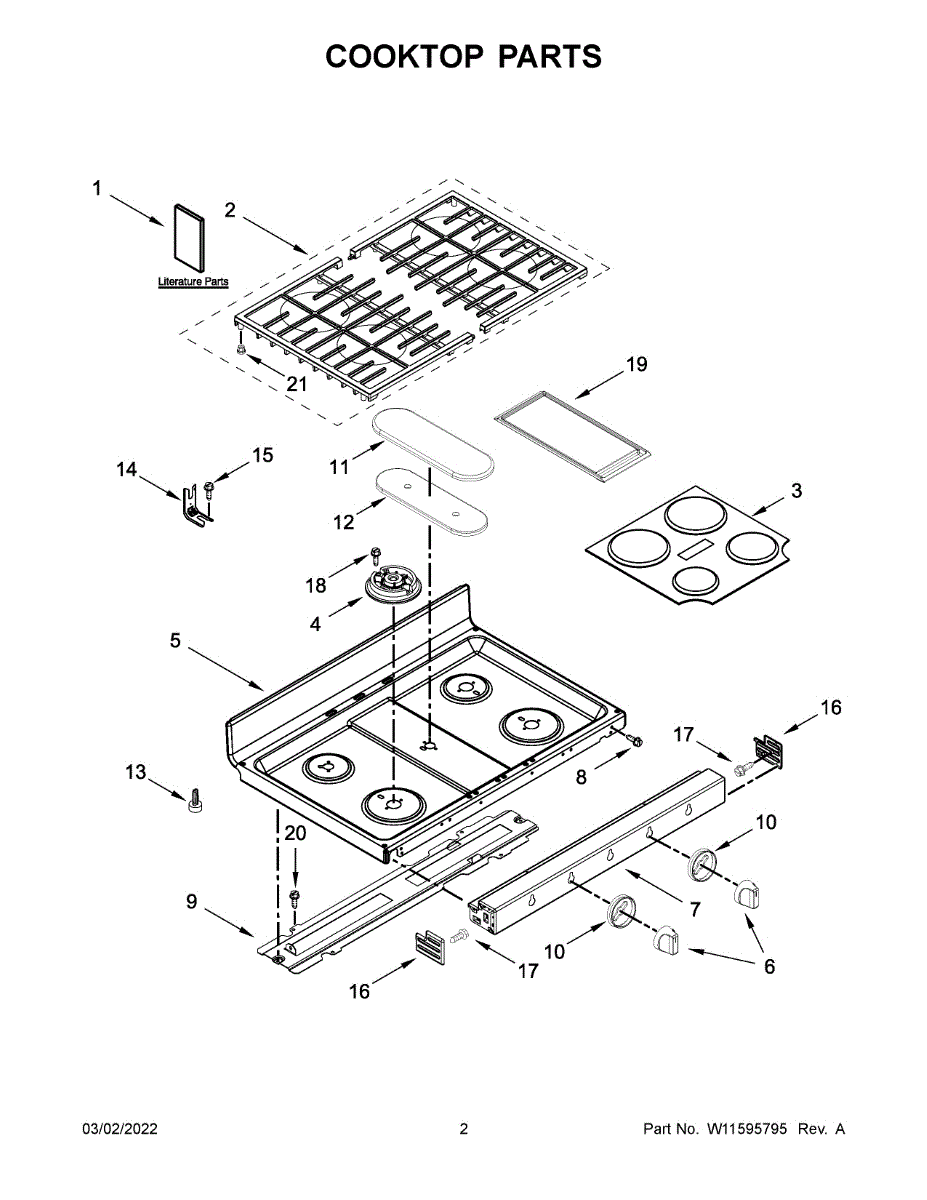

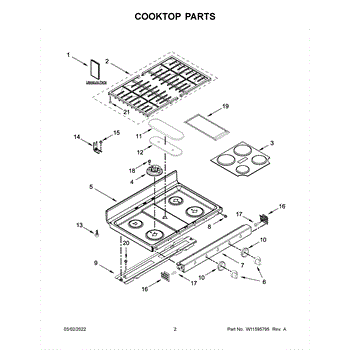

Parts for Maytag MGT8800FZ05: Cooktop Parts

This cooktop grate kit replaces damaged or missing cast-iron grates on compatible gas ranges, restoring stable support for pots and pans and improving safe, even cooking. Fits OEM mounting points for a direct swap. What it does:

• Replaces worn, chipped, or broken cast-iron grates to restore stable cookware support
• Prevents cookware wobble that can cause spills or uneven heating
• Protects the cooktop surface from direct flame contact and wear
• Restores correct clearance and alignment over burners for safer operation

• Disconnect gas supply and/or power to the appliance before beginning work
• Lift old grates straight up; align new grates with burner caps and seating points
• Grates are typically heavy cast iron—use care to avoid dropping and protect surfaces
• Recheck grate alignment and burner cap position

Kit contains 4 burner caps

This burner head base is the metal support that sits beneath a cooktop's surface burner, providing a stable mounting point and directing flame for even heating. It replaces damaged or corroded bases to restore safe burner operation. What it does:

• Supports the surface burner cap and burner tube to keep the burner properly aligned
• Directs gas flow from the burner tube to the burner ports for consistent flame pattern
• Helps prevent burner wobble, poor ignition, and uneven heating when functioning correctly
• Fits as the lower portion of the surface burner assembly and works with the burner cap and orifice

• Turn off the appliance and disconnect power and gas supply before service
• Remove burner cap and grate to access the burner assembly; handle components gently to avoid damaging the cap or igniter
• Verify correct alignment of the burner tube and base before reassembly to ensure proper ignition

This auxiliary surface burner head mounts over the orifice on your gas cooktop/range and distributes gas through precision ports for an even flame. Replacing a clogged or damaged head restores fast ignition and consistent heat on the small burner. What it does:

• Distributes gas through ports to produce a stable, even flame on the auxiliary burner
• Interfaces with the igniter electrode for quick, reliable lighting
• Common symptoms of a worn/clogged head: burner won't ignite or clicks without lighting; weak, uneven, or yellow flame; delayed ignition
• Helps restore proper simmer performance after corrosion, warping, or blocked ports

• 1 auxiliary burner head

• Shut off gas and disconnect power; allow the cooktop/range to cool completely
• Remove grate and burner cap, then lift off the old head; clear debris from the orifice and around the igniter (do not enlarge burner ports)
• Position the new head over the orifice and igniter; align locating features and seat fully; if your model uses screws, tighten them evenly without over-torquing
• Reinstall the cap and grate, restore gas/power, and verify even flame and normal ignition

The Burner Head is an OEM part for Whirlpool ranges. It is responsible for distributing gas to create an even flame for cooking on the stovetop. This burner head ensures efficient gas flow and optimal flame control, which are essential for consistent cooking performance.

Causes of a bad burner head can include clogging from food debris or grease, corrosion due to prolonged exposure to heat and moisture, or physical damage from impact. Such issues can obstruct gas flow and result in uneven heating or poor flame quality.

Symptoms of a bad burner head include:

• Uneven flame or poor flame control
• Difficulty igniting the burner
• Low or inconsistent heat output
• Unusual noises such as hissing or popping during operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This burner head mounts on the cooktop and distributes gas evenly to produce a steady flame. Replacing a worn or damaged head restores proper flame pattern and helps your burner light quickly and cook consistently.

• Directs gas through precisely sized ports to create an even flame
• Can resolve issues like uneven flames, yellow/orange flames, or delayed ignition
• Helps when the burner won't light or only lights partially
• Replaces a corroded, clogged, or warped burner head

• Disconnect power and shut off gas supply before servicing
• Allow the cooktop to cool completely
• Lift off the grate and cap; remove the old head and align the new head on the burner base
• Ensure ports are clean and seated correctly; test for proper ignition and flame

Color: Black

A replacement control knob that restores safe, positive control of a stove or range surface burner. This easy-to-install knob gives a solid grip for selecting heat settings and replaces a missing, worn or broken knob. What it does

• Fits over the range control shaft to select surface burner heat settings
• Provides a secure grip for smooth turning and accurate selection
• Replaces cracked, stripped, loose or missing knobs that prevent normal operation
• Helps restore proper detents/stops so settings hold when selected

• Turn controls to OFF and disconnect power (or shut off gas) before replacing the knob
• Pull the old knob straight off the control shaft; align splines and push the new knob fully onto the shaft
• Do not force a knob onto a damaged or bent shaft—inspect the control shaft for damage first

Color: Black. For biscuit order 98008169. For white order WP98008544.

The Knob Bezel is an OEM part for Whirlpool ranges. As a decorative cosmetic component, the knob bezel surrounds the temperature and function knobs on the oven control panel. It helps protect the knobs while enhancing the aesthetic appeal of the appliance.

Causes of a bad knob bezel include wear and tears such as scratches, dings, or cracks over time from normal use. Exposure to heat and cooking residue can also cause discoloration or warping of the bezel material.

Symptoms of a bad knob bezel include:

• An outdated or worn out appearance on the oven control panel
• Exposure of the internal knobs without cosmetic protection
• Potential interference with knob functionality from tears or cracks

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Black

The burner base is the metal burner head that supports the burner cap and directs the cooktop flame. Replacing a damaged burner base helps restore steady ignition and more even heat for everyday cooking. What it does:

• Provides the mounting surface and gas-port pattern for a surface burner and accepts the burner cap.
• Directs the flame for consistent heat across cookware.
• Common symptoms of a failing burner base: uneven or weak flame, burner won't light, visible corrosion or physical damage.
• Can cause repeated ignition attempts or poor heating when cracked, bent, or clogged.

• Turn off electrical power and the gas supply before servicing the range.
• Remove burner grates and caps to access the base; depending on model the base may lift out or be secured with fasteners.
• Inspect the igniter and surrounding components while replacing the base; reassemble and test the burner for proper ignition and flame pattern.

This drawer glide supports the appliance's drawer and provides a smooth, guided track for opening and closing. Replacing a worn or broken glide restores stable movement, proper alignment, and helps prevent sticking, dragging, or derailing. What it does:

• Provides the sliding interface between the drawer and the cabinet frame
• Keeps the drawer aligned for smooth in-and-out motion
• Reduces friction and noise from a worn or damaged glide
• Common fix for drawers that stick, bind, tilt, or pop off the track

• 1 drawer glide

• Disconnect power to the appliance before servicing
• Remove the drawer to access the glide and note the original orientation
• Release retaining tabs or remove mounting fasteners; transfer any reusable hardware
• Install the new glide, avoid overtightening fasteners, reseat the drawer, and test travel

For screws order: WP7101P485-60.

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement griddle sits over your range or cooktop burners to provide a flat, removable cooking surface. Use it to restore a level cooking area when the original is worn, damaged, or missing.

• Creates a flat cooking surface above the burner(s) for items like pancakes and sandwiches
• Helps distribute heat from the burner across the plate for more even contact
• Replace if cracked, warped, chipped, or heavily worn
• Common signs include rocking or poor fit, visible damage, or a degraded cooking surface

• Turn off all burners and allow the cooktop and griddle to cool completely before handling
• Position on the designated grate or locator tabs per your model's orientation
• Follow care and cleaning guidance in your owner's manual

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
