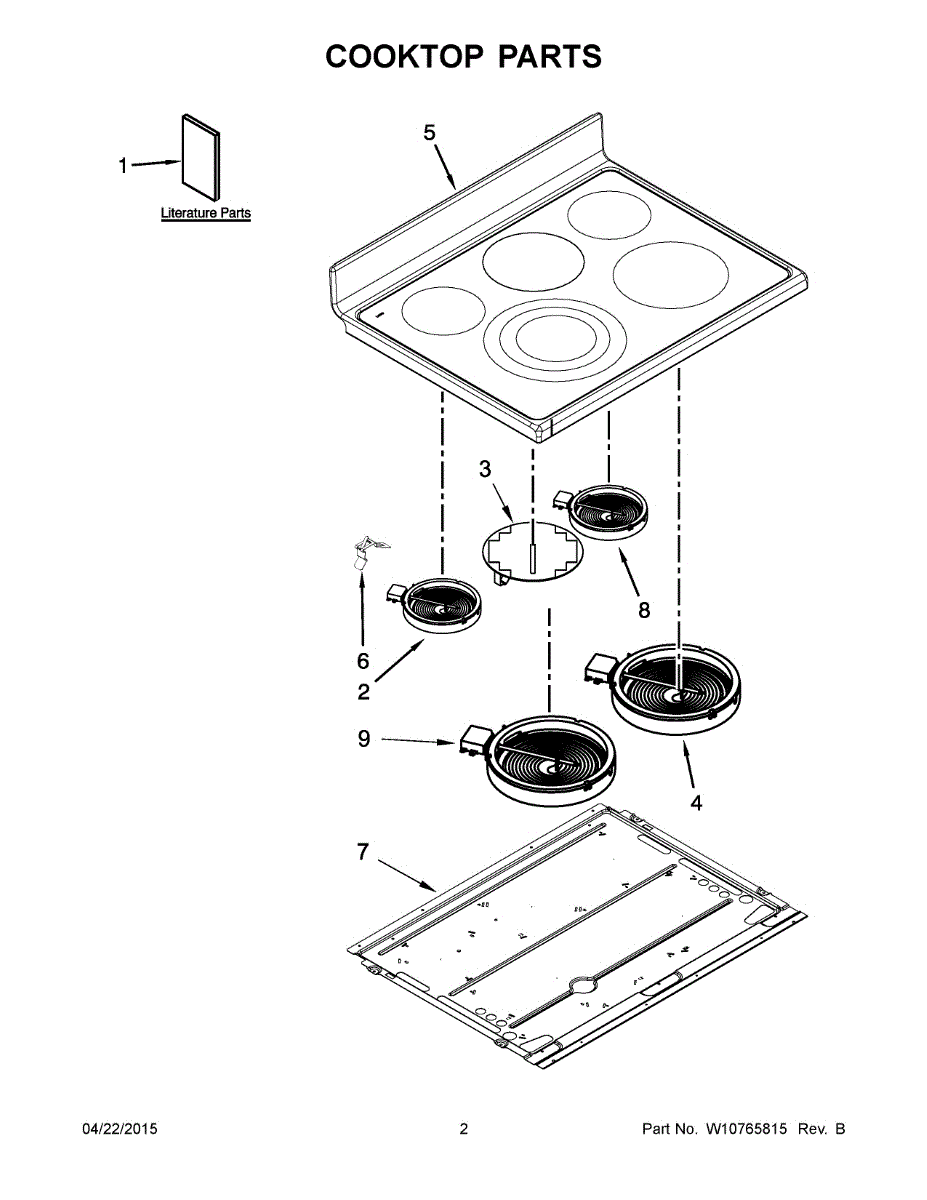

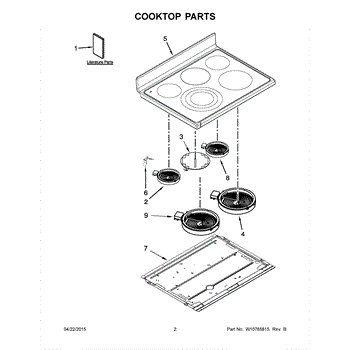

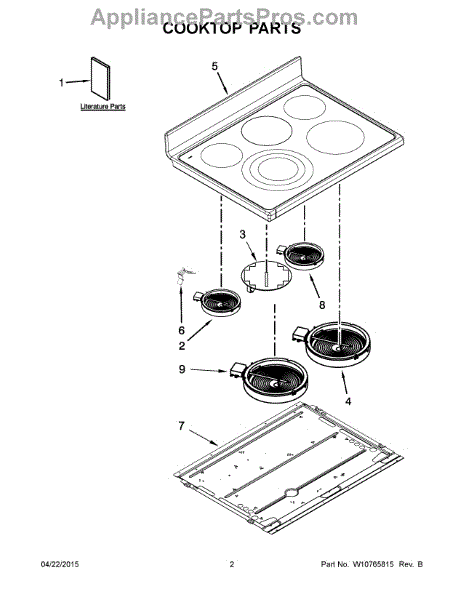

Parts for Whirlpool KERS505XBL05: 02 - Cooktop Parts

Surface heating element that supplies a 700-watt top-burner heat source for compatible electric ranges, restoring reliable low-heat cooking and precise simmering performance on the affected burner. What it does:

• Provides 700W of heat for a small/simmer cooktop burner to support low- and medium-heat cooking.
• Replaces a burner element that won't heat, heats intermittently, or shows visible damage or burn marks.
• Restores normal burner operation so cookware heats more evenly on that zone.
• Fits into the existing cooktop receptacle and connects to the range wiring without additional heating components.

• Disconnect power at the circuit breaker or unplug the range before servicing.
• Allow the old element to cool fully before removal; handle terminals carefully to avoid bending.
• Inspect terminal clips and wiring for damage during installation; replace any damaged connectors or receptacles.

• Wattage: 700W
• Sold individually

This surface heating element replaces a failed warm zone on an electric cooktop or range, restoring the low-temperature heating area used for keeping food warm. Designed to match OEM fit and function for compatible units. What it does:

• Provides the low-temperature "warm zone" heating needed to keep plates and dishes warm
• Heats at lower temperatures than main burners for gentle warming
• Commonly used when the warm area does not heat or maintain temperature
• Helps correct symptoms like a cold or intermittently heating warm zone, or uneven warming

• Disconnect power to the appliance before starting any repair
• Allow the cooktop to be completely cool and handle glass or ceramic surfaces carefully
• Follow your appliance's service manual for safe removal and installation; use basic hand tools
• Do not install if the cooktop glass is cracked or damaged—replace the glass top first

This is the cooktop top panel that provides the durable surface and mounting area for burners and controls, restoring proper function and appearance to your range. It replaces a cracked, scratched, or damaged cooktop surface so you can use your range safely. What it does:

• Re-establishes a flat, stable surface for burners, grates, and cookware
• Protects internal components from spills and debris
• Helps maintain correct burner alignment and appearance
• Addresses visible damage such as cracks, chips, deep scratches, or warping

• Disconnect power (and gas, if applicable) before starting any repair
• Follow factory service manual instructions for removal and reinstallation to avoid damage
• Use proper support and two-person lifting for large or heavy panels to prevent breakage or injury
• If glass or ceramic, handle with care and replace any damaged mounting hardware or gaskets

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Element-Surf is an OEM part for Whirlpool electric ranges. The element-surface performs a role in safe, even heating.

Causes of a worn or damaged element-surface can include scratches, cracks or chips from cookware use over time. Surface level issues compromise effectiveness.

Symptoms of a damaged element-surface include:

• Uneven or slow heating between elements
• Exposure of electrical components below
• Food debris easily getting lodged in irregularities
• Loss of the glossy smooth appearance

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This wire harness assembly routes power and signals between the appliance control and key components, restoring electrical connectivity for reliable operation. It replaces damaged or burned wiring to help resolve intermittent power loss or non-responsive controls. What it does:

• Provides factory-style connections between the main control and components such as motors, switches, and sensors.
• Restores interrupted circuits caused by frayed, melted, or broken wires.
• Helps address symptoms like no-power to certain functions, error codes related to open circuits, or intermittent operation.
• Maintains proper routing and secure connector fit to prevent shorts and improve reliability.

• Disconnect power to the appliance before starting any repair to avoid shock or injury.
• Inspect connectors and surrounding insulation; replace if contacts are corroded or terminals are damaged.
• Follow the appliance wiring diagram and secure harness with existing clips and ties to prevent chafing.

This factory-style wire harness routes electrical power and signals between components to restore reliable connections and normal appliance operation. Use it to replace a damaged or worn wiring assembly. What it does:

• Re-establishes electrical connections between control, motor, sensors, or switches
• Restores power and signal transmission to resolve intermittent or no-operation symptoms
• Helps eliminate frayed, burned, or broken wiring that can cause failures or safety risks
• Maintains original routing and connector fit for proper component engagement

• Disconnect power (unplug or shut off breaker) before starting any work
• Compare connectors and routing to the original harness for correct installation
• Secure harness with existing clips or fasteners; avoid pinching or sharp edges
• If wiring shows heat damage or corrosion at connectors, inspect adjacent components

Comes with three connectors per package.

Size: 10-24X5/16-NI
