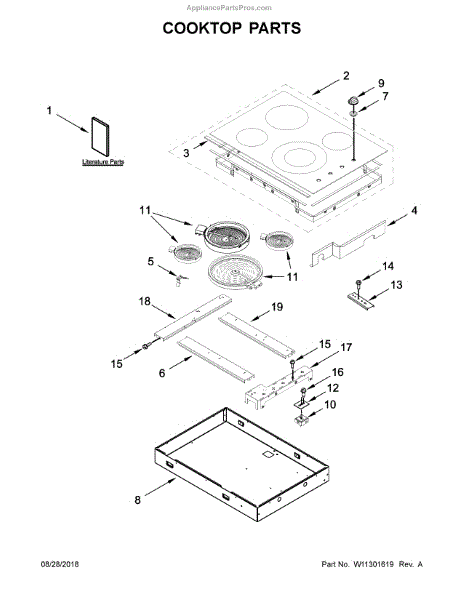

Parts for Whirlpool WCE55US0HS01: Cooktop Parts

The Cooktop is an OEM replacement part for Whirlpool cooktops. It is responsible for providing the heating surface and burners that allow for versatile cooking.

The cooktop is subject to heat, spills, and regular wear that can cause deterioration over time. Causes of a bad cooktop can include cracks or damage in the glass or ceramic top, burned or non-functional heating elements, or issues with the control panel or electronic components.

Symptoms of a bad cooktop include:

• Slow or uneven heating of burners
• Burners that will not ignite or turn off unexpectedly
• Discoloration or cracks in the glass or ceramic surface
• Leaks or loose fittings on the control valves

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This cooktop top assembly replaces the damaged or worn surface on compatible Whirlpool ranges, restoring a flat, stable cooking area for burners. It's the main outer cooking surface that supports burners and cookware for safe, even use. What it does:

• Replaces cracked, dented, or corroded cooktop surface so burners and cookware sit level
• Restores proper spacing and support for element burners and grates
• Helps reduce heat loss and prevents debris from falling into the range cavity
• Addresses symptoms like visible surface damage, unstable cookware, or heat/odor from a compromised top

• One cooktop top assembly

• High-level replacement; may require removing grates, burners, and control panel for access
• Disconnect power at the breaker before starting to avoid electric shock
• Handle carefully to avoid scratching or chipping the finish; glass/porcelain surfaces are fragile

The Cooktop is an OEM part for Whirlpool cooktops. It provides the vital flat or grates surface needed for cooking and preparing meals. The cooktop contains the multiple electric cooking elements or gas burners required for heating pots, pans and other cookware.

Causes of a damaged cooktop can be excess temperature fluctuations, improper cleaning techniques, damage from heavy pots and pans, or normal wear over extended use.

Symptoms of a bad cooktop include:

• Elements or burners that do not heat properly or inconsistently
• Hot spots or cold spots on the cooktop surface
• Visible wear and distortion of the glass or metal cooktop
• Dents, cracks or other physical damage

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This genuine rubber grommet cushions and secures components where wiring, hoses or metal parts pass through panels to prevent rubbing and reduce vibration. It restores proper fit and helps stop wear that can lead to noise or chafing. What it does:

• Cushions and isolates parts to reduce vibration and rattling
• Protects wiring and hoses from abrasion where they pass through holes
• Holds panels or components in position for a correct fit
• Helps eliminate intermittent noises caused by loose or worn mounts

• Disconnect power to the appliance before beginning any service
• Inspect surrounding area for damage; replace any frayed wires or cracked panels
• Typically presses into place by hand; use a non-marring tool if needed to avoid tearing
• If grommet fits tightly, apply a small amount of mild soap or lubricant for installation — avoid petroleum-based products on rubber

Color: black. Measures about 1-1/2 inches in diameter.

Replacement control knob that restores simple, reliable user control of appliance settings. Installs quickly to replace a cracked, worn or missing knob so you can accurately select heat or function positions. What it does:

• Provides the user interface to turn and set appliance controls (temperature, power or function)
• Replaces damaged or missing knobs that make settings hard to choose or read
• Slides onto the factory control shaft for a secure fit and positive detents
• Restores tactile grip and clear setting selection for safe operation

• Disconnect electrical power (and shut off gas supply where applicable) before servicing.
• Remove the old knob by pulling it straight off the control shaft; align the replacement and push it fully onto the shaft until seated.
• No special tools are usually required; if a set screw is present, tighten gently—do not overtighten.
• Reconnect power/gas and test control function after installation.

This replacement control knob restores a solid, precise feel when selecting settings on your appliance. It replaces a cracked, loose, or missing knob so the control shaft engages properly and your chosen settings hold. What it does:

• Mounts on the control shaft to select functions such as cycles, temperature, or burner level
• Common symptoms: cracked/broken knob, loose or wobbly fit, knob falls off, turns without engaging the control
• Restores proper engagement so settings stay put during use
• Direct replacement sized to fit the original control shaft interface

• Includes 1 control knob

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Pull the old knob straight off the shaft—avoid prying against the control panel
• Align the new knob with the shaft and press firmly until fully seated
• After installation, rotate through settings to ensure proper engagement

The Knob is an OEM replacement part for Whirlpool ranges and cooktops. This part sits on the appliance's electronic control dial or switch assembly. The knob allows for the adjustment of temperature settings, timers, and cooking functions.

Causes of a faulty knob can include cracking or wear of the plastic coating from prolonged exposure to kitchen heat. Stripping of internal gear teeth is also possible with heavy use over time.

Symptoms of a failed knob include:

• The knob being loose, wobbly or detaching from the control assembly
• Difficulty turning or grabbing onto the knob surface for adjustments
• Failure to clock accurately to setting notches or positions

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Infinite Switch is an OEM part for Whirlpool ranges. This switch is responsible for controlling the operation of the surface element on your range, allowing you to adjust the heat levels for cooking.

A bad surface element switch can occur due to regular wear and tear, electrical issues, or physical damage. If you notice symptoms such as an unresponsive switch, inability to adjust the heat levels, or inconsistent heating, it may be time to replace the surface element switch.

Symptoms of a bad surface element switch include:

• Unresponsive switch
• Inability to adjust heat levels
• Inconsistent or inadequate heating

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Infinite Switch is an OEM part for Whirlpool ranges. It contains internal switches that control cooking functions and safety features.

Causes of a bad switch set can be related to prolonged high-heat exposure, moisture, or accidental impact damage. Over many uses, normal component wear also occurs.

Symptoms of a bad switch include:

• Inoperable or unresponsive dials/buttons
• Failure to ignite burners or maintain set temperatures
• Stovetop elements do not turn off properly
• Oven will not initiate bake or broil cycles

This switch replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore ranges.

1800 watt

This dual radiant surface element restores even, responsive heat to a smooth-top range or cooktop. It replaces a failed burner so the inner and outer rings heat correctly for dependable everyday cooking.

• Provides heat to a dual-size cooking zone beneath the glass surface
• Works with the surface control to use the inner ring alone or both inner and outer rings
• Common symptoms: burner won't heat, only one ring heats, slow or uneven heating, visible scorching or damage on the element
• Helps restore consistent temperature control and full dual-ring operation

• Disconnect power at the breaker before servicing; elements carry high current
• Lift or remove the cooktop to access the element
• Note wire locations and transfer any mounting brackets/clips from the old element
• Center the element under the burner outline and secure all connections before restoring power

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

This switch bracket mounting seal replaces a worn or damaged seal that cushions and protects the door or control switch mounting area. It helps keep the switch assembly seated and reduces debris and moisture intrusion for reliable operation. What it does:

• Seals the switch bracket mounting area to protect the switch from lint, dust and moisture
• Helps keep the switch properly positioned for accurate door or control sensing
• Can prevent intermittent or failed switch contacts caused by contamination or misalignment
• Useful when replacing a brittle, torn or missing mounting seal during switch or door repairs

• Disconnect power to the appliance before starting any repair
• Remove the door or panel per service instructions to access the switch bracket area
• Fit the seal into the bracket groove or around the switch housing, ensuring full seating without stretching
• Inspect adjacent clips or screws and reuse or replace as needed; test the switch function after reassembly

This hardware kit contains the small mounting parts needed to secure and support the appliance component. It provides replacement fasteners and brackets to restore proper fit and stability after service. What it does:

• Replaces worn or missing mounting pieces that cause loose panels or components
• Restores proper alignment and support for the associated assembly
• Helps stop rattling, vibration, or movement caused by missing hardware
• Matches OEM fit and function when used as a direct replacement

• Intended for technicians or experienced DIYers; inspect the kit before installation
• Use appropriate hand tools; tighten fasteners to manufacturer torque where specified
• Disconnect power and follow all safety procedures before servicing the appliance
• Replace only the parts shown for your specific model

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This genuine replacement screw secures appliance components so panels, brackets, and assemblies stay tight and properly aligned. Replacing stripped, rusted, or missing hardware restores a solid fit and helps prevent rattles, shifting, or looseness over time.

• Fastens panels, brackets, and internal parts to maintain proper alignment
• Helps resolve issues caused by missing or damaged screws
• Restores secure mounting after service where original hardware is lost
• Use when threads are stripped or the screw head is damaged and won't tighten

• Disconnect power; turn off gas supply if applicable before servicing
• Match screw location and length to your model's parts diagram for correct placement
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug firmly but do not overtighten to prevent damage to mounting points

This genuine replacement screw secures panels and components on compatible Whirlpool appliances so parts stay fastened and operate quietly. Use it when a screw is missing, stripped, or during routine repairs to restore proper fit. What it does:

• Fastens panels, brackets, and trim to prevent rattling or loose parts
• Replaces missing or damaged screws that cause misalignment or gaps
• Restores secure mounting for controls, housings, or internal components
• Helps maintain appliance stability and safe operation when used as directed

• Disconnect power and/or gas before working on the appliance to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and tighten until snug; do not overtighten to prevent damage
• Keep small parts away from children and magnetic/metal detectors when handling

This switch seal is a small rubber gasket that protects a control or door switch from moisture and debris, helping maintain reliable operation and prevent damage to the switch assembly. What it does:

• Creates a moisture- and dust-resistant barrier around a switch to reduce shorting and corrosion
• Helps keep switches operating smoothly by blocking contaminants that cause sticking or intermittent contacts
• Supports safe electrical performance by keeping water away from switch terminals and housings
• Common symptom linkage: switch malfunction, intermittent control, or moisture-related failures near switch area

• Disconnect power to the appliance before inspecting or replacing the seal
• Remove surrounding trim or components carefully to avoid damaging the switch or housing
• Confirm correct orientation and full seating of the seal during reassembly for an effective barrier
• If the switch shows damage or corrosion, replace the switch assembly as well

This foam tape is used to seal and cushion mating surfaces in your appliance. Replacing a worn strip restores a snug fit, helps reduce noise, and helps maintain proper airflow, heat, or moisture control where specified by the manufacturer.

• Provides a compressible seal between components per the unit's parts diagram
• Cushions panels and trim to reduce vibration, buzzing, or rattling
• Helps prevent air, steam, or heat leaks at joints and seams
• Replace if the original tape is torn, flattened, missing, or contaminated

• Disconnect power and shut off gas/water as applicable; allow the appliance to cool before service
• Note the original tape placement; remove old material and residue, then clean and dry surfaces
• Apply per the service manual; avoid stretching; press evenly to ensure full contact
• If the OEM procedure calls for trimming, cut carefully to length and avoid gaps or overlaps

This 10-32 terminal block nut fastens wire lugs to the appliance's terminal studs. Replacing a missing, stripped, or corroded nut restores a tight, reliable connection and helps prevent heat damage or intermittent power at the connection.

• Secures wire lugs to a 10-32 terminal stud for a solid electrical connection
• Restores proper clamping force when the original nut is stripped, corroded, or missing
• Helps address loose/burned terminal connections, heat discoloration, or intermittent power at the block
• Suitable for terminal block and similar 10-32 stud applications on compatible appliances

• Disconnect power at the breaker or unplug the appliance before servicing
• Inspect the terminal block, studs, and wiring for heat damage; replace any damaged components
• Clean threads and start the nut by hand to avoid cross-threading; tighten firmly without overtightening
• If the stud turns while tightening, hold it with an appropriate tool to protect the block
