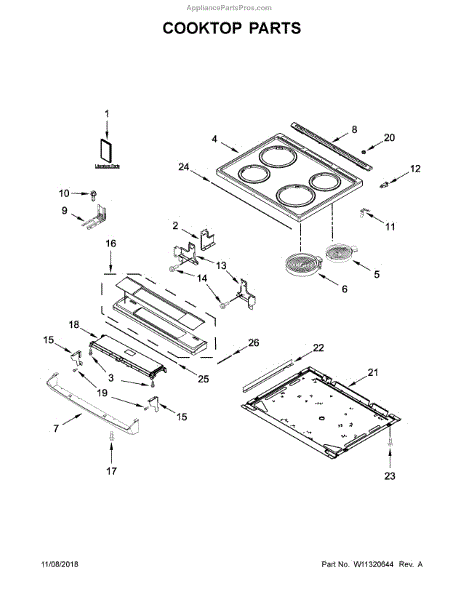

Parts for Whirlpool WEE510S0FB2: Cooktop Parts

This is a genuine replacement mounting screw used to secure appliance panels and components. It restores proper fastening to reduce vibration and prevent parts from loosening during normal operation. What it does:

• Secures panels, brackets, or trim to the appliance frame
• Prevents rattling or vibration caused by loose fasteners
• Keeps wiring and small components held in place
• Helps maintain proper alignment of removable parts

• Disconnect power to the appliance before servicing
• Use the correct screwdriver or bit to avoid stripping the head
• Start threads by hand, then tighten until snug; do not overtighten
• Keep removed fasteners organized to ensure correct reassembly

The Cooktop is an OEM part for Whirlpool ranges. The cooktop sits atop the oven, housing the surface elements responsible for cooking and heating meals.

Symptoms of a bad Cooktop include:

• Burners that do not ignite or heat up properly
• Uneven heating across the cooktop surface
• Burners that cannot be turned off or controlled
• Gas leaks around burner components
• Cracks or damage allowing food or liquids to seep underneath

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This is the smooth glass cooktop surface that provides the flat, durable cooking area for your range. It restores a clean, even heating surface so pots and pans sit level and cook predictably. What it does:

• Replaces a cracked, scratched or chipped glass cooktop surface to restore safe use and proper cookware contact
• Supports heating elements and transfers heat evenly across cookware
• Helps prevent food and liquid from reaching internal components
• Improves appearance by replacing discolored or damaged glass

• One glass cooktop surface

• Turn power off at the breaker and before servicing
• Handle glass carefully and wear cut-resistant gloves; glass can break during removal or installation
• Follow OEM service manual instructions for removing the old top and securing the new surface
• If heating elements or trim were damaged, inspect and replace those parts as needed

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

Color: White

The black Control Console is an OEM part for Whirlpool gas ranges. Located at the front of the control panel area, it incorporates touch controls and LED displays for thoroughly customized cooking.

Symptoms of a faulty control console include:

• Unresponsive buttons that do not select temperature settings
• Inoperable cooktop or oven displays and indicators
• Foreign substances obstructing touch sensitivity
• Physical cracks compromising the protective sealing

Causes often involve buildup interfering with circuit boards or residue infiltration degrading electrical paths over time. Impact accidents can fracture components as well.

Compatible models also include those by Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore.

This trim vent restores the finished look and airflow at the front base of your refrigerator. It replaces a damaged or missing grille to help maintain proper ventilation and a clean appliance appearance. What it does:

• Covers the front base opening and directs airflow into the refrigerator's vent area
• Helps keep debris and large particles out of the ventilation channel
• Restores a finished, factory appearance to the appliance front
• Common symptom: cracked, broken, or missing grille that exposes the vent area

• Remove power to the appliance before starting any service if panels near electrical components must be removed
• Typically installs with clips or screws—retain fasteners and follow OEM access steps
• Handle part carefully to avoid scratching paint or bending mounting tabs
• Replace damaged hardware to ensure secure fit

The Vent Trim is an OEM part for Whirlpool ranges. It enhances the appearance of your kitchen while providing a finished look to the range vent area. It covers the gaps and edges around the range vent, creating a clean design.

A bad vent trim can occur due to wear and tear, accidental damage, or improper installation. If you notice symptoms such as loose or missing trim, gaps around the vent area, or an uneven and unfinished look, it may be time to replace the vent trim.

Symptoms of a bad vent trim include:

• Loose or missing trim
• Gaps around the range vent area
• Uneven and unfinished appearance

Repair your range by replacing the worn-out or damaged vent trim with this genuine OEM part.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This anchor tip secures the washer agitator to the transmission shaft so the agitator turns with the washer drive. Replaces a worn or damaged anchor tip to restore proper agitator engagement and reduce slipping. What it does:

• Secures the agitator to the drive shaft so the agitator rotates with the motor
• Helps prevent the agitator from slipping or spinning independently
• Commonly used when the agitator feels loose, makes grinding or clicking noises, or stops agitating
• Simple, low-profile part that works behind the agitator cap

• One anchor tip

• Disconnect power and water before starting any repair
• Remove agitator/agitator cap to access and replace the anchor tip per OEM instructions
• Inspect mating surfaces and replace any additional worn components if engagement remains poor

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

This control panel is the appliance's front user interface that houses the touchpad and display, restoring full control and visible status readout for the appliance. It replaces a cracked, unresponsive, or damaged console to regain normal operation. What it does:

• Provides the push-button/touch controls and display for selecting cycles and settings
• Transmits commands to the appliance's control board so selected functions run correctly
• Restores readable status indicators when the original panel is faded or broken
• Helps resolve symptoms like unresponsive buttons, missing display indicators, or physical damage to the console

• One control panel assembly

• Disconnect power (unplug or shut off breaker) before starting any repair
• Remove front cover or trim per service diagram to access the panel; handle connectors gently
• Inspect ribbon cables and connectors for damage; replace any damaged connectors separately

This replacement control panel restores the user interface on select Whirlpool ovens and ranges so you can access bake, broil, timer, and oven settings. Replaces a cracked, faded, or unresponsive front control surface. What it does:

• Houses the oven's buttons/touchpad and display so you can enter temperature, mode, and timer selections.
• Restores responsive controls when buttons or touchpad stop responding or labels become unreadable.
• Helps address cosmetic damage such as cracks, scratches, or worn graphics on the console.
• Works with the existing control electronics when panel-to-board connections are intact.

• Disconnect power to the appliance before starting any repair to avoid shock.
• Some consoles require removal of trim or the oven door for access; handle glass and sharp edges carefully.
• Transfer any electronic modules, overlays, or fasteners from the old panel only if verified to be the same.
• If controls remain unresponsive after panel replacement, check the control board, ribbon cable, and wiring for faults.

The Range Control Electronic Module is an OEM replacement part specific to Whirlpool ranges. It contains the integrated circuits and circuit boards responsible for operating all burner and oven functions.

Symptoms of a bad control module include:

• Burners failing to ignite or not working properly
• Inability to adjust temperature settings on the oven
• Lights or timers displaying error codes or not functioning
• Appliance displaying unexpected behavior or not powering on

Causes of a bad control module can be liquid spills inside the range that damage circuitry over time. Repeated heating and cooling cycles may also potentially cause internal components to degrade.

This genuine Whirlpool control module replacement is compatible with select brands such as Kenmore, KitchenAid, Maytag, and more that utilize Whirlpool parts and technology.

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement pan is the appliance's drip tray that catches and channels condensate or minor spills to help prevent water from pooling inside the cabinet. It restores proper water collection and reduces the risk of internal leaks. What it does:

• Collects condensate, drips or minor leaks from the evaporator/hoses and channels it to the drain area
• Helps prevent water from pooling beneath components that could cause odor or corrosion
• Restores the appliance's intended water-management function when a cracked or warped pan causes leaks
• Suitable when you see standing water, dripping inside the cabinet, or water under the appliance

• One replacement pan as pictured

• Turn off and unplug the appliance (or shut off power at the breaker) before servicing
• Remove access panels or shelving as needed to reach the pan; keep track of fasteners
• Inspect surrounding hoses and mounts for damage while the pan is out; replace damaged parts as required

This replacement screw secures appliance panels and components to keep parts aligned and stable. Use it to replace missing or damaged fasteners that cause loose trim, rattling, or unsecured panels for safer, quieter operation. What it does:

• Fastens panels, brackets, trim pieces, or small components in place
• Restores proper alignment and stops vibration or rattling caused by loose hardware
• Replaces stripped, corroded, or missing screws to prevent parts from shifting or falling
• Compatible where the OEM lists part W11244557 as the required fastener

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Tighten securely but avoid over-tightening, which can strip threads or crack parts
• Replace like-for-like; length before installing

Replacement gasket that restores a tight seal to the appliance door and helps prevent water or air leaks. Replaces worn, cracked, or compressed seals so the door closes properly and reduces moisture or heat loss. What it does:

• Seals the door opening to stop leaks of water, steam, or heated air.
• Helps maintain proper temperature and efficiency by preventing air exchange.
• Reduces condensation, odors, and cycling caused by a poor seal.
• Common signs you need this part: visible gaps or damage, leaks around the door, excess moisture, or poor heating/cooling performance.

• Disconnect power and water (if applicable) and allow the appliance to cool before starting.
• Clean and dry the mating surface to ensure a proper fit; remove old adhesive or debris.
• Align the gasket into the door channel or groove and press evenly; avoid stretching the material.
• If the door or mounting hardware is bent or damaged, repair those parts before installing the gasket.

This oven door gasket seals the oven cavity to keep heat and moisture in for even cooking and energy efficiency. A worn or damaged gasket can cause heat loss, longer cook times, or visible smoke/odor. What it does:

• Creates a tight seal between the oven door and cavity to retain heat and moisture
• Helps maintain consistent bake and roast temperatures for even cooking
• Reduces heat escaping that can trigger longer cook cycles or cycling issues
• Limits smoke and food odors from leaking into the kitchen

• Disconnect power and allow the oven to cool completely before servicing
• Remove the door per the manufacturer instructions if needed to access the gasket channel
• Inspect the gasket channel for debris and clean before installing the new gasket for a proper seal
• The gasket is fully seated along the door perimeter and check for pinched or twisted sections

This wire harness supplies factory-style wiring and connector plugs to restore proper electrical connections between a range or dryer's controls and components. It replaces a damaged or corroded harness to help restore reliable operation. What it does

• Routes power and signal connections between the control board and components.
• Replaces frayed, burnt, or broken wires that can cause intermittent or no operation.
• Helps resolve symptoms like lights or controls not responding, cycles not starting, or inconsistent component function.
• Uses OEM-style terminals and connectors to match factory hookups.

• Disconnect all power (unplug appliance or switch off breaker) before starting work.
• Compare connectors and wire colors to the original harness to ensure correct routing.
• Avoid pulling on wires; disconnect and reconnect by the housings to prevent terminal damage.
