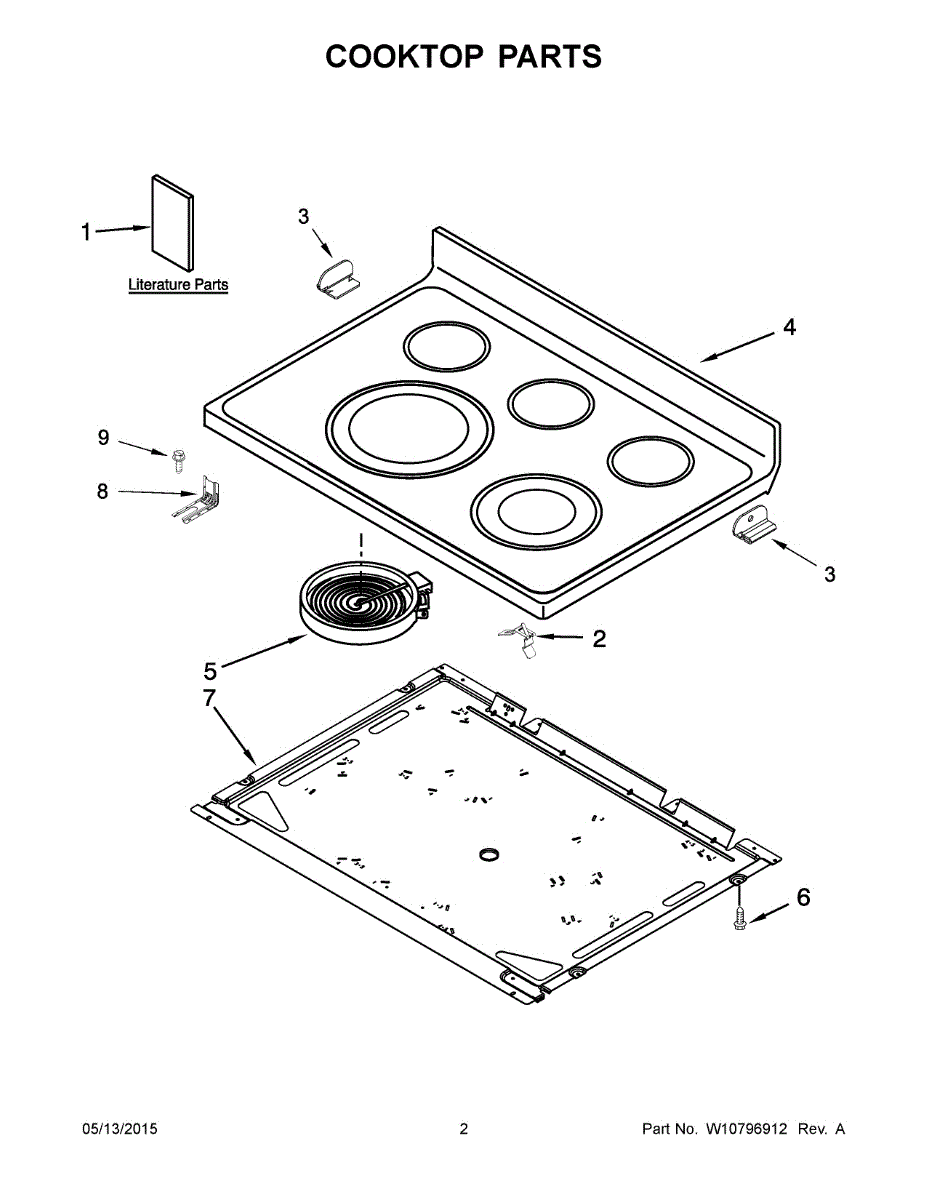

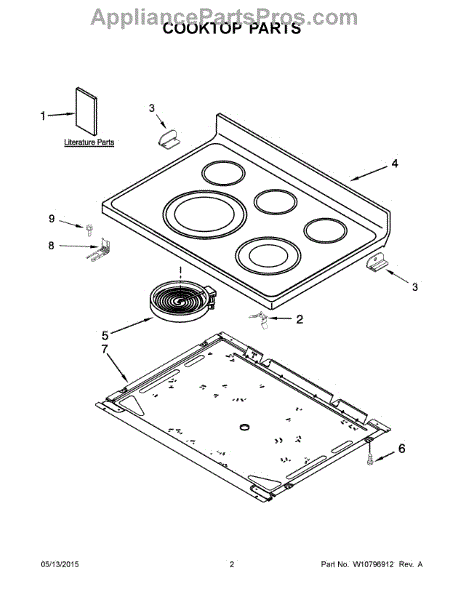

Parts for Whirlpool WFE540H0EB0: 02 - Cooktop Parts

This small spring applies tension to hold an element in the correct position within the appliance, helping maintain reliable contact and stable operation. Replacing a worn spring can restore proper element support and performance.

• Provides push tension to keep the element seated and secure
• Helps prevent intermittent heating due to poor element contact
• Common signs include rattling, poor element stability, or intermittent heat

• Disconnect power and allow the unit to cool before service
• Access the element mounting area; note original spring placement
• Use needle-nose pliers to remove and install the spring carefully
• Inspect adjacent clips and wiring; replace damaged parts as needed

Color: White

This is a cooktop. It is installed on top of a stove and is used to heat dishes while cooking. It is made for use on electric ranges and is a smooth-surfaced alternative to typical coils. Since the cooktop is made of glass, it can become damaged, cracked, or broken, which will prevent cooking on the range. If this happens, the cooktop will need to be replaced.Work gloves, pliers, and a screwdriver are needed to replace the range cooktop. Unplug the stove from the wall and open the oven door. Remove the screws that hold the cooktop and lift it up and away from the frame. Remove the burners and cooktop and set them to the side. Clean out the inside of the cooktop before sliding the new cooktop onto the range. Reattach the burners and screw in the cooktop. Plug in the range and test it before using.This part is sold as an individual product. It is a genuine OEM replacement component that is sourced directly from the manufacturer. The cooktop is designed for use with ranges, ovens, and stoves by Whirlpool.

This replacement surface heating element restores direct heat to a cooktop burner so pots and pans heat properly. It's a straightforward swap for a damaged or non-heating top burner coil. What it does:

• Heats cookware by providing the cooktop's surface heating element for the top burner
• Replaces elements that no longer glow, get intermittently hot, or fail to heat at all
• Restores even cooking when an old or damaged element causes uneven heating
• Works with controls and infinite switches that send power to the burner

• One surface heating (top burner) element

• Disconnect power to the range before attempting service to avoid shock hazard
• Allow the old element to cool completely before removal; handle the element by its base only
• Ensure the replacement is seated and connected to the terminal block securely before testing

This is a dual radiant surface element for a smoothtop range. It restores reliable heating on one burner position with adjustable small/large cooking zones for better control and even heat on compatible glass cooktops.

• Heats cookware using two selectable zones (small or full) to match pan size
• Replaces a worn or non-heating burner element on the cooktop
• Common symptoms: element won't heat, only one ring heats, uneven heating, or cycling off too soon
• Helps resolve tripped-limiter behavior caused by a failing element assembly

What's included: One dual radiant surface element assembly Install notes:

• Disconnect power before servicing; surface elements are high-voltage components
• Lift or remove the cooktop to access the element
• Transfer any mounting brackets and reconnect wires to the same terminals
• Avoid touching the radiant surface; handle by the frame to prevent damage

The Surface Element is an OEM part for Whirlpool stoves and cooktops. It is the heating element located on the cooktop, responsible for providing heat to pots and pans for cooking.

Common causes of a bad surface element include wear and tear from repeated use, overheating, or electrical issues. Ensuring the element is functioning correctly is crucial for efficient and safe cooking.

Symptoms of a bad surface element include:

• Element not heating up
• Inconsistent or uneven heating
• Visible damage or burning on the element
• Sparking or electrical issues when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 1200 watt - LR / RR element

The Surface Element is an OEM part for Whirlpool ranges. It is responsible for providing the heat necessary for cooking on the stovetop. Designed to fit seamlessly into the range, this element ensures even heating and efficient energy use, allowing for precise temperature control during cooking.

Causes of a bad surface element can include normal wear and tear, electrical faults, or damage from cookware. Over time, repeated heating and cooling cycles can cause the element to degrade, while physical impacts or spills can also lead to malfunction.

Symptoms of a bad surface element include:

• Inconsistent or uneven heating
• The element not heating up at all
• Visible damage or burn marks on the element
• Sparks or unusual noises when the element is turned on

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: 3000/1400W - Left front element

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

This wire harness is the appliance's main electrical connector assembly that routes power and signals between components, restoring reliable electrical connections for controls and motors. Use it to replace a damaged, burnt, or broken harness. What it does:

• Carries power and control signals between the appliance's control board, motors, switches, and sensors
• Replaces damaged wiring that can cause intermittent operation, non-responsive controls, or failure to start
• Restores proper connector fit and secure splices to prevent arcing and poor contact
• Helps eliminate issues caused by frayed insulation, broken terminals, or melted wires

• One complete wire harness assembly

• Disconnect the appliance from power (unplug or switch off breaker) before starting any repair
• Compare the new harness to the old one for connector type and routing before disconnecting components
• Route wires along the original paths and secure with existing clips or ties to avoid heat and pinch points

This wire harness assembly routes power and signals between appliance components to restore electrical connections and normal operation. It replaces a damaged, burnt, or disconnected wiring harness to help appliances power up and respond correctly. What it does:

• Provides the main electrical connections between control, motor, switches, and sensors
• Replaces broken, melted, or corroded wires and terminals that cause intermittent power or function failures
• Helps resolve symptoms such as no power to a circuit, intermittent operation, or component(s) not responding
• Maintains factory routing and connector fit for a secure, vibration-resistant connection

• One complete wire harness assembly

• Disconnect power to the appliance before beginning service to avoid shock or injury
• Compare the harness and connector shapes to the original before installing; route wires along the original path and secure any clips
• Use proper tools and secure all terminal connections; if terminals are damaged, replace the entire harness rather than splicing
