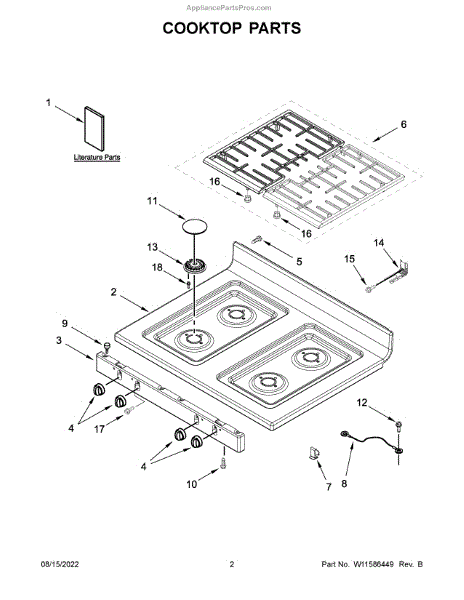

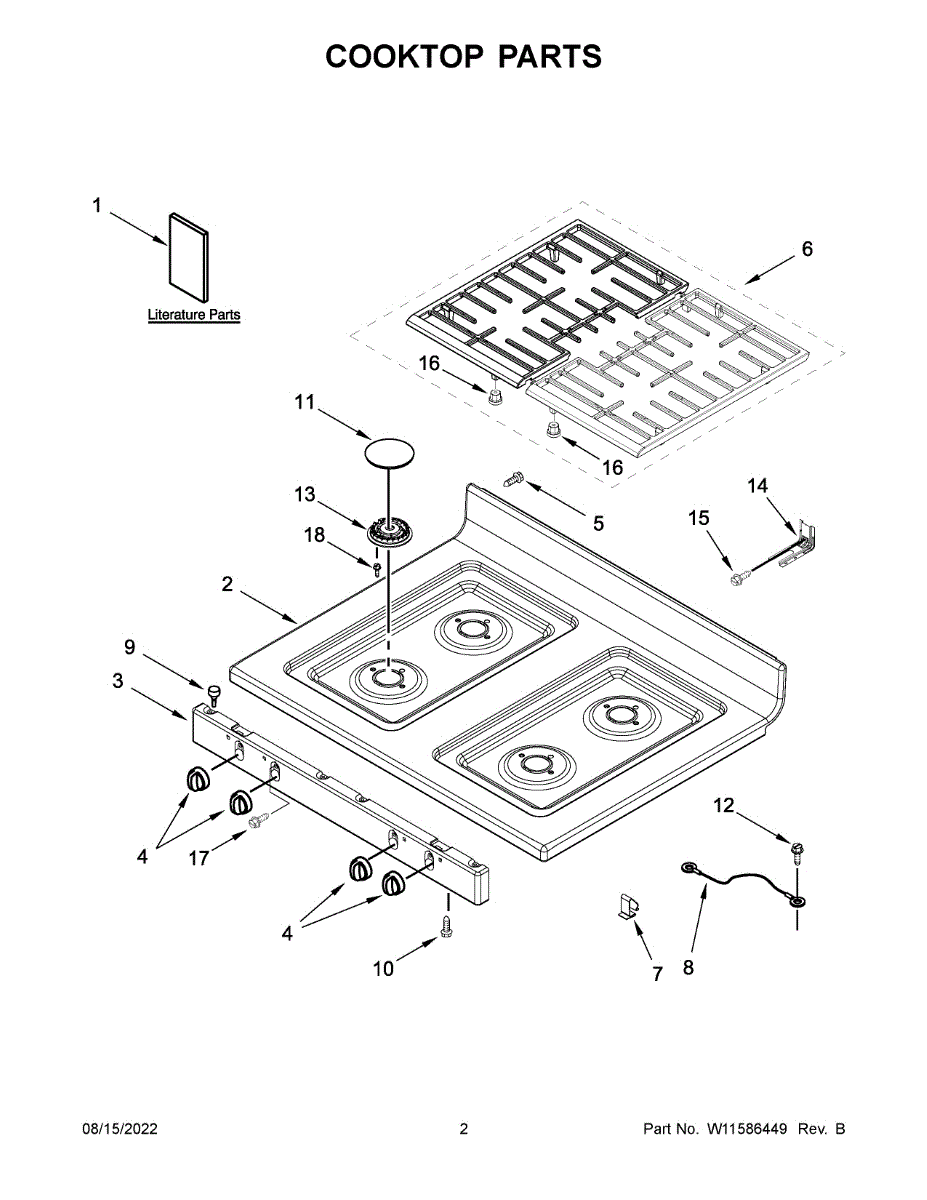

Parts for Whirlpool WFG320M0BW3: Cooktop Parts

The Knob is an OEM part for Whirlpool ranges. This knob allows you to control the temperature and settings of your range burners, ensuring precise cooking adjustments.

Causes of a bad range knob can include frequent use leading to wear and tear, accidental damage from dropping or impact, or exposure to high heat causing it to melt or crack.

Symptoms of a bad range knob include:

• Difficulty turning the knob or adjusting the burner settings
• The knob feeling loose or not fitting securely on the control shaft
• Visible cracks or breaks on the knob
• Inconsistent or unresponsive burner operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This genuine ground screw secures appliance grounding connections to the chassis, helping maintain electrical safety and reliable grounding. It's a direct-fit fastener used where a secure ground point is required. What it does:

• Provides a secure chassis grounding point for appliance electrical safety
• Secures ground wires or grounding straps to sheet metal or grounding posts
• Helps prevent loose ground connections that can cause intermittent faults or safety risks
• Matches OEM thread and length for correct fit and electrical contact

• Use appropriate tools; avoid stripping the head or over-tightening which can damage threads or the grounding surface
• Ensure the mating surfaces are clean and free of paint or corrosion for good electrical contact
• Disconnect power to the appliance before servicing electrical grounding connections

The Grate Set is an OEM part for Whirlpool ranges and cooktops. It consists of the grates that sit atop the cooktop surface, providing a sturdy platform for pots and pans during cooking. Note: Contains Left and Right grates. For Grate foot, order W10919249

Causes of a bad part can include exposure to high temperatures over time, impact or dropping, or general wear and tear from regular use.

Symptoms of a bad Grate Set include:

• Warping or bending of the grates
• Grates not sitting flush or level on the cooktop
• Cracking, chipping, or excessive wear on the grate surfaces
• Unstable or wobbly grates, posing a potential hazard

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Clip is an OEM component specifically designed for Whirlpool ranges. This clip plays a role in securely holding and mounting components within the appliance.

The clip is designed to securely grip parts in place, preventing unwanted movement or dislodging that could impact the operation or result in damage. It allows for components to be effortlessly installed while remaining firmly affixed.

Causes of a bad clip can include wear and tear over time, damage due to excessive force or impact, or deterioration from heat exposure.

Symptoms of a bad clip include:

• Loose or detached components inside the appliance
• Increased vibration or unwanted noise during operation
• Components that are not sitting securely or properly installed
• Difficulty accessing or removing parts that rely on the clip

This OEM Whirlpool part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This ground wire provides a safe chassis connection to restore proper grounding and reduce shock and electrical-fault risk. It replaces a frayed, corroded or missing ground lead to help keep the appliance electrically safe. What it does

• Connects the appliance chassis to the grounding system to prevent stray voltage on metal surfaces
• Restores a secure ground path if the original wire is broken, loose, or corroded
• Helps stop intermittent power faults or nuisance tripping caused by a compromised ground
• Addresses symptoms like visible wire damage, loose ground connection points, or grounding-related electrical issues

• One ground wire

• Always disconnect power (unplug or shut off the circuit breaker) before starting work
• Attach the ring/terminal ends to the designated chassis ground screw and the equipment ground point
• Route the wire away from moving parts, heating elements, and sharp edges; secure with existing clips or fasteners
• If terminal hardware is missing or damaged, replace with equivalent OEM-style fasteners and torque to specification

This bumper is a small cushioning stop used at contact points on the appliance. It absorbs impact and prevents metal-to-metal contact to reduce noise and protect surfaces when doors, drawers, lids, or racks close.

• Cushions closing to soften impact and protect finishes
• Serves as a stop to maintain proper spacing at the contact point
• Helps reduce slamming, squeaks, and rattles
• Replace if cracked, flattened, missing, or if new clunking noises occur when closing

• Disconnect power (and shut off water/gas if applicable) before servicing
• Note the bumper's original location and orientation
• Remove the old bumper and clean the mounting area or hole
• Press the new bumper fully into place and verify a secure fit and proper clearance

This factory screw secures appliance components to their mounting points. Replace missing, worn, or stripped hardware to restore a tight fit, proper alignment, and quieter operation across the affected assembly.

• Fastens panels, brackets, covers, or internal parts to the chassis or frame
• Helps maintain alignment and support, reducing rattle, vibration, or looseness
• Replaces missing or damaged screws that have backed out, broken, or stripped
• Restores secure mounting after service when original hardware is lost

• Disconnect power; shut off water or gas supplies before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Match length and thread to the original location; do not substitute with longer hardware
• Tighten snugly; do not overtighten into plastic or thin metal

This replacement screw secures appliance panels and components. Use this OEM fastener to swap out stripped, corroded, or missing hardware so assemblies stay tight, aligned, and quiet for reliable day-to-day operation.

• Provides secure attachment for panels, brackets, and internal assemblies
• Direct replacement for stripped, corroded, or lost screws
• Can help with symptoms like vibration, rattling, or loose/misaligned parts
• Supports proper fit to reduce gaps or unwanted movement

• Disconnect power; for gas or water appliances, shut off the supply before service
• Note hardware order and retain any spacers or clips from the original setup
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Repair or replace the mating part before installation

This mounting bracket secures and supports appliance components, providing a stable attachment point to keep parts aligned and reduce movement during operation. It's a simple, durable metal bracket used where a fixed support is required. What it does:

• Provides a secure attachment point for panels, assemblies, or internal components
• Keeps parts aligned to prevent vibration, noise, or rubbing
• Restores proper fit and function when a bracket is bent, cracked, or missing
• Compatible with OEM mounting locations that accept this bracket style

• One mounting bracket

• Turn off power and disconnect the appliance before beginning any repair
• Use appropriate fasteners and torque to match the original hardware; replace any damaged screws
• Handle sharp edges carefully and wear gloves to protect your hands

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Grate Foot is an OEM part for Whirlpool gas ranges. It attaches to the bottom of the cooktop grates, providing stability and preventing the grates from scratching the cooktop surface.

Common causes of a faulty grate foot include constant exposure to high temperatures, wear from frequent removal and cleaning of the grates, or physical damage from accidental impacts.

Symptoms of a bad grate foot include:

• The grates wobbling or not sitting level on the cooktop
• Scratches or damage appearing on the cooktop surface
• The grates making noise or shifting during use
• Visible wear, cracking, or missing pieces on the grate foot

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This cable tie secures wiring and the power cord to the appliance chassis to help prevent chafing, pinching, or loose connections. Simple, low-cost part that restores proper wire routing and strain relief. What it does

• Holds wiring and harnesses in place to prevent rubbing against sharp edges
• Helps reduce risk of intermittent power or connector strain caused by loose wires
• Keeps harnesses routed for correct clearance and component access
• Useful during repairs to restore original wire routing and strain relief

• One cable tie (wire harness retainer)

• Safety first: disconnect the appliance from power before inspecting or replacing wiring components
• Remove the damaged or existing retainer and route harnesses to match original OEM routing before installing the new tie
• Trim excess tie tail; do not overtighten—secure, but avoid crushing wires
• Replace any tie that's melted, cracked, or otherwise damaged rather than reusing it

This main wiring harness connects the control console (LCC) to the appliance's electrical components, restoring reliable signal and power routing for controls. It replaces damaged or worn harnesses that cause intermittent or non-functioning controls. What it does:

• Routes power and control signals between the console LCC and internal components
• Restores lost or intermittent control functions caused by broken, frayed, or burned wires
• Prevents error codes or shutdowns from poor or corroded connector contacts
• Enables proper operation of buttons, displays, and control-driven features

• Disconnect power to the appliance before beginning any work to avoid electrical shock
• Handle connectors carefully; align pins and push fully to ensure secure connections
• Route harness along existing clips and channels to prevent chafing or pinching
• Inspect mating connectors and control board for damage before final assembly

Screw for side trim.
