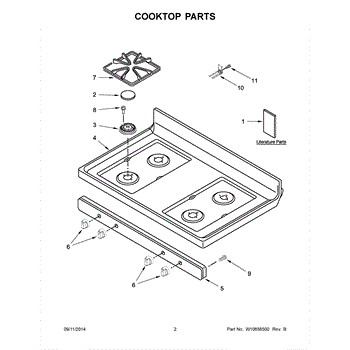

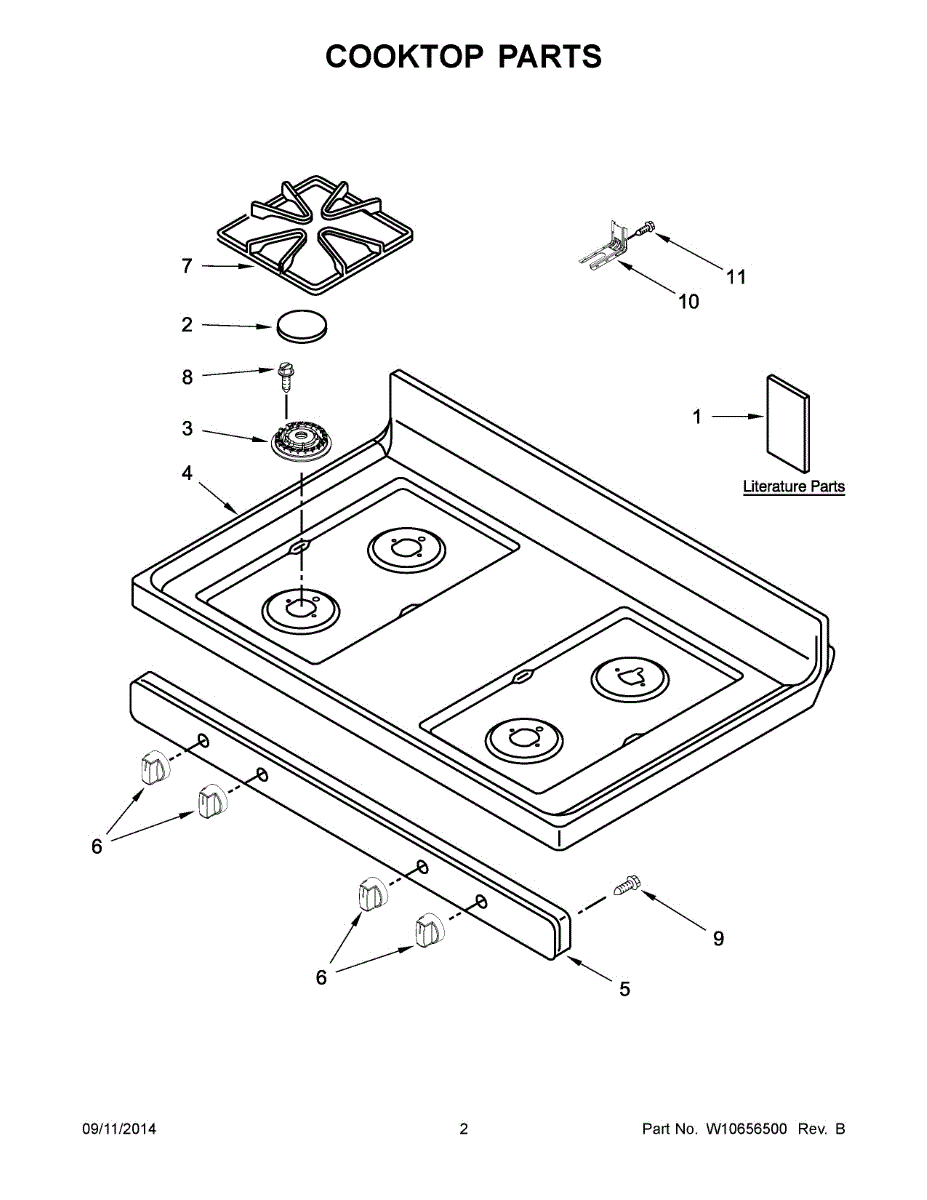

Parts for Whirlpool WFG510S0AB2: 02 - Cooktop Parts

The burner cap is an OEM part for Whirlpool gas ranges. It is located on the cooktop burner and helps to distribute the gas evenly, allowing for a consistent and controlled flame.

A bad burner cap can occur due to regular use, wear and tear, or accidental damage. If the cap becomes worn, cracked, or clogged, it can lead to issues such as uneven heating, weak flames, or difficulty in igniting the burner.

Symptoms of a bad burner cap include:

• Uneven heating or hot spots on cookware.
• Weak or inconsistent flames.
• Difficulty in igniting the burner.
• Visible damage or debris accumulation on the cap.

If you're experiencing any of these issues, it's time to replace the Cap-Burner with this genuine Whirlpool part for proper heat distribution and reliable ignition for your gas range. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Replacement burner head for gas cooktops and ranges that directs the flame for even heating and restores burner performance. Ideal when a burner is damaged, clogged, or producing weak or uneven flames. What it does:

• Directs gas flow to the burner ports to produce an even, stable flame for consistent cooking.
• Replaces a warped, cracked, or clogged burner head that causes uneven heating or reduced heat output.
• Can resolve ignition issues related to misaligned or damaged burner components.
• Fits standard surface burner assemblies.

• Turn off the appliance's gas supply and power, and make sure the cooktop is completely cool before starting.
• Remove the grate and old burner head, clean the area of debris, then seat the new burner head onto the burner base so it sits flush.
• No special tools are usually required; ensure ports are unobstructed and the head is properly aligned before testing.

The Surface Burner Base is an OEM part for Whirlpool ranges and cooktops. This component is a critical part of the stove's burner assembly, housing the gas outlet and providing a stable platform for the burner cap and flame spreader. It is specifically designed to handle the rigors of daily cooking, ensuring an even and controlled flame that enhances your cooking precision.

Symptoms of a failing Surface Burner Base include:

• Uneven flames or poor heat distribution
• Difficulty in lighting the burner
• Gas leaks detected around the burner area
• Visible signs of corrosion or damage to the base

Common causes for burner base issues can include continual exposure to high temperatures, spills that lead to clogging or corrosion, and normal wear and tear.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Burner and Electrode is an OEM part for Whirlpool cooktops and ranges. This component is essential for igniting the gas burner, ensuring efficient and reliable cooking performance. The burner provides a stable flame for cooking, while the electrode generates the spark needed to ignite the gas. Includes the igniter. The compatible screw is part number WP3368921 / AP6008125

You should replace the surface burner and electrode if they become faulty. Causes of a bad surface burner and electrode can include regular wear and tear, food residue buildup, or damage from high heat. A malfunctioning burner or electrode can lead to ignition issues and inefficient cooking.

Symptoms of a bad surface burner and electrode include:

• The burner not igniting or taking multiple attempts to light
• Weak or inconsistent flames
• Clicking sound without ignition when trying to light the burner
• Uneven cooking or hotspots on cookware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Color: Biscuit.

Color: White

Color: Black

This surface burner control knob fits gas ranges and cooktops that use a bladed valve stem. It restores positive engagement and smooth flame adjustment when the original knob becomes worn, cracked, stripped, or goes missing.

• Attaches to the burner valve's bladed shaft to turn the surface burner on/off and adjust flame level
• Replaces knobs that slip, spin freely, crack, or won't seat on the stem
• Restores readable settings and consistent feel during burner adjustments
• Common symptoms include difficulty turning the knob or a burner that doesn't respond to knob movement

• Allow the appliance to cool; disconnect power and shut off gas if working near burner valves
• Pull the old knob straight off; align the new knob with the blade orientation and press straight on
• Do not force—if it won't seat, verify your valve uses a bladed shaft.

The Knob is an OEM part for Whirlpool ranges. This knob allows you to control the temperature and settings of your range burners, ensuring precise cooking adjustments.

Causes of a bad range knob can include frequent use leading to wear and tear, accidental damage from dropping or impact, or exposure to high heat causing it to melt or crack.

Symptoms of a bad range knob include:

• Difficulty turning the knob or adjusting the burner settings
• The knob feeling loose or not fitting securely on the control shaft
• Visible cracks or breaks on the knob
• Inconsistent or unresponsive burner operation

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Gas Range Knob is an OEM replacement part for Whirlpool gas ranges and stoves. These knobs are designed to control the various burners, allowing you to adjust the flame and heat levels precisely.

Causes of needing to replace the gas range knobs can include normal wear and tear over time, accidental damage or impact, or issues with the knob's attachment or connection to the valve stem.

Symptoms of faulty gas range knobs include:

• Difficulty in turning or adjusting the knob
• The knob feeling loose or wobbly
• Visible cracks, damage, or missing pieces on the knob

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore gas range models.

The Grate Kit is an OEM part for Whirlpool gas ranges. The burner grates sit on top of the stove, providing a stable surface for pots and pans during cooking. These grates are designed to withstand high temperatures and support cookware securely. Note: Kit of 4 grates

Causes of a bad grate can include prolonged exposure to heat, accidental dropping of heavy cookware, or normal wear and tear from regular use.

Symptoms of a bad grate include:

• Chipped or cracked grates
• Uneven or unstable surface for cookware
• Difficulty balancing pots and pans during cooking
• Rust or discoloration on the grate surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Grate Kit is an OEM part for Whirlpool gas ranges. The burner grates sit on top of the stove, providing a stable surface for pots and pans during cooking. These grates are designed to withstand high temperatures and support cookware securely. Note: Kit of 4 grates

Causes of a bad grate can include prolonged exposure to heat, accidental dropping of heavy cookware, or normal wear and tear from regular use.

Symptoms of a bad grate include:

• Chipped or cracked grates
• Uneven or unstable surface for cookware
• Difficulty balancing pots and pans during cooking
• Rust or discoloration on the grate surface

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

The Anti Tip Bracket is an OEM component specifically designed for Whirlpool ranges. This bracket plays a crucial safety role in preventing the range from accidentally tipping over if excessive weight is applied to the open oven door.

The anti-tip bracket secures tightly to the floor or wall behind the range, linking it securely in place. It allows the oven door to function while ensuring the entire appliance remains stable even under heavy use.

Causes of a bad bracket can include damage, deterioration of mounting hardware over time, or failure to install properly according to manufacturer instructions.

Symptoms of a faulty anti-tip bracket include:

• The range appears unsecured and able to wobble or rock backward
• Looseness between the bracket and mounting surface
• Cracks or breaks in the anti-tip bracket material

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.
