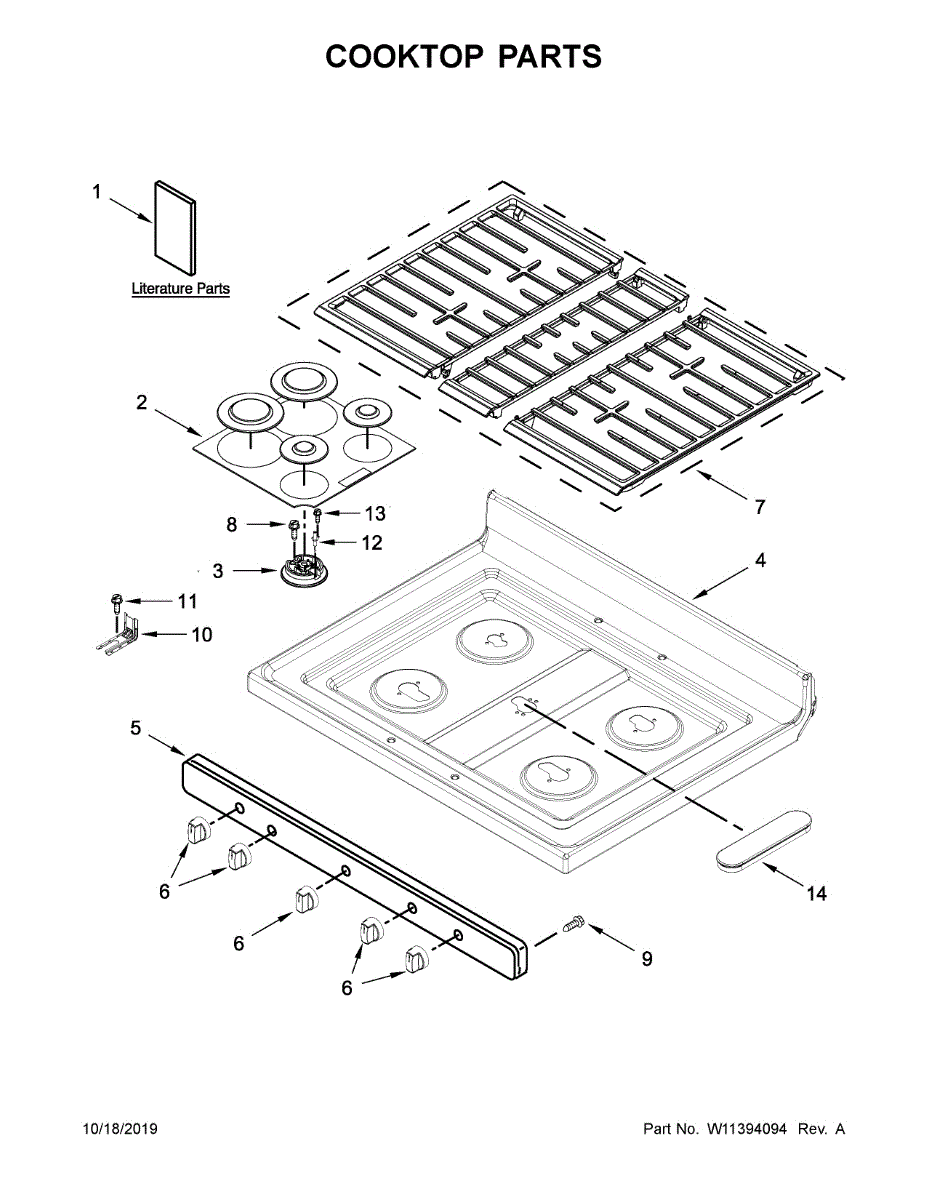

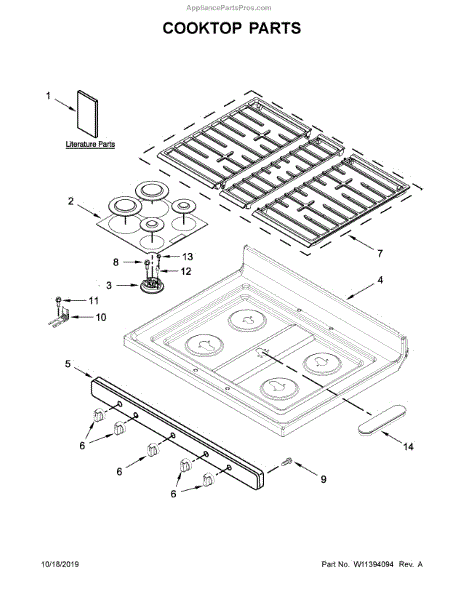

Parts for Whirlpool WFG535S0JS0: Cooktop Parts

The Surface Burner Base is an OEM part for Whirlpool ranges and cooktops. This component is a critical part of the stove's burner assembly, housing the gas outlet and providing a stable platform for the burner cap and flame spreader. It is specifically designed to handle the rigors of daily cooking, ensuring an even and controlled flame that enhances your cooking precision.

Symptoms of a failing Surface Burner Base include:

• Uneven flames or poor heat distribution
• Difficulty in lighting the burner
• Gas leaks detected around the burner area
• Visible signs of corrosion or damage to the base

Common causes for burner base issues can include continual exposure to high temperatures, spills that lead to clogging or corrosion, and normal wear and tear.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Surface Burner and Electrode is an OEM part for Whirlpool cooktops and ranges. This component is essential for igniting the gas burner, ensuring efficient and reliable cooking performance. The burner provides a stable flame for cooking, while the electrode generates the spark needed to ignite the gas. Includes the igniter. The compatible screw is part number WP3368921 / AP6008125

You should replace the surface burner and electrode if they become faulty. Causes of a bad surface burner and electrode can include regular wear and tear, food residue buildup, or damage from high heat. A malfunctioning burner or electrode can lead to ignition issues and inefficient cooking.

Symptoms of a bad surface burner and electrode include:

• The burner not igniting or taking multiple attempts to light
• Weak or inconsistent flames
• Clicking sound without ignition when trying to light the burner
• Uneven cooking or hotspots on cookware

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Note: Includes ignitor

Color: Black

The Knob (Stl) is an OEM part for Whirlpool ranges. It is used to control the various functions of the range, such as the burners and oven settings, by turning to the desired position.

You should replace the knob if it becomes worn out, cracked, or broken. Causes of a bad knob can include frequent use over time, accidental impact, or exposure to high heat which can cause the material to degrade.

Symptoms of a bad knob include:

• Difficulty turning the knob or selecting the correct settings
• The knob becoming loose or falling off
• Cracks or visible damage to the knob
• The knob not engaging with the control shaft properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This Whirlpool Grate Kit is an OEM part for select Whirlpool range models. The kit includes grates that provide a stable and secure surface for your cookware on the stovetop.

Grates can deteriorate over time due to constant exposure to high heat, aggressive cleaning agents, or heavy cookware. Common problems include warping, chipping, or enamel coating degradation, which can compromise the stability of your pots and pans while cooking.

Symptoms of worn-out grates include:

• The grates wobble or are unstable when cookware is placed on them.
• Noticeable chips, cracks, or rust on the grates.
• Difficulty in cleaning, with food residues sticking persistently.
• Discoloration or deterioration of the grate's surface.
• Uneven heating of cookware due to warped grates.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


The Torx Screw is an OEM replacement part for Whirlpool brand appliances. The Torx Screw is responsible for providing secure and stable connections between different components of washing machines, dryers, dishwashers, and more. These screws are characterized by their star-shaped drive design, which offers better torque transfer and reduces the risk of stripping or cam-out. Sold individually. 7-18 x 3/4"

Causes of a bad Torx screw can include stripping of the screw head, rust or corrosion from prolonged exposure to moisture, or damage from over-tightening or cross-threading. A compromised screw can lead to loose or insecure parts, which can affect the performance and safety of the appliance.

Symptoms of a bad Torx screw include:

• The screw head being stripped and difficult to turn
• Rust or corrosion visible on the screw
• The screw not holding components securely
• Loose or rattling parts within the appliance

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

This replacement screw secures appliance panels and components so they stay tight and aligned during use. Replacing a missing or damaged screw restores a solid fit and helps eliminate rattles, loose trim, or shifting parts.

• Fastens brackets, panels, trim, or components to the appliance chassis
• Helps correct loose or missing hardware after vibration or service
• Replaces stripped, rusted, or broken screws
• Can reduce rattling noises or misaligned parts caused by missing fasteners

• Disconnect power; for gas appliances, also shut off the gas supply
• Support the part being fastened; start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening
• Replace hardware with the exact part number to ensure proper fit

Screws for range anti tip bracket: WP3801F656-51. Includes 2 screws.

The Electrode is an OEM part for Whirlpool gas ranges. This part ignites the gas in the surface burner, providing the flame necessary for cooking. The electrode generates a spark that lights the gas when the burner knob is turned on.

Causes of a bad electrode can include wear and tear from frequent use, buildup of food residue or grease, or physical damage from cleaning or accidental impact.

Symptoms of a bad electrode include:

• The burner not igniting
• Weak or intermittent sparking
• Clicking noises without the burner igniting
• Uneven or weak flame from the burner

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Electrode is an OEM part for Whirlpool gas ranges. This part ignites the gas in the surface burner, providing the flame necessary for cooking. The electrode generates a spark that lights the gas when the burner knob is turned on.

Causes of a bad electrode can include wear and tear from frequent use, buildup of food residue or grease, or physical damage from cleaning or accidental impact.

Symptoms of a bad electrode include:

• The burner not igniting
• Weak or intermittent sparking
• Clicking noises without the burner igniting
• Uneven or weak flame from the burner

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement mounting screw secures panels and small components on compatible Whirlpool appliances, restoring proper fit and reducing rattles or loose parts for a solid, finished appearance. What it does

• Fastens control panels, trim pieces, or internal brackets to the appliance chassis
• Helps stop panel vibration, rattling, or misalignment caused by missing or worn fasteners
• Restores secure attachment after disassembly for service or part replacement
• Simple hardware replacement that maintains original fit and function

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use the correct screwdriver or bit to avoid stripping the head
• Thread gently and stop when snug — do not overtighten to prevent damage to mating parts
• Keep removed hardware organized to ensure correct reassembly

The Top Burner is an OEM part for Whirlpool gas ranges. It supports the center surface burner, providing a stable and efficient heat source for your cooking needs. It ensures proper gas flow and distribution, allowing the burner to ignite and provide an even flame for cooking.

A bad burner base can occur due to various reasons, such as wear and tear, buildup of food debris or grease, or accidental damage. If you notice symptoms such as uneven flames, difficulty in lighting the burner, or a wobbly or unstable center burner, it may be time to replace the burner base.

Symptoms of a bad burner base include:

• Uneven flames
• Difficulty in lighting the burner
• Wobbly or unstable center burner

Restore the efficient cooking performance of your Whirlpool gas range by replacing the faulty or worn-out center surface burner base with this genuine OEM part.
This Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This cable clamp secures a wiring harness to the appliance frame to prevent chafing and strain on electrical connections. It helps keep wires routed neatly and reduces the risk of abrasion-related faults. What it does:

• Holds wiring harnesses in place to prevent rubbing against sharp edges or moving parts
• Reduces strain on terminal connections and wire leads
• Helps prevent intermittent electrical problems caused by loose or misrouted wires
• Keeps routing tidy for safer, cleaner internal layouts

• One cable clamp

• Disconnect power to the appliance before beginning any repair
• Replace with the same clamp type and orientation as the original; secure without over-tightening
• Route wires so insulation is not pinched; verify clearance from moving parts
• If you see damaged insulation or frayed wires, repair those issues before reassembly

The Wire Harness is an OEM part for Whirlpool ranges. It is an intricate network of electrical wires that distributes power to components like the oven control board, temperature sensor, displays, buttons, lights, and more. Proper operation of these systems relies on an intact and functioning wire harness.

Causes of a bad wire harness can include cracked insulation, and exposed or severed wires due to stress and movement over time. The harness may also develop shorts, abrasions, or disconnects in wiring due to normal wear and repeated use of the oven door.

Symptoms of a bad wire harness include:

• Sudden failure of control buttons, lights, or displays
• Unstable or fluctuating oven temperatures
• Electrical burning smells when the oven is in use
• Intermittent or complete lack of power to oven systems

This Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore electric ranges.
