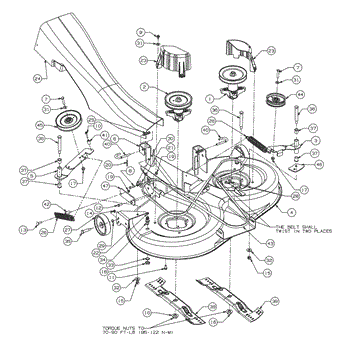

Parts for White Outdoor 13B4516N190 / 2003: Deck Assembly Parts

This spindle assembly is a genuine MTD part, sold individually. This spindle assembly can be used as a replacement part in a lawn mower. The purpose of the spindle assembly in a lawn mower is to provide a spot to which the blades of the appliance can affix and around which the blades can rotate while the appliance is in operation.The spindle assembly might have to be replaced at some point if the blades come loose from the component or that the component suffers damage that renders it beyond functionality. If the spindle assembly is chipped, cracked, dented, warped, punctured, or otherwise seriously damaged to the point that its function is reduced or negated, the spindle assembly should be removed and replaced by this genuine OEM replacement part before using the lawn mower again. It is a simple replacement process that will require only basic tools.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This spindle assembly is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Troy-Bilt, Yard Machines, Huskee, Yard Man, and MasterCut.

This screw is used on a variety of lawn and garden equipment from many manufacturers. This hex screw is a large bolt that has a six-sided head that can be used to fasten metal to wood or wood to wood. This type of screw is unique from traditional screws because the bolt head needs to be held with a socket while a second wrench is used to tighten or loosen the part. The bolts have a smooth shank and small threads. These screws can break or become damaged and no longer do their job. When that happens, they will need to be replaced. A hex key wrench can be placed into the slot of the screw and turned counterclockwise to loosen up the bolt. The replacement hex screw can then be placed in the original hole to adhere parts together on lawn equipment. This is a genuine replacement OEM screw that is commonly used on Craftsman, Toro, Murray, MTD, Yard Machines, Troy-Bilt, Bolens, Yard-Man, MasterCut, Cub Cadet, and Huskee lawn mowers, log splitters, snowblowers, chainsaws, tillers, and string trimmers. The screw is sold individually and made of durable metal.

There are multiple uses for the 5/16-18 Hex Screw. It is often used with small gasoline-powered yard equipment such as lawn and garden machines. While hex screws such as these may be used in edgers and snowblowers, the most frequent use this screw is in yard tractors. This variety of screw is commonly used in attaching the various appendages of gas-powered equipment to a central operating platform. In particular, these hex screws are used to secure the engine block of power tools to the frame or housing of the equipment. Once in place, these fasteners have an almost unbreakable strength to them. This is so much so the case that often, in order to detach the engine manifold and repair the inner workings of an engine, the bolts must be chiseled or cut loose. In such cases, it is necessary for the bolts to be replaced during reassembly. Manufacturers insist that genuine OEM replacement parts be used in the rebuilding process. These replacement parts were manufactured to the same exacting specifications used to make the original screws. These OEM screws are compatible with equipment made and sold by Yard-Man, Cub Cadet, Troy-Bilt, Husky, MTD, Bolens, and Yard Machines.

This replacement part is a hex screw. This is a genuine replacement part made by MTD. This specific type of screw is most commonly found in different types of machinery and appliances. Screws are able to keep parts stable and connected so that they are secure during use. A new hex screw might be needed if the current one is visibly damaged or missing. It is not uncommon for screws to become stripped down or lodged in place after years of normal wear and tear. If this is the case they should be replaced as soon as possible. If the screw is lodged in place, pliers might be required in addition to a screwdriver to complete this repair. This part is sold individually and is sourced directly from the manufacturer. This part is a genuine OEM replacement part to ensure proper fit and long-lasting use.

This OEM screw is a fastener with a trimmed six-sided or hexagonal head plus a washer face on the bearing surface. It is one of the most commonly used fasteners. Considered standard hardware, this component has multiple applications and can be used on woodworking, machine assembly, and mechanical repair. The screw is 3/4 long and has a thread size of 5/16 -18. A hex cap screw is installed into tapped holes by turning the head to fit and tighten. This is the fastener of choice in applications where tight tolerance is necessary. This is a genuine factory part sourced from the manufacturer and is sold individually. It can be used with Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut brands of lawn maintenance equipment including lawn mowers, snowblowers, tillers, leaf blowers, log splitters, and wood chippers.

The nut-hex flange 5/8-18 features a hex nut with a wide flanged portion at one end. This flange will act as an integrated washer that does not spin. Since the flange acts as a washer, it ensures that the nut can fasten to the material's surface evenly. If any of these nuts are removed from a machine to do other work, it is recommended to replace them with a new nut-hex flange. Check the nuts that are currently on the machine at least once a year. Make sure they are properly tightened and that they are in good condition. Replace them as needed. This OEM part will work for many types of equipment, including lawnmowers, edgers, snowblowers, and lawn tractors. The part will work with many brands, including Ryobi, Poulan, Bolens, Yard-Man, MTD, Yard Machines, and Troy-Bilt.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.

Cotter pins are simple but very effective fasteners used primarily to hold wheels in place on mowers. This is particularly true of the front wheels on riding mowers. Cotter pins are very light and can become overly pliable after extensive use. In some cases, the front wheels of a mower, which are the guide wheels that steer the device, become difficult to manage. The cure for this situation is often simply the replacement of the cotter pins that are not holding the guide wheels adequately in place. Before attempting to remove the pins, it is essential that the spark plug boot is moved so that the mower cannot be started. This is an important safety step because the repairer will be getting under the mower near the blades. The back wheels should be blocked so the mower cannot move, then the front end placed up on blocks. Remove the mower's hubcaps to gain access to the axle spindles. Straighten the legs of the pin so that when the curved portion of the cotter pin is grasped with pliers and it can be pulled straight back and be removed. The spindle, washers, and wheels should be checked for wear before the new pin is placed and secured. This OEM cotter pin is compatible with Bolens, Yard-Man, Craftsman, Yard Machines, Cub Cadet, Turf King, Troy-Bilt, Huskee, Toro, Ryobi, MTD, MasterCut, Murray, and Montgomery Wards.

This replacement part is a plastic lawnmower wheel, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. These wheels are typically found in different types of lawnmowers. The wheels are attached to the deck of the lawnmower to prevent it from coming into contact with the ground. This allows easy maneuvering by the user of heavy machinery. A new lawnmower wheel might be needed if the current ones are damaged or broken in any way. Wheels are one of the most used parts of the lawnmower and easily become worn down over time. This is due to normal wear and tear. This wheel fits on the axle of the mower and is usually held in place by a bolt and locknut. Because of this, these wheels are easy to replace when using the correct tools. This part is compatible with different types of equipment made by MTD and is a genuine OEM replacement part.

This part is a replacement hood bumper. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a defective or misplaced hood bumper in a variety of lawn tractor models. The hood bumper prevents damage to the hood or dash panel when the hood is closed by providing a cushion. This part can be easily lost or damaged, requiring replacement. Work gloves should be worn to protect the hands during the installation process. It's important when working on or near any engine to make sure the equipment is powered off and completely cooled down before starting any repairs. No special tools are required to replace this part. For more accurate information on how and where to install this hood bumper, the appropriate owner's manual and equipment diagrams should be referred to. As an authentic replacement part, this hood bumper is suitable for use on several models of lawn tractors manufactured by MTD, Troy-Bilt, Cub Cadet, Craftsman, Yard Man, Husky, and Yard Machines. This is a genuine part made of high-quality, durable rubber and is sold individually.

This is a replacement bell washer, a flat washer that can be used with a wide range of various types of lawn and garden equipment. The inner dimension of this washer is 0.40 inches, while the outer dimension is 0.88 inches. Washers are typically used as a way to help ensure a tight connection when used with bolts or screws. They will also help to distribute the pressure of the connection and reduce the risk of corrosion. Washers will also provide some protection from damage during installation. Washers could need to be replaced for any number of reasons. In some cases, they might have become corroded or worn down over time. This could mean they no longer provide a solid and secure connection. Other times, the washer could become lost while working on the machine. Owners should always be sure that they replace any lost or damaged washers right away. Not using washers can reduce the lifespan of the machine. This is a genuine OEM bell washer that is sold individually. It is typically used in lawn mowers, snowblowers, tillers, leaf blowers, string trimmers, log splitters, wood chippers, edgers, and chainsaws. It is compatible with Craftsman, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, and MasterCut brands.

This lock washer is used frequently for a number of applications on power yard equipment. The size, 5/16, is the default for many small engine housing and manifold applications. Lock washers are used with machined bolts to fasten engine blocks to the housing of the equipment being used. The compressed washer is able to handle the constant vibration of the small gasoline engine without losing the seal between the screw or bolt and the housing. Typically these lock washers only need to be replaced when they are misplaced during repairs or when the screws that attach them have to be chiseled or cut away, meaning the washers are destroyed as well. These OEM certified replacement washers have been manufactured to the same specifications as the originals they are replacing. In addition to lawn mowers, lock washers of this type and size are frequently used on blowers, lawn tractors, cultivators, snowblowers, and trimmers. Brands compatible with this type of washer are Murray, Husky, Poulan, Bolens, Yard-Man, Cub Cadet, Troy-Bilt, Yard Machines, MTD, and Ryobi.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged, misplaced, or defective flat washer in a variety of power equipment. Flat washers are a standard piece of hardware with many different uses. Their primary purpose is to increase the bearing surface area of a screw. This can help to prevent screws from becoming loose over time due to pressure that leads to them sinking into the surface. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this flat washer is suitable for use on several different models of small engine outdoor power equipment manufactured by MTD, Murray, Craftsman, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

Here is a replacement shoulder screw that is commonly used for various types of outdoor power equipment. Another name for the shoulder screw is a shoulder pin. The screw is often used to help secure the plastic wheels to the deck of a machine. However, different machines may have different uses for shoulder screws and other types of hardware. The shoulder screw is made from metal and is durable. However, the pin may still need to be replaced at some point. Whether it is because of corrosion or being bent, it is important to replace a failed screw with a new one. When performing maintenance on the machine, it is also possible that the screw could become lost, which would require a replacement. This is a genuine OEM replacement shoulder screw. It is sold individually and works with many types of makes and models. The screw is often used for edgers, snowblowers, lawn mowers, and chainsaws. Brands that have models that will be compatible with the shoulder screw include Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, MTD, Huskee, Yard-Man, and MasterCut.

This replacement part is a flanged bearing. This is a genuine replacement part made by MTD. A flanged bearing is similar to a regular bearing but it contains an extension around the outer lip to allow for an easier mounting in the needed position. A new flanged bearing might be needed if the current one is missing or damaged in any way. This can be caused by wear and tear after years of normal use. Bearings often experience friction over time. This can cause the part to become worn down. When this happens, be sure to replace this part as soon as possible. Refer to the specific user manual before attempting to replace this part. This part is sold individually and is sourced directly from the manufacturer to ensure proper fit. This part is a genuine OEM replacement part made for long-lasting use.
