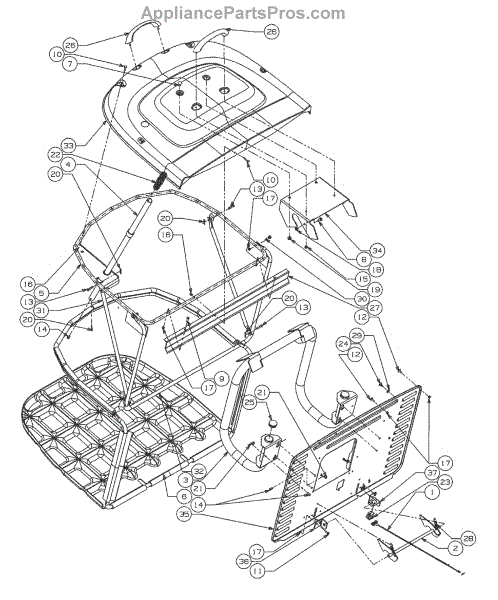

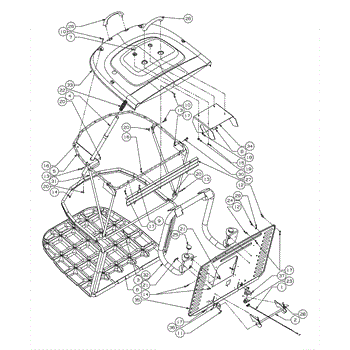

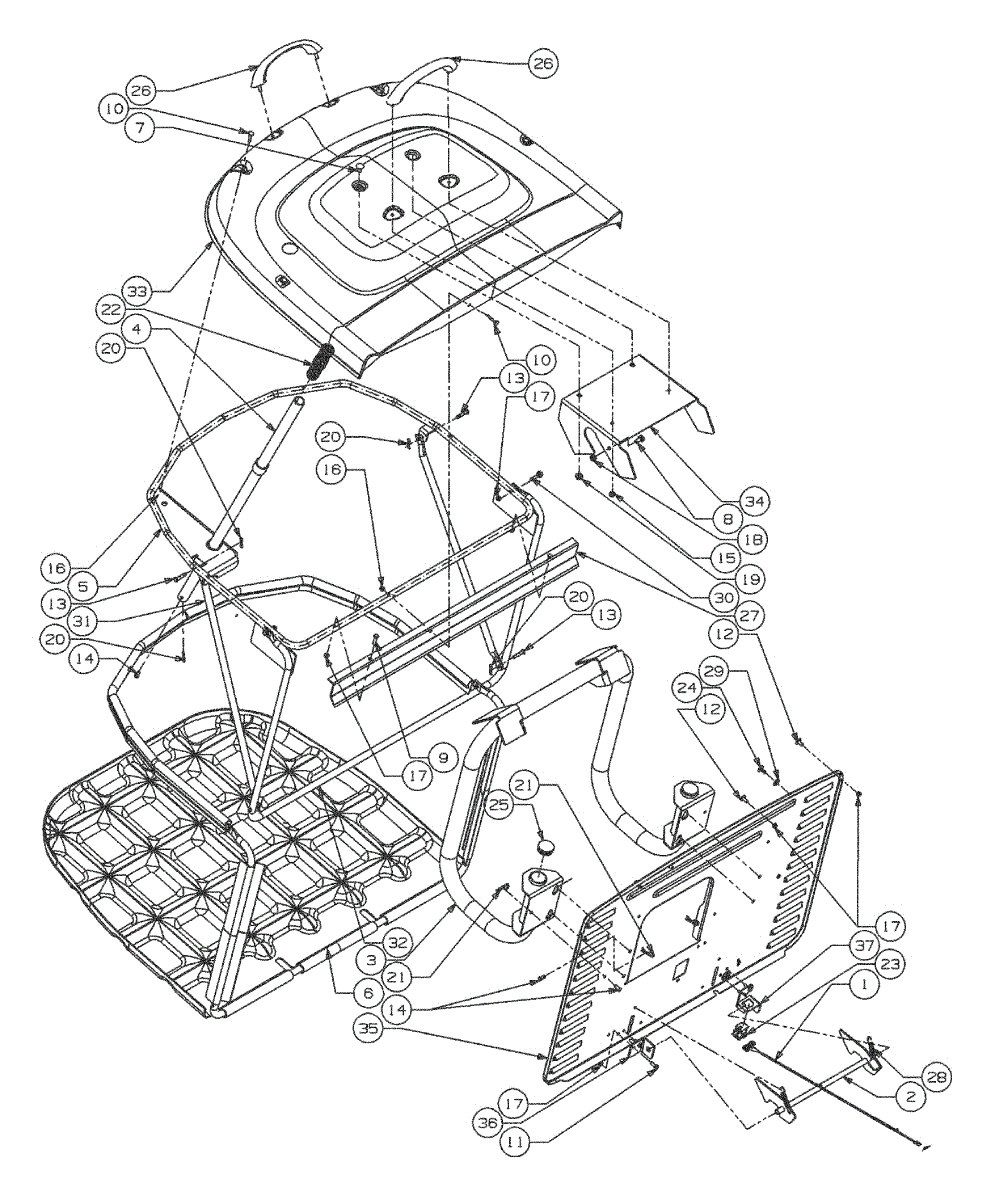

Parts for White Outdoor 13B4516N190 / 2003: Bagger Assembly Parts

This carriage bolt is a self-locking fastener made for use in round or square holes to attach metal to metal in outdoor equipment. These bolts provide an added safety feature because they can only be removed from one side. Carriage bolts can carry a large amount of weight, which makes them ideal for use in outdoor yard equipment. Carriage bolts may be used to attach a lawn mower's arm to the side support and other similar applications. If the bolt needs to be replaced, removal and installation are simple. Use a wrench to loosen the nut holding the washer and bolt in place. Once the nut is loose, the bolt can be unthreaded by hand and pulled out of the hole. To install, push the bolt back through the hole. If the fit is too tight to install by hand, use a hammer to tap it in place. Reinstall the washer and nut and tighten with a wrench.This carriage bolt is designed for use in lawnmowers, snowblowers, and lawn tractors manufactured by Craftsman, Bolens, Yard Machines, Yard-Man, and MTD. This is a genuine OEM product that comes directly from the manufacturer. Note: It does not come with a nut or washer.

This is a flange nut that can be used in a variety of lawn and garden equipment from different manufacturers. The nut is made of metal, measures 5/16x18, and is used to secure components in place. It also assists with preventing backing out caused by vibration. Over time, the flange nut can become damaged and will need to be replaced. If the flange nut in lawn and garden equipment has become damaged, is loose, or gets lost, then replacement is required. The level of difficulty of replacing a flange nut depends on which parts it's securing and what kind of equipment it is installed on. This flange nut is an OEM replacement part that can be used with lawn mowers, snowblowers, wood chippers, tillers, log splitters, leaf blowers, and edgers by MasterCut, Craftsman, Yard-Man, Toro, Bolens, Cub Cadet, Montgomery Wards, Ryobi, Huskee, Troy-Bilt, MTD, and Yard Machines. It is sold individually and will require a wrench or socket for installation.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

Click pins are used in various lawn equipment machines to hold the wheels on. For larger riding lawn mowers, click pins are only used on the smaller front wheels. The click pin penetrates through the axle spindle to hold the tire in place. The part can get lost, damaged, or wear out with regular use. It's also possible to misplace the click pin when changing a tire because it has to be removed first before working on the wheel. A missing, damaged, or worn click pin must be replaced.Click pins are very easy to replace with only a pair of pliers. Wear gloves when making the repair. Start by pulling out the old click pin from its location with the pliers. Insert the new click pin back into the hole located in the spindle.This click pin is a genuine OEM replacement part. It is made with durable, high-quality metal. It is supplied by the manufacturer. It is compatible with both MTD and Murray brands. The equipment the click pin can be used with includes lawn tractors, lawn machines, and other lawn equipment. It is sold as an individual unit.

This part is a replacement switch. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part is intended to replace a broken or malfunctioning switch in lawn tractors. Switches are essential to proper functionality of the lawn tractor, as they close and open electrical circuits to provide power. Snap swictches in particular are designed for quick, efficient use, as they require very little force to operate. If the switch stops working, it will need to be replaced in order for the lawn tractor to be usable. Wear work gloves to protect the hands and check that equipment is powered off and cooled down before starting the repair process. For more accurate information on how and where to install this snap switch, the appropriate owner's manual and equipment diagrams should be referred to. This switch is a genuine OEM part made of durable materials and is sold individually. It is suitable for use with lawn tractor models that have been manufactured by MTD, Craftsman, Troy-Bilt, and other brands.

This replacement part is a ratchet fastener, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by Husqvarna. This ratchet fastener is found on most lawn mowers and is similar to a screw in that it helps keep parts of the appliance in place and secure.A new fastener might be needed if the current ones are damaged or missing. It is common for these types of fasteners to become stripped over time after years of normal wear and tear. The repair for this part should be fairly easy and will only require a screwdriver and possibly pliers if there is a fastener stuck. If there are parts of the lawn mower that are loose or falling off, a new fastener might be needed. This small part is sold individually and is a genuine OEM replacement part. Be sure to purchase the correct amount as some appliances require more than one.

This is a simple extension spring with an outside diameter of 0.38 and a slack length of 2.5. It is primarily used as an extension spring for snowblowers, but may be compatible with other lawn equipment. It’s designed to apply tension as the throttle is applied. The more gas there is, the more resistance will be present. Under most circumstances, replacement is easy. When the spring breaks or gets rusty, look at both points of attachment. Memorize where it’s attached, or take a picture, and remove the old spring using a pair of pliers if necessary. Install the new spring and the tool is ready to use. This is an OEM part sourced directly from MTD, and it is sold individually. It’s black in color and was initially designed for Troy-Bilt lawnmowers. However, because this is a versatile part, it has since been repurposed for a number of MTD and related machines in other brands. These include lawn tractors and snowblowers, as well as lawnmowers, in brands such as Ryobi, Yard Machines, Husky, and Cub Cadet.
