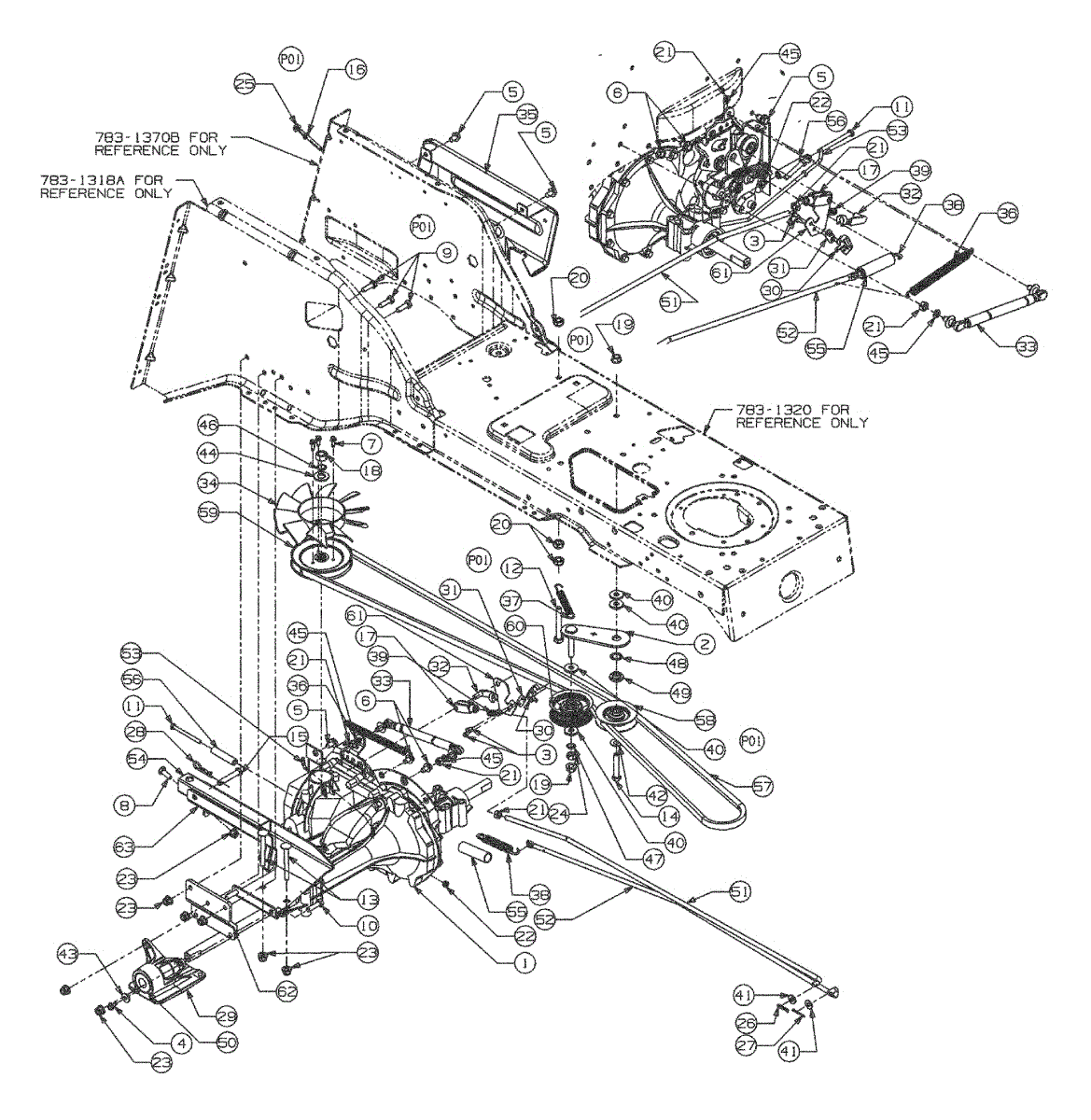

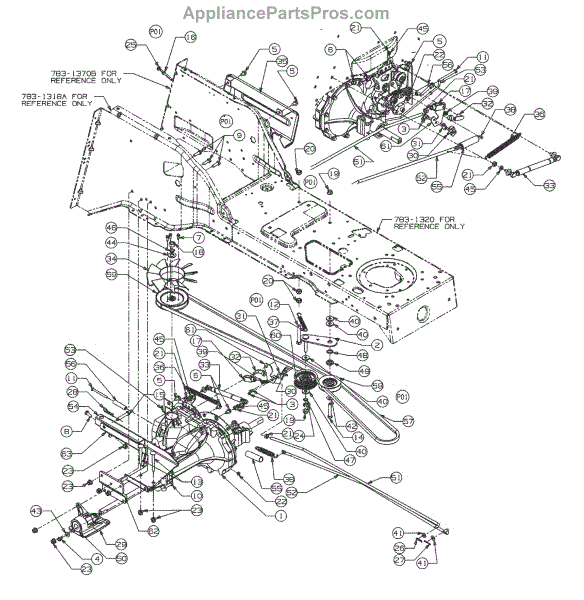

Parts for White Outdoor 13B4516N190 / 2003: Drive Parts

A hex screw fastens and holds two components together. It has a hexagonal head and features threading starting underneath the shoulder down to the tip. Its all-metal construction offers rigidity and longer lifespan. It is also threaded, so you can conveniently loosen or tighten in position. It measures 1/4-20 x 0.5 inch and comes in brass or gold color. Take note that this replacement hex screw may beused in different locations of a machine. Double check the device’s model number for compatibility. To install this hex screw, you will need a hex wrench or a hex socket. This hex screw is a replacement made by MTD. This screw/bolt may be used on lawn mowers, snowblowers, tillers, string trimmers, leaf blowers, edgers, chainsaws, pole pruners, log splitters, or wood chippers made by Craftsman, Toro, Cub Cadet, Ryobi, Troy-Bilt, Husky, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, Turf King, or MasterCut. This OEM hex screw is sold individually.

This replacement part is a hex screw, and it is intended for use in different types of lawn equipment. This is a genuine replacement part made by MTD. This screw can be used in a variety of ways depending on the repair needed. Hex screws are similar to normal screws except they have a six-sided head, like a hexagon. A new hex screw might be needed if the current one is damaged or missing. It is common that screws may become stripped or loose overtime, causing them to fall out. If any parts of the lawn mower are becoming loose or falling off, the hex screw might be missing. This replacement should be fairly easy and should only require a screwdriver and possibly pliers. This part is a genuine OEM replacement part and is sold individually. Be sure to purchase the correct amount as some appliances require more than one hex screw.

The replacement screw seen here is made from high-quality, durable metal. It is an identical replacement for a faulty screw in many types of lawn and garden equipment. The screw features a hex-bolt shaped head and is used for various applications in the machines. Owners will want to refer to diagrams of their model to ensure the correct application for the screw. A screw may need to be replaced for any number of different reasons. In some cases, the screw could become lost when making other repairs to the machine. It could also become bent or the threads could be damaged. Corrosion is also a possibility over time. Replacing the screw is typically considered a fast and easy repair. The screw is a genuine OEM replacement part that is sold individually. The screw can be used for many models of snowblower, lawnmower, chainsaw, tiller, string trimmer, log splitter, edger, and wood chipper. Compatible brands include Craftsman, Cub Cadet, Troy-Bilt, Murray, Yard Machines, MTD, Huskee, Montgomery Wards, Bolens, Yard-Man, and MasterCut.

The hex lock nut is found on many different types of outdoor lawn equipment, as well as other types of equipment. The lock nut works to secure bolted joints by adding friction to the bolt threads. The nut has flat sides, which can easily be gripped by a wrench to be tightened or loosened as needed. These types of nuts are common, as they provide easy assembly and disassembly of various parts. Buyers may need a new hex lock nut for a range of reasons. The nut that is currently on the equipment could have become damaged or lost while working on the machine. It is vital for all of the nuts to be in place and properly secured on the equipment before use. This is an authentic OEM part. Some of the products that use hex lock nuts include lawn mowers, snowblowers, tillers, edgers, string trimmers, and log splitters. Common equipment brands using these nuts include Craftsman, Toro, Cub Cadet, Yard Machines, and Troy-Bilt.

The lock nut is a piece of standard hardware that may have a variety of applications on lawn and garden equipment, including on engines, housings, and other components. The lock nut offers a secure fit by tightening into a flange that prevents the nut from loosening like a regular nut might. Over time, the flange or the nut can become worn or damaged. In some cases, lock nuts may be lost during the process of other repairs or maintenance. Replacing them with genuine OEM parts like this lock nut is the best solution. This lock nut is compatible with hundreds of machines, including mowers, snowblowers, and chippers from MTD, Troy-Bilt, Cub Cadet, RYOBI, Yard-Man, Yard Machines, Bolens, and Husky. The ¼-inch lock nut has multiple locations and applications, so owners should consult their parts diagram for exact placement and part number identification. This lock nut is made of durable metal and sold as a single unit. Those who need additional pieces will have to order multiple quantities. This part will require a wrench or a socket to replace, as well as pliers and/or a screwdriver to hold the bolt or screw in place.

The cotter pin is a fastener that is commonly used in lawn and garden equipment. The cotter pin helps provide a secure, locking fit that is adjustable and easy to remove. The cotter pin is commonly used on axles and rods, but it can have many applications depending on the machine and model. Cotter pins can become worn or break down over time because they are exposed to constant vibrations. It is important to replace damaged or broken cotter pins immediately as a broken part can render the equipment useless in many cases. This cotter pin is designed to exact OEM standards by MTD, and is designed for use in various equipment from MTD, Troy-Bilt, Craftsman, RYOBI, Yard Machines, Hard Man, Poulan, Husky, Bolens, and Cub Cadet. This is a 5/16 cotter pin that features a #34 diameter, and is made of a durable metal. This part is sold individually and those who require more than one will have to order multiple quantities. No other hardware is included. Always wear gloves when working on lawn and garden equipment.

This replacement part is a cotter pin. It is a genuine replacement part made by MTD. Cotter pins are also sometimes known as clevis pins and are responsible for fastening two metals together. This allows the machine to work properly and operate smoothly. A new cotter pin might be needed if the current ones are damaged in any way or even missing. This part is small so it can be misplaced after years of normal wear and tear. It is possible that this part become stripped or lodged in place over time. The repair should be fairly easy and only require common tools. Be sure the engine is completely powered down before beginning this repair. This pin is sold individually. This is a genuine OEM replacement part sourced directly from the manufacturer to ensure a proper fit.

This insulator nut plate is a genuine MTD part, sold individually. This insulator nut plate can be used as a replacement part in a lawn mower. The purpose of the insulator nut plate in a lawn mower is to self-wrench into a bolt as a fastening component of several parts within the machinery of the appliance.The insulator nut plate can be easily lost or misplaced, or the component can become damaged and stripped over time from general wear and tear or as the result of an accident. The insulator nut plate is a small component and if it is found to be missing, it should be replaced by this genuine OEM replacement part. If the insulator nut plate is damaged, it should also be replaced. Remember to always wear gloves when handling, repairing, and operating outdoor equipment. Always unplug the appliance before performing any kind of repair or replacement.Sourced directly from the manufacturer, this component is a genuine replacement part that is sold individually. This insulator nut plate is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Murray, Yard Machines, Huskee, Bolens, Yard Man, and MasterCut.

This part is a replacement transaxle fan. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current transaxle fan is broken or malfunctioning, this part can be used as a replacement. It is intended for use with a variety of lawn tractor models. The transaxle fan attaches to the transaxle and spins to keep the equipment cool. If this part is broken, jammed, or unable to spin, the engine can overheat, which can cause serious damage. Thus, the transaxle fan will need to be replaced. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this transaxle fan, the appropriate owner's manual and equipment diagrams should be referred to. This transaxle fan is suitable for use on a variety of lawn tractor models manufactured by MTD, Craftsman, Cub Cadet, Troy-Bilt, and other brands. It is a genuine OEM part and thus is made of high-quality, durable materials. Part sold individually.

This part is a replacement extension spring. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. If the current extension spring is broken or in any way damaged, this part can be used as a replacement. It is intended for use with lawn tractors.Extension springs help to absorb energy created by different parts, as well as create resistance to bring two parts back together. Springs can stretch out, snap, corrode, or grow defective over time and thus will require replacement. When working on or near an engine, always ensure that the equipment is powered off and completely cooled down before attempting to undergo any repairs. For more accurate information on how and where to install this extension spring, the appropriate owner's manual and equipment diagrams should be referred to. This extension spring is suitable for use on a variety of lawn tractor models manufactured by Craftsman, MTD, Troy-Bilt, and Yard Man. It is a genuine OEM part and thus is made of high-quality, durable metal. Part sold individually.

An authentic OEM replacement extension spring is an integral part of a lawn tractor or snowblowers brake system that helps to hold together and redistribute energy throughout the lower deck. When a driver applies the brakes, the lower deck has a tendency to continue moving forward with inertia. This extension spring helps to keep the parts in place and transfer a balance of energy. Although replacing the extension spring itself is a simple and straightforward process, gaining access to the spring is a little complicated as it requires removing the lawn mower or snowblower's lower deck. You will need a pair of pliers to remove the pins and cables that hold the lower deck in place but there is no other required hardware. Be sure to follow the user's manual as you remove the deck. This part is a top-quality replacement part sourced from its original manufacturer. It is designed to be used with Murray, Husky, Troy-Bilt Poulan, Yard Man, Yard Machines, Bolens, and MTD appliances. This part ships individually.

This flat washer is a genuine MTD part, sold individually. This flat washer can be used as a replacement part in lawn mowers, snowblowers, tillers, edgers, chainsaws, log splitters, and wood chippers. The purpose of a flat washer for one of these small engine outdoor appliances is to serve as a fastening component, spacing internal parts out to reduce friction.The flat washer in a small engine outdoor appliance is a small component that can easily be lost or misplaced, in which case it should be replaced as soon as the operator notices its absence. The flat washer can also be stripped away over time, in which case it should be removed and replaced by this genuine OEM replacement part.This OEM part is a genuine replacement that is sold individually and sourced directly from the manufacturer. This flat washer is compatible with the following outdoor appliance brands: MTD, Craftsman, Toro, Cub Cadet, Troy-Bilt, Yard Machines, Huskee, MasterCut, Yard Man, Turf King, Montgomery Wards, Husky, and Murray.

This part is a replacement flat washer. This is a genuine OEM part made by MTD and has been sourced directly from the manufacturer. This part can be used to replace a damaged, misplaced, or defective flat washer in a variety of power equipment. Flat washers are a standard piece of hardware with many different uses. Their primary purpose is to increase the bearing surface area of a screw. This can help to prevent screws from becoming loose over time due to pressure that leads to them sinking into the surface. It is always recommended that the appropriate safety precautions are adhered to when attempting to fix any power tools or machinery. For more accurate information on how and where to install this flat washer, the appropriate owner's manual and included diagrams should be referenced.As an authentic replacement part, this flat washer is suitable for use on several different models of small engine outdoor power equipment manufactured by MTD, Murray, Craftsman, and other brands. This is a genuine part made of high-quality, durable metal and is sold individually.

This replacement part is a V-belt and is intended for use in different types of lawn equipment. This part is a genuine replacement part made by MTD. This type of belt is used in many different types of machinery and is responsible for helping keep certain parts moving within the engine.A new V-belt might be needed if the current one is missing or damaged in any way. This can include being torn or stripped down. Due to the amount of friction that belts often create, it is typical that they can become worn down after years of normal wear and tear. Be sure to wear work gloves during this repair as this part is often close to other pieces that can cause injury. This is a genuine OEM replacement part. This part is also sold individually and is sourced directly from the manufacturer to ensure proper fit.
