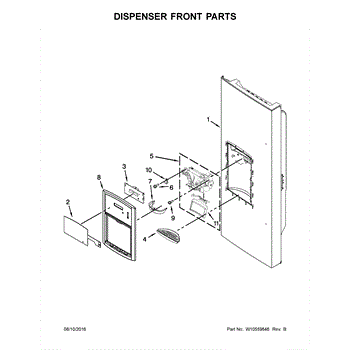

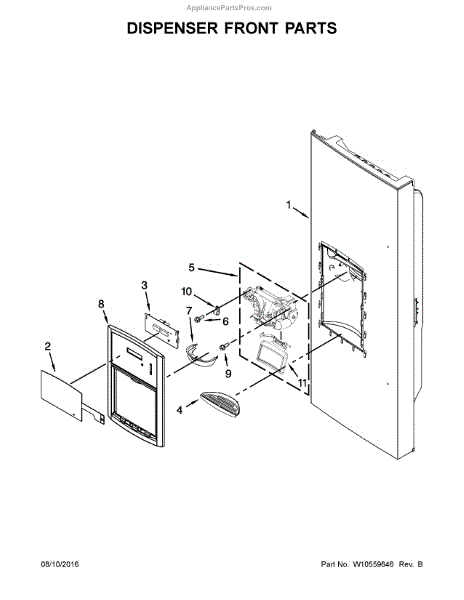

Parts for Kenmore 596.79242017 (59679242017, 596 79242017): Dispenser Front Parts

The Water Filter is an OEM part for Whirlpool refrigerators. It is designed to filter and purify the water for your refrigerator, ensuring clean and fresh drinking water and ice.

A bad refrigerator water filter can be caused by regular use and the buildup of contaminants over time. It may also become less effective if not replaced according to the manufacturer's recommended schedule.

Symptoms of a bad refrigerator water filter include:

• A decrease in water flow or water pressure.
• An unpleasant taste or odor in the water.
• The presence of particles or sediment in the water.
• Cloudy or discolored ice cubes.

If you notice any of these signs or if it has been more than six months since your last filter replacement, it's time to replace the refrigerator water filter with this genuine OEM part. This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


The Electronic Control Board is an OEM part for Whirlpool side-by-side refrigerators. Located inside the upper fridge compartment, it regulates all refrigerator functions through an integrated circuit.

Causes of a bad electronic control board failure can include moisture exposure over many usage cycles leading to internal short circuits. Drop damage may dislodge delicate components.

Symptoms of a bad control board include:

• Failure to cool or maintain temperature in either compartment
• Fault codes, error messages or unresponsive displays
• Buzzing sounds coming from internals during operation
• Inability to toggle options or initiate desired settings

This authentic Whirlpool replacement is compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and Kenmore models.

Replacement drip tray that collects and channels defrost and condensation water away from the cabinet to help prevent puddles and water damage. Sits under the freezer/drain area to guide meltwater to the evaporator or drain. What it does:

• Collects defrost and condensation water to prevent leaks and pooling beneath the appliance.
• Directs meltwater toward the evaporator/drain so it can evaporate safely.
• Helps reduce odors and ice buildup caused by standing water.
• Common signs you may need this part: water pooling under or behind the appliance, visible cracks or warped pan, or ice forming where water should drain.

• One drip tray

• Disconnect power before accessing the tray and remove any stored items from nearby compartments.
• Tray is typically accessed from the rear or behind the lower grille/panel—remove the appropriate access panel first.
• Inspect the drain channel for clogs or debris before installing the new tray and seat the pan flat to ensure proper drainage.
• Replace the tray if you see cracks, warping, or severe corrosion; use only manufacturer-recommended parts.

This chute extension yoke is a replacement plastic mounting piece that secures and aligns the chute assembly for proper material flow and door fit. It restores correct positioning so the chute operates as intended. What it does:

• Secures and aligns the chute/door assembly to prevent misalignment and binding
• Guides material or airflow through the chute for consistent operation
• Replaces cracked, worn, or broken yoke surfaces that cause fit issues
• Helps reduce rattling or movement from a loose chute connection

• One chute extension yoke

• Inspect mating surfaces and fasteners; replace any damaged clips or screws
• Installation typically requires basic hand tools and access to the appliance's chute area
• Disconnect power (or unplug appliance) and follow the manufacturer's safety instructions before servicing

This chute extension yoke links the dispenser actuator/solenoid to the ice chute door/extension so the flap opens and closes reliably, directing ice through the chute and helping the door seal to reduce frost and warm-air intrusion.

• Couples the dispenser actuator/solenoid to the ice chute door/extension for proper movement
• Helps the chute door seal to limit frost and condensation around the dispenser
• Replace if cracked, worn, or missing
• Common symptoms: ice not dispensing or intermittent dispensing, chute door not opening/closing, frost/moisture at the dispenser, rattling/loose dispenser mechanism

• Disconnect power to the refrigerator and shut off water to the dispenser before servicing
• Remove dispenser trim/escutcheon to access the chute area; support wiring and controls
• Note the orientation of any springs/clips and transfer them to the new yoke
• Reassemble, restore power, and test for smooth door operation and proper sealing

This chute extension yoke is the pivoting lever inside the dispenser that supports the ice chute extension in select refrigerators. Replacing a broken or worn yoke restores smooth, reliable dispenser actuation when you press your glass.

• Provides the pivot point and support for the chute extension behind the dispenser opening
• Transfers your push to the dispenser switch to start dispensing
• Helps keep the chute area aligned for consistent dispensing
• Common symptoms: broken or loose dispenser lever, dispenser won't activate when pressed, lever sticks or fails to return

• Disconnect power to the refrigerator before servicing the dispenser
• Remove the dispenser trim and cover to access the yoke
• Note the orientation and any springs/pins; transfer existing hardware from the old yoke to the new one
• Reassemble, restore power, and test for smooth lever action and proper switch engagement

This hex washer-head screw secures panels, brackets, and other components inside your appliance. Replacing a worn, stripped, or missing screw restores a tight fit, reduces vibration and rattles, and helps keep assemblies properly aligned.

• Fastens panels, brackets, covers, and internal hardware to the cabinet or frame
• Helps prevent loosening, rattling, or misalignment during appliance operation
• Replace if the head is rounded, threads are stripped, or the screw is missing
• Useful after service when an original fastener is lost or damaged

• Disconnect power and shut off gas/water before starting
• Use the correct nut driver or socket for the hex head to avoid rounding
• Start threads by hand to prevent cross-threading; tighten snugly without overtightening

This target ring is a small trim piece that restores the original fit and appearance around a control button or panel opening. Replacing a damaged ring helps ensure clean button engagement and a finished look. What it does:

• Serves as the trim/target around a control button or panel opening
• Keeps the button aligned for consistent engagement and operation
• Restores finished appearance when the original ring is cracked, warped, or missing
• Prevents debris from collecting around the control area

• One replacement target ring

• Disconnect the appliance from power before attempting replacement
• Usually installs by snapping into place or securing with retained fasteners — handle gently to avoid breaking tabs
• Confirm proper button movement and secure fit before returning appliance to service

This replacement screw secures panels, brackets, and components inside appliances. Replacing a missing or stripped fastener restores a snug, rattle-free fit using the correct #8-18 thread and 5/8-inch length.

• Fastens covers, trims, brackets, and internal parts to the cabinet/frame
• Used wherever a #8-18 x 5/8 screw is specified
• Replace if the original is missing, corroded, stripped, or will not tighten
• Symptoms: loose or rattling panels, gaps, or hardware that backs out

• Disconnect power; shut off gas/water before servicing
• Match thread and length; start by hand to avoid cross-threading
• Use the correct driver bit and tighten snugly—do not overtighten
• Inspect and replace damaged clips or tabs before securing

Color: Black

The Pad is an OEM part for Whirlpool refrigerators. This part activates the dispensing mechanism for water and ice when pressed.

Causes of a bad pad can include repeated use leading to wear and tear, accumulation of dirt or debris, or damage from accidental impacts.

Symptoms of a pad include:

• No water or ice dispensing when the actuator is pressed
• The actuator feeling loose or unresponsive
• Intermittent or inconsistent dispensing
• Strange noises during activation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.
