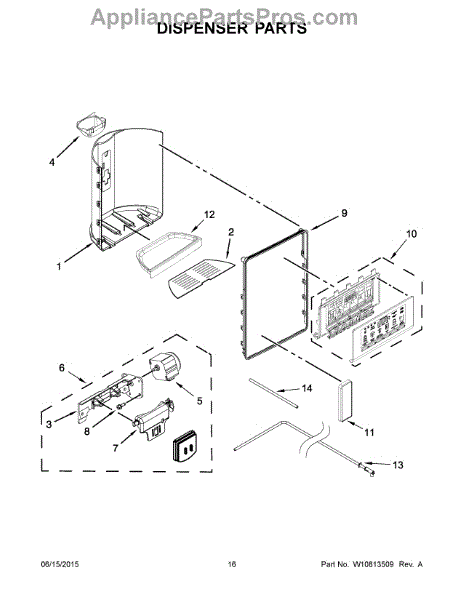

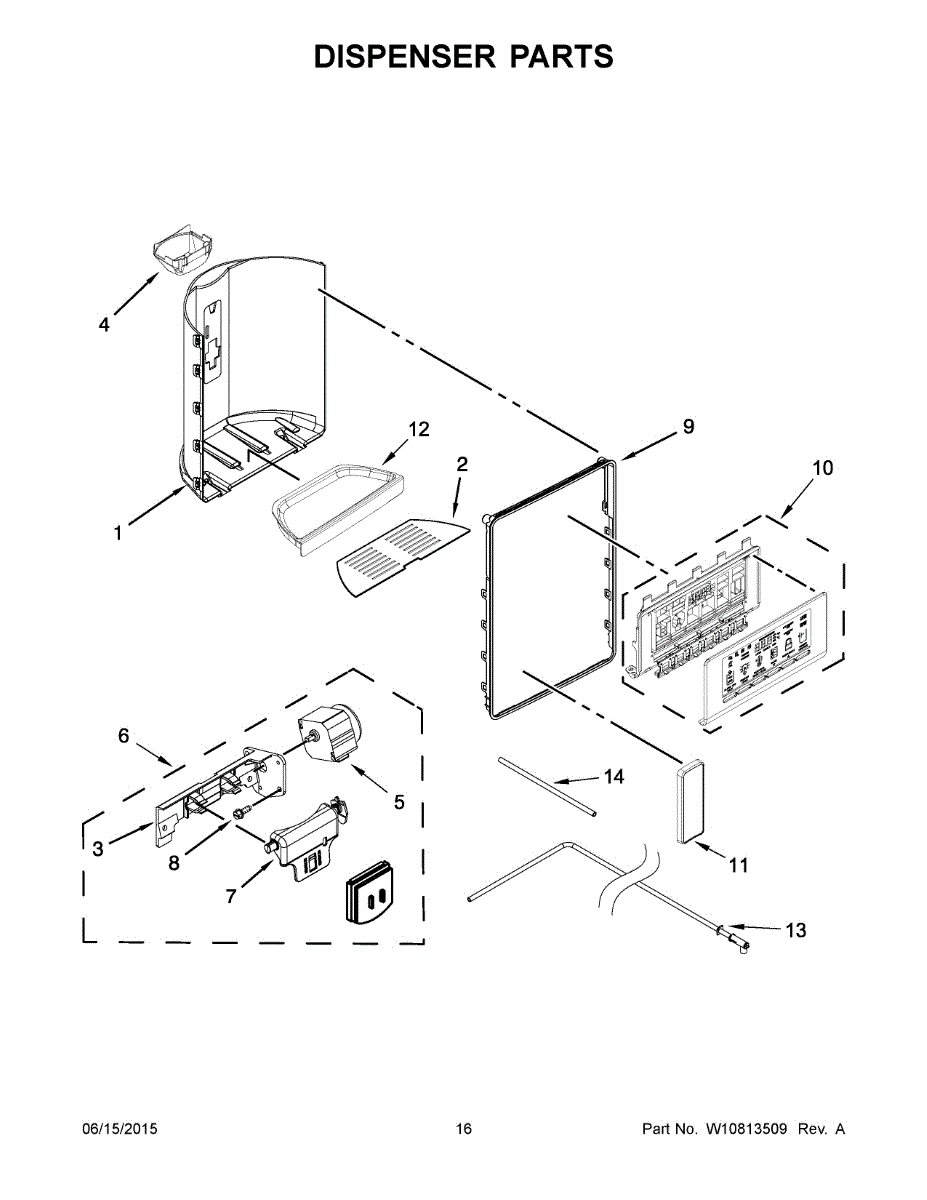

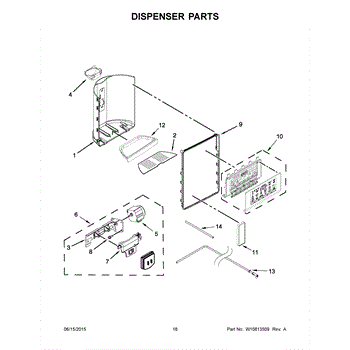

Parts for Kitchenaid 7KRSF77EST00: 09 - Dispenser Parts

This grille fits over the drip tray to protect internal components and help catch spills, keeping the cooktop area cleaner and easier to maintain. It restores proper fit and appearance when the original grille is damaged. What it does:

• Covers and protects the drip tray from food and liquid spills
• Helps contain messes so spills are easier to wipe away
• Prevents debris from contacting components beneath the cooktop
• Addresses symptoms like visible damage, warped or missing grille, and recurring food buildup

• One grille/drip tray cover

• Disconnect power to the appliance before attempting any service
• Remove surrounding components to avoid damage
• Handle carefully to avoid bending or scratching the grille
• If hardware is not visible, verify if existing clips or screws are reused; only parts explicitly listed ship

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This flat separator assembly helps direct and separate ice inside the dispenser door for smoother dispensing and reduced jamming. It replaces a worn or damaged ice guide to restore consistent ice flow and reduce clogs at the door. What it does:

• Guides ice from the storage area into the dispenser chute to help prevent blockages
• Keeps ice pieces separated for more consistent dispensing
• Replaces cracked, warped, or broken separator that can catch or jam ice
• Supports normal dispenser operation without modifying the dispenser mechanism

• One flat separator assembly

• Disconnect power to the refrigerator before beginning any service
• Access typically requires removing the dispenser or door panel—follow your model's service instructions
• Handle plastic parts carefully to avoid cracking; use proper fasteners and alignment during reassembly

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This dispenser trim is the exterior bezel that surrounds a refrigerator's ice/water dispenser, restoring a finished appearance and protecting internal dispenser components from daily wear. It replaces cracked, chipped, or faded trim pieces. What it does:

• Provides a finished, protective bezel around the dispenser opening
• Helps keep the dispenser area aligned and prevents gaps that trap dirt or moisture
• Commonly replaced when trim is cracked, broken, loose, or cosmetically damaged
• Restores proper fit and appearance after impact or wear

• Disconnect power to the appliance before starting work; shut off the water supply if the dispenser is connected to plumbing
• Installation typically requires removing the inner dispenser panel or door trim; keep track of all fasteners
• Handle edges carefully — trim pieces or adjacent metal can be sharp

This lighted dispenser actuator pad assembly replaces the extra-large paddle you press to dispense water or ice from the door. It restores smooth, reliable activation and visibility when the original pad is cracked, worn, or unresponsive.

• Acts as the user-pressed paddle that engages the dispenser switch for water/ice
• Integrated illumination helps light the dispenser alcove for easier use in low light
• Helps address intermittent dispensing, sticking or continuous dispensing, or the need to press excessively hard
• Replaces broken, loose, or discolored paddles for better function and appearance

• Disconnect power before servicing the dispenser area
• Remove the drip tray and dispenser trim/escutcheon to access the pad assembly
• Release retaining tabs/screws and disconnect any wire harnesses; note orientation
• Install the new assembly, reconnect wiring, reassemble trim, restore power, and test dispensing and lighting

This drip tray collects and channels defrost and condensation water to the refrigerator's evaporation area, helping prevent puddles and water damage under the appliance. Durable plastic design fits beneath the freezer/refrigerator cabinet. What it does:

• Catches defrost and condensation runoff so water doesn't pool on the floor
• Directs water toward the evaporator or drain to allow controlled evaporation
• Reduces risk of leaks and related floor damage when installed correctly
• Helps maintain proper drainage and prevents water from contacting components

• One drip tray

• Disconnect power to the appliance before accessing the tray or removing panels
• Remove the toe kick or rear access panel as needed to reach and replace the tray
• Ensure the tray seats fully and drain channels align with the refrigerator's drain path
• If you see persistent leaking, check the drain tube and evaporator area for clogs or damage

This dual water tube routes water along two separate paths inside the refrigerator, supplying components such as the dispenser and ice maker. Replacing a cracked, kinked, or clogged tube restores steady flow and helps prevent leaks. What it does:

• Carries pressurized water to two internal destinations
• Helps supply the dispenser and/or ice maker
• Replaces tubing that is cracked, brittle, kinked, or leaking
• Typical symptoms: leaks behind/under the fridge, slow/no dispenser flow, ice maker not filling or making small/hollow cubes

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water when disconnecting lines
• Note original routing and connection points; transfer any guides/clips as needed
• Fully seat tubing in quick-connect fittings, tug-test for engagement, restore water, and check for leaks

This replacement water dispenser valve tube routes water from the dispenser valve to the dispenser outlet so your appliance can deliver water and ice correctly. It restores a proper, leak-free flow path for the dispenser. What it does:

• Connects the dispenser valve to the dispenser outlet, directing water flow for dispensing and ice-making functions
• Replaces cracked, pinched, or deteriorated tubing that can cause leaks or weak/blocked water flow
• Helps stop visible leaks under the dispenser area and restore normal dispensing performance
• Compatible with factory valve connections and dispenser fittings when the OEM tube is specified

• One replacement water dispenser valve tube

• Disconnect power and shut off the water supply before starting work
• Inspect matching fittings and clamps; reuse only if undamaged — replace clamps if corroded
• Route the tube following factory routing to avoid kinks and ensure secure connections
