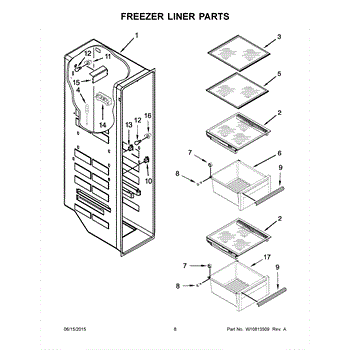

Parts for Kitchenaid 7KRSF77EST00: 05 - Freezer Liner Parts

This cover is an OEM replacement access panel that restores the appliance's exterior protection and helps keep internal components free from debris. It fits where the original cover was removed or damaged. What it does:

• Protects internal components from dust, lint and incidental contact
• Restores a secure exterior surface and maintains proper airflow paths
• Helps prevent accidental contact with moving or electrical parts behind the panel
• Reinstates the appliance's original appearance where the cover was missing or damaged

• One replacement cover

• Disconnect power (and gas, where applicable) before starting any work
• Remove fasteners holding the old cover and retain hardware if reusing; compare new part to old for orientation before installing
• Use basic hand tools; avoid forcing clips or tabs to prevent breakage

This freezer glass shelf assembly replaces a cracked or missing shelf in the freezer compartment, restoring a stable, easy-to-clean surface for food storage and helping keep bins and items properly supported and organized.

• Provides a level, durable surface for placing frozen items
• Helps position and support baskets/bins along the side rails
• Restores designed storage capacity when a shelf is missing
• Common symptoms: cracked or shattered glass, broken frame, sagging, or the shelf not sitting securely in its slots

• Disconnect power before servicing and wear cut-resistant gloves when handling glass
• If frosted, let the shelf warm to room temperature before removal to prevent sticking or thermal shock
• Empty the area; release any retaining tabs and slide the old shelf straight out
• Align the new shelf with side rails/slots and seat fully; ensure it's level and secure before loading

This freezer bin restores secure, organized storage in the freezer compartment. Replace a cracked or missing bin to keep items contained and easy to access, helping prevent spills and messes during everyday use.

• Provides dedicated storage space for frozen items
• Replace if the original bin is cracked, broken, warped, or missing
• Helps keep containers from sliding or falling
• Installs by aligning the bin with its supports and seating it securely

• Remove any contents from the old bin before starting
• Lift the old bin up and out (or slide it off its supports), as designed
• Align the new bin with the supports/slots and press or slide into place until secure
• Avoid forcing cold plastic; allow parts to warm to room temperature to reduce the chance of cracking

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Light Socket Kit is an OEM part for Whirlpool refrigerators. This kit includes the light socket and necessary components to ensure proper installation and functionality. It is designed to hold the refrigerator light bulb securely and provide reliable electrical connections to illuminate the interior of the refrigerator.

Common causes of failure include wear and tear, corrosion from moisture, or damage from handling or bulb replacement.

Symptoms of a bad Light Socket Kit include:

• Refrigerator light not turning on
• Flickering or intermittent lighting
• Visible damage or corrosion on the socket
• Burned or melted areas around the socket

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Bulb-Light is an OEM part for Whirlpool refrigerators. This bulb is designed to illuminate the interior of your refrigerator, making it easier to see and organize the contents.

Symptoms of a failing refrigerator light bulb include:

• Dimming or flickering of the light
• Light not turning on when the refrigerator door is opened
• Inconsistent performance, with the light turning on and off intermittently

Causes of light bulb failure in refrigerators generally involve the bulb reaching the end of its useful life, loose connections in the light socket, or issues with the refrigerator’s door switch that controls the light.

This OEM part is also compatible with other Whirlpool brand appliances, such as Maytag, KitchenAid, Jenn-Air, Amana, and others.

The Ice Bin Safety Switch is an OEM replacement part for Whirlpool refrigerators, ensuring safe and efficient operation of the ice maker. Positioned to detect the ice bin, it activates the ice maker when the bin is in place and deactivates it when removed for cleaning or emptying.

Common causes for Ice Bin Safety Switch issues may include physical damage occurring during cleaning or routine use, electrical problems like short circuits, wear on the switch's contacts affecting functionality, and misalignment or incorrect installation of the ice bin causing inaccurate bin detection.

Symptoms of a malfunctioning Ice Bin Safety Switch include:

• The ice maker not producing ice
• The ice maker continuing to operate even without the ice bin in place
• Unusual behavior from the ice maker, such as starting and stopping erratically

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

This light lens covers and diffuses the freezer compartment bulb so the light is bright but not harsh, protecting the bulb and helping illuminate food clearly when the door opens.

• Diffuses freezer light for even illumination
• Shields the bulb from moisture and impact
• Helps restore lighting if the original lens is cracked, yellowed, or missing
• Common symptoms: dim lighting, exposed bulb, broken or discolored cover

• Unplug the appliance before servicing
• Allow the area to warm slightly to reduce brittleness of old plastic
• Gently release the retaining tabs; avoid prying on cold, brittle parts
• Handle the new lens by the edges to prevent scratches

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This clear plastic freezer bin replaces a cracked, broken or missing drawer to restore frozen food storage and organization. It provides a full-width compartment that slides into the freezer cavity for easy access and visibility. What it does:

• Holds and organizes frozen foods in the freezer compartment
• Replaces bins that are cracked, split, or no longer secure on the tracks
• Restores proper drawer sealing and prevents items from falling into lower compartments
• Improves visibility of stored items with a transparent design

• One clear plastic freezer bin/drawer

• Slides into the factory tracks—remove any obstructions before installing
• Inspect mounting rails and stops for damage; replace if worn to ensure proper fit
• Wear work gloves to avoid cuts from sharp edges during removal/installation
• Unplug the appliance or shut off power before working in confined areas for general safety
