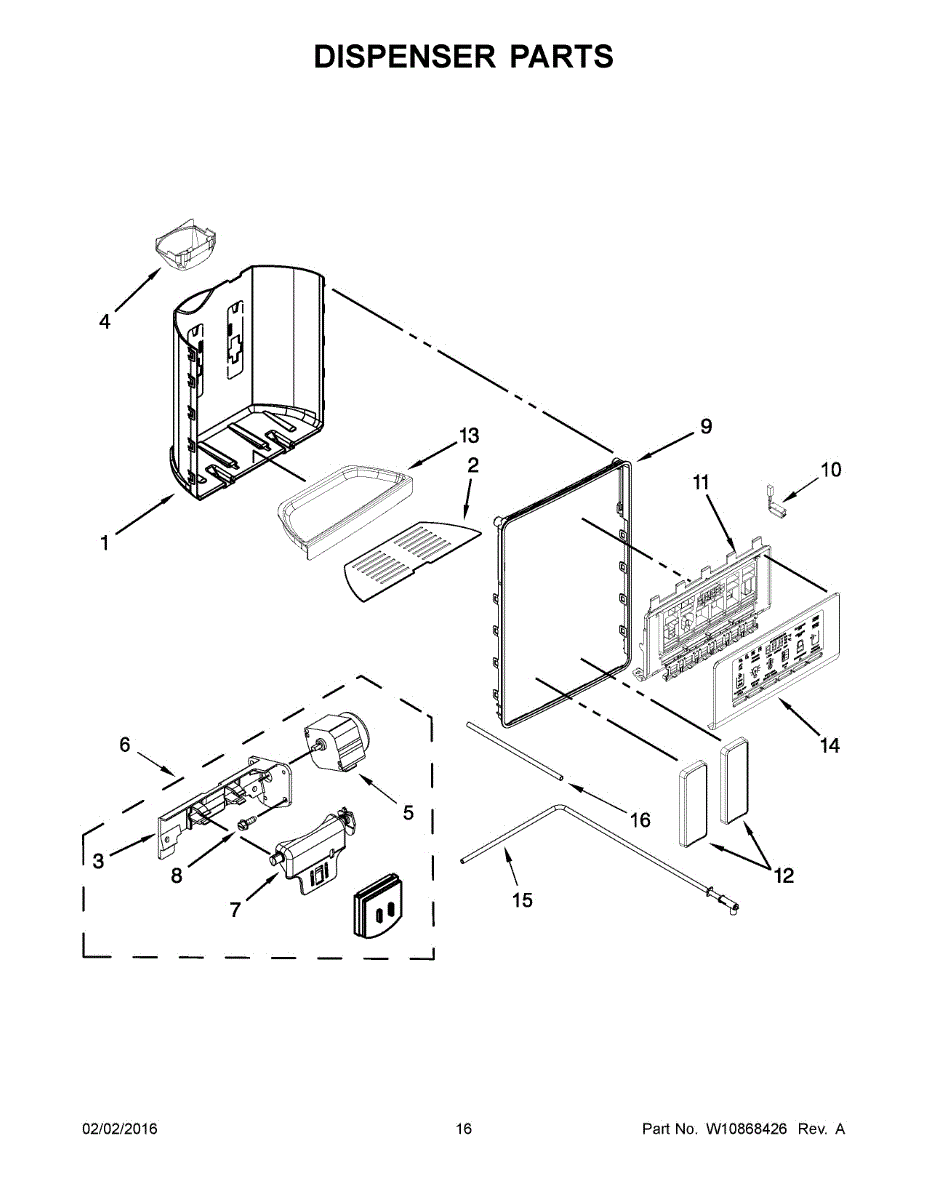

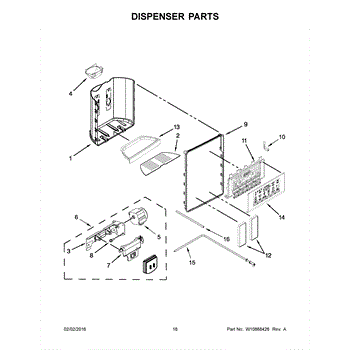

Parts for Whirlpool WRS571CIDB01: 09 - Dispenser Parts

This bracket is a factory-design mounting support that secures internal components in place for stable operation and alignment. It helps keep parts seated correctly to reduce noise and prevent component movement. What it does:

• Provides structural support for internal assemblies and panels
• Holds components in correct alignment to maintain proper operation
• Helps reduce rattling or vibration caused by loose parts
• Compatible where the OEM bracket W10174827 is specified

• Disconnect power to the appliance before starting any repair
• Use the correct fasteners and torque as specified by the manufacturer
• Wear safety gloves and eye protection to avoid cuts on sharp edges

This refrigerator ice guide channels cubes and crushed ice along the intended path so they land in your bin or glass. When the guide is damaged or missing, ice can scatter, jam, or miss the dispenser opening. What it does

• Guides ice from the ice maker/bucket into the bin and through the dispenser chute
• Helps keep ice flowing smoothly and reduces spills at the opening
• Restores proper aim for cubed and crushed ice
• Typical symptoms: ice spraying or missing the glass, frequent jams, or visible damage to the guide

• 1 ice guide

• Disconnect power to the refrigerator before servicing
• Remove the ice bin and access the guide per your model's design
• Transfer and reuse existing mounting screws or clips, if applicable
• Verify alignment, then test both cubed and crushed dispensing

This ice door motor drives the dispenser's ice chute door, opening to let ice out and closing to seal the chute. Replacing a worn motor restores proper door movement and helps reduce warm-air leaks and frost around the dispenser.

• Opens and closes the dispenser ice door (flapper) during use
• Helps keep the ice chute sealed between dispenses to limit frost and moisture
• Failure symptoms can include the ice door not opening/closing, frost or condensation in the chute, air leakage at the dispenser, or clicking from the dispenser area

• Unplug the refrigerator and shut off water before servicing
• Remove the dispenser front panel/trim and control to access the ice door mechanism
• Note wire positions; install the new motor, transferring any levers/arms as configured on your model
• Restore power and test ice door operation before reassembly

This flat separator assembly helps direct and separate ice inside the dispenser door for smoother dispensing and reduced jamming. It replaces a worn or damaged ice guide to restore consistent ice flow and reduce clogs at the door. What it does:

• Guides ice from the storage area into the dispenser chute to help prevent blockages
• Keeps ice pieces separated for more consistent dispensing
• Replaces cracked, warped, or broken separator that can catch or jam ice
• Supports normal dispenser operation without modifying the dispenser mechanism

• One flat separator assembly

• Disconnect power to the refrigerator before beginning any service
• Access typically requires removing the dispenser or door panel—follow your model's service instructions
• Handle plastic parts carefully to avoid cracking; use proper fasteners and alignment during reassembly

This ice door support bracket holds and stabilizes the freezer ice door so it opens and closes smoothly and keeps the ice compartment sealed. Replaces a worn or broken support to restore proper door alignment and operation. What it does:

• Supports the ice door assembly to prevent drooping or misalignment
• Helps ensure the ice door opens and closes smoothly for reliable dispensing
• Reduces rattling or noise from a loose or damaged door support
• Prevents gaps that can lead to frost buildup or ice spillage

• Disconnect power to the appliance before starting any repair
• Remove the ice bin or door panel per service instructions to access the support
• Use common hand tools; handle plastic parts gently to avoid cracking
• Secure all fasteners; test door movement after installation

Screw for control panel.

This dispenser light replaces the small lamp that illuminates the refrigerator's ice/water dispenser alcove. It restores clear visibility of the dispenser area in low light so you can see fill levels and selections while dispensing.

• Provides illumination for the dispenser alcove when the control turns the light on
• Common symptoms: no dispenser light, dim or flickering light, or intermittent illumination
• Helps with accurate filling and improves visibility when dispensing ice or water

• Unplug the refrigerator or disconnect power before servicing
• Access the dispenser housing; remove any trim or lens as needed to reach the light
• Release locking tabs or screws and unplug the wire connector from the old light
• Connect and seat the new light, reassemble, restore power, and test operation

This electronic control board is the appliance's main control module that manages cycles, timing, and user inputs. Replacing a failed board can restore correct control operation and normal cycle sequencing. What it does:

• Manages cycle selection, timing, and program logic so the appliance runs selected cycles as commanded. Symptoms: cycles stop, won't advance, or behave unpredictably.
• Powers and communicates with the front panel/display and touchpads or buttons. Symptoms: unresponsive controls, blank or flickering display, or incorrect indicators.
• Processes sensors and safety interlocks to coordinate heating, motor, and valve operation. Symptoms: appliance won't start, stops mid-cycle, or shows control-related error codes.
• Interfaces with other control modules to coordinate overall appliance operation.

• Disconnect all power (unplug or switch off breaker) before attempting any service to avoid shock or damage.
• Inspect connectors and wiring harness; match connector positions before disconnecting. Replace only with the exact part number.
• Handle the board by the edges and avoid touching contacts or components; use anti-static precautions if available.

Color: Black

This dual water tube routes water along two separate paths inside the refrigerator, supplying components such as the dispenser and ice maker. Replacing a cracked, kinked, or clogged tube restores steady flow and helps prevent leaks. What it does:

• Carries pressurized water to two internal destinations
• Helps supply the dispenser and/or ice maker
• Replaces tubing that is cracked, brittle, kinked, or leaking
• Typical symptoms: leaks behind/under the fridge, slow/no dispenser flow, ice maker not filling or making small/hollow cubes

• Unplug the refrigerator and shut off the water supply before servicing
• Place a towel or container to catch residual water when disconnecting lines
• Note original routing and connection points; transfer any guides/clips as needed
• Fully seat tubing in quick-connect fittings, tug-test for engagement, restore water, and check for leaks
