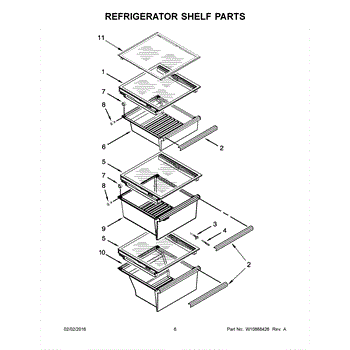

Parts for Whirlpool WRS571CIDB01: 04 - Refrigerator Shelf Parts

This pan cover assembly is the shelf frame that sits above the refrigerator's lower drawers. It restores a sturdy surface and smooth drawer operation when the original cover is cracked, warped, or missing.

• Forms the top of the crisper/deli area and supports the glass shelf insert
• Provides integrated tracks so drawers slide in and out properly
• Helps keep food items level and prevents the shelf from sagging
• Common symptoms: cracked frame, broken tabs, glass won't sit flat, drawers bind or won't close fully

• Disconnect power and clear the affected shelf area
• Remove the drawers and the glass insert, if present
• Lift out the damaged cover; transfer any removable trims or seals if needed
• Seat the new cover level, reinstall the glass and drawers, then restore power

This trim pan is a molded replacement trim piece that restores the lower exterior appearance and helps channel minor drips away from the appliance base. It provides a clean, finished look and replaces damaged or missing trim. What it does:

• Replaces a cracked, warped or discolored lower trim that affects appearance
• Helps direct incidental moisture away from the cabinet base
• Restores the factory fit and finish at the appliance front/bottom
• Prevents sharp edges or gaps that can catch dirt or debris

• Disconnect power to the appliance before starting work to avoid electrical hazard
• Basic hand tools are typically required; remove fasteners or clips holding the old trim and snap or screw the replacement into place
• Handle plastic trim carefully to avoid scratching; align clips or tabs before applying pressure
• If you encounter unexpected corrosion or additional damage, stop and inspect for related repairs

This humidity sensor housing holds and protects the fridge's humidity/control assembly, helping maintain proper humidity-sensing operation and reliable climate control. Designed to replace a cracked or damaged housing to restore proper sensor placement and protection. What it does:

• Secures and shields the humidity sensor and related control components
• Keeps the sensor correctly positioned for accurate humidity detection
• Prevents physical damage and moisture exposure to the sensor assembly
• Helps resolve symptoms like inaccurate humidity readings or loose sensor fit

• Disconnect power to the appliance before starting any repair
• Handle the humidity sensor carefully; remove and reinstall per manufacturer guidance
• Uses basic hand tools; refer to the service manual or OEM instructions for disassembly/reassembly steps
• Replace the affected components rather than reusing damaged parts

This replacement pan cover restores the shelf/cover above a refrigerator drawer, providing a stable surface for items and proper support for the drawer below. Use it to replace a cracked, warped, or broken cover to keep storage organized.

• Forms the top cover/shelf for a refrigerator storage pan/drawer in the fresh food section
• Supports items placed above while helping contain spills
• Helps keep the drawer aligned and sliding smoothly
• Common symptoms: cracked or broken cover/frame, missing tabs, sagging shelf, drawer binding or not seating fully

• Disconnect power and remove food from the shelf area before starting
• Remove the drawer below the cover and lift out the damaged cover
• Transfer any reusable components from the old cover if applicable
• Seat the new cover into rear slots/notches and front supports; the drawer opens and closes smoothly

The Snack Pan is an OEM part for Whirlpool refrigerators. It provides a convenient way to store snacks, spreads and other small food items directly within the refrigerator shelves. Made of durable plastic, the shallow pan design catches any drips or spills that could soil refrigerator surfaces.

Causes of a bad refrigerator snack pan include cracks or breaks from repeated impact or stresses over several years of use. Warping from excessive cold exposure is also possible.

Symptoms of a failed pan include:

• Inability to properly contain items due to cracks or holes
• Warped edges that cause stored items to shift or spill
• Staining or residues that won't clean from refrigerator surfaces

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Crisper Pan is an OEM replacement part for Whirlpool refrigerators. It is a component located directly behind the evaporator coil that helps evenly distribute cold air from the coil throughout the refrigerator and freezer compartments.

Causes of a bad crisper pan can include cracks or fractures from wear and tear over time.

Symptoms of a bad pan-crisper include:

• Inconsistent temperatures inside compartments
• Ice buildup in certain areas
• Food not keeping as long as normal

This part works to replace cracked or damaged crispers. This Whirlpool refrigerator pan-crisper is also compatible with Maytag, Jenn-Air, KitchenAid, Amana, and some Kenmore models.

The Shelf-Glass is an OEM part for Whirlpool refrigerators. This glass shelf provides a sturdy and clear surface for storing food items within the refrigerator. It is designed to fit securely into the refrigerator's shelf supports, offering both durability and visibility for optimal organization. The glass measures approximately 18 inches in width and 13 inches in depth.

Causes of damage can include heavy loads, accidental impacts, or general wear and tear over time. A compromised glass shelf can lead to safety concerns and inadequate storage space.

Symptoms of a bad glass shelf include:

• Visible cracks or chips
• Unstable or wobbly placement
• Difficulty in securing the shelf properly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.
