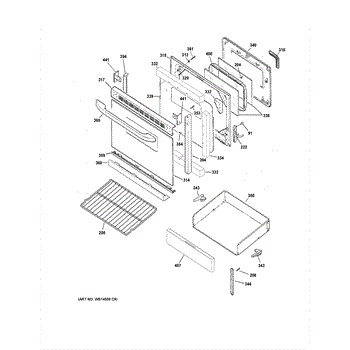

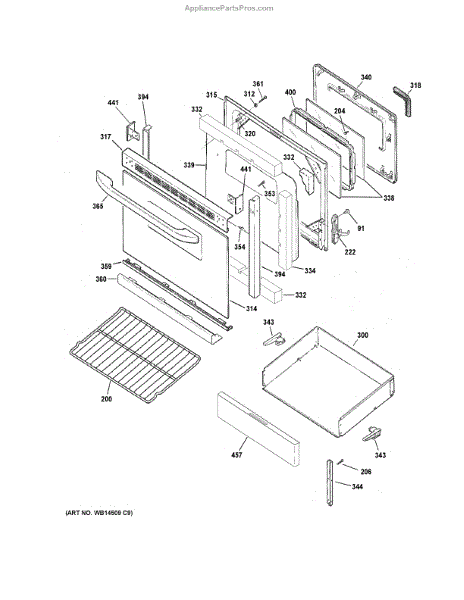

Parts for Ge JB256DM2BB: Door & Drawer Parts

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

The Oven Door Hinge is an OEM part for GE ranges. It is responsible for securely yet smoothly opening and closing the oven door. The hinge plays a crucial role in the operation and functionality of the oven by ensuring the door moves freely while remaining tightly sealed when closed.

Causes of a bad door hinge include wear and tear over time, repeated opening and closing of the door putting stress on the hinge mechanism, or accidental damage.

Symptoms of a bad door hinge include:

• The door not opening or closing fully
• Difficulty in moving or swinging the door
• Loss of the secure seal when closed causing heat leakage
• Excessive movement, wobbling, or noise from the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

The outer door glass is an OEM part for GE ovens. It serves as the protective barrier for the oven door, providing insulation and a visually appealing finish. It is designed to maintain the desired temperature inside the oven while keeping the exterior cool to the touch.

A bad outer door glass can result in issues such as cracks, shattered glass, or loose trim. Causes of a bad assembly can include accidental impacts, exposure to extreme temperatures, or wear and tear over time.

Symptoms of a bad outer door glass include:

• Visible cracks or shattered glass on the oven door
• Loose or damaged trim around the glass panel
• Heat escaping from the oven door
• Difficulty in cleaning or removing stains from the glass

Replace your worn-out or damaged outer door glass with this genuine OEM GE part to restore your oven.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.


Color: Black

The Door Gasket Assembly is an OEM replacement part for GE ranges and wall ovens. This assembly forms an airtight seal around the oven door to retain heat within the cooking chamber. The door gasket is responsible for ensuring optimal cooking temperatures can be maintained regardless of outdoor conditions. It prevents hot air and moisture from escaping the oven cavity.

Causes of a bad door gasket assembly can include deterioration of sealing materials over many heating and cooling cycles. Physical damage from impact or over-closing of the heavy oven door may also occur.

Symptoms of a bad oven door gasket assembly include:

• Inefficient or uneven cooking as heat escapes around the edges
• Condensation appearing on exterior oven surfaces during baking
• Visibly observable gaps around the door frame when closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This side insulation panel provides a thermal barrier inside the range or oven cavity to help control heat transfer and protect surrounding components and cabinetry. It restores proper insulation where the original panel is missing, torn, or degraded. What it does:

• Reduces heat transfer from the oven cavity to adjacent panels and cabinetry
• Helps maintain consistent oven temperatures by preserving internal heat
• Prevents excessive exterior heat that can damage finishes or nearby components
• Replaces torn, water-damaged, or compressed insulation that no longer performs

• Disconnect power (and gas if applicable) and allow the appliance to fully cool before servicing
• Remove access panels or oven components as shown in the service manual to reach the insulation area
• Wear gloves and eye protection; insulation fibers can irritate skin and eyes

This insulation panel helps contain oven heat where cooking occurs and reduces heat transfer to the cabinet. It supports stable oven performance and safer exterior temperatures during operation. What it does:

• Provides thermal barrier between the oven cavity and outer cabinet
• Helps reduce heat loss for more consistent cooking temperatures
• Can prevent excessive exterior heating that may cause nearby component stress
• Can be replaced when insulation is damaged, deteriorated, or missing

• Disconnect power (and gas if applicable) before beginning any repair
• Allow the oven to cool completely and wear gloves; insulation fibers can irritate skin
• Replacement typically requires removing oven door/panels to access cavity; follow OEM service instructions
• Secure insulation so it does not contact heating elements or obstruct vents

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This drawer mounting bracket secures the lower storage or warming drawer to the range cabinet, keeping it aligned so it opens and closes smoothly. Replace a bent, broken, or missing bracket to restore proper drawer tracking and stability.

• Anchors the drawer to the range frame and supports correct slide alignment
• Helps prevent binding, rubbing, and uneven gaps
• Replace if the drawer wobbles, sags, falls off the track, or rattles
• Use when the original bracket is bent, cracked, or missing

• Disconnect power; for gas models, also shut off the gas supply
• Remove the drawer and note the bracket's orientation and mounting points
• Retain and transfer mounting hardware from the original bracket if needed
• Reinstall the drawer and verify smooth, level operation before restoring power/gas

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This painted screw head is a cosmetic and protective cap that restores the finished look where a visible screw is used. It covers the screw head and helps match surrounding black trim for a clean appearance. What it does:

• Covers and conceals a screw head to improve appearance of panels, trim, or bezels
• Helps protect the screw head from direct exposure and reduces visible wear
• Used when trim or panels show exposed or mismatched screw heads
• Common fix when screw heads are scratched, discolored, or visually distracting

• Use the matching screw and press or snap the cap into place over the screw head
• Disconnect power and remove any panels only as recommended by your appliance manual before working near electrical components
• Avoid forcing or prying the cap; if tight, gently ease it on to prevent breakage
• Replace any damaged caps with the exact part to maintain fit and finish

The Bottom Door Trim (BLK) is an OEM part for GE ranges. This black trim piece is located at the bottom of the oven door, providing a finished look while also protecting the door's edge from damage and wear.

Causes of a bad bottom door trim can include repeated exposure to high temperatures, accidental impacts, or regular wear and tear from frequent use.

Symptoms of a bad bottom door trim include:

• Visible cracks or breaks in the trim
• The trim becoming loose or detaching from the door
• Sharp edges or warping
• Difficulty in opening or closing the oven door properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This is a replacement mounting screw used on compatible GE appliances to secure panels and components. It provides a corrosion-resistant, painted finish for a neat, lasting fit. What it does:

• Fastens trim, panels, or internal components where a 10-16 thread screw is required
• Painted/plated finish resists rust and blends with appliance surfaces
• Replaces worn, missing, or stripped screws to restore secure mounting
• Helps eliminate rattles or loose panels caused by missing fasteners

• One painted/plated 10-16 screw (2.15" length)

• Verify screw size and length match the original before installation
• Use appropriate driver to avoid stripping the head; do not overtighten
• Disconnect power or follow appliance safety guidelines if working near electrical components
• If the original screw threads are damaged, inspect mating part and replace as needed

The Black Handle and Endcap is an OEM part for GE ranges. It includes both the oven door handle as well as the decorative endcaps on either side. Providing a sophisticated look, these parts play an important aesthetic role.

The handle and endcaps are responsible for a sleek modern style. Made from durable black materials, they can resist everyday wear without showing fingerprints or other marks as easily as lighter tones.

Symptoms of a bad handle and endcaps include:

• Cracked, chipped or broken surfaces
• Loose fit that enables dirt/grime behind the endcaps
• Dull, faded or stained appearance

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This window spacer assembly positions and supports the appliance door/window glass to maintain proper alignment and a snug fit. Replacing a worn or damaged spacer restores stable glass placement and helps prevent rattling or moisture buildup. What it does:

• Holds and spaces the door/window glass for correct alignment and seal
• Reduces glass movement and vibration that causes rattling noises
• Helps maintain a tight fit to limit air/moisture entry and fogging
• Replaces a cracked, warped, or missing spacer that can allow loose or misaligned glass

• Disconnect power to the appliance before beginning any disassembly
• Handle glass carefully and support it while removing or installing the spacer
• Follow OEM instructions for your model

This drum end cap supports the dryer drum and helps keep it aligned for smooth rotation. Replacing a worn or damaged end cap restores drum positioning to reduce rubbing, noise and uneven wear. What it does:

• Supports and locates the drum at the cabinet end to maintain proper alignment
• Helps the drum rotate smoothly and reduces rubbing or scraping sounds
• Prevents excess wear on the drum edge and adjacent supports
• Common symptom: noisy or wobbling drum that may rub against the cabinet

• One drum end cap

• Disconnect power to the appliance before beginning any repair
• Access typically requires removing the dryer front or cabinet panels; keep track of fasteners
• Inspect adjacent parts (glides, rollers, bearings or seals) and replace if worn
• Test the dryer on a short cycle after reassembly to ensure smooth drum rotation

This replacement drawer panel restores the finished front appearance of the appliance drawer and covers the drawer opening for a clean, like-new look. It's a direct-fit cosmetic panel made to match the appliance's original finish. What it does

• Replaces a cracked, dented, scratched, or faded drawer front to restore appearance
• Covers and protects the drawer opening from dust and debris
• Provides the correct mounting surface for existing trim, handles, and clips
• Helps maintain consistent appearance across the appliance front

• High-level replacement; remove drawer assembly to access mounting screws or clips
• Keep small fasteners and mounting clips; verify orientation before tightening
• Use hand tools and avoid over-tightening to prevent panel damage
• Follow safety procedures and disconnect power if instructed by the manufacturer
