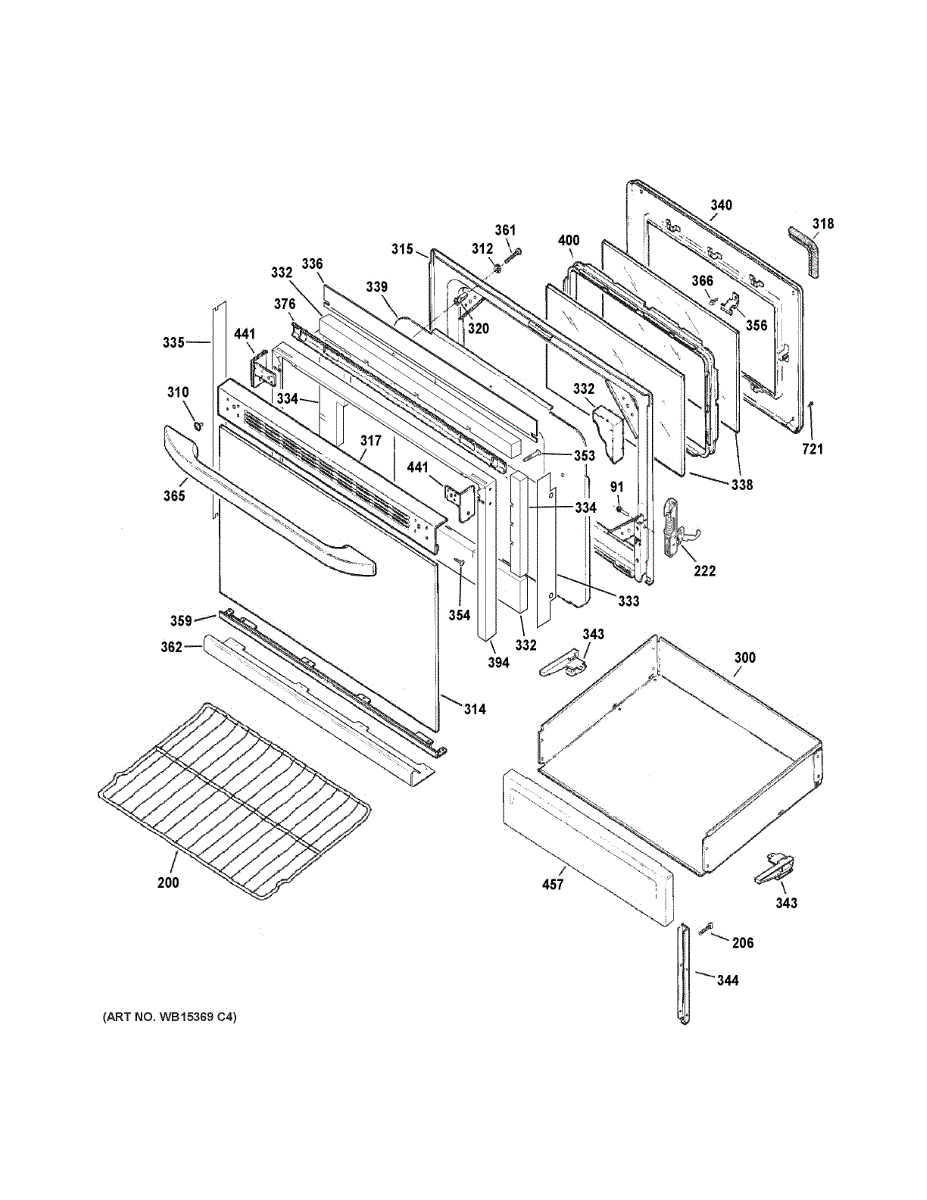

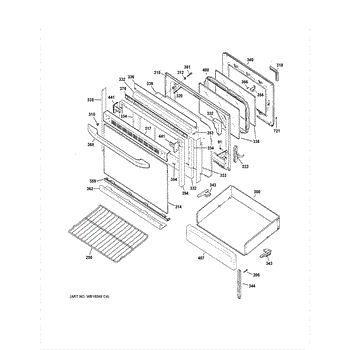

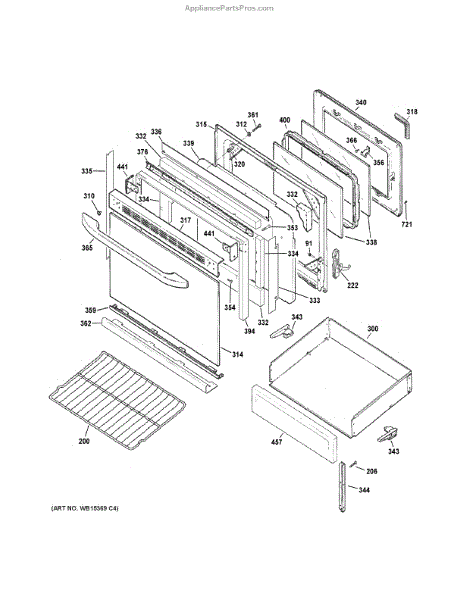

Parts for Ge JB450DF1CC: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

The Oven Door Hinge is an OEM part for GE ranges. It is responsible for securely yet smoothly opening and closing the oven door. The hinge plays a crucial role in the operation and functionality of the oven by ensuring the door moves freely while remaining tightly sealed when closed.

Causes of a bad door hinge include wear and tear over time, repeated opening and closing of the door putting stress on the hinge mechanism, or accidental damage.

Symptoms of a bad door hinge include:

• The door not opening or closing fully
• Difficulty in moving or swinging the door
• Loss of the secure seal when closed causing heat leakage
• Excessive movement, wobbling, or noise from the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

This small rubber grommet cushions and secures a range or oven door handle, helping keep the handle stable and reducing wear where the handle meets the door. It restores a snug fit and quiet operation. What it does:

• Acts as a protective bushing between the handle and door to prevent metal-on-metal contact
• Helps stop a loose, wobbly, or rattling handle
• Reduces wear on mounting holes and finish around the handle
• Provides a tight, vibration-dampening fit for the handle assembly

• Disconnect power to the appliance before starting any work
• Typically a simple press-fit replacement; handle removal may be required for access
• Inspect surrounding fasteners and mounting surfaces; replace damaged parts as needed

Includes 12 washers.

This glass oven door restores a clear, heat-resistant front for your oven so you can safely view cooking progress and maintain proper oven heat containment. It replaces a cracked or damaged door glass to improve safety and appliance appearance. What it does:

• Acts as the oven's outer glass panel to contain heat and allow visibility into the oven cavity
• Replaces cracked, broken, or chipped door glass that can cause heat loss or safety concerns
• Helps restore the oven's seal and proper cooking performance when used with intact inner components
• Improves kitchen appearance by replacing scratched or cloudy exterior glass

• One glass oven door outer panel

• Disconnect power to the appliance (unplug or shut off circuit) and allow the oven to fully cool before starting
• Handle the glass carefully; wear cut-resistant gloves and safety glasses to avoid injury
• Some door removals/installations require two people to support the door and avoid dropping or damaging the glass
• Follow the oven manufacturer's service instructions for removing the door and replacing the glass; use only approved fasteners and gaskets as specified

Color: Bisque

This Door Gasket Assembly seals the gap between the appliance door and front frame to contain heat and steam during operation. Replacing a worn gasket restores a snug seal for reliable performance and fewer leaks around the door.

• Creates a tight perimeter seal between the door and cabinet/front frame
• Helps maintain internal temperature and overall cooking efficiency
• Reduces noticeable heat or steam escaping around the door area
• Replace if the gasket is torn, frayed, hardened, flattened, or if the door no longer seals evenly

• Disconnect power at the breaker or unplug the appliance; allow it to cool completely
• Wear cut-resistant gloves; sharp edges may be present around the door and frame
• Remove the old gasket and clean the channel or seating surface
• Install the new gasket evenly without stretching; ensure corners are fully seated and check for uniform contact around the door

A small mounting spacer that positions and secures components inside the appliance, helping maintain correct clearances and alignment for reliable operation. Replaces worn or missing spacers to reduce rubbing, vibration, or misalignment. What it does:

• Provides a fixed gap or support between parts to prevent contact and wear
• Keeps panels, brackets or assemblies properly aligned during operation
• Reduces vibration and noise caused by loose or missing spacing hardware
• Helps ensure correct airflow or clearance where specified by the manufacturer

• Install with the original fasteners and in the same orientation; do not force or deform the spacer
• Verify the mating surfaces are clean and free of debris before installing
• Disconnect power to the appliance before starting work and follow basic electrical safety
• Replace any other damaged mounting hardware to ensure a secure repair

This bottom oven door insulation replaces the worn or damaged pad that sits behind the oven door panel to help retain heat and reduce exterior panel temperature for safer, more consistent cooking. What it does

• Replaces the insulating pad behind the oven's bottom door panel to help contain cooking heat.
• Helps reduce outer door temperature and heat loss for more consistent oven temperatures.
• Can address symptoms such as unusually hot exterior door surfaces or reduced oven temperature stability.
• Used when insulation is torn, compressed, water-damaged, or missing after door repair.

• Basic door disassembly is usually required; follow the range/oven service manual for correct steps.
• Handle insulation with care; wear gloves and a dust mask if insulation is crumbly or degraded.
• Disconnect power to the appliance before working on the door or removing panels.
• Reassemble panels and verify door seals and latches are positioned correctly before restoring power.

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inner welded panel assembly restores the stove/oven control/backguard interior structure for a secure fit and proper alignment. Replaces a bent, cracked or damaged inner panel to help stop rattling and improve component support. What it does:

• Replaces the inner welded panel that supports the control/backguard area and helps align the outer trims.
• Restores structural integrity when the original panel is dented, cracked or separated at welds.
• Reduces rattling or vibration caused by loose or damaged interior paneling.
• Provides the proper mounting surface for switches, trim pieces and related hardware.

• One inner welded panel assembly as pictured.

• Disconnect power to the appliance before starting any work.
• Handle edges and sheet metal carefully—wear gloves and eye protection.
• May require removal of control panel, backguard or cooktop to access mounting points; retain original screws and clips for reassembly.

The Oven Drawer Glide is an OEM replacement part for GE electric and gas ranges. It functions as the suspension mechanism facilitating smooth extension and retraction of range drawer shelves.

Causes of a bad drawer glide can include wear from years of use, damage from heavy pots or pans straining the glide, or loose mounting fixtures failing to securely support shelf weight.

Symptoms of a bad drawer glide include:

• Difficulty accessing or storing items within drawers
• Squeaking or grinding noises when opening/closing
• Drawers failing to fully extend or retract
• Risk of entire drawer assembly detaching over time

This OEM GE part is also compatible with some Hotpoint, RCA and select Kenmore electric and gas range models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This replacement screw fastens appliance components and panels, restoring a snug, rattle-free fit. Use it to replace a missing or stripped fastener so trim, brackets, and other parts stay properly secured and aligned. What it does:

• Secures panels, brackets, trim, or burner-related parts to the chassis
• Replaces missing, damaged, rusted, or stripped fasteners
• Helps reduce vibration and rattling from loose components
• Restores proper fit and alignment of attached parts

• 1 screw

• Disconnect power; shut off gas before servicing
• Replace one screw at a time to maintain alignment and fit
• Hand-start threads to prevent cross-threading; tighten snugly without overtightening
• Wear cut-resistant gloves and use the correct driver for the head type

This mounting screw secures an appliance end cap or trim piece, keeping covers and brackets fastened for safe, stable operation. It's a direct-fit replacement used when the original screw is lost, stripped, or damaged. What it does:

• Secures the end cap or trim to the appliance frame to prevent gaps and movement
• Stops rattling or vibration caused by a missing or worn screw
• Holds covers in place to protect internal components from debris
• Restores proper fit and alignment of the end cap/trim

• Disconnect power before servicing the appliance
• Use the correct screwdriver or bit to avoid stripping the head
• Thread carefully and tighten until snug—do not overtighten
• Replace damaged screws or threaded inserts to ensure a secure fit

Color: Bisque

This is a replacement mounting screw used on compatible GE appliances to secure panels and components. It provides a corrosion-resistant, painted finish for a neat, lasting fit. What it does:

• Fastens trim, panels, or internal components where a 10-16 thread screw is required
• Painted/plated finish resists rust and blends with appliance surfaces
• Replaces worn, missing, or stripped screws to restore secure mounting
• Helps eliminate rattles or loose panels caused by missing fasteners

• One painted/plated 10-16 screw (2.15" length)

• Verify screw size and length match the original before installation
• Use appropriate driver to avoid stripping the head; do not overtighten
• Disconnect power or follow appliance safety guidelines if working near electrical components
• If the original screw threads are damaged, inspect mating part and replace as needed

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Color: Bisque

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions
