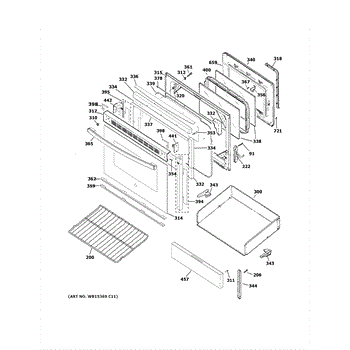

Parts for Ge JB480DM3BB: Door & Drawer Parts

Replace your worn, bent, or warped oven rack. Provides a stable surface for baking sheets and pans inside your range oven. Fits standard ovens.

Panel mounting screw secures trim, bezels, and internal components on ranges and cooktops. Replace when stripped, corroded, or missing to restore fit.

Securely opens and closes your oven door while maintaining a tight seal. Replace if door sags, won't stay open, or closes unevenly. Confirm fit with model.

Metal pan that forms your range's lower drawer assembly. Replace if bent, rusted, or damaged to restore proper alignment and smooth sliding on tracks.

Rubber grommet that cushions and secures your range door handle. Replaces worn, cracked, or missing grommets to restore snug fit and quiet operation.

Protective bumper that cushions the burner grate and prevents scratching or denting the cooktop surface. Replace if cracked, worn, or missing.

Outer glass panel for range oven doors. Replaces cracked, broken, or shattered glass on the exterior door surface. Restores appearance and insulation.

Black trim piece that covers the top edge of your range oven door. Replace if cracked, broken, or missing to restore door appearance and finish.

Seals the gap between your range door and frame to contain heat and steam. Replace when worn or torn to restore efficiency and prevent heat leaks.

This bottom oven door insulation replaces the worn or damaged pad that sits behind the oven door panel to help retain heat and reduce exterior panel temperature for safer, more consistent cooking. What it does

• Replaces the insulating pad behind the oven's bottom door panel to help contain cooking heat.
• Helps reduce outer door temperature and heat loss for more consistent oven temperatures.
• Can address symptoms such as unusually hot exterior door surfaces or reduced oven temperature stability.
• Used when insulation is torn, compressed, water-damaged, or missing after door repair.

• Basic door disassembly is usually required; follow the range/oven service manual for correct steps.
• Handle insulation with care; wear gloves and a dust mask if insulation is crumbly or degraded.
• Disconnect power to the appliance before working on the door or removing panels.
• Reassemble panels and verify door seals and latches are positioned correctly before restoring power.

Insulation panel that installs on the side of your range door to reduce heat transfer and noise. Replace if cracked, damaged, or missing for proper coverage.

If your oven won't reach temperature or the outer door gets too hot, the door insulation panel may be damaged. Restores heat retention and safety.

Inner glass window for range oven doors. Mounts inside the door frame to provide visibility while cooking. Replace when cracked, broken, or shattered.

Control panel assembly for your range. Installs on the front face to house buttons and displays. Replace if cracked, damaged, or worn from daily use.

Replace worn range storage drawer glides to restore smooth sliding motion. Install on both sides of drawer for proper operation. Verify fit with model number.

Secures and supports your range drawer to prevent sagging and ensure smooth operation. Replace when drawer misaligns or wobbles. Confirm fit with your model.

Replacement mounting screw for range panels, brackets, and trim. Restores secure fit when original fastener is missing, stripped, or damaged.

Black painted screw head cover cap for ranges. Conceals exposed screws on panels and trim pieces. Replace if cracked, chipped, missing, or worn.

Black trim piece that installs at the bottom edge of your range oven door. Replace if cracked, rusted, broken, or missing to restore appearance.

Replacement mounting screw for range panels and components. Use when original screw is missing, stripped, or corroded. Corrosion-resistant finish.

Replace your range's black oven door handle and decorative endcaps. Install when original handle is cracked, broken, or worn for a sleek modern look.

This is a replacement screw used to secure panels and components on compatible appliances, providing reliable fastening to stop loose parts and noise. It restores proper fit where the original fastener is missing or damaged. What it does:

• Fastens control panels, brackets, or trim to appliance chassis
• Keeps components aligned to prevent rattling or vibration
• Replaces stripped or corroded mounting screws
• Restores secure connections that can cause gaps or poor fit

• Disconnect power before servicing the appliance
• Use the correct-size driver or socket to avoid stripping the head
• Thread in carefully and avoid over-tightening to prevent damage
• Check that the screw seats flush and secures the component fully

Positions and supports oven door glass to maintain proper alignment. Replace if worn, cracked, or missing to prevent glass rattling and gaps.

Supports and aligns the dryer drum at the cabinet end. Replace this plastic end cap if cracked, broken, or worn to restore proper drum positioning.

Endcap for range storage drawer. Installs at drawer end to provide finished edge and structural support. Replace if cracked, broken, or missing.

Fiberglass gasket cord for range door or panel sealing. Replaces worn, frayed, or missing cord that no longer seals properly. Ensures tight fit.

Single fastening screw for range components. Replaces missing, stripped, or damaged screws that secure panels, brackets, and trim pieces in place.
