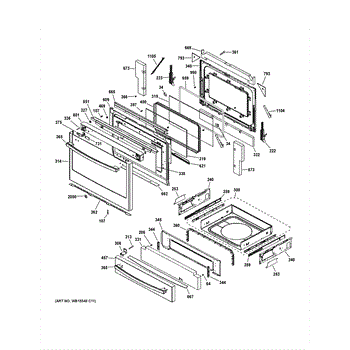

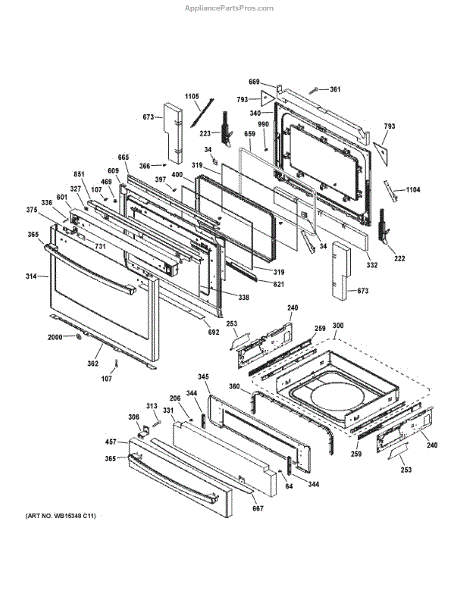

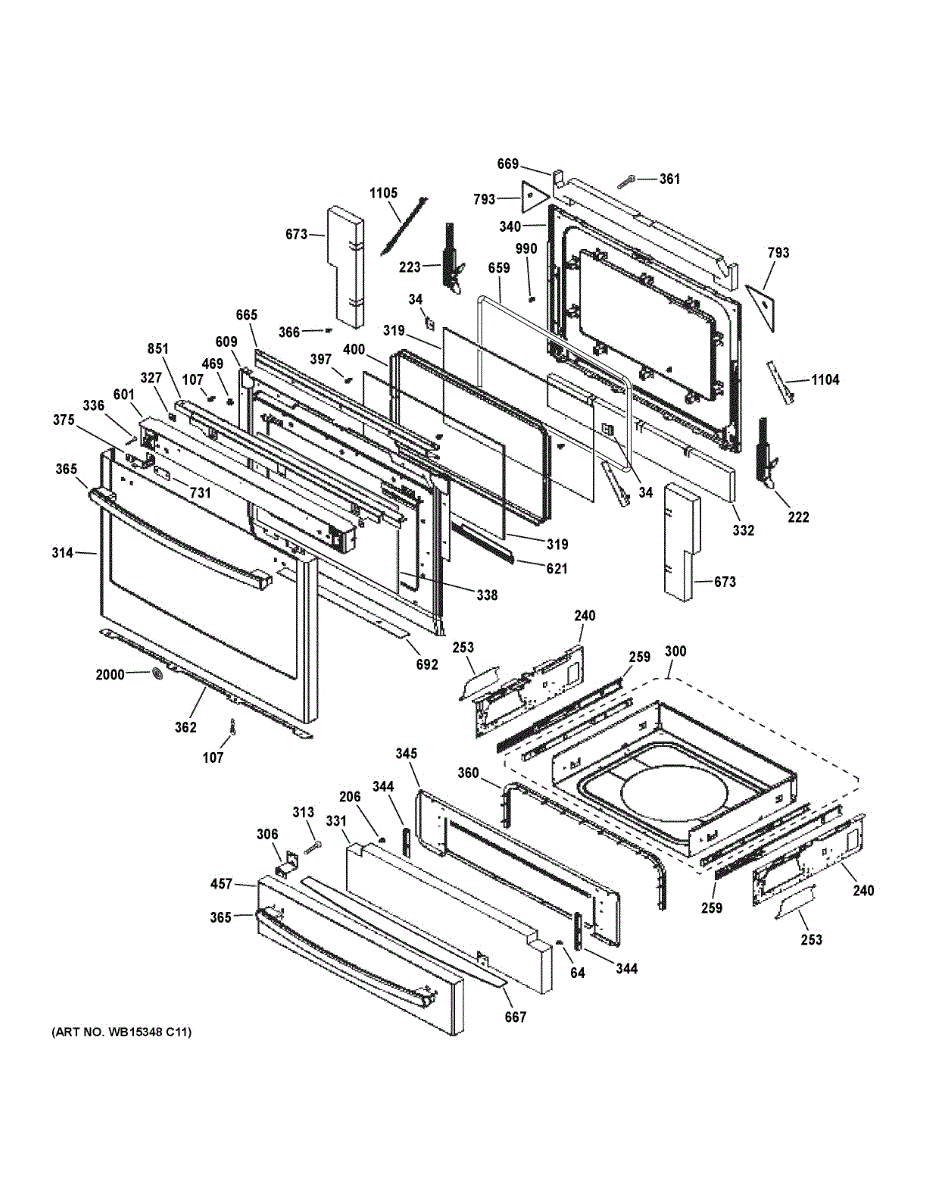

Parts for Ge PGS920SEF2SS: Door & Drawer Parts

This bracket secures oven door glass to the door frame, restoring proper alignment and preventing loose or rattling glass. Designed to match the original mounting points for a secure fit. What it does:

• Holds the oven door glass in place so the door opens and closes evenly
• Prevents the glass from shifting, rattling, or touching internal components
• Helps restore a tight seal for consistent cooking temperatures
• Addresses symptoms like loose, vibrating, or uneven door glass

• Disconnect power to the appliance before starting any repair
• Handle glass carefully; wear gloves and eye protection to avoid cuts
• This part installs from the inside of the oven door; refer to the service manual for disassembly steps
• If glass or other door components are damaged, replace all affected parts for safe operation

This replacement screw secures appliance components so panels, brackets, and trim stay tight and aligned. Use it to replace a missing, stripped, or rusted fastener and restore a solid, rattle-free fit in the affected assembly.

• Fastens parts to the chassis/frame or mounting brackets
• Replaces lost, damaged, or corroded hardware
• Can help address loose or vibrating panels and minor misalignment
• Maintains a secure attachment during normal operation

• Disconnect power before servicing; for gas appliances, also shut off the gas supply
• Match the screw to the original location and reuse any clips or washers if present
• Start threading by hand to avoid cross-threading; tighten snugly without overtightening
• Repair/replace damaged receiving threads or clip for proper hold

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

Door hinge replacement that restores proper door alignment and smooth opening and closing for compatible appliances. Installs in place of a worn or damaged hinge to reduce door sag, improve sealing, and stop binding. What it does:

• Provides the pivot point that allows the door to open and close smoothly.
• Keeps the door aligned to maintain an even seal and prevent gaps that cause temperature loss.
• Replaces a bent, worn, or damaged hinge that can cause door sag, rubbing, or binding.
• Helps reduce noise or rough movement when opening or closing the door.

• Disconnect power (unplug or shut off the circuit) before beginning any repair.
• Support the door during removal and installation to prevent it from dropping or becoming damaged.
• Use appropriate hand tools and follow the appliance manufacturer's instructions; tighten fasteners securely but avoid overtightening.

This left-side door hinge supports and pivots the appliance door for smooth, secure operation. Replace a bent or worn hinge to restore proper alignment and reliable latching, helping the door open and close correctly without sagging or binding.

• Provides the left-side pivot and support for the door
• Helps maintain door alignment so the latch engages properly
• Promotes smooth, controlled opening and closing
• Typical fix for a door that sags, binds, won't stay closed, or shows visible hinge damage

• Disconnect power at the breaker and allow the unit to cool before servicing; wear cut-resistant gloves
• Support the door; many designs require removing the door to access/replace the hinge—have a helper if needed
• Reinstall hardware and test door movement and latch engagement; adjust as needed

Left hand side

Right hand side

Left hand side

Right hand side

Size: 10-16 X 0.95 inch.

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

This speed nut is a clip-on fastener that provides threads for a screw on the appliance. It secures sheet-metal panels, brackets, or trim and helps keep assemblies tight under vibration and repeated use.

• Provides captive threads so a screw can tighten into thin sheet metal
• Helps secure panels, brackets, and trim pieces in place
• Replace if a screw spins without tightening, a panel rattles/feels loose, or the original clip is missing or damaged
• Restores a snug, reliable attachment point without a loose nut

• Disconnect power and, if applicable, shut off gas; allow the appliance to cool before servicing
• Note the clip's orientation; slide it onto the panel edge or stud as designed
• Start the screw by hand to avoid cross-threading; do not overtighten
• Wear cut-resistant gloves when handling sheet-metal parts

Includes 12 screws.

The Crystal Window is an OEM part for GE ranges. This part is the inner glass window located on the oven door, allowing users to visually monitor the cooking process without opening the door. The window is designed to withstand high temperatures and provide clear visibility into the oven.

Causes of a bad crystal window can include regular wear and tear, thermal stress from repeated heating and cooling cycles, and accidental impacts that can cause cracks or scratches.

Symptoms of a bad crystal window include:

• Visible cracks or scratches on the window
• Cloudiness or discoloration obstructing the view
• Difficulty seeing inside the oven during cooking
• Potential safety concerns if the window's structural integrity is compromised

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This drawer mounting bracket secures the lower storage/drawer assembly to the range/cabinet, restoring stable alignment and smooth opening. Durable stamped metal bracket used where the drawer frame needs a reliable support point. What it does:

• Provides a secure attachment point for the appliance storage drawer or lower kick drawer
• Keeps the drawer aligned to prevent sagging, rubbing, or uneven movement
• Restores stability if original bracket is bent, broken, or missing
• Helps eliminate rattling or excessive play in the drawer during use

• One drawer mounting bracket

• Inspect surrounding drawer frame and fasteners; replace missing or damaged screws with OEM-specified hardware
• Disconnect power and ensure range is cool and stable before working on lower drawer assemblies
• Minor hand tools typically required; handle sharp edges carefully and wear gloves if needed

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

This painted screw head is a cosmetic and protective cap that restores the finished look where a visible screw is used. It covers the screw head and helps match surrounding black trim for a clean appearance. What it does:

• Covers and conceals a screw head to improve appearance of panels, trim, or bezels
• Helps protect the screw head from direct exposure and reduces visible wear
• Used when trim or panels show exposed or mismatched screw heads
• Common fix when screw heads are scratched, discolored, or visually distracting

• Use the matching screw and press or snap the cap into place over the screw head
• Disconnect power and remove any panels only as recommended by your appliance manual before working near electrical components
• Avoid forcing or prying the cap; if tight, gently ease it on to prevent breakage
• Replace any damaged caps with the exact part to maintain fit and finish

This is a replacement drawer panel that restores the front face and appearance of your appliance drawer. Replaces a cracked, dented or worn front surface so the drawer looks and functions as intended. What it does:

• Replaces a damaged, dented or cracked drawer front for improved appearance
• Provides the finished exterior surface that the drawer slides and handle attach to
• Helps keep the drawer aligned and closing smoothly when installed correctly
• Restores original fit and finish without replacing the entire drawer assembly

• Disconnect power to the appliance before beginning work and remove stored items from the drawer.
• Installation typically requires removal of trim/fasteners and careful alignment of clips or screws—use basic hand tools.
• Handle any sharp edges carefully and avoid overtightening fasteners to prevent cracking.

This silicon controlled rectifier (SCR) is an electronic switching component used on appliance control boards to regulate power to heating elements or motors, restoring proper control and operation when the SCR fails. What it does:

• Acts as a power-control switch on control boards to deliver variable current to heaters or motors
• Helps regulate on/off cycles and output under control-board commands
• Failure may cause no heat, intermittent heating, or components not running as expected
• Replacing a faulty SCR can restore consistent power control and appliance function

• Disconnect all power before servicing; risk of electric shock or damage
• Static-sensitive component—use proper ESD precautions when handling
• Replacement typically requires desoldering/soldering on the control board or replacement of the control module

This oven door insulation panel fits behind the oven door to help retain cooking heat and reduce heat transfer to the outer door. It restores proper thermal performance for safer, more consistent cooking. What it does:

• Provides a thermal barrier behind the oven door to help keep heat inside the oven cavity
• Helps the oven reach and hold set temperatures more consistently
• Reduces excessive heat on the exterior door surface
• Replace if insulation is torn, missing, or visibly degraded

• Disconnect power to the appliance before beginning any service
• Follow the oven/door removal and reassembly steps from the manufacturer's service manual
• Wear gloves and eye protection; insulation may have fibrous material
• Avoid compressing or folding the insulation during installation; ensure it is positioned as originally installed

A replacement inner door insulation that restores the refrigerator door's thermal barrier to help maintain proper temperature and reduce condensation. Fits behind the door panel to support efficient cooling and prevent cold air loss. What it does:

• Replaces damaged or compressed insulation that can allow cold air to escape
• Helps reduce moisture buildup and frost on the door interior
• Supports consistent internal temperatures for better food preservation
• Dampens noise and helps the door close more evenly

• Disconnect power to the appliance before starting any repairs
• Remove the door panel and any trim or handles to access the insulation
• Handle carefully around sharp sheet metal and retain any fasteners for reassembly
• Use the exact replacement part number for proper fit; avoid forcing or trimming the insulation

This silicon controlled rectifier (SCR 8-22) is a replacement power-switching semiconductor used in appliance control and ignition circuits to help control current flow for heating and ignition components. Installing the correct SCR restores reliable switching and can stop intermittent or complete loss of heater/igniter function. What it does:

• Acts as a high-current electronic switch that controls power to heating or ignition elements when driven by the appliance control board
• Replaces a failed SCR to resolve symptoms like no ignition, no heating, intermittent power to elements, or control board error codes related to switching
• Works as part of the appliance's control/ignition circuit to ensure timed, controlled delivery of current
• Matches common OEM/catalog designation "SCR 8-22" for direct replacement where specified

• One SCR 8-22 replacement semiconductor

• High-level replacement only: follow the appliance service manual for location and wiring; ensure correct orientation and connector fit
• Disconnect power at the breaker and confirm no line voltage before servicing
• Handle the SCR and surrounding electronics carefully to avoid ESD damage; use proper grounding

This diverter assembly routes water flow between dishwasher spray arms so the washer delivers water where it's needed for cleaning. Durable replacement for a worn or damaged diverter to restore proper water distribution. What it does:

• Directs incoming wash water to the correct spray arm(s) during the cycle
• Can stop or reduce water flow to a spray arm when a diverter fails
• Commonly replaced when upper or lower spray arms receive little or no water
• Helps prevent uneven cleaning caused by improper water routing

• One diverter assembly as shown

• Disconnect power and water supply before starting any repair
• Access may require removing the dishwasher tub spray assembly or access panels; follow OEM disassembly steps
• Inspect surrounding seals and mounting points and replace any damaged hardware
