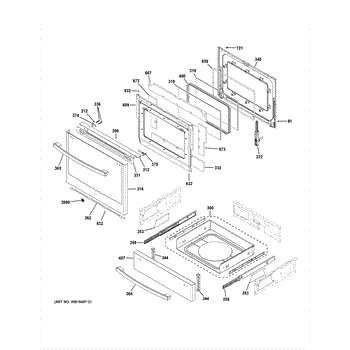

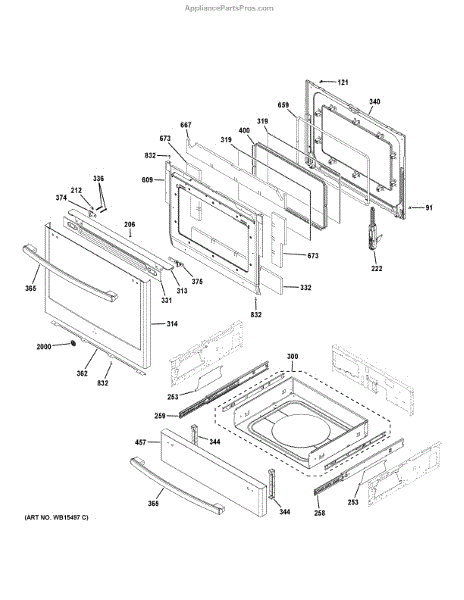

Parts for Ge PGS930EEL1ES: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

This genuine replacement screw secures panels, trim and small components on compatible appliances to restore proper fit and prevent rattling or gaps. Use it when a missing or damaged fastener causes loose or misaligned parts. What it does:

• Fastens panels, bezels, trim pieces and small assemblies to the appliance frame
• Restores secure fit to eliminate rattling, vibration noise or loose trim
• Replaces stripped, rusted or missing screws that prevent proper alignment

• Disconnect power to the appliance before servicing to avoid electrical hazard
• Use the correct screwdriver or driver bit to prevent stripping the head
• Tighten securely but avoid over-torquing; excessive force can strip threads or crack plastics
• Keep removed fasteners organized to ensure correct reassembly

This replacement door hinge restores proper door alignment and smooth opening on compatible GE refrigerators. It provides the durable pivot point needed to keep the door seating correctly and reduce sag or binding. What it does:

• Replaces a worn or bent hinge to correct door sag and uneven gaps
• Restores smooth pivoting for easier opening and closing
• Helps ensure a proper door seal to maintain cooling performance
• Addresses symptoms like door dragging, misalignment, or rubbing

• One replacement door hinge

• Verify hinge orientation and mounting location before installation
• Support the door while removing/installing hinge hardware to prevent damage or injury
• Use appropriate tools and follow manufacturer torque recommendations if available
• Disconnect power and remove stored items from the door if work affects electrical components

The range door hinge is an OEM part for GE ranges. It acts as the pivot point that allows the range door to smoothly swing open and closed. The hinge must be durable enough to support the weight of the door during opening and closing motions, while also providing smooth movement.

Causes of a bad hinge can include normal wear and tear over time, repeated heavy use, or accidental damage. The stainless steel components that make up the hinge can become worn or misaligned.

Symptoms of a bad range door hinge include:

• Difficulty opening or closing the range door
• The door not sitting properly when closed or open
• Excessive noise or squeaking when operating the door
• The door unable to stay fully open or closed

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

Right hand side

Left hand side

This glass and panel door assembly replaces the inner oven door glass to restore a clear view and proper barrier between the oven cavity and exterior. It fits the factory door frame and returns the door to OEM configuration. What it does:

• Replaces cracked, chipped, or broken inner oven door glass that can impair viewing or safety
• Restores the oven door's protective barrier to help contain heat and fumes during cooking
• Helps prevent stray glass fragments from falling into the oven cavity
• Returns the door to factory appearance for a clean, finished look

• Disconnect power (and gas supply for gas ranges) before starting any repair to avoid shock or fire hazard.
• Handle glass with care and use gloves; assembly can be heavy or awkward—use a second person if needed.
• Keep all door fasteners and brackets in the original order; verify proper alignment and seal after installation.

This replacement oven door window glass restores clear viewing into the oven and helps keep the door assembly performing as designed. Replace when the original pane is cracked, shattered, or permanently stained.

• Clear glass pane used in the oven door window assembly
• Lets you check food without opening the door
• Contributes to proper heat retention as part of the multi-pane door design
• Common failure signs: cracked/shattered glass, loose or rattling window, visibility obscured by damage

• Disconnect power at the breaker or unplug; shut off gas for gas ranges. Allow the oven to cool completely.
• Wear cut-resistant gloves and eye protection; handle glass carefully to avoid injury.
• Access typically requires removing the door and separating inner/outer panels; keep screws organized by location.
• Reinstall any spacers/seals in their original positions and avoid overtightening fasteners against glass.

This liner door weld assembly replaces the damaged or separated inner door liner to restore door strength and alignment. It provides a solid mounting surface and helps the door close properly for reliable operation. What it does:

• Replaces cracked, bent, or separated inner door liner caused by impact or wear
• Restores structural support and mounting points for door components
• Helps eliminate gaps, rattles, or misalignment that can affect door closure
• Returns the door to its intended shape so seals and latches engage correctly

• One liner door weld assembly

• Disconnect power to the appliance before starting any repair
• Handle sharp sheet-metal edges with care and wear gloves and eye protection
• May require partial door disassembly and common hand tools; follow the OEM service instructions

This drawer bracket secures and supports a refrigerator/ freezer drawer, restoring proper alignment and load-bearing at the front or side mounting point. It's a simple replacement that helps the drawer open and close smoothly. What it does:

• Holds and supports the drawer to prevent sagging or tipping under normal loads
• Keeps the drawer aligned on its track for smooth operation
• Restores proper engagement with the cabinet so the drawer seats and latches correctly
• Helps prevent binding, catching, or uneven gaps when opening or closing

• Disconnect power to the appliance before servicing and work with the drawer empty.
• Remove the drawer and any trim as needed to access the bracket; use appropriate hand tools (screwdriver/socket) for fasteners.
• Reuse existing screws only if undamaged; replace fasteners if stripped or corroded.
• Align the bracket carefully before tightening to avoid binding; do not force or overtighten plastic components.

This barrier door restores the dryer's internal airflow path to help block backflow and direct exhaust air for proper drying performance. Replaces a damaged or stuck door that can interfere with venting. What it does

• Seals the dryer exhaust path to prevent air from flowing the wrong way.
• Helps maintain proper airflow so clothes dry more efficiently.
• Reduces the chance of lint or debris moving back into the drum area.
• Can stop rattling or scraping noises caused by a broken or loose door.

• One barrier door

• Disconnect power to the appliance before starting any repair.
• Remove the dryer front or lint-trap assembly as needed to access and replace the barrier door.
• Keep fasteners and mounting orientation the same; secure all screws and clips firmly.

The Handle and End Cap Assembly is an OEM part for GE ovens. This assembly comprises the handle used to open and close the oven door, along with the end caps that secure the handle firmly in place. The handle measures 27.5 inches long

Over time, the handle and end caps can become worn or damaged due to frequent use, exposure to high temperatures, or accidental impact. Such issues can make it challenging to operate the oven door properly and safely.

Symptoms of a bad Handle and End Cap Assembly include:

• Difficulty in opening or closing the oven door
• A loose or wobbly handle
• Visible cracks or damage to the handle or end caps
• The handle detaching from the oven door

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

A replacement handle mounting bracket that secures an appliance door handle to the door surface for safe, stable operation. Restores a loose or broken handle attachment so the handle stays firmly in place during use. What it does:

• Secures the door handle to the appliance door and provides a stable attachment point.
• Replaces a broken, cracked, or bent bracket that lets the handle wobble or detach.
• Helps eliminate handle movement and restore normal handle function.
• Compatible with the original handle mounting points to maintain proper alignment.

• Safety first: disconnect power and/or unplug the appliance before starting any repair.
• Use basic hand tools (screwdriver, socket) to remove trim or screws holding the old bracket; keep fasteners for reassembly.
• Support the handle while removing and installing the bracket to avoid dropping or damaging the door.
• Do not overtighten screws; snug fasteners to secure the bracket without stripping threads.

This handle bracket secures a refrigerator/freezer door handle to the appliance, restoring a solid grip and proper door operation. It replaces a worn, cracked, or broken bracket to keep the handle aligned and stable during use. What it does:

• Provides the mounting support for a door handle so the handle stays firmly attached
• Restores proper handle alignment to reduce wobble or shifting when opening the door
• Stops slipping or intermittent detachment caused by a cracked or damaged bracket
• Helps prevent further damage to the door or handle from continued use with a broken mount

• One handle bracket

• Designed for direct replacement; compare part number to the original before ordering
• Basic hand tools typically required; handle and trim may need removal to access bracket
• Disconnect power (and empty door area) if working near electrical components or lights
• If mounting hardware isn't present, reuse the original screws or order the specific fasteners listed by the OEM

Size: 10-32 GXTT FLP.595 S
