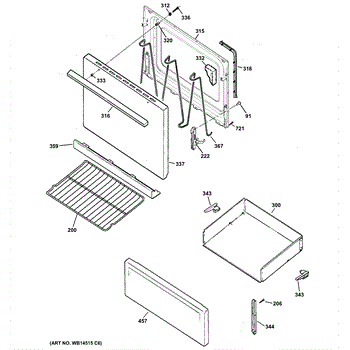

Parts for Hot Point RB525DD2BB: Door & Drawer Parts

This 10-32 machine screw secures brackets, panels, and other hardware in cooking appliances. Replacing a missing or stripped screw restores a snug, rattle-free fit and keeps components aligned and safely fastened. What it does:

• Fastens panels, brackets, and components using a 10-32 machine thread
• Replaces hardware that is missing, rusted, or stripped
• Helps address loose or rattling parts and minor panel misalignment
• Maintains secure mounting after service or part replacement

• One 10-32 machine screw

• Disconnect power; for gas appliances, also shut off gas before service
• Support the panel or bracket while removing/installing hardware
• Start threads by hand to avoid cross-threading; do not overtighten
• Replace them one at a time to keep alignment

The Oven Rack is an OEM part for GE ovens. It provides a stable and reliable surface for placing baking sheets, pans, and dishes inside the oven for cooking or baking.

Causes of a faulty oven rack can include wear and tear over time, bending or warping due to heavy items or improper handling, or damage from cleaning or harsh chemicals. A damaged or malfunctioning oven rack can lead to uneven cooking, unstable support for cookware, or difficulty in removing or inserting the rack into the oven.

Symptoms of a bad oven rack may include:

• Uneven cooking or baking results
• Difficulty sliding the rack in or out of the oven
• Bent or warped rack structure
• Instability when placing cookware on the rack

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

This genuine replacement door hinge assembly restores proper door support and movement for compatible appliances, helping doors open, close and stay aligned. It's a direct-fit replacement designed for reliable operation over time. What it does

• Supports the appliance door and anchors it to the cabinet or frame.
• Allows smooth opening and closing while maintaining correct door alignment.
• Common fix for doors that sag, bind, or don't stay closed.
• Works as part of the door pivot system to prevent uneven wear on seals and latches.

• One door hinge assembly.

• Disconnect power and, if applicable, gas before beginning any repair.
• Remove the door or panels as needed to access hinge mounting screws; keep all fasteners for reinstallation.
• Use basic hand tools; avoid forcing the hinge—align and support the door while tightening fasteners.

This drawer body is the metal pan that forms your range's lower drawer. Replacing a bent or rusted body restores alignment so the drawer slides smoothly, stays on its tracks, and safely supports its contents.

• Forms the structural base of the lower drawer assembly
• Attaches to the drawer front and the side glides/rails
• Keeps the drawer square and aligned for smooth travel
• Damage may cause sticking, scraping noises, sagging, or the drawer coming off track

• Disconnect power and let the appliance cool completely before servicing
• Remove the drawer; transfer the existing drawer front, handle, and any brackets to the new body as required
• Inspect and align the slides/rails, then seat the drawer on the tracks
• Test for smooth operation before loading the drawer

Includes 12 washers.

The Gasket Door Assembly is an OEM replacement part for GE ovens. This gasket provides a seal around the oven door, ensuring that heat is retained inside the oven for efficient cooking and baking. It helps to maintain the correct temperature and prevents heat from escaping, which can affect cooking performance and energy efficiency.

Causes of a bad gasket door assembly can include regular wear and tear, exposure to high temperatures, and physical damage such as cuts or tears. Over time, the gasket can lose its elasticity and sealing capability.

Symptoms of a bad Gasket Door Assembly include:

• Heat escaping from the oven door
• The oven taking longer to preheat or maintain temperature
• Uneven cooking or baking results
• Visible damage or gaps in the gasket

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This spacer sets the correct gap and alignment between appliance components so panels, brackets, or handles mount securely and operate quietly. Replacing a worn or missing spacer helps prevent rubbing, noise, and premature wear. What it does:

• Maintains proper clearance between mating parts for accurate alignment
• Positions mounting hardware at the correct depth
• Helps prevent rattling, rubbing, or uneven gaps
• Replaces a missing, cracked, warped, or heat-damaged spacer

• 1 spacer

• Disconnect power and allow the appliance to cool before service
• Note the original order/orientation of washers and spacers during disassembly
• Install the new spacer in the same position; reuse hardware if undamaged
• Tighten fasteners evenly and avoid overtightening; verify clearances before restoring power

This door insulation is the inner foam pad that fills a refrigerator door cavity to help slow heat transfer and keep the cabinet cold. Replacing a damaged pad restores proper door thermal performance and reduces energy loss. What it does:

• Fills the hollow door cavity to provide thermal insulation and help maintain interior temperature
• Helps reduce frost buildup and cycling frequency when installed correctly
• Stops drafts and cold leaks caused by compressed, torn, or missing insulation
• Reduces rattling or vibration if the original insulation has shifted or deteriorated

• Disconnect power to the appliance before beginning any repair
• Remove door panels and hardware to access the cavity; handle clips and screws carefully
• Wear gloves and a dust mask when handling old insulation; dispose of deteriorated material properly
• Reassemble panels securely and verify door seals and alignment after installation

A replacement grommet that secures and cushions a handle mounting, restoring a snug fit and preventing rattles or wear at the handle connection. Designed to fit the original handle mounting point. What it does:

• Cushions the handle mounting to reduce vibration and noise
• Protects the cabinet or door surface from direct metal-to-metal contact
• Keeps the handle seated tightly to prevent looseness or wobbling
• Helps maintain correct handle alignment for smooth operation

• Disconnect power or gas and remove any removable panels before starting work
• Remove the handle and old grommet; press the replacement into the mounting hole until fully seated
• Use hand tools only; do not force or over-torque surrounding fasteners
• Inspect surrounding mounting hardware and handle for wear; replace if damaged

Package of 12

This right-side drawer glide supports and guides the lower drawer on your range so it opens and closes smoothly. Replace a worn or broken glide to restore easy operation and keep the drawer aligned. What it does:

• Mounts to the cabinet frame on the right-hand side to guide the lower drawer
• Provides a smooth sliding surface for the drawer rail
• Helps keep the drawer level and properly aligned
• Common symptoms: drawer hard to open/close, rubs or binds, sags, or comes off track

• 1 right-hand drawer glide

• Disconnect power and let the appliance cool; for gas ranges, also shut off gas supply
• Remove the lower drawer to access the side glides
• Note right-side orientation; release or unfasten the old glide and install the new one in the same position
• Reinstall the drawer and check for smooth, level travel

Left side

This drawer mounting bracket secures the lower storage or warming drawer to the range cabinet, keeping it aligned so it opens and closes smoothly. Replace a bent, broken, or missing bracket to restore proper drawer tracking and stability.

• Anchors the drawer to the range frame and supports correct slide alignment
• Helps prevent binding, rubbing, and uneven gaps
• Replace if the drawer wobbles, sags, falls off the track, or rattles
• Use when the original bracket is bent, cracked, or missing

• Disconnect power; for gas models, also shut off the gas supply
• Remove the drawer and note the bracket's orientation and mounting points
• Retain and transfer mounting hardware from the original bracket if needed
• Reinstall the drawer and verify smooth, level operation before restoring power/gas

This barrier door assembly replaces the oven/stove barrier used to block heat and fumes when the appliance is not in use, helping maintain proper airflow and appliance efficiency. It's a direct-fit replacement designed to restore the door's sealing and movement. What it does:

• Covers and seals the internal opening to prevent heat, smoke and cooking odors from escaping when closed.
• Helps maintain proper internal airflow and prevents drafts when the appliance is off.
• Restores smooth opening and closing action if the original barrier door is broken, warped, or cracked.
• Can reduce heat loss and improve the performance consistency of the oven cavity.

• Disconnect power to the appliance before starting any repair.
• Handle the door carefully to avoid damaging hinges or mounting tabs during removal and installation.
• Use common hand tools; follow OEM instructions for alignment and fastening to ensure proper fit and movement.

This insulated wire retainer secures wiring and wiring harnesses inside the appliance to prevent rubbing, chafing, and accidental contact. It helps keep wires routed and protected for safer, more reliable operation. What it does:

• Clips wiring or harness to chassis mounting points to hold wires in place
• Prevents wires from contacting sharp edges or moving parts that can cause wear
• Reduces risk of shorts or intermittent connections caused by chafed insulation
• Keeps wiring neatly routed for easier service and longer component life

• Disconnect power to the appliance before servicing.
• Locate the damaged or missing retainer on the appliance frame or harness mounting tab.
• Route the wire or harness into the retainer and press until the retainer snaps into place; no special tools are typically required.
• Replace any wiring with damaged insulation and secure fit before restoring power.

This replacement drawer panel restores the finished front appearance of the appliance drawer and covers the drawer opening for a clean, like-new look. It's a direct-fit cosmetic panel made to match the appliance's original finish. What it does

• Replaces a cracked, dented, scratched, or faded drawer front to restore appearance
• Covers and protects the drawer opening from dust and debris
• Provides the correct mounting surface for existing trim, handles, and clips
• Helps maintain consistent appearance across the appliance front

• High-level replacement; remove drawer assembly to access mounting screws or clips
• Keep small fasteners and mounting clips; verify orientation before tightening
• Use hand tools and avoid over-tightening to prevent panel damage
• Follow safety procedures and disconnect power if instructed by the manufacturer

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.
