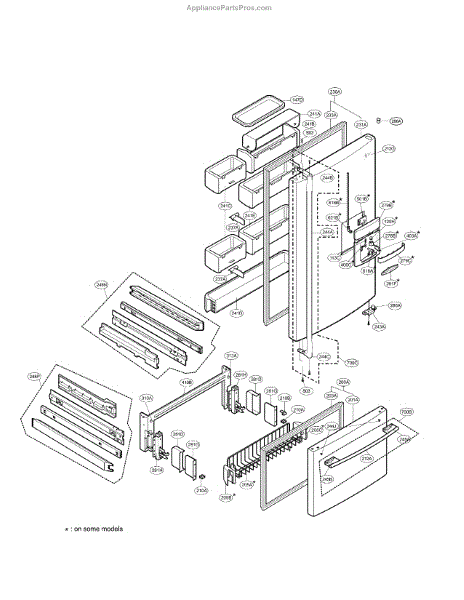

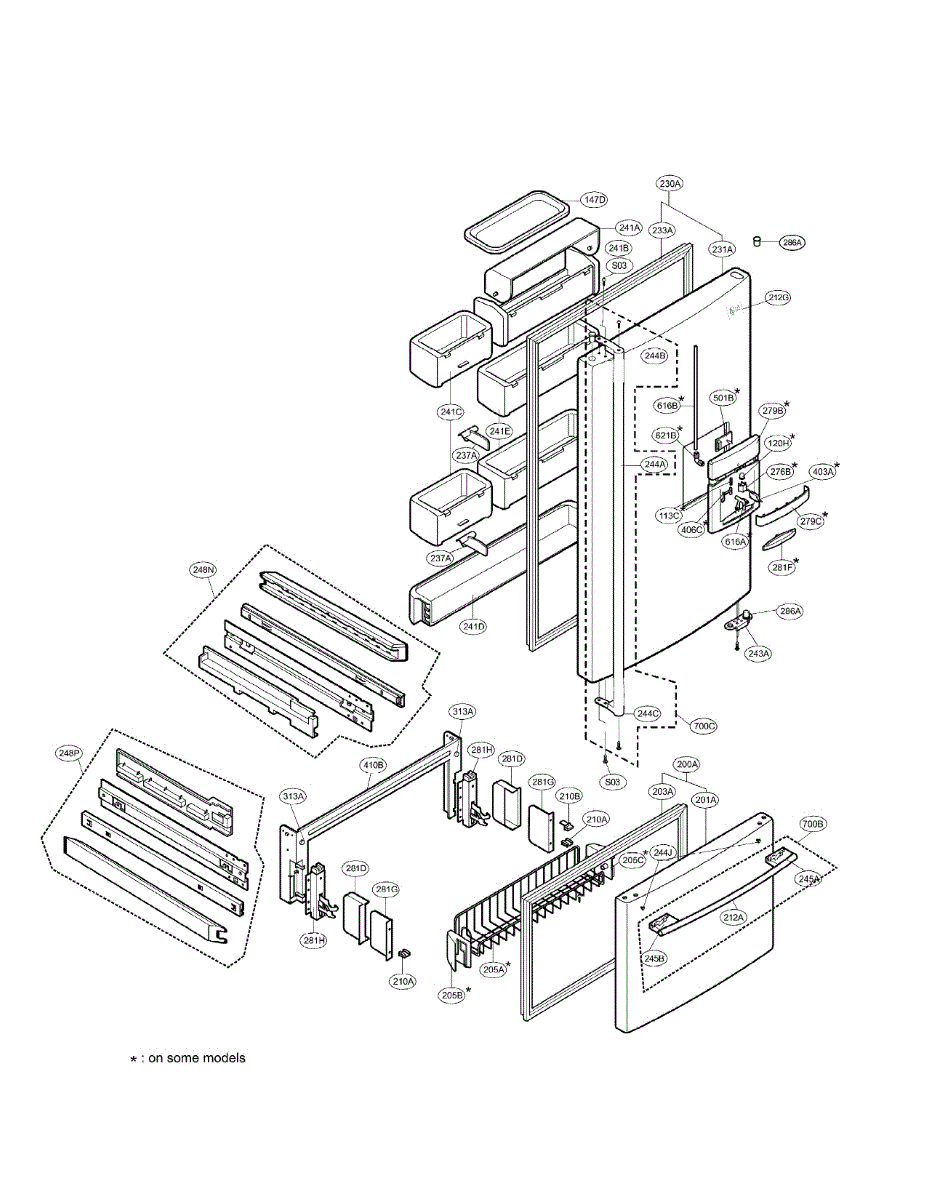

Parts for Lg LRDC22744TT: Door Parts 2 Parts

The Water Filter is an OEM part for LG refrigerators. It is a component that ensures the purity and quality of your drinking water and ice.

The water filter is designed to effectively reduce contaminants, impurities, and odors from your water supply, providing you with clean and refreshing drinking water. It employs advanced filtration technology to remove substances such as chlorine, sediment, and other potentially harmful particles.

Causes of a faulty water filter can include regular usage over time, expiration of its filtering capacity, or clogging due to sediment buildup. These factors can result in compromised water quality, decreased flow rate, or unpleasant taste and odor.

Symptoms of a bad water filter may include:

• Decreased water flow from the dispenser
• Water with an unusual taste or odor
• Visible discoloration or particles in the water

This OEM LG part can also be used on Kenmore/Sears appliances.

The Door Gasket is an OEM part for LG refrigerators. This gasket seals the refrigerator door, ensuring a tight closure to maintain the internal temperature and prevent cold air from escaping. By creating an airtight seal, the door gasket helps keep food fresh and reduces energy consumption.

You should replace the door gasket if it becomes worn or damaged. Causes of a bad door gasket can include wear and tear over time, damage from repeated opening and closing of the door, or warping due to temperature fluctuations.

Symptoms of a bad door gasket include:

• Warm spots inside the refrigerator
• Excessive condensation or frost buildup
• The refrigerator door not closing properly
• Increased energy bills

This OEM LG part is also compatible with Sears/Kenmore models.

Left Hand side

Right Hand side

This name plate is the exterior emblem that mounts to the appliance's front panel. It replaces a missing, cracked, or faded badge to restore a clean, factory look and cover the designated trim area.

• Attaches to the outer panel to display brand/series identification
• Restores a finished appearance where the original emblem sits
• Direct replacement for a lost, damaged, or worn badge
• Typical symptoms: missing emblem, loose or broken tabs, peeling, or discoloration

• Disconnect power before servicing the appliance
• Carefully remove the old emblem; release any tabs from behind or peel away remaining adhesive
• Clean and dry the mounting surface; remove all residue for best fit
• Align with the recess/holes and press evenly until fully seated

This door gasket assembly seals the perimeter of the refrigerator door to keep cold air in and moisture out. Replacing a worn gasket restores a tight seal, helps maintain proper temperatures, and reduces frost and condensation.

• Creates an airtight seal between the door and cabinet to prevent warm air infiltration
• Helps stabilize internal temperature and humidity for consistent cooling
• Reduces frost or condensation around the door opening
• Replace if the gasket is torn, warped, cracked, hardened, or not sealing; symptoms may include moisture, frost at the liner, or warmer-than-normal temps

• Disconnect power to the refrigerator before servicing
• Remove the old gasket from the door channel; some models require loosening retainer screws—do not overtighten on reassembly
• Warm the new gasket (soak in warm water or use a hair dryer on low) to relax folds before installation
• Seat corners first, press the gasket fully into the channel, then check for a continuous seal and adjust with gentle heat as needed

This door basket replaces a cracked or worn refrigerator door shelf to restore secure storage for bottles and small items. Durable molded plastic keeps contents organized and prevents spills on the door. What it does:

• Provides a stable shelf on the refrigerator door for bottles, condiments and small containers
• Replaces broken, cracked or loose door bins that allow items to fall or shift
• Restores proper alignment so the door closes without obstruction
• Matches OEM fit and mounting locations for a direct replacement

• Remove all food and items from the door before starting
• Lift out the old basket and snap the new basket into the same door track; no cutting or modification required
• Inspect door seals and surrounding trim during installation; handle edges carefully to avoid injury

The Door Basket Assembly is an OEM part for LG refrigerators. It provides additional storage space on the refrigerator door, allowing you to organize items such as beverages, condiments, and other small items for easy access. This basket is designed to fit securely on the door, making efficient use of available space.

Over time, the door basket assembly can become damaged due to heavy use, overloading, or accidental impacts. When the basket is compromised, it may not hold items securely or fit properly on the door.

Symptoms of a bad door basket assembly include:

• Cracks or breaks in the plastic
• The basket not staying securely in place
• Items falling out of the basket
• Difficulty in inserting or removing the basket

This OEM LG part is also compatible with Sears/Kenmore.

This replacement hinge cover is a molded trim piece that snaps over the refrigerator door hinge to restore the appearance and protect the hinge area from dirt and damage. It keeps the hinge assembly concealed and the door looking finished. What it does:

• Covers and protects the door hinge assembly from dust, grease and accidental contact
• Restores a clean, finished look when original hinge cover is cracked, broken or missing
• Helps prevent debris buildup that can interfere with hinge movement
• Matches original mounting style for a secure snap-on fit when intact

• High-level replacement: typically snaps into place; inspect clips/tabs and align before pressing fully
• Power/disconnect: no electrical disconnect usually required, but follow appliance safety guidance and keep doors supported
• Handle gently to avoid breaking plastic clips during installation

This replacement hinge assembly supports and pivots the refrigerator door. Replacing a worn or bent hinge restores smooth door movement and proper alignment so the gasket can seal correctly to help maintain performance. What it does:

• Provides the pivot point for the door to open and close
• Supports the door's weight to keep it aligned
• Helps the door gasket seal evenly against the cabinet
• May correct issues such as door sagging, rubbing, popping, or not closing/sealing fully

• One hinge assembly

• Unplug the refrigerator and remove items from the affected door
• Support the door while removing hinge screws; note the orientation of any spacers/bushings
• Transfer any reusable hardware from the old hinge to the new assembly
• Reinstall and tighten fasteners; verify door is level and check gasket seal

The Hinge Bushing is an OEM part for LG refrigerators. It serves as a crucial component in the door hinge mechanism, ensuring smooth and stable operation when opening and closing the refrigerator door.

You should replace this hinge bushing if it becomes worn out or damaged. Common causes of a bad hinge bushing include constant use leading to wear and tear, misalignment of the door, or physical damage due to impact.

Symptoms of a bad hinge bushing include:

• Difficulty in opening or closing the door
• The door sagging or not aligning properly
• Unusual noises like squeaking or grinding when the door is moved

This OEM LG part is also compatible with Sears/Kenmore.

The Dispenser Micro Switch is an OEM part for LG refrigerators. It is a component of the ice and water dispensing system, responsible for activating the dispenser when the lever is pressed.

Causes of a bad Dispenser Micro Switch can include mechanical wear from frequent use, failure due to moisture or debris affecting the switch’s contacts, or electrical faults that prevent proper signaling.

Symptoms of a bad Dispenser Micro Switch include:

• The dispenser not releasing ice or water when the lever is pressed.
• Continuous dispensing or dripping after the lever is released.
• Intermittent or no response from the dispenser controls.

This OEM LG part is also compatible with Sears/Kenmore.

Note: 90 degree elbow coupler (Fits 1/4" diameter tubing on each end) For 5/16" elbow connector, order part# 4932JA3009B.

The Water Line Union is an OEM part for LG refrigerators. This component connects sections of the water line, ensuring a secure and leak-free passage of water to the refrigerator's icemaker and water dispenser. It is an elbow tube union connector, which connects two tubes at a 90-degree angle.

Causes of a bad water line union can include wear and tear from frequent use, damage from high water pressure, or deterioration due to mineral buildup and age. A compromised union can lead to water leaks and disruption in the water supply.

Symptoms of a bad Water Line Union include:

• Water leaks around the connection points
• Reduced water flow to the icemaker or water dispenser
• Puddles or moisture near the refrigerator
• Unusual noises from the water line

This OEM LG part is also compatible with Sears/Kenmore.
