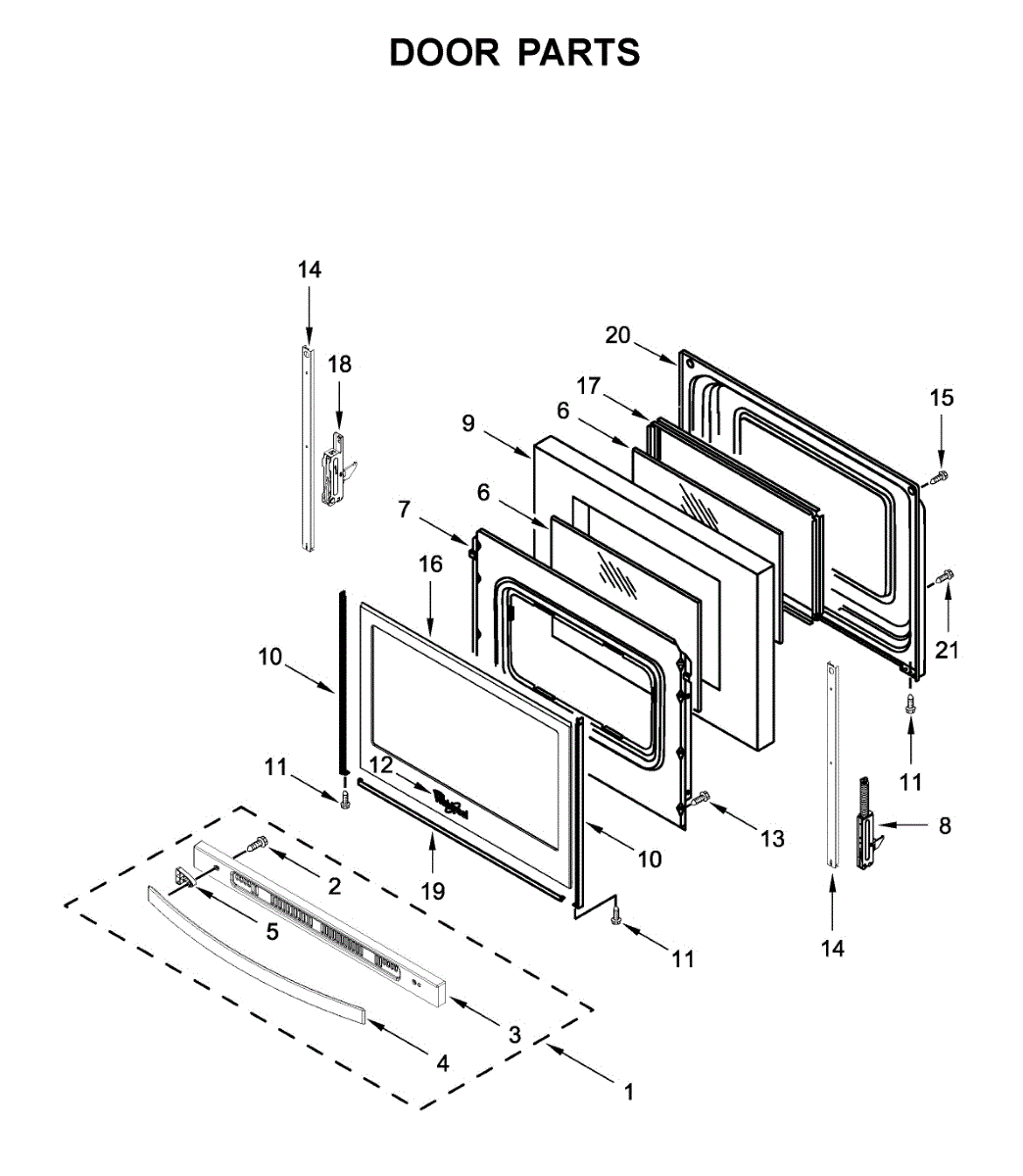

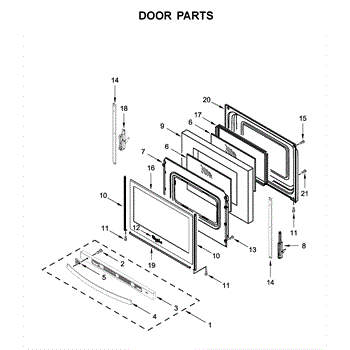

Parts for Whirlpool WFE515S0JB0: Door Parts

Door handle provides a secure grip for opening and closing the appliance door, restoring easy access and everyday use. A straightforward replacement to swap in when the original handle is cracked, loose, or broken. What it does:

• Restores a solid handhold so the door opens and closes reliably.
• Replaces cracked, broken or detached handles that make the door difficult or unsafe to use.
• Prevents accidental slips and helps maintain normal door operation.
• Matches the original mounting method to secure properly to the door.

• One door handle

• Disconnect power or unplug the appliance before beginning any service.
• Support the door while removing and installing the handle to avoid dropping or misaligning the door.
• Basic hand tools (screwdrivers, socket) are typically required; keep fasteners and trim organized.
• Do not overtighten screws — snug is sufficient.

The Range Door Handle is an OEM replacement part for Whirlpool gas ranges. It provides an ergonomic grip point for safely opening and closing the range door during food preparation.

Causes of a faulty door handle may arise from extended use. The plastic and metal materials experience constant force due to ongoing cooking cycles. This repeated motion and contact contributes to normal wear over many years.

Symptoms of a problematic door handle involve:

• Loose, wobbly or insecure gripping functionality
• Cracked, broken or non-functional handle components
• Inability to reliably open or close the range door
• Potential safety issues grasping a compromised handle

This authentic Whirlpool replacement is compatible with some KitchenAid and Jenn-Air gas range models also.

This factory fastener secures appliance components so panels, brackets, and handles stay tight and aligned. Replace a missing or stripped screw to stop rattles and keep assemblies firmly in place.

• Fastens appliance parts such as panels, brackets, trim, or hardware
• Replaces a missing, loose, or stripped fastener
• Helps eliminate vibration noise and wobbly components
• Restores proper alignment and secure mounting

• Disconnect power; for water- or gas-connected appliances, shut off supply lines before service
• Match length/thread to the original location; start threads by hand to avoid cross-threading
• Use the correct driver bit to prevent stripping the head
• Tighten snugly; do not overtighten into plastic or thin sheet metal

The Vent Trim is an OEM part for Whirlpool ranges. It is designed to cover and protect the ventilation system of the range, ensuring that air flows properly and that internal components are shielded from dust and debris. The vent trim also contributes to the overall aesthetic of the appliance, providing a clean and finished look.

Replace the vent trim if it becomes damaged due to impact, exposure to high temperatures, or wear and tear over time.

Symptoms of a bad vent trim include:

• Visible cracks or breaks in the trim
• Loose or misaligned trim pieces
• Reduced efficiency in ventilation
• Accumulation of dust and debris in the ventilation system

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Vent Trim is an OEM part for Whirlpool ovens. It is designed to cover and protect the vent openings, which allow heat and steam to escape from the oven cavity. This trim piece not only contributes to the oven's overall aesthetic but also ensures proper ventilation, promoting even cooking and preventing overheating.

Common causes of a bad vent trim include exposure to high temperatures, physical damage from cleaning or impact, or discoloration due to prolonged use. Damaged vent trim can impair ventilation and affect the oven's performance.

Symptoms of a bad Oven Vent Trim include:

• Visible cracks or warping
• Discoloration or fading
• The vent trim not fitting securely or becoming loose
• Reduced ventilation leading to uneven cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement door handle restores a secure, comfortable grip for opening and closing your appliance door while repairing cosmetic damage. It matches OEM fit and finish to help maintain proper door operation and appearance. What it does:

• Provides a sturdy grip for opening and closing the appliance door
• Replaces a cracked, broken, loose, or worn handle to restore usability
• Helps keep the door aligned and easier to operate when fastened correctly
• Improves the appliance's appearance by replacing damaged or discolored hardware

• Requires basic hand tools; support the door while removing and installing the handle
• Follow the appliance manufacturer's instructions for fastener locations and torque
• Do not overtighten screws — snug is sufficient to avoid cracking the handle
• Unplug the appliance or turn off power if accessing components near electrical parts;

This replacement refrigerator door handle restores a secure grip and normal door operation after a worn, cracked, or broken handle. Durable, service-ready design helps keep the door easy to open and close. What it does:

• Replaces a damaged or broken refrigerator door handle so the door can be opened and closed safely
• Provides a solid gripping surface for everyday use
• Helps prevent further cabinet or door edge damage caused by makeshift grips
• Common symptom: handle cracked, loose, or separated from the door

• Use the model's service manual for correct fastener locations and procedures
• Typically installs with screws or clips; have basic hand tools ready
• Avoid overtightening fasteners to prevent damage to the handle or door
• If the door has electrical components (ice/water dispensers), unplug the appliance before starting work

The Inner Door Glass is an OEM part for Whirlpool ovens. It serves as an inner layer of the oven door, providing a clear view into the oven while helping to maintain the temperature inside. The glass measures approximately 12.8 x 18.5 inch.

Over time, the inner door glass can become damaged or worn out due to regular use, exposure to high temperatures, or accidental impact. These issues can compromise the effectiveness of the oven door, leading to heat loss and inefficient cooking performance.

Symptoms of a bad inner door glass include:

• Visible cracks or chips in the glass
• Heat escaping from the oven
• Difficulty seeing through the glass during cooking

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door hinge supports and guides the appliance door so it opens and closes smoothly and stays aligned with the latch and gasket. Replacing a worn hinge restores proper fit and closing action to reduce rubbing and poor sealing.

• Provides the pivot point and supports the door's weight during operation
• Maintains alignment for an even gap and consistent seal
• Helps correct sagging, scraping, or a door that won't close flush
• Common signs of wear: bent/cracked hinge, squeaking or popping, misalignment

• Disconnect power before servicing and support the door to prevent strain or damage
• Remove mounting fasteners; transfer any reusable screws, spacers, or covers from the old hinge
• Install and snug fasteners, then check door alignment and closure; adjust as needed
• Open and close the door several times to verify smooth operation and recheck fasteners

Qty 4 needed to complete full insulation

The Right Side Door Trim is an OEM part for Whirlpool ranges. This part covers any gaps and protects the internal components from dust and debris.  Note: For Left-Hand use WP8523172

Causes of a bad side door trim can include general wear and tear, accidental damage, or deterioration due to exposure to heat and moisture over time.

Symptoms of a bad side door trim include:

• Visible cracks or breaks in the trim
• Gaps between the range door and cabinetry
• Loose or misaligned trim pieces
• Accumulation of dust or debris inside the range door

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Range Side Trim is an OEM replacement part for Whirlpool brand cooking ranges. This decorative trim piece attaches along the sides of the range and protects the outer edge. Left Hand Trim. For the Right Hand use WP8523166

Causes of a bad range trim can include normal wear from regular use of oven and cooktop surfaces over time, as well as potential impact or heat damage.

Symptoms of bad trim include:

• Cracks, peeled paint, or damaged coating on the trim material
• Gaps appearing at trim joints or attachment points
• Reduced aesthetic appeal or protection of the range exterior

This OEM Whirlpool part is also compatible with Kenmore, KitchenAid, Roper, and some Frigidaire cooking ranges.

The Door Trim is an OEM replacement part for Whirlpool ranges. It is the outer decorative coating that wraps around the edges of the oven door opening. The trim piece provides a sleek finished look while protecting internal elements from accidental contact when accessing the oven cavity. For Right-Hand use W10761014

Symptoms of a failing door trim include:

• Peeling or flaking of the outer coating
• Cracks or breaks in trim corners exposing raw edges
• Loose fitting or inability to securely mount around the opening

Causes involve normal wear over time from routine cleaning and occasional impact during use. Exposure to heat radiating from the oven door can accelerate surface deterioration as well.

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: Black

The Door Trim is an OEM replacement part for Whirlpool ranges. It covers the outer edge of the oven door, protecting it from wear and dust while retaining heat and improving aesthetics.

Causes of a bad door trim include normal wear and tear over time from repeated door openings and closings, exposure to heat and steam from cooking, or accidental damage. The high-temperature paint coating can peel or bubble and the rigid trim material may crack or warp.

Symptoms of a bad door trim include:

• Peeling, bubbling, or cracked paint
• Warped or misshapen trim
• Gaps appearing around the door seal
• Increased heat loss from the oven cavity
• Declining aesthetic appeal

Color: Black - Right Hand Trim. For the Left Hand use W10761018

This OEM Whirlpool replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This screw-and-washer fastener is a factory-size 8-18 x 5/16 hardware piece used to secure appliance panels and components. Replace stripped, rusty, or missing hardware to restore a tight, rattle-free fit and proper alignment. What it does:

• Fastens sheet-metal panels, brackets, and small components in the appliance cabinet
• Replaces lost, stripped, or corroded screws to maintain secure mounting
• Helps reduce vibration, buzzing, or rattling from loose parts
• Useful when the original hardware is missing or no longer holds securely

• Includes 1 screw-and-washer fastener (8-18 x 5/16)

• Disconnect power; shut off gas and water supplies if applicable
• Match the fastener to the original location; sizes can vary by application
• Start threads by hand to avoid cross-threading; use an appropriately sized driver
• Tighten snugly without overtightening to prevent stripping sheet metal

Color: Grey

The Screw is an OEM part for Whirlpool ranges. This screw is used to secure various components within the range, ensuring that parts such as panels, control boards, or burners are firmly attached and remain stable during operation.

Causes of a bad range screw can include regular wear and tear, over-tightening, or exposure to high heat.

Symptoms of a bad range screw include:

• Loose or unstable components within the range
• Difficulty in securing parts during maintenance or repair
• Visible damage or wear on the screw
• Parts becoming misaligned or rattling during operation

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This support bracket secures an appliance cabinet component or mounting point to restore alignment and reduce movement. It replaces worn or broken supports so panels and internal parts stay properly positioned during normal operation. What it does

• Holds a cabinet panel, frame, or internal component in place to maintain proper alignment.
• Stabilizes mounting points to help reduce vibration, rubbing, or intermittent noise.
• Common replacement when you notice a loose or sagging panel, rattling, or unusual chassis movement.
• Provides a direct mechanical fix—matches the OEM bracket design and fit.

• Disconnect power (and shut off gas supply for gas appliances) before starting any repair.
• Remove necessary panels and fasteners to access the old bracket; keep track of all screws and clips.
• Compare the new bracket to the old part for orientation before installing; secure using the original fasteners—do not overtighten.

The Screw is an OEM part for Whirlpool appliances, commonly utilized in a variety of their products such as washing machines, dryers, refrigerators, and dishwashers. This screw is essential for securing different components, ensuring they are properly attached and aligned to maintain the appliance’s functionality and safety.

Over time, screws can become loose, stripped, or lost due to vibrations, regular use, or during maintenance and repairs. A damaged or missing screw can lead to unstable parts, which may affect the performance and safety of the appliance.

Symptoms of a bad or missing screw include:

• Loose or rattling components
• Misalignment of parts
• Noise during operation
• Panels or parts not staying securely in place

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This replacement door glass is the clear window panel in the appliance's door. It restores a clear view and the door's protective barrier when the original glass is cracked, shattered, or hazed.

• Forms the transparent viewing window within the door assembly
• Supports proper door integrity and sealing when installed with existing trim/gaskets
• Replaces cracked, shattered, or scratched glass to remove sharp edges and restore appearance
• Common symptoms: spiderweb cracks, complete shatter, clouding/fogging, or a loose/rattling panel

• Disconnect power before servicing; allow it to cool completely
• Wear cut-resistant gloves and eye protection; handle glass carefully on a padded work surface
• Remove the door and separate panels; note screw locations and orientation
• Transfer any brackets, trim, or seals from the old glass and tighten fasteners evenly without over-torquing

Color: White

The Outer Door Glass is an OEM replacement part for Whirlpool gas and electric ranges. This is the white outer glass. It serves as the protective barrier for the inner oven cavity door.

Causes of an outer door glass needing replacement include cracks or chips developed over time from heavy use and repeated extreme temperature fluctuations. Condensation or limescale deposits that remain trapped behind the glass can also cause premature glass corrosion.

Symptoms of a damaged white outer door glass assembly include:

• Visible cracks, chips, or pitting of the glass surface
• Stained or discolored white finish that detracts from aesthetics
• Reduced thermal insulation between outer glass and inner door seal
• Access points for grime or debris behind the sealed glass assembly

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

This frame surrounds and supports the window glass in your oven door, keeping the glass secure and aligned. Replace a bent or corroded frame to address loose glass and restore the door's proper fit and clean appearance.

• Secures the oven door window glass within the door assembly
• Helps maintain alignment and seal around the window area
• Replaces frames that are bent, cracked, or corroded
• Addresses loose, rattling, or misaligned door glass
• Restores the finished look of the door

• Disconnect power and allow the oven to cool completely before service
• Remove the door per your model's instructions and place it on a padded surface
• Handle glass with cut-resistant gloves; keep track of screws, clips, and insulation for transfer
• Seat the glass evenly and avoid overtightening fasteners during reassembly

Color: Black

The Bottom Door Trim is an OEM part for Whirlpool ranges. It provides a finished appearance to the bottom edge of the oven door and helps to prevent heat from escaping, ensuring efficient oven operation and consistent cooking results. For Stainless Steel order 8523180, for Black 8523177, and for Bisque 8523178 and for the universal part W10067550.

Causes of a bad bottom door trim include wear and tear from opening and closing the oven door, damage from cleaning processes, or the trim becoming loose or detached due to thermal expansion and contraction.

Symptoms of a bad bottom door trim include:

• Heat escaping from the bottom of the oven door
• Loose or detached trim
• Visible cracks or warping in the trim
• Difficulty in closing the oven door properly

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This left inner door liner replaces a cracked, stained, or damaged inner door panel to restore the refrigerator/freezer door interior surface and support door-mounted bins and shelving. It helps maintain a clean, secure mounting surface for door accessories. What it does:

• Replaces the inner door panel to cover insulation and provide a finished interior surface
• Provides mounting points and support for door bins, shelves, and hardware
• Helps prevent cold air leaks by restoring the proper door interior assembly fit
• Addresses symptoms like visible cracks, holes, staining, or loose/misaligned door-mounted storage

• One left door liner

• High-level replacement — may require removing the door, inner trim, and any attached bins or shelves
• Keep fasteners and hardware organized; transfer existing gaskets, clips, and brackets as needed
• Disconnect power to the appliance if working near electrical components or lights

This factory fastener secures appliance panels, brackets, and internal components. Replacing a missing, stripped, or corroded screw restores proper fit and stability, helping reduce vibration, rattling, and wear during everyday operation.

• Secures covers, brackets, and assemblies to the cabinet or frame
• Restores alignment to reduce gaps, looseness, and vibration
• Replaces lost, damaged, corroded, or stripped hardware
• Matches the original fastener for correct fit and retention

• Disconnect power and shut off water or gas before servicing
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten snugly—do not overtighten to prevent thread or plastic damage
• Inspect receiving threads or clips; repair/replace if stripped or broken
