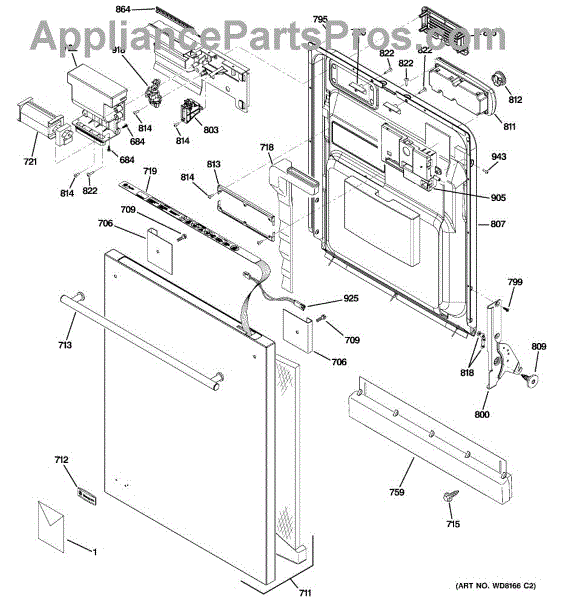

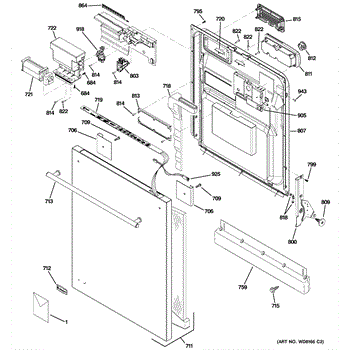

Parts for Ge ZBD0710K15SS: 01 - Escutcheon & Door Assembly Parts

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

Specs: 8-18 b por 1/2 ss

This handle support bracket secures the appliance door handle to the door frame, restoring firm handle attachment and reliable door operation. It's a direct-replacement bracket used where the handle mounts to the door. What it does

• Provides a solid mounting point for the door handle to prevent wobble or pull-away
• Restores proper handle alignment for smooth opening and closing
• Stops rattling or looseness caused by a worn or broken support bracket
• Helps prevent further damage to handle screws and surrounding trim

• Disconnect power (or unplug) and water supply if applicable before starting repairs.
• Basic hand tools required; you may need to remove the door panel or handle trim to access the bracket.
• Keep track of small screws and clips; reassemble in reverse order.

A small adhesive MG logo emblem that restores the original appearance of your appliance. This peel-and-stick badge replaces a worn, faded or missing logo to keep the exterior looking factory-fresh. What it does:

• Cosmetic replacement for a missing, scratched or faded MG emblem
• Adheres to control panels, doors or trim where the original badge was located
• Restores brand identification and a finished appearance to the appliance
• Simple adhesive design avoids the need for fasteners or tools

• Clean and dry the mounting surface before applying to ensure good adhesion
• Peel backing and press firmly in place, aligning carefully before contact
• Avoid repositioning once attached; removal may damage the emblem or finish
• For safety, disconnect power before working near electrical controls or panels

Size: 8-18 B 1HW 1/2 S N

This dishwasher keypad is the membrane touchpad mounted behind the control panel. It registers your button presses and sends them to the control, restoring reliable cycle selection and start when the original keys stop responding.

• Receives your button presses for cycles, options, and Start
• Sends those inputs to the dishwasher's electronic control
• Mounts behind the control panel; replaces the membrane touchpad/keypad
• Failure symptoms include unresponsive or intermittent keys, stuck-key beeps/errors, or inability to start a cycle

• Disconnect power at the breaker before servicing
• Open the door and remove inner-door screws to access the control area
• Carefully release and reinsert the ribbon cable; keep it straight and fully seated
• Align the keypad behind the control panel, secure, reassemble, and test functions

The Blower Motor Assembly is an OEM part for GE dishwashers. This part is responsible for driving the dishwasher's venting system, which plays a key role in the drying process of your dishes.

Over time, the Blower Motor Assembly may need replacement due to wear and tear, damage, or failure. A malfunctioning blower motor can lead to ineffective drying of dishes, increased cycle times, or the dishwasher failing to complete its drying cycle properly.

Symptoms of a bad Blower Motor Assembly include:

• Dishes remaining damp or wet even after the drying cycle is complete.
• Unusual noises coming from the dishwasher, indicating that the blower motor is struggling to operate.
• The dishwasher stopping or pausing during the drying cycle.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This inlet transition is a molded connector that fits between the appliance cabinet and the inlet opening to guide incoming air and help maintain a sealed airflow path. It restores proper fit and reduces air leakage where the inlet meets the cabinet. What it does:

• Provides a finished, secure connection at the appliance inlet to direct airflow into the unit
• Helps reduce air leaks that can reduce drying/heating performance or cause airflow imbalance
• Replaces worn, cracked or broken inlet trim that can rattle or vibrate during operation
• Restores correct clearance and sealing where the inlet joins the cabinet

• One inlet transition piece

• Basic hand tools typically required; access the inlet area by removing the back panel or service panel as applicable
• Handle carefully to avoid bending or damaging adjacent trim and mounting tabs
• Disconnect power (and gas if applicable) before beginning service; follow all safety precautions in the appliance manual
• If mounting hardware is missing or damaged, replace with OEM-specified fasteners for secure fit

Size: 8-18 AB TSQ 5/8 SS

Specs: 10-32 gxtt flp.59

The Affresh Dishwasher Cleaner is an OEM accessory designed specifically for Whirlpool brand dishwashers. This citrus-scented tablet removes residue, odor-causing soils, and food particles from the dishwasher tub and gasket area during the cleaning cycle. Symptoms of a buildup include unwanted odors emanating from the dishwasher, especially after opening the door. Over time, residue and grime accumulate in hard-to-reach areas and provide an environment for mold and mildew growth.

Regular cleaning helps prevent this by removing leftover soils before they harden or encourage bacterial activity. The Affresh tablet utilizes a unique blend of cleaning ingredients that target soils and biofilms through a combination of powerful scrubbing action and natural cleaning enzymes.

As the #1 recommended dishwasher cleaner brand, Affresh is also compatible for use in Maytag, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and select Kenmore dishwashers for consistent cleanliness and freshness. The package includes six tablets 4.2 ounces

This left-hand arm hinge assembly replaces a worn or damaged door hinge to restore proper door alignment and smooth opening and closing. Designed as the left-side support arm for the appliance door. What it does:

• Supports the left side of the door and secures the door to the cabinet during operation
• Guides smooth door movement and helps prevent sagging or uneven closing
• Stops rubbing, binding, or intermittent contact that can cause noise or poor seal
• Restores proper door fit to maintain normal operation and safety

• Disconnect power to the appliance before starting any repair
• Support the door while removing and installing the hinge to prevent dropping
• Use basic hand tools; verify hinge orientation and alignment before tightening
• Retain or replace mounting hardware if damaged; do not overtighten fasteners

This dishwasher door latch secures the door closed and engages the safety interlock so wash cycles can start and run without leaks or interruptions. Replace a worn or broken latch to restore a firm, reliable door closure. What it does:

• Locks the door to compress the tub gasket and help prevent leaks
• Engages the door switch/interlock so the control can start and continue cycles
• Replaces latches that are cracked, bent, or have weakened/broken springs
• Common symptoms: door won't latch/close, cycle won't start, door pops open mid-cycle, water seeping from the top of the door

• 1 door latch

• Disconnect power and shut off water before servicing
• Open the door and remove inner door panel screws to access the latch
• Note spring and linkage orientation; transfer any reused hardware from the old latch
• Align with the door strike and test closure before fully reassembling

Size: 10-32GX FLT25 .615 S

The Detergent and Rinse Aid Dispenser is an OEM part for GE dishwashers. It is responsible for holding and releasing detergent and rinse aid during the dishwashing cycle, ensuring that dishes are cleaned and rinsed effectively.

Causes of a bad detergent and rinse aid dispenser can include clogging or blockage in the dispenser mechanism, damage to the dispenser door or latch, or malfunctioning electronic components that control the dispensing process. These issues can arise from regular use, buildup of detergent residue, or accidental impact.

Symptoms of a bad detergent and rinse aid dispenser include:

• Improper dispensing of detergent or rinse aid
• Insufficient cleaning or rinsing results
• Leaks or drips from the dispenser area
• The dispenser door not opening or closing correctly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Rinse Aid Cap is an OEM part for GE dishwashers. It securely seals the rinse aid dispenser, ensuring that the rinse aid is properly stored and dispensed during the wash cycle. This helps improve the drying process and prevents water spots on dishes and glassware.

You should replace this rinse aid cap if it becomes cracked, loose, or fails to seal properly. Common causes of a bad cap include wear and tear from regular use, damage from over-tightening, or deterioration due to exposure to dishwasher detergents and rinse aids.

Symptoms of a bad rinse aid cap include:

• Rinse aid leaking or spilling inside the dishwasher
• Cap not staying securely in place
• Poor drying performance or water spots on dishes
• Difficulty in opening or closing the cap

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket supports and secures the detergent/rinse-aid dispenser to the inner door of your dishwasher, keeping it aligned and sealed so detergent stays contained until the cycle releases it.

• Rigidly mounts the dispenser assembly to the inner door panel
• Helps maintain gasket compression to reduce leaks around the dispenser perimeter
• Keeps the dispenser flush and properly aligned for consistent operation
• Common signs of damage: loose or wobbly dispenser, visible cracks in the bracket, moisture or drips around the dispenser area, difficulty tightening the dispenser to the door

• Disconnect power and turn off water supply before servicing
• Remove the inner door panel to access the dispenser; support the dispenser while loosening hardware
• Transfer the bracket and reuse existing mounting screws; ensure the dispenser gasket is clean and seated before tightening
• Tighten screws evenly without overtightening; run a short cycle to check for leaks around the dispenser

The GE screw is an OEM replacement part responsible for securing various components and parts of the dishwasher together. The screw is designed to provide a tight and secure connection for different panels, brackets, or other elements within the dishwasher. It plays a crucial role in maintaining the structural integrity of the appliance by preventing loose parts.

Common causes of a bad screw can include regular wear and tear from frequent use, exposure to moisture leading to corrosion, or damage from over-tightening. A compromised screw can result in loose or unstable components, which can affect the dishwasher's performance and safety.

Symptoms of a bad screw include:

• Loose or wobbly components within the dishwasher
• Difficulty in securing parts properly
• Visible rust or corrosion on the screw
• The screw head being stripped or damaged

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dishwasher vent cover mounts on the inner door and shields the exhaust opening. It directs moist air out during drying while helping keep spray and debris out of the vent path to protect internal components. What it does:

• Covers the door vent opening and helps guide exhaust airflow during the dry cycle
• Helps keep water spray and debris from entering the vent assembly
• Supports proper moisture management around the top of the door/control area
• Replace if the cover is cracked, warped, loose, or missing, or if steam/water escapes from the vent area

• 1 vent cover

• Disconnect power at the breaker and turn off the water supply; wear cut-resistant gloves
• Access is through the door; on many models the inner door panel must be removed to reach the vent area
• Ensure any gasket/seal is properly seated and secure the cover evenly—do not overtighten
• Run a short cycle and inspect the vent area for leaks

Specs: 8-18 ab tr 7/8 s

This vent flapper is the exterior exhaust flap that opens to let dryer air and lint exit and closes to keep weather, pests and drafts out when the dryer is off. It restores proper airflow at the outside vent hood. What it does:

• Opens with dryer airflow to allow exhaust to escape and closes when idle to block outside air.
• Helps prevent backdrafts, pests and rain from entering the vent system.
• Can restore normal drying performance when a stuck or broken flap was restricting airflow.
• Commonly replaced when the flap is cracked, warped, jammed or does not seal.

• One vent flapper/exterior exhaust flap.

• Disconnect power to the dryer (and gas supply if applicable) and work from the outside hood when possible.
• Remove the exterior vent hood or access cover to inspect and replace the flap; basic hand tools required.
• Check that the flap moves freely after installation and seats against its seal to prevent air leaks.
• Clean or repair the ductwork to avoid repeat failures.

This listing is for a GE dishwasher control model assembly. A dishwasher's control module and assembly are the focal points for all the functions of the appliance. The user controls the settings and temperature from this main panel, located on the front face of the dishwasher. Signs of a faulty control module assembly include buttons becoming completely unresponsive or temperature settings not reaching the intended levels. One of the first signs may include the backlight of the touch panel shorting out or the buttons only working at random times. There's not one main reason why a control board would begin to fail. Any heavy, outside damage always has a chance of damaging the control board. Test with a voltage meter for accuracy. The old control board can be removed by accessing the top portion of the dishwasher by sliding it out a few inches. Remove the decorative trim surrounding the touch panel by popping the clips or removing the fastening screws. There are anchor screws that hold the control module assembly in place on the top perimeter of the dishwasher. Remove these screws and unplug the assembly from the wire harness. After installing the new unit, test the function to ensure the problem has been solved.This OEM part is compatible with GE and Hotpoint products.

Vent driver assembly operates the dryer vent door to manage airflow during operation. Replacing a faulty driver restores proper vent door movement, improving exhaust flow and helping prevent backdrafts. What it does:

• Moves and positions the vent/duct door so exhaust can exit when the appliance runs
• Retracts/closes the vent door when the appliance stops to limit backdrafts
• Common symptoms: vent door won't open or close, reduced exhaust airflow, or visible vent door sticking
• Interfaces with the vent door linkage and the appliance wiring harness to receive control signals

• Disconnect power to the appliance before starting any repair to avoid shock or injury
• Basic hand tools are typically required; support the vent door assembly during removal/installation
• Handle wiring connectors and plastic components carefully to avoid damage
• Follow the appliance's service manual or OEM instructions for exact steps and torque/spec guidance

Includes 12 screws.
