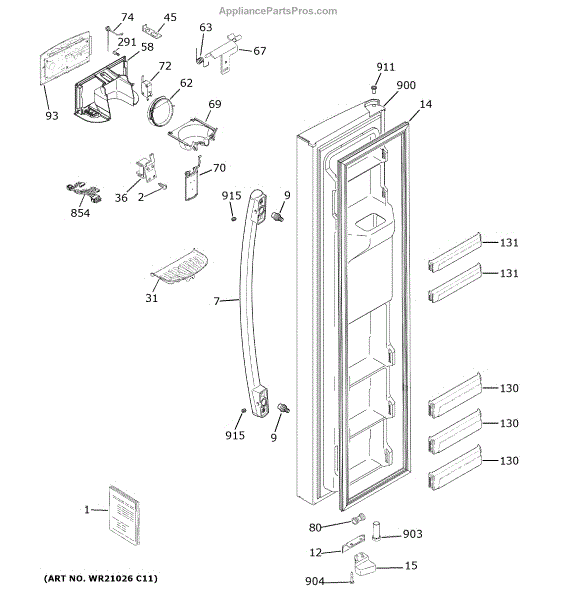

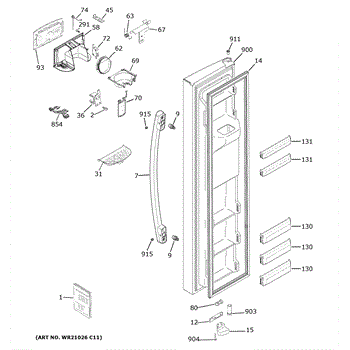

Parts for Ge GSS25IGNRHWW: Freezer Door Parts

This factory screw secures panels, brackets, and other components inside your refrigerator. Replacing a missing or stripped fastener restores a tight fit, reduces vibration, and helps keep parts aligned so covers and assemblies stay in place.

• Fastens sheet-metal, plastic, and bracket assemblies to the cabinet or liner
• Replaces lost, corroded, or stripped hardware
• Can help address loose or rattling parts and minor misalignment
• Fits original threaded mounting points for a proper, secure hold

• Disconnect power; shut off water supply if working near water lines
• Match to the original location; start threads by hand to avoid cross-threading
• Tighten snugly only—overtightening can strip threads or crack plastic

The Fastener Door Handle is an OEM component for GE refrigerators. This door handle provides a comfortable grip for accessing refrigerator shelves and bins. It attaches securely to the refrigerator door through durable metal fasteners.

Causes for a bad door handle could be cracks, damage, or stripped fastener holes resulting in a loose or detached handle. Regularly gripping and lifting may also cause normal wear over time.

Symptoms of a failing door handle include:

• The handle detaching completely from the door
• Looseness making the handle wobbly or unstable to hold
• Sharp edges or broken parts posing a safety risk

This OEM GE handle is also compatible with Hotpoint, RCA, and select Kenmore refrigerator models.

The Freezer Door Gasket is an OEM replacement part for GE refrigerators. It creates a tight seal around the perimeter of the freezer door frame.

Symptoms of a faulty gasket include:

• Excess frost or moisture buildup inside the freezer compartment
• Higher electricity bills from the refrigerator using extra energy to maintain temps
• Food not keeping as long due to compromised cold air retention
• Door not closing or sealing properly against warm air infiltration

Causes stem from the breakdown of material over extended exposure to extreme freezer temperatures and impacts from regular door operation.

This gasket is also compatible with GE, Hotpoint, and select Kenmore refrigerators.

This cam closure is the small plastic latch that helps the freezer door align and stay closed, restoring a tight seal for efficient cooling and preventing frost buildup. Fits the freezer door hinge area and replaces worn or broken closures. What it does:

• Guides and secures the freezer door into the closed position for a reliable seal
• Replaces broken, cracked, or missing cam closures that let the door sag or catch
• Helps reduce air leaks that can cause frost buildup or higher energy use
• Works with the freezer hinge/cam assembly to maintain proper door alignment

• Disconnect power before working on the refrigerator to avoid electrical or injury risk.
• Remove the freezer door or inner liner panels as required to access the cam closure; follow the refrigerator model service manual.
• Install the cam in the correct orientation and ensure smooth door movement and alignment before reassembly.
• If hinges, screws, or adjacent parts are damaged, inspect/replace those parts as needed for a lasting repair.

This Grille Recess is the dispenser drip tray that sits in the refrigerator's dispenser recess. It catches stray water and ice and provides a stable resting surface for your cup, helping keep the area clean and tidy.

• Collects drips and splashes from water/ice dispensing to help protect door surfaces
• Provides a stable platform for cups while filling
• Replace if cracked, warped, stained, or missing
• Can help reduce puddling around the dispenser area

• Disconnect power before servicing
• Lift out the old grille from the dispenser recess; clean any buildup
• Align and press the new grille into place until fully seated; do not force

The Ice Dispenser Solenoid is an OEM replacement part for GE refrigerators. It is a crucial component that controls the flow of ice from the ice maker to the dispenser chute.

Symptoms of a bad ice dispenser solenoid include:

• Failure to dispense ice from the dispenser
• Ice getting stuck or jammed in the dispenser chute
• Continuous flow of ice even when the dispenser is not activated

Causes of a bad solenoid can include electrical malfunctions, physical obstructions preventing proper operation, or simply wear and tear over time.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The recess door retainer secures the dispenser's ice chute flapper in the refrigerator door. Replacing a cracked or missing retainer restores proper flapper pivot and sealing to help reduce frost buildup and air leaks around the dispenser.

• Holds the recess/ice door on its pivot within the dispenser assembly
• Helps the flapper close fully to seal the ice chute
• Restores smooth open/close action of the dispenser door
• Common symptoms: loose or fallen flapper, poor chute seal, frost or condensation in the dispenser area, and ice clumping near the chute

• Unplug the refrigerator before servicing the dispenser
• Carefully remove the dispenser bezel/control panel to access the ice chute door assembly
• Note spring orientation and retainer position; transfer components to the new retainer
• Verify flapper movement and seal before reassembly and restoring power

The Ice Door Assembly is an OEM part for GE refrigerators. It is integral to the ice dispenser system, controlling access to the ice chute. This component ensures the efficient delivery of ice cubes or crushed ice when activated and seals off the chute when not in use to maintain the freezer's temperature and prevent frost buildup.

Symptoms of a bad Ice Door Assembly include:

• Frost or ice buildup around the dispenser area
• Ice escaping from the dispenser when not in use
• Failure to dispense ice
• Noise during operation indicating misalignment or malfunction

Causes of a bad Ice Door Assembly can include mechanical wear from frequent use, failure of the spring mechanism or solenoid that operates the door, or damage to the sealing surfaces that leads to air leaks.

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Recess Spring is an OEM replacement part for GE side-by-side refrigerators. It sits within the icemaker door frame to control movement and allow smooth closing/opening of the access point.

Causes of a bad icemaker door recess spring include wear and tear of thin metal coils repeatedly compressing over many years of filling cycles. Exposure to humidity intrusions from melting ice accumulates oxidation shortening spring elasticity.

Symptoms of a bad icemaker door recess spring include:

• Difficulty opening and shutting the icemaker access door securely
• Excessive slamming noise caused by abrupt closing
• Sagging or improper alignment of the door against the frame
• Struggles retaining positioning of the transparent plastic doorway

This genuine GE replacement spring is compatible with Hotpoint, RCA and Kenmore models.

The Dispenser Door Recess Crank is an OEM part for GE refrigerators. This crank is a crucial component of the refrigerator's ice and water dispenser system, helping to operate the dispenser door by opening and closing it when activated. It ensures that ice or water is dispensed efficiently and prevents unwanted air from entering the freezer compartment.

You should replace the dispenser door recess crank if it becomes faulty or damaged. Causes of a bad crank can include wear and tear from frequent use, accidental damage, or mechanical failure. A malfunctioning crank can lead to issues with the dispenser door's operation.

Symptoms of a bad dispenser door recess crank include:

• The dispenser door not opening or closing properly
• Ice or water not dispensing correctly
• Unusual noises during the dispensing process
• The dispenser door staying open or not sealing properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dispenser ice funnel guides cubed or crushed ice from the door chute into your glass for clean, accurate dispensing. Replace a cracked or missing funnel to stop stray ice and keep the dispenser area tidy. What it does:

• Directs ice from the dispenser chute into your container to minimize scatter and spills
• Common fix for ice missing the glass, shooting to the side, or creating a mess at the dispenser
• Replace when the funnel is cracked, warped, loose, or has broken mounting tabs
• Helps restore smooth, consistent ice dispensing

• 1 dispenser ice funnel

• Disconnect power to the refrigerator; turn off the water supply if working around the dispenser area
• Remove the dispenser front panel/trim to access the funnel
• Release screws or locking tabs, remove the old funnel, and reuse existing hardware
• Seat and align the new funnel, secure it, restore power, and test ice dispensing

This dispenser paddle assembly is the lever you press inside the refrigerator's ice/water dispenser. It actuates the dispenser switch for ice or water and replaces a damaged or worn lever to restore smooth, responsive dispensing.

• Transfers your push to the dispenser switch to start water or ice flow
• Provides a solid, responsive contact surface in the dispenser recess
• Can help when the dispenser won't activate or only works when pressed very hard
• Addresses a cracked, loose, sticking, or slow-to-return paddle

• Disconnect power and turn off the water supply before servicing
• Carefully remove the dispenser trim/escutcheon to access mounting screws; avoid breaking tabs
• Note switch orientation and wiring; transfer any reusable hardware from the original part if needed
• Reassemble, restore power/water, and test for proper activation and return

The Dispenser Switch is an OEM replacement part for GE refrigerators. This switch is crucial for the functionality of the water and ice dispenser, as it activates the dispensing mechanism when the user presses the lever or button. The switch ensures that the refrigerator dispenses water or ice on demand, providing convenience and ease of use.

Over time, the dispenser switch can wear out or become damaged due to frequent use, exposure to moisture, or electrical issues. This can result in the switch failing to activate the dispenser properly, impacting the performance of the refrigerator's dispensing system.

Symptoms of a bad dispenser switch include:

• The water or ice dispenser not responding when the lever or button is pressed
• Intermittent or inconsistent dispensing of water or ice
• The dispenser working only occasionally or requiring excessive pressure to activate
• No audible click or feedback when pressing the dispenser lever or button

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dispenser Arm Spring is an OEM part for GE refrigerators. This spring is a crucial component that helps control the movement of the dispenser arm, ensuring it returns to its original position after use. It plays a key role in the functionality of the ice and water dispenser, allowing for smooth operation and consistent performance. Please note the springs are sold individually.

Causes of a bad Dispenser Arm Spring can include wear and tear from frequent use, corrosion due to moisture exposure, or accidental damage from excessive force. A malfunctioning spring can lead to operational issues with the dispenser.

Symptoms of a bad Dispenser Arm Spring include:

• The dispenser arm not returning to its resting position
• Difficulty or resistance when using the dispenser
• Unusual noises during the dispenser operation
• Inconsistent dispensing of ice or water

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Refrigerator Union Connector is an OEM replacement part for GE refrigerators. It is responsible for connecting the water supply lines from the kitchen plumbing to the refrigerator, allowing water to flow to the ice maker and water dispenser. The plastic connector assists your water dispenser by joining two 5/16 inch x 5/16 inch plastic water lines. Over time, Union Connectors can crack or break under pressure.

Causes of a bad Union Connector include wear and tear from repeated use, exposure to extreme fluctuations or surges in water pressure, or damage from accidental mishandling.

Symptoms of a bad Refrigerator Union Connector include:

• Water leaks at or near the connector area
• Inconsistent or no water flow to the ice maker/dispenser
• Fluctuations in water pressure to the fridge
• Water damage to surrounding kitchen areas from leaks

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Bottom Freezer Door Shelf is an OEM part for GE refrigerators. This part provides additional storage space on the freezer door, allowing for better organization and easy access to frozen items.

Causes of a bad bottom freezer door shelf can include wear and tear over time, physical damage from heavy items or impacts, or exposure to low temperatures causing the plastic to become brittle and crack.

Symptoms of a bad Bottom Freezer Door Shelf include:

• The shelf not staying securely in place
• Cracks or breaks in the shelf
• Items falling off the shelf during door movement
• Difficulty fitting the shelf properly on the door

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Shelf Door Fz Upper is an OEM part for GE refrigerators. It is an upper shelf located within the freezer door that provides storage for frozen food items.

Causes of a bad shelf can be exposure to excessive weight or impacts, damage from items stored inside, or natural wear and tear from opening and closing of the door.

Symptoms of a bad shelf include:

• Items falling through or off the shelf easily
• The shelf slipping out of place within the door
• Difficulty accessing freezer items

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This replacement screw fastens refrigerator components securely, restoring a tight, rattle-free fit when original hardware is missing, stripped, or corroded. Use it to secure panels, brackets, or trim and keep parts properly aligned.

• Secures panels, brackets, covers, or trim in place
• Helps maintain correct alignment of components and hardware
• Reduces vibration and rattling caused by loose or missing screws
• Replaces lost, rusted, or stripped screws

• Unplug the refrigerator and turn off water supply if working near water components
• Match thread and length to the removed fastener; hand-start threads to avoid cross-threading
• Tighten snugly; do not overtighten into plastic or thin sheet metal
• Keep track of any spacers or washers reused from the original assembly

A replacement thimble door designed to restore the outer trim and secure fit of the oven/microwave opening. Replaces damaged, bent, or missing thimble pieces so the appliance looks finished and the cavity edges are protected. What it does

• Covers and protects the oven/microwave cavity edge where the appliance meets the surrounding cabinetry
• Restores a flush, finished appearance when the original thimble is damaged or missing
• Helps keep the mounting area secure so the appliance sits correctly in the cabinet opening
• Common symptom: visible bent, cracked, or missing trim around the unit opening

• One thimble door

• Disconnect power to the appliance before attempting any service
• Basic hand tools (screwdriver) are typically required; follow for proper removal and reinstallation steps
• Handle edges carefully to avoid cuts and to prevent damage to the new trim
• If mounted behind cabinetry, have a second person assist to support the appliance while installing the thimble

This set screw secures refrigerator components—most commonly door handles—to their mounting studs. Replacing a missing or stripped screw restores a solid, secure feel and helps prevent loose or wobbly handles.

• Locks the handle to its mounting stud to keep it tight and secure
• Helps resolve a loose, wobbly, sliding, or rattling handle
• Replaces a missing, rounded, or damaged set screw
• Helps maintain proper handle alignment and consistent door operation

• Unplug the appliance or switch off power before servicing
• Ensure the handle is fully seated on the studs before tightening
• Start the screw by hand to avoid cross-threading; then tighten until snug
• Do not overtighten to prevent stripping the screw or handle threads
