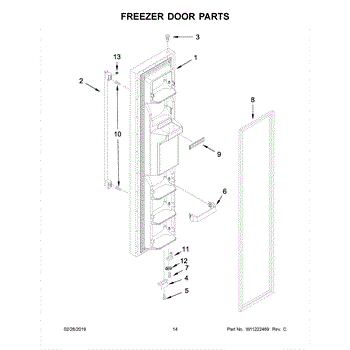

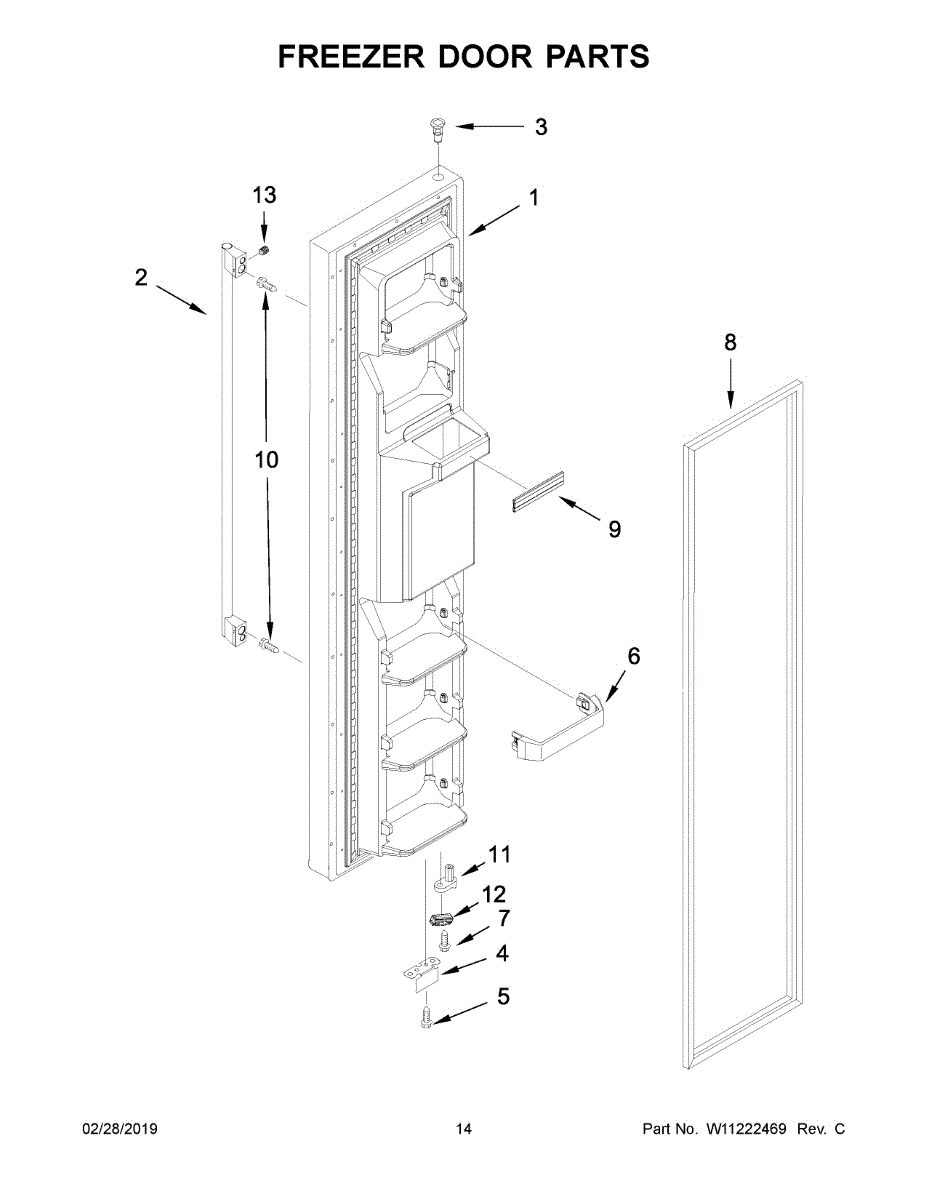

Parts for Ikea IRS335SDHM00: Freezer Door Parts

The Door Thimble, Top is an OEM part for Whirlpool refrigerators. This component is used to support and secure the door hinge, ensuring smooth and stable opening and closing of the refrigerator door.

You should replace the door thimble if it becomes damaged or worn out. Causes of a bad door thimble include wear and tear from frequent use, stress from heavy door loads, or damage from accidental impacts. A faulty thimble can lead to misalignment of the door, causing it to sag or not seal properly.

Symptoms of a bad Door Thimble, Top include:

• Difficulty in opening or closing the door
• The door not aligning correctly with the refrigerator frame
• Noticeable sagging or wobbling of the door
• Unusual noises when the door is moved

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This door stop bracket limits how far the appliance door opens. Replacing a worn or bent stop restores proper door swing and helps protect hinges and nearby surfaces from damage. What it does:

• Controls the door's opening range to prevent overextension
• Helps protect hinges and cabinet/adjacent surfaces from impact
• Supports consistent door alignment and smoother operation
• Common symptoms: door swings too far, hits a wall/cabinet, visible wear or broken stop, loud clunk at full open

• 1 door stop bracket

• Disconnect power to the appliance before servicing
• Support the door to avoid hinge strain when removing fasteners
• Note the bracket's orientation; transfer/reuse existing hardware as directed by your IPL
• After installation, verify door alignment and sealing, and test full open/close travel

This factory fastener secures appliance components and panels. Replacing worn, stripped, or missing screws restores a tight, rattle-free fit and keeps parts properly aligned for dependable performance.

• Fastens brackets, panels, and internal parts in the specified location
• Helps maintain alignment and reduces vibration or rattling
• Direct replacement for a missing, damaged, or stripped screw
• Symptoms include loose or shifting parts, gaps, or buzzing/rattle noises

• Disconnect power; turn off water or gas supply if applicable
• Use the correct driver; start threads by hand to avoid cross-threading
• Tighten until snug—do not overtighten
• Inspect/repair stripped threads or damaged mating hardware before installation

This freezer door shelf trim is the integrated retaining rail that secures items on the door bin. Replacing a cracked or missing rail restores a snug, reliable hold and keeps your freezer door storage tidy and usable.

• Holds items in place on the freezer door bin/shelf
• Replaces broken, warped, or missing trim so bins stay secure
• Helps prevent items from sliding or falling when the door opens
• Common signs: loose or damaged rail, items falling, visible cracks

• Disconnect power to the refrigerator before servicing
• Remove the bin if needed; align the trim with the tabs and snap into place
• Allow cold plastic parts to warm to room temperature to reduce the risk of cracking
• Do not force; verify the trim is fully seated before loading items

This 10-32 machine screw secures appliance components such as brackets, panels, and trim. Replace missing or stripped hardware to restore a tight, rattle-free fit and maintain proper alignment of the assembly.

• Fastens parts that require a 10-32 threaded fastener
• Helps prevent vibration, noise, and movement from loose hardware
• Restores correct fit and alignment after a screw is lost or damaged
• Common signs: loose panel/trim, rattling, or a missing/stripped screw

• Disconnect power and shut off water/gas as applicable before servicing
• Compare to the original and start threads by hand to avoid cross-threading
• Tighten snugly; do not overtighten to prevent stripping or damage
• Match thread size and length to your original fastener for proper fit

The Door Gasket is an OEM part for Whirlpool refrigerators. It creates an airtight seal around the door, helping to maintain the internal temperature and prevent cold air from escaping.

Over time, gaskets can degrade due to regular use, exposure to fluctuating temperatures, or buildup of grime and debris. A compromised gasket can lead to energy inefficiency and poor cooling performance.

Symptoms of a bad door gasket include:

• Frost buildup inside the freezer or refrigerator
• The unit running more frequently or continuously
• Warm air entering the unit, causing temperature fluctuations
• Difficulty in closing the door securely

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Shelf Retaining Bar is an OEM component for Whirlpool refrigerators. It is a horizontal metal rod located within the refrigerator door that secures glass shelf panels in place during opening and closing. Maintaining structural integrity prevents accidental shelf removal or breakage.

Symptoms of a damaged retaining bar may include:

• Shelves that suddenly fall or slide out of position while accessing contents
• Gaps or spaces where shelves are unable to fully lock into place along guides
• Noisy rattling or clanking sounds emanating from loose shelving inside the door

Causes generally relate to standard wear over extended use. Repeated door movements may gradually weaken connecting joints, sockets, and bends within the thin metal bar material over time.

Compatible brands are KitchenAid, Jenn-Air, and some Kenmore refrigerator models too.

The Door Handle Mounting Screw is an OEM part for Whirlpool refrigerators. It secures the door handle to the refrigerator door.

Causes of a bad door handle mounting screw can include wear and tear over time, improper installation, or excessive force applied to the handle. These factors can result in a loose or wobbly handle, compromising the functionality and aesthetics of your refrigerator.

Symptoms of a bad door handle mounting screw may include:

• A loose or unstable handle
• Difficulty in opening or closing the refrigerator door
• The handle becoming detached

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

A replacement cam door that supports the appliance door on its hinge and helps restore proper alignment and latch engagement so the door closes securely and the unit operates normally. What it does:

• Guides and supports the door at the hinge to maintain correct alignment and rotation.
• Engages with the door strike so the door closes and latches reliably.
• Worn or broken cams can cause the door to sag, rub, sit loose, or fail to latch.
• A faulty door cam may prevent the appliance from sealing or engaging the door switch.

• Disconnect power (and gas if applicable) before beginning any repair.
• Access typically requires removing the door or front access panel; basic hand tools are usually sufficient.
• Inspect the hinge, strike, and surrounding plastic for wear when replacing the cam.

This door bumper cushions the door against the frame to prevent metal-to-metal contact. Replacing a worn or missing bumper restores smooth, quieter closing and helps protect surfaces from chips, scuffs, and vibration.

• Absorbs impact where the door meets the cabinet/frame
• Reduces slamming noise and vibration during closing
• Helps protect paint, glass, and trim from wear
• Typical symptoms: missing/cracked bumper, loud clunk when closing, marks on frame, rattling

• Disconnect power and, if applicable, shut off gas/water; allow hot surfaces to cool
• Open the door to access the bumper location
• Remove the worn bumper and clean the contact area for proper seating
• Install the new bumper fully seated and aligned; test door operation

The Handle Set Screw is an OEM part for Whirlpool refrigerators. As an internal component, the set screw is used to securely hold refrigerator door handles in place for easy opening and closing of access doors.

Symptoms of a bad handle set screw include:

• Handles that spin loose and no longer open doors properly
• Loss of attachment causing handles to fall off doors
• Potential for handles to fall on feet presenting a safety hazard
• Opening issues, like hands slipping off spinning handles

Causes involve wear from repeated use or accidental tightening damage stripping threads and allowing handle loosening, affecting usability.

This OEM Whirlpool part is also compatible with some Kenmore and KitchenAid models.
