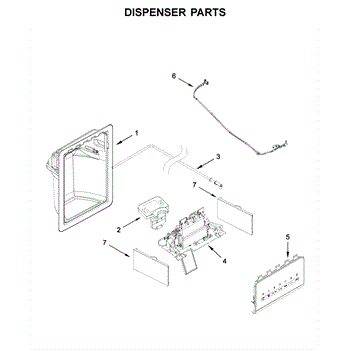

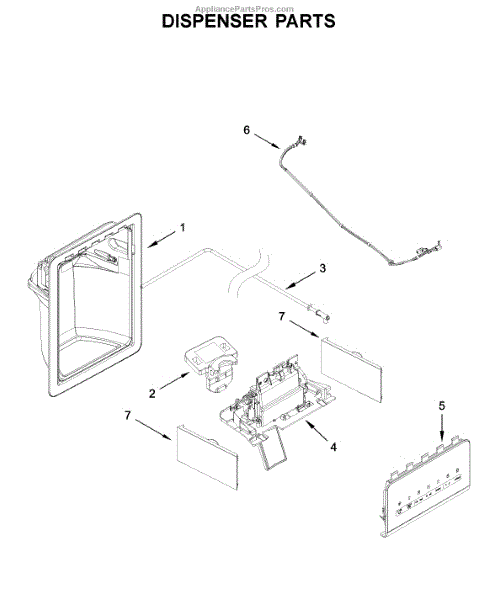

Parts for Ikea IRS335SDHM00: Dispenser Parts

This retainer is a small mounting clip that secures an appliance component or assembly in place to prevent shifting and reduce noise or wear. It restores proper fit and alignment where a worn or broken clip allows movement. What it does:

• Holds panels, trim, or small assemblies securely to their mounting points
• Prevents rattling, shifting, or misalignment caused by a missing or damaged clip
• Helps maintain proper spacing so seals and connections stay aligned
• Works as a direct-fit replacement when the original retainer is broken or missing

• One retainer

• Disconnect power and, if applicable, water supply before starting any repair
• Remove surrounding fasteners or trim gently to access the clip; avoid forcing plastic tabs to prevent breakage
• Replace with the exact part number and ensure the component is seated fully before reassembling

This genuine replacement fitting connects appliance water or fluid lines to internal plumbing, restoring a secure seal and proper flow. Use it to replace a worn or damaged connector and stop leaks or loose hose connections. What it does:

• Provides a sealed connection between a hose and the appliance plumbing
• Helps stop leaks from cracked, corroded, or loose fittings
• Restores reliable water or fluid flow through the supply line
• Fits where the original factory connector was used

• One replacement fitting as shown

• Turn off water and disconnect power to the appliance before starting
• Inspect and replace any worn O-rings or gaskets as needed
• Hand-start threads, then tighten to factory torque; avoid over-tightening

The Dispenser Funnel Guide Ice Door is an OEM part for Whirlpool refrigerators. It is responsible for guiding ice from the ice dispenser on the door into your glass.

A bad dispenser funnel guide ice door can occur due to regular use, wear and tear, or damage caused by foreign objects. If you notice ice not dispensing properly or falling outside of your glass, it may indicate a problem with the dispenser funnel guide ice door.

Symptoms of a bad dispenser funnel guide ice door include:

• Ice not dispensing into the glass or container properly
• Ice falling outside of the glass during dispensing
• Difficulty in activating the ice dispenser or inconsistent ice flow

This Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

Restore reliable, responsive controls with this user interface assembly. It reads your touch/button inputs and communicates them to the main control so you can select settings, start/stop cycles, and see status feedback as intended. What it does:

• Registers touch/button inputs and sends commands to the main control
• Provides status indication through UI LEDs/indicators
• Helps address unresponsive or intermittent controls and dark/no-display conditions
• Replaces cracked, moisture-damaged, or non-responsive UI modules

• One user interface assembly

• Disconnect power at the breaker or unplug the appliance before servicing
• Handle the board as ESD-sensitive; avoid touching connector pins and circuitry
• Transfer any reusable brackets/trim from the original part as needed; seat all ribbon cables and connectors fully
• Route harnesses carefully and verify connector orientation before restoring power

This wire harness connects multiple electrical components so your appliance gets reliable power and signal routing. Replacing a damaged harness restores proper electrical connections and can stop intermittent operation or complete failures. What it does:

• Routes power and control signals between the appliance control and components
• Restores missing or intermittent electrical connections that cause faults or loss of function
• Prevents shorts from damaged or frayed wiring when replaced
• Matches OEM connector locations and lengths for a direct fit

• One complete wire harness assembly as shown

• Unplug the appliance or disconnect power at the breaker before starting
• Take photos of existing routing and connector positions to ensure correct reassembly
• Disconnect and reconnect connectors carefully; avoid pulling on wires
• Route harness away from sharp edges, moving parts, and high-heat areas; secure with original clips or ties
