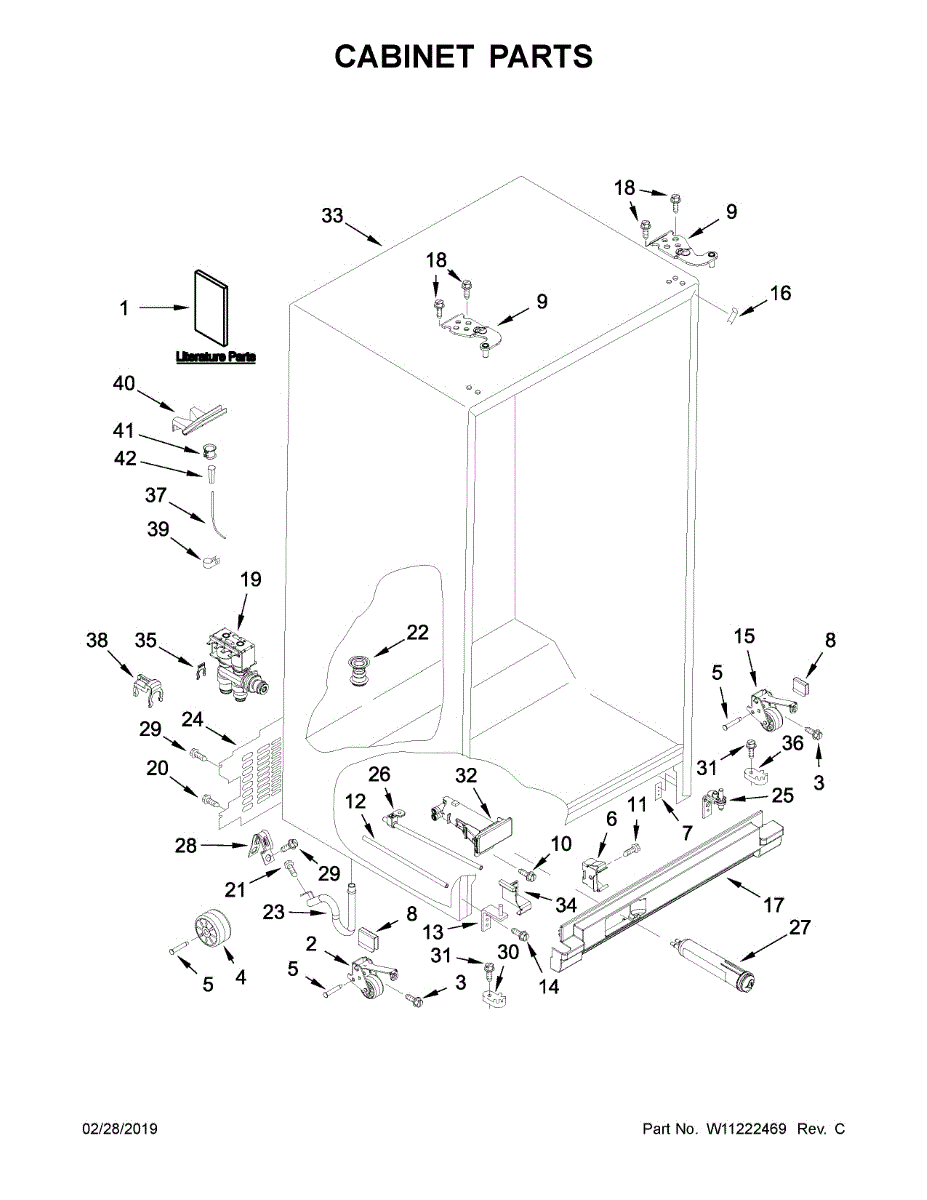

Parts for Ikea IRS335SDHM00: Cabinet Parts

Note: Left Hand Roller

Replacement mounting screw that secures panels, brackets, or internal components to restore a solid fit and reduce movement. Simple, direct replacement for a missing, stripped, or corroded fastener to help maintain safe appliance operation. What it does:

• Holds trim, panels, brackets or control assemblies in place to prevent rattling and misalignment.
• Replaces stripped, rusted, or missing screws that can cause loose parts or vibration.
• Restores proper component alignment for safe, stable appliance performance.
• Small, inexpensive fix that prevents further wear to attached parts when properly installed.

• Use the correct screwdriver or bit to avoid stripping the head; match size to the screw.
• Do not overtighten — snug is sufficient to secure parts without damaging threads or components.
• Disconnect power to the appliance before working near controls or wiring.
• Keep removed screws organized during disassembly so all fasteners are replaced.

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Clip for bottom grill. If your original clip is riveted, order screw WP489478.

This replacement plate restores the original support or cover function in compatible Whirlpool appliances, helping maintain proper part alignment and stable operation. It's a simple swap that renews fit and reduces rattling or misalignment. What it does:

• Replaces a worn, cracked, or missing plate to restore proper component positioning
• Helps stop vibration, rattling, or movement that can occur with a damaged plate
• Provides the correct surface or mounting point for adjacent parts to seat correctly
• Matches OEM form to maintain appliance fit and function

• Turn off and unplug the appliance before attempting any repair
• Handle the plate carefully to avoid damage; verify orientation before installing
• Follow OEM instructions or a service manual for removal and reassembly steps

The Axle is an OEM part for Whirlpool refrigerators. This axle allows it to be easily repositioned or moved for cleaning and maintenance. It supports the rollers that enable the refrigerator to glide across the floor.

Common causes of a bad axle include prolonged use, excessive weight, or impact damage, which can lead to the axle bending or breaking.

Symptoms of a bad refrigerator roller axle include:

• Difficulty moving the refrigerator
• Uneven or wobbling movement
• Scratches or damage to the floor
• The refrigerator not staying level

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

Color: no finish

This door hinge assembly supports and pivots either the refrigerator (RC) or freezer (FC) door. Replacing a worn hinge restores smooth door movement and reliable gasket contact to help maintain proper temperatures and reduce air leaks.

• Positions the door on its pivot for smooth opening and closing
• Helps keep the door aligned so the gasket seals against the cabinet
• Reduces air leaks that can lead to frost or temperature fluctuations
• Common symptoms of a failing hinge include a sagging or misaligned door, popping/squeaking, or a door that won't close or seal properly
• Visible wear, bending, or damage to the hinge

• Unplug the refrigerator and shut off the water supply before servicing
• Have a helper support the door; remove the hinge cover and fasteners, then lift the door off the hinge
• Transfer any shims/spacers from the old hinge to the new one in the same order
• Reinstall and tighten fasteners securely; adjust alignment per your model's service instructions

Screw: 8-16 x 3/8 inch.

The Water Tube is an OEM component specifically designed for Whirlpool-brand side-by-side refrigerators. It transports fresh water from an external supply line into the internal ice maker and dispenser system.

The water tube plays a vital role in delivering clean drinking water on demand. A pinhole leak could disrupt supply to the entire refrigerator compartment over time if left unaddressed.

Symptoms of a bad water tube include:

• Low water pressure at ice/water dispenser
• Puddles forming inside rear refrigerator walls
• Kinks or cracks in tubing visible near connections

Causes may involve typical wear and tear like tube kinking over years of door openings. Scale buildup internally can gradually reduce water flow.

This OEM Whirlpool replacement part is compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

Note: Right Hand Roller

The Grille is an OEM replacement part for Whirlpool refrigerators. It covers the gap between the bottom of the refrigerator and the floor, providing a clean and finished look to your kitchen. It helps protect the internal parts from dust and debris while also preventing small items from rolling underneath the appliance.

Symptoms of a bad toe grille include:

• Visible cracks or damage
• Discoloration or fading
• Missing pieces or gaps in the grille

A damaged or worn-out toe grille can occur due to regular use, accidental impacts, or general wear and tear over time. If you notice cracks, discoloration, or missing pieces on the toe grille, it may be time to replace it.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.


This hinge screw secures the door hinge to the appliance cabinet or door. Replacing a missing or stripped screw restores a tight, aligned hinge connection for smooth opening and reliable sealing.

• Fastens the hinge to the frame or door to prevent looseness
• Helps maintain door alignment for smooth opening/closing
• Direct replacement for lost, rusted, or stripped hinge screws
• Common symptoms: loose hinge, door sagging, rubbing/binding, or poor sealing

• Disconnect power before service; if working on a refrigerator, also shut off the water supply
• Support the door before loosening or tightening hinge hardware
• Start threads by hand to avoid cross-threading; tighten securely without over-torquing

The Water Inlet Valve is an OEM part for Whirlpool refrigerators. This part is responsible for controlling the flow of water into the refrigerator's ice maker and water dispenser system. It operates by opening and closing to allow water from the household supply line to enter the refrigerator as needed.

Over time, water inlet valves can fail or become clogged with mineral deposits, especially in areas with hard water.

Symptoms of a bad Water Inlet Valve include:

• No water being dispensed or ice being made
• A slow or irregular flow of water from the dispenser
• Unusual noises coming from the valve area during operation
• Water leaking from the valve or at the connection points

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Drain Fitting is an OEM part for Whirlpool refrigerators. It is responsible for directing the water from the defrost cycle or ice maker to the appropriate drain line, ensuring proper drainage and preventing water buildup or leaks.

Causes of a bad refrigerator drain fitting can include clogs or obstructions, damage from impact or freezing temperatures, or simply wear and tear over time.

Symptoms of a faulty refrigerator drain fitting include:

• Water leaks near the bottom of the refrigerator
• Buildup of ice or water in the drain pan
• Noticeable odors from stagnant water
• Difficulty with the defrost cycle or improper defrosting

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Refrigerator Drain Connector is an OEM part for Whirlpool refrigerators. It is responsible for directing water and condensation from the evaporator fan coil and defrost into the drain pan.

Causes of a bad drain connector can include cracks, breaks or deformations caused by repeated thermal cycling or impact damage. Mineral or lime buildup inside the connector over many years can also restrict water flow.

Symptoms of a bad drain connector include:

• Water or condensation leaks around the connector area
• Puddles or watermarks on the floor behind the fridge
• Slow drainage of water from the evaporator fan coil
• Mold or mildew growth near the connector or drain area

This replacement part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The adjustable hinge and cam assembly is an OEM part for Whirlpool refrigerators. It provides stability and smooth movement during opening and closing of the door. The hinge and cam assembly allows for easy access to the refrigerator compartment while maintaining a secure seal to keep your food fresh.

A bad hinge and cam assembly can occur due to regular wear and tear, accidental impact, or a malfunctioning cam mechanism. If you notice symptoms such as the door not closing properly, sagging or misaligned door, or difficulty in opening or closing the door, it may be time to replace this part.

Symptoms of a bad hinge and cam assembly include:

• Door not closing properly
• Sagging or misaligned door
• Difficulty in opening or closing the door

Restore your Whirlpool refrigerator door by replacing the worn or damaged bottom door hinge and cam with this genuine OEM part.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.


This Whirlpool Water Line is an OEM part specifically designed for compatibility with select Whirlpool refrigerator models. It plays a key role in supplying water to the refrigerator's ice maker and water dispenser, ensuring a consistent and reliable flow of water.

Over time, water lines can develop issues such as wear and tear, kinking, or mineral buildup from hard water. These problems can lead to reduced water flow, potential leaks, or in some cases, complete blockage, affecting the functionality of the refrigerator's water dispenser and ice maker.

Symptoms of a bad water line include:

• Reduced water flow from the dispenser or to the ice maker.
• The ice maker produces smaller or misshapen ice cubes.
• Unexplained water leakage near the refrigerator.
• Visible wear, kinks, or damage to the water line.

This genuine Whirlpool OEM replacement part is compatible with Maytag, Jenn-Air, and Kenmore models.


The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

Replacement screw that secures panels, brackets, and other components inside your appliance, keeping assemblies tight and aligned. Replace missing or stripped hardware to eliminate looseness, reduce vibration, and restore a solid, factory-fit hold.

• Fastens panels, brackets, trim, or internal components
• Helps maintain alignment and reduce rattling/vibration
• Replaces missing, loose, rusted, or stripped hardware
• Common signs: stripped head/threads, loose panel, buzzing/rattling noises

• Disconnect power before service; shut off gas/water if applicable
• Match to the original screw; start threading by hand to avoid cross-threading
• Use the correct driver size to prevent stripping
• Tighten snugly; do not overtighten. If it won't hold, inspect the receiving hole/clip

The Door Closer-Gravity is an OEM part for Whirlpool refrigerators. It is an assembly located on the top hinge side of the refrigerator door, responsible for providing controlled resistance when opening and closing the door.

Causes of a bad door closer can include worn or broken springs, a damaged sliding mechanism, or misaligned components from repeated use over time.

Symptoms of a bad door closer include:

• The door not staying open at the desired angle when accessing shelves and bins
• Excessive force required to open or close the door
• The door not fully closing or sealing against the cabinet

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Screw is an OEM replacement part for Whirlpool appliances. The precise threads allow screws to join or assemble other parts securely.

Causes of a bad screw can include stripping, cracking, or loss of threads due to repeated installation/removal over time. Corrosion is also possible depending on environmental conditions.

Symptoms of a bad screw include:

• Loosened or detached components that were once fastened
• Reduced structural integrity of connections or assemblies
• Potential safety hazards if critical parts become dislodged

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

The Water Filter Housing is an OEM component for Whirlpool refrigerators. Located inside the cabinet, usually underneath the drink dispenser spout, this plastic housing contains the replaceable water filter cartridge.

Symptoms of a bad water filter housing include:

• Inability to properly secure new filter cartridges in place
• Leaks around housing seal when dispenser is in use
• Remnants of old cartridges remaining in housing

Causes stem from normal wear and tear on the plastic material over extended use. Precision alignment is key for water routing.

Replace now with this factory housing to restore dependable filtered water and ice. Fits Whirlpool brand models, including Maytag, KitchenAid, and select Kenmore units. Renewed performance and convenience await with the installation of this OEM component. Trust genuine construction for reliable, fresh water delivery.


This mounting bracket restores secure support for a loose or misaligned appliance panel or component. It provides a direct replacement that helps stop rattling and keeps parts aligned for proper operation. What it does:

• Secures panels or components to the appliance frame to restore stability
• Prevents rattling, vibration, and shifting caused by a broken or worn bracket
• Helps maintain proper alignment so doors, drawers, or panels close correctly
• Works as the OEM replacement part designed for the original mounting points

• Disconnect power (and water for relevant appliances) before starting any repair
• Use basic hand tools; retain any original fasteners unless replacements are provided
• Install in the original bracket location and confirm secure fit before restoring power

The Closing Cam is an OEM part for Whirlpool refrigerators. As an internal component, the closing cam is responsible for assisting with the smooth and secure closing of refrigerator doors.

Causes of a bad closing cam can include wear and tear over time reducing effectiveness, or damage from accidental impacts compromising operational shape.

Symptoms of a bad closing cam include:

• Loose or sagging doors that do not close properly
• Doors that do not fully latch or seal against the gasket
• Increased cooling costs from unsealed interior leakage
• Potential damage to other door parts over repeated stress

This OEM Whirlpool part is also compatible with Maytag, Jenn-Air, and some KitchenAid models.

The Ice Maker Water Line is an OEM part for Whirlpool refrigerators. It supplies water from the household plumbing to the ice maker, ensuring a consistent and reliable production of ice cubes. This kit includes a 1/4-inch plastic water line that is approximately 72 inches long. The tubing will need to be cut to match the desired length.

Causes of a bad water line can include wear and tear from prolonged use, kinks or bends restricting water flow, or leaks due to punctures or cracks. A compromised water line can result in inadequate ice production or water leaks.

Symptoms of a bad ice maker water line include:

• Reduced or no ice production
• Leaking water from the refrigerator
• Visible cracks or damage to the water line
• Ice cubes that are smaller than usual

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This connector is an electrical harness connection used to join wiring in compatible appliances, restoring a secure circuit and helping components receive reliable power. Replaces a broken or damaged plug-style connector to improve electrical contact and reduce intermittent operation. What it does:

• Provides a secure electrical connection between wiring harnesses or components
• Restores reliable power flow to the connected component when the original connector is damaged
• Helps eliminate intermittent faults caused by loose, corroded, or broken terminals
• Used where a plug-style harness connection is required for a serviceable splice or component plug

• Disconnect power to the appliance before servicing to avoid electric shock
• Verify connector orientation and fit against the appliance harness before final installation
• Inspect mating terminals for damage or corrosion and replace if necessary

This chute channels water and wash additives from the dispenser housing into the tub. Replacing a damaged or clogged chute helps ensure proper dispensing and reduces leaks or residue around the dispenser area. What it does:

• Guides detergent/bleach/fabric softener from the dispenser to the wash tub
• Maintains proper flow to prevent backups at the dispenser drawer
• Helps reduce leaks and drips from the dispenser area
• Common failure symptoms include water backing up into the drawer, detergent residue left in the dispenser, or leaks at the front-left/top of the washer

• 1 chute

• Disconnect power and turn off water supply before servicing
• Access is typically from the top; remove panels as needed to reach the dispenser assembly
• Transfer any seals, clamps, or hardware from the old chute
• Reassemble and run a brief fill/rinse to check for proper flow and leaks

A small metal clamp that secures flexible hoses or tubing in laundry and kitchen appliances to prevent leaks and keep connections tight. Simple, durable replacement for a worn or loose hose fastening point. What it does

• Holds a hose or tube firmly to a barb, fitting or nipple to stop leaks and movement
• Restores a secure connection where a cracked or corroded clamp allows fluid or air escape
• Common service item for loose drain, fill, or vent hoses showing seepage or slipping
• Helps maintain proper appliance function by ensuring sealed hose connections

• One clamp

• Disconnect power and water before servicing; follow your appliance safety procedures
• Inspect mating hose and fitting for damage; replace hose if cut or brittle
• Use the correct pliers or clamp tool for safe installation and to avoid over-tightening

These inserts are for 1/4 inch plastic tubing. Package of 4.
