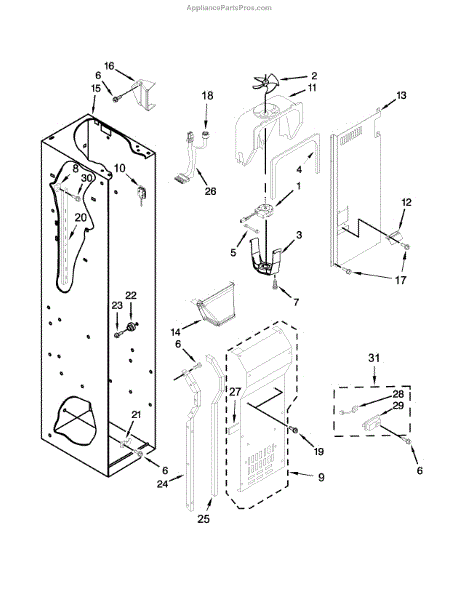

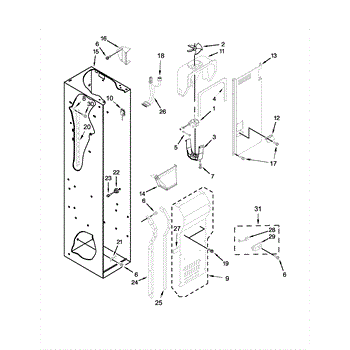

Parts for Jenn-Air JS48NXFXDE00: Freezer Liner And Air Flow Parts

The Whirlpool Everydrop Water Filter 3 is a genuine OEM replacement part designed to improve the quality and taste of water while filtering out impurities. This filter is specifically designed for side-by-side refrigerators that accept Filter 3. Contains the ability to reduce 66 contaminants including lead, mercury, asbestos, and industrial chemicals. It helps to provide clean, fresh-tasting water. The filter needs to be changed every 6 months or 200 gallons for optimal performance. The fast and easy filter change requires no special tools. Simply push until you hear the receiver click into place. This NSF-certified filter is a reliable and affordable way to ensure that your family is drinking clean, refreshing water. SOLD INDIVIDUALLY

Specs:

• Filter Media: Carbon Block
• Operating Pressure: 30-120 psi
• Operating Temperature: 33-100 °F
• Flow rate: 0.5 gpm
• Material: Plastic
• Color: White
• Approximate Dimensions: 12 inches long, 2 inches in diameter

This evaporator fan motor circulates cold air across the evaporator coils and throughout the fresh food and freezer compartments. Replacing a weak or failed motor restores proper airflow for consistent cooling and ice production.

• Moves air over the evaporator to maintain even temperatures
• Common failure signs: freezer getting warm, fridge section not cooling well, weak or no airflow from vents, intermittent humming or squealing, motor not running
• May help resolve frost buildup around the evaporator due to poor airflow
• Electrical component; match connectors and orientation during install

• Unplug refrigerator before service; wear cut-resistant gloves
• Access from the rear of the freezer/evaporator cover; remove shelves/panels as needed
• Transfer any mounting hardware, grommets, or fan blade from the original if not reusable
• Ensure fan spins freely and blade is correctly oriented before reassembly

The Evaporator Fan Motor Blade is an OEM part for Whirlpool refrigerators. It is a crucial component of the refrigerator's cooling system, attached to the evaporator fan motor to circulate air over the evaporator coils. This circulation helps distribute cold air throughout the refrigerator and freezer compartments, ensuring consistent temperatures and efficient operation.

Symptoms of a bad Evaporator Fan Motor Blade include:

• Unusual noise coming from the fan area, indicating the blade may be hitting another component or is unbalanced,
• Insufficient cooling in the refrigerator or freezer compartments,
• The refrigerator running longer than usual to maintain the desired temperature.

Causes of evaporator fan motor blade failure typically include physical damage from interference with other components, wear from continuous use, or buildup of ice or debris that unbalances the blade.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This retainer secures the dryer fan motor to its housing so the blower assembly stays aligned and runs quietly. Replacing a worn retainer restores proper motor mounting and reduces vibration or rubbing noise. What it does:

• Holds the fan motor in place to maintain correct blower alignment
• Prevents the motor or fan from shifting, which can cause noise or rubbing
• Helps avoid airflow loss that can lead to poor drying performance
• Reduces vibration that can stress mounts and fasteners

• One fan motor retainer

• Disconnect power before starting any repair to avoid shock or injury
• Basic hand tools are usually required; retain original fasteners unless replacements are provided
• Inspect surrounding mounts and the blower wheel for damage while accessing the motor

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The LED Module Kit is an OEM component specifically designed for Whirlpool refrigerators. This kit contains 12 individual LED lights that illuminate targeted refrigerator sections.

As the primary light source, the module kit is responsible for clearly illuminating refrigerated spaces to easily locate and identify stored items. Uniform lighting is essential for accessible organization.

Causes of malfunctioning LED modules include bulb burnout over time or intermittent electrical connections.

Symptoms of a failing module kit involve:

• Dim lighting throughout compartments
• Flickering or hot spots within illuminated areas
• Entire sections are left in shadow making visibility poor

Note: The factory changed to a warmer color instead of the old cool blue design.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

Color: Black. For biscuit order 98008169. For white order WP98008544.

This defrost bimetal thermostat opens and closes with temperature to protect the evaporator from overheating during defrost. It helps clear frost buildup while preventing damage, supporting stable cooling and efficient refrigerator operation.

• Monitors evaporator temperature and interrupts the defrost heater when the set limit is reached
• Helps resolve symptoms like warm fridge/freezer, heavy frost on evaporator, or long/no defrost cycles
• Can cause frequent temperature swings or compressor short cycling if failing
• Typically mounted on or near the evaporator coil in the freezer

• Disconnect power before servicing; defrost ice as needed to access the evaporator area
• Note wire locations; replace using existing connectors or approved splices
• Ensure the thermostat clips firmly to the evaporator tubing in the original location
• After install, restore power and confirm the unit enters and exits defrost normally

The Thermistor is an OEM replacement part for Whirlpool refrigerators. This temperature-sensitive sensor monitors conditions inside refrigerator and freezer compartments. It provides critical feedback to the electronic control module, regulating cool air temperature in both sections.

Symptoms of a faulty thermistor include:

• Fluctuating temperatures where sections become too warm or cold
• Frequent cycling of evaporator fans and cooling components
• Defrost issues or Er/Ed error codes shown on displays

Causes can involve regular exposure to changing interior environments over many years. Mineral deposits accumulating may lead to sensor surfaces becoming insulated. Physical stress from overloading could potentially crack the thermistor over time as well.

This OEM replacement part is compatible with some Kenmore Elite models too.
