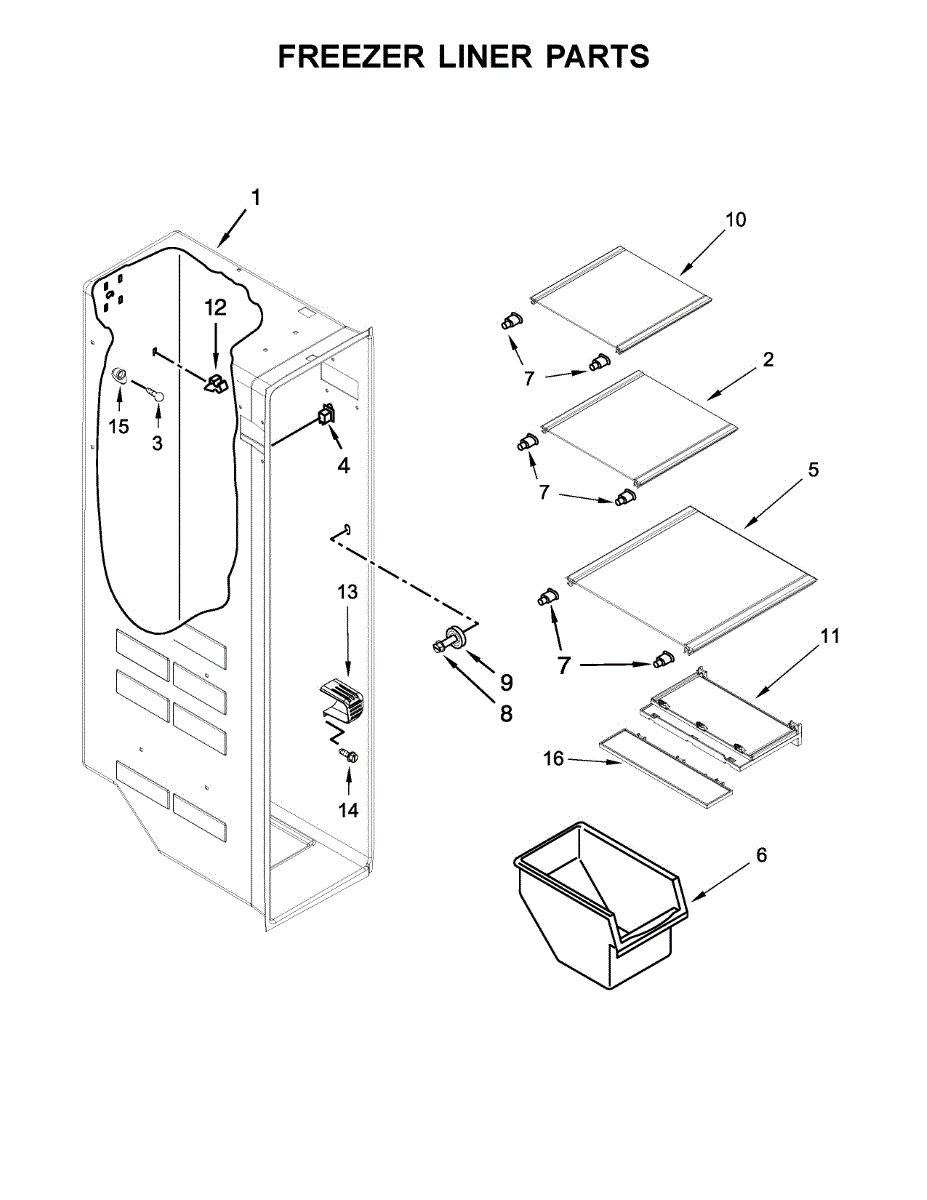

Parts for Maytag MSS25C4MGB00: Freezer Liner Parts

The Whirlpool EveryDrop Ice and Refrigerator Water Filter 1 is an OEM replacement part for Whirlpool refrigerators. This filter works to remove small particles from water to ensure clean, great-tasting ice and drinking water directly from the refrigerator door.  Measuring approximately 2.50 x 2.50 x 8.69 inches, this filter is easy to install.

For optimal performance, we recommend replacing the filter every six months. The filter material is made from coconut carbon block, which has a micron rating of 0.5 and a flow rate of 0.5 gpm. The filter is designed to operate at a maximum pressure of 125 psi and an operating temperature of 38-100°.

Symptoms of a filter needing replacement include:

• Gradual decline in water/ice quality over time exhibiting muddy appearance or odd tastes
• Filter life indicator appears showing it is time for a new one

Causes stem from normal usage over the stated capacity of the original filter. Allowing one to expire could produce unhealthy water.

This OEM replacement part is compatible with select Maytag, Jenn-Air, and Amana models as well.

The Bulb-Light is an OEM part for Whirlpool refrigerators. It provides lighting within the refrigerator compartments, allowing for easy viewing of contents. The bulb-light joins with compatible sockets or bases designed precisely for its installation within the refrigerator.

Causes of a bad bulb light can include burnout over extended use, accidental damage during cleaning, or faulty wiring that prevents the bulb from receiving power.

Symptoms of a bad Bulb-Light include:

• Dark or no light in refrigerator compartments
• Bulb producing a flickering or intermittent light instead of consistent illumination
• Signs of overheating, melting, or charring around the bulb

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Door Switch is an OEM part for Whirlpool refrigerators. It is designed to detect when the refrigerator or freezer door is open or closed. This switch controls the interior light and ensures that the cooling system operates efficiently.

Causes of a bad Door Switch can include mechanical wear from frequent use, electrical faults such as short circuits or burnt contacts, and physical damage from impact or mishandling of the refrigerator door.

Symptoms of a bad Door Switch include:

• The interior light not turning on when the door is opened or not turning off when the door is closed
• The refrigerator or freezer not cooling properly
• The light staying on continuously
• The cooling system running continuously or not running at all due to incorrect signals from the switch

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This replacement freezer door bin restores secure storage on the freezer door. It keeps smaller frozen items organized and easy to reach, replacing cracked or missing bins to help maintain a tidy, usable freezer space.

• Attaches to the freezer door to create a convenient storage shelf
• Holds and organizes frozen foods, condiments, and small packages
• Direct replacement for cracked, warped, or missing bins
• Helps the door close properly when the bin is correctly seated

• Empty the old bin, then lift up and out to remove from the door tabs/rails
• Align the new bin's hooks with the slots and press down until it locks in place
• Ensure the bin is fully seated before loading items
• Handle plastic carefully to avoid cracking; wear gloves if the old bin is broken

This freezer shelf mounting cup fits into the liner opening to support the ribbed freezer shelf post, keeping the shelf level and secure. Replace cracked or missing cups to restore proper shelf support and prevent sagging.

• Supports the ribbed freezer shelf post and anchors it in the liner
• Helps keep the shelf level and properly positioned
• Replaces cracked, worn, or missing cups
• Common symptoms: shelf tilts, won't stay in place, rattles, or falls

• Unplug the refrigerator before starting
• Remove the freezer shelf; carefully pry the old cup straight out of the liner opening to avoid damage
• Press the new cup fully into the opening until flush; reinstall the shelf post into the cup
• Verify the shelf is seated and level before loading items

This factory fastener secures panels, brackets, or internal components in your appliance. Replacing a missing or damaged screw restores a tight fit, reduces rattles, and keeps assemblies properly aligned for dependable operation.

• Fastens sheet-metal panels, braces, and trim to the cabinet/frame
• Helps maintain alignment and structural integrity of assemblies
• Can reduce vibration noises and looseness caused by missing/stripped hardware
• Replace if the head is rounded, threads are worn, or the screw is corroded

• Disconnect power; for gas or water appliances, also shut off the supply
• Match location and start threads by hand to avoid cross-threading
• Use the correct driver size; tighten snugly without overtightening

This shelf support stud anchors a refrigerator shelf to the cabinet liner so it stays level and secure. Replace a cracked or missing stud to restore proper support and prevent shelves from tilting, slipping, or dropping.

• Locks into the liner wall to provide a mounting point for the shelf frame or bracket
• Keeps the shelf aligned and at the correct height
• Common symptoms: broken/missing stud, shelf won't sit flat, shelf sags or falls on one side
• Helps prevent items from sliding due to an unstable shelf

• Disconnect power; remove the shelf and any items resting on it. Handle glass shelves carefully and consider wearing cut-resistant gloves.
• Remove the damaged stud (release the locking tab or twist out, depending on design).
• Insert the new stud into the existing hole until fully seated and locked.
• Reinstall the shelf and verify it sits level before reloading.

This air duct clip secures an appliance's air duct or vent to the housing, keeping airflow channels properly aligned and reducing air leaks. A simple replacement that restores correct duct positioning and minimizes airflow issues. What it does:

• Holds the air duct or vent in place to maintain proper airflow alignment
• Prevents the duct from slipping or separating from the housing
• Helps reduce air leaks that can affect performance or cause noise
• Fits where a small plastic/metal retainer is required to secure ducting

• One air duct clip/retainer

• Disconnect power before servicing the appliance to avoid shock or injury
• Use basic hand tools to remove the old clip and snap or screw the new clip into place
• Handle carefully to avoid breaking plastic tabs; the clip fully engages the duct and housing
• If the clip doesn't fit securely, re-check the duct orientation and mounting position

This light socket replaces a worn or heat-damaged lamp holder so your appliance light works reliably again. Its straight-connector design fits applications with in-line wiring, ensuring a secure electrical connection to the interior light bulb.

• Holds the light bulb and supplies power to it
• Restores interior illumination for better visibility
• Straight terminal orientation for housings requiring inline wiring clearance
• Typical signs of failure: light stays off with a good bulb, flickers, or shows heat damage at the socket

• Disconnect power at the breaker or unplug before servicing; allow the area to cool completely
• Remove any lens/cover; transfer wires one at a time to maintain correct connections
• Secure the socket with existing bracket/fasteners; do not overtighten
• Test light operation before reassembly and confirm the door switch activates the light

This flat replacement glass shelf provides a sturdy, easy-to-clean surface for fridge storage so you can organize food and maximize usable space. Fits into existing shelf supports and restores usable shelving after breakage or loss. What it does:

• Replaces a cracked, chipped or missing refrigerator shelf so items sit level and secure
• Provides a smooth, wipe-clean surface that helps contain spills on the shelf area
• Restores full shelf storage capacity and organization inside the compartment
• Works with the fridge's existing shelf supports and trim pieces when undamaged

• Handle carefully and wear cut-resistant gloves; glass can break and cause injury
• Remove all food and shelves below before installing to avoid spills or damage
• Slide shelf into existing side supports or rails; do not force if alignment feels wrong
• If shelf supports or mounting trim are damaged, replace them before installing the glass
