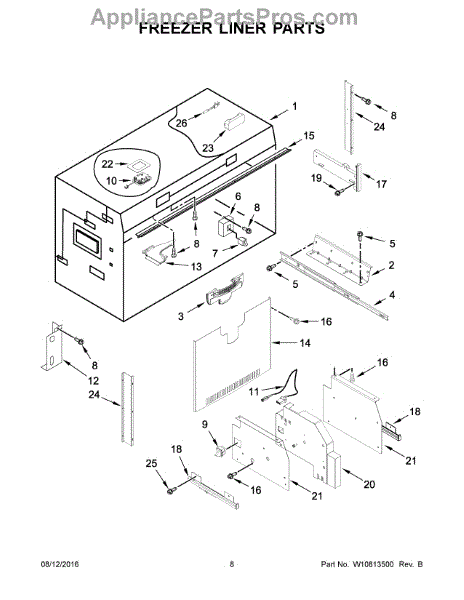

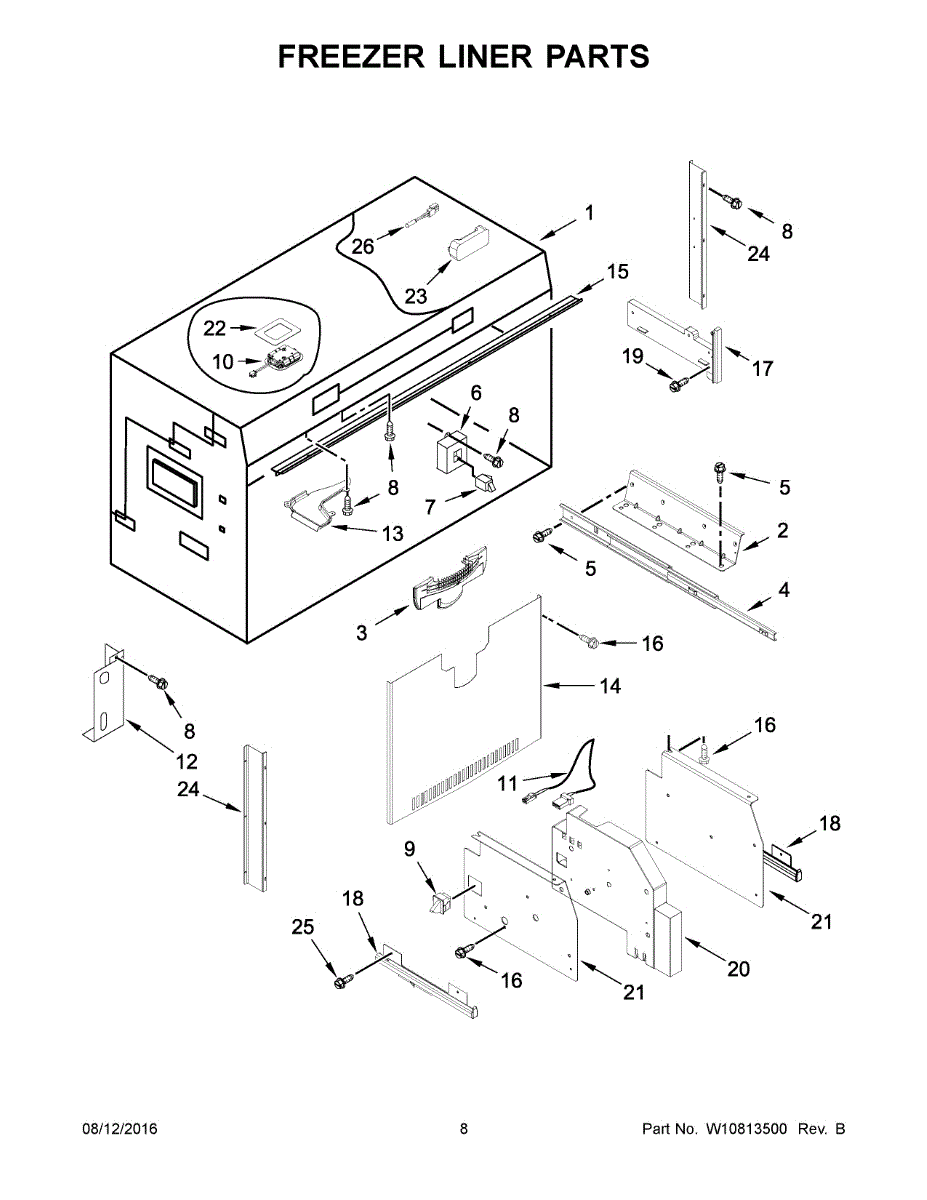

Parts for Kitchenaid KBFN402ESS01: 05 - Freezer Liner Parts

This replacement NC light switch restores proper operation of the appliance's light circuit, helping the light turn on and off as designed for safe use and visibility during service or operation. What it does

• Completes or breaks the light circuit when the door or control triggers the switch.
• Restores interior or indicator light operation that is dim, flickering, or nonfunctional.
• Prevents the light from staying on continuously if the switch is failed closed.
• Matches the OEM function for reliable, long-term use when replacing a worn switch.

• Disconnect power before servicing to avoid shock or injury.
• Access may require removing panels or door trim—refer to your model's service manual or tech sheet.
• Inspect wiring and connectors; replace any damaged harnesses or terminals.

This screw is used to secure the handle end cap to the center of the door. The screw size measures 8-18 x 1/2 inches.

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The LED Module Kit is an OEM component specifically designed for Whirlpool refrigerators. This kit contains 12 individual LED lights that illuminate targeted refrigerator sections.

As the primary light source, the module kit is responsible for clearly illuminating refrigerated spaces to easily locate and identify stored items. Uniform lighting is essential for accessible organization.

Causes of malfunctioning LED modules include bulb burnout over time or intermittent electrical connections.

Symptoms of a failing module kit involve:

• Dim lighting throughout compartments
• Flickering or hot spots within illuminated areas
• Entire sections are left in shadow making visibility poor

Note: The factory changed to a warmer color instead of the old cool blue design.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.

This deflector directs airflow inside the dryer to help maintain even drying and protect internal components from redirected heat. It's a simple replacement that restores proper air routing for more consistent performance. What it does:

• Guides hot air through the drum and exhaust path to promote even drying
• Helps prevent hotspots and reduces prolonged dry times caused by poor airflow
• Protects adjacent components by channeling heat away from sensitive areas
• Reduces abnormal noises caused by loose or damaged airflow parts

• One deflector

• Disconnect power before servicing to avoid shock or injury
• Access may require removing the dryer front or top panel; keep track of fasteners
• Replace with the correct orientation and secure all mounting points

This replacement slide guides and supports the oven rack so it moves smoothly and stays aligned during use. Replacing a worn slide restores stable rack movement and helps prevent the rack from catching or sagging. What it does:

• Guides an oven rack or drawer so it opens and closes smoothly
• Keeps the rack aligned to prevent tipping or sagging under load
• Reduces binding, sticking, or noisy operation when sliding the rack
• Addresses symptoms like a rack that falls, jolts, or won't slide evenly

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; retain any original fasteners unless replacements are provided
• Replace them as well for best results

This slide is a replacement drawer guide that helps a dishwasher/drawer or appliance compartment open and close smoothly and stay aligned. It restores stable, low-friction movement for worn or damaged guides. What it does

• Guides and supports the drawer or compartment as it slides in and out
• Reduces sticking, binding, or uneven movement caused by a damaged guide
• Helps keep the drawer aligned and prevents sagging or dropping
• Works as a wear item replacement when original guide is cracked, worn, or broken

• One slide/drawer guide

• Designed for direct replacement
• Remove power and empty the drawer/compartment before starting any repair
• Keep fasteners and mounting clips from the old part for reuse if undamaged

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance

This cover housing protects internal components and keeps the appliance looking finished. It restores a secure enclosure to prevent debris intrusion and minimize exposure to wiring and mechanical parts. What it does:

• Shields internal components and wiring from dust, moisture and physical contact
• Helps reduce noise from loose parts when the appliance is running
• Restores the appliance's finished appearance after service or damage
• Can be replaced if cracked, warped or missing to maintain safe operation

• Disconnect power to the appliance before starting any repair
• Use basic hand tools; keep fasteners organized for reassembly
• Do not force-fit the cover; align tabs and screw holes before tightening
• If mounting points or clips are damaged, replace them to ensure a secure fit

This replacement screw secures appliance panels, brackets, and components to the cabinet or chassis. The #8-15 x 1/2 in. size restores a snug, reliable hold when original hardware is missing, stripped, or corroded.

• Fastens panels, brackets, and trim to the appliance cabinet or chassis
• Helps reduce rattling, vibration, or looseness caused by missing/stripped hardware
• Restores proper alignment of parts that have shifted due to loose fasteners
• Size/spec: #8-15 thread, 1/2-inch length; use where this size is specified

• Disconnect power and shut off gas/water supplies before servicing
• Replace one screw at a time to maintain alignment of parts
• Start threads by hand to prevent cross-threading; do not overtighten
• Use a matching driver/bit type for the screw head used in your appliance
