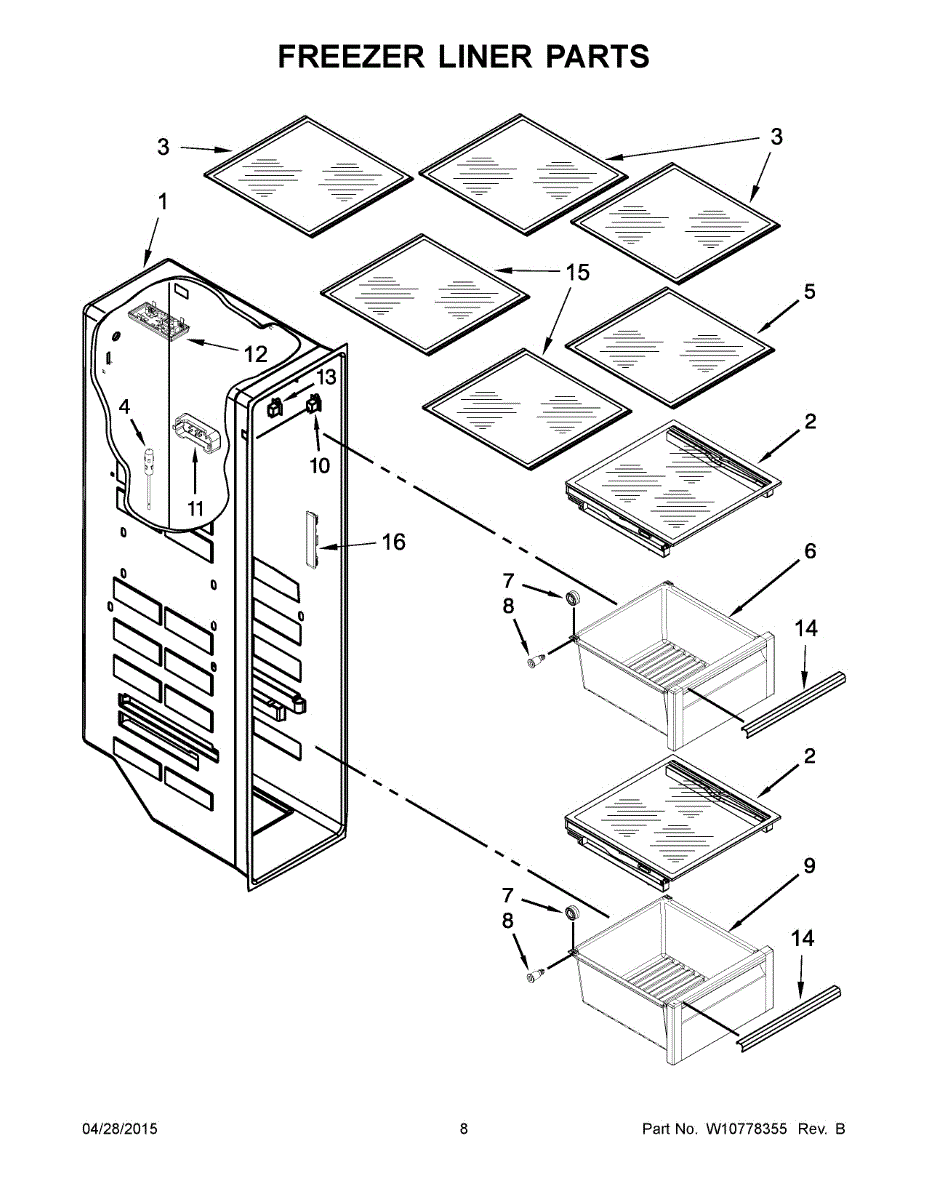

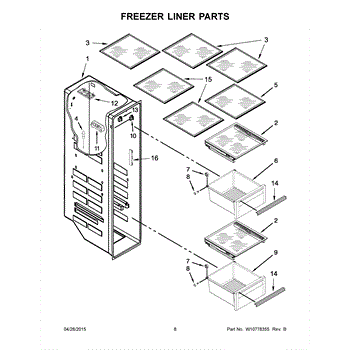

Parts for Kitchenaid KRSC503ESS00: 05 - Freezer Liner Parts

This cover assembly replaces a worn or damaged pan cover to restore proper protection and fit for the appliance's base area. It helps keep internal components shielded from spills, debris and wear. What it does

• Replaces a damaged or missing pan cover to restore protective enclosure
• Helps prevent debris and moisture from contacting internal components
• Reduces rattles or vibration caused by a bent or loose cover
• Restores proper fit and alignment of the surrounding panels

• One cover assembly (pan) as shown

• Designed to mount with existing fasteners; inspect screws and clips and replace if worn
• Turn off power and/or unplug the appliance before starting work
• Handle edges carefully — sheet metal edges can be sharp

The Glass Shelf is an OEM part for Whirlpool refrigerators. These durable shelves provide versatile storage and organization within the refrigerator and freezer compartments. The tempered glass shelves are resistant to chipping and cracking even under the weight of heavy items.

Causes of a bad shelf can include broken glass from heavy impacts, long-term wear and tear from repeated loading/unloading of items, or damage from accidental dropping of objects onto the shelf.

Symptoms of a bad shelf include:

• Visible cracks, chips, or holes in the glass surface
• Warping or bending of the frame/rails over time
• Inability to securely hold stored items without collapsing

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement glass shelf provides a flat, easy-to-clean storage surface for your refrigerator, restoring reliable support for food and containers. It replaces a cracked, chipped, broken, or missing shelf to help keep items organized. What it does:

• Restores a level storage surface inside the refrigerator for plates, containers, and groceries
• Supports everyday food storage and helps contain spills on one shelf level
• Replaces cracked, chipped, broken, or missing glass shelves to improve safety and usability
• Fits into existing shelf tracks or supports

• Handle the glass carefully and wear cut-resistant gloves to avoid injury
• Slide or set the shelf into the refrigerator's existing supports or tracks without forcing; ensure it seats evenly
• Do not overload the shelf; distribute weight evenly and check that supports/clips are undamaged before use

This replacement freezer bin is a molded plastic drawer that restores organized frozen-food storage in the freezer compartment. It replaces cracked, warped or damaged bins so items slide in and out smoothly and stay contained. What it does:

• Provides a dedicated storage drawer for frozen foods and helps keep the freezer organized.
• Slides on freezer rails or guides to allow easy access to contents.
• Replaces bins that are cracked, chipped, cloudy or no longer hold items securely.
• Helps prevent spills and loose items from collecting on freezer shelves or the floor.

• Remove food from the bin and, for safety, unplug the appliance or shut off power to the unit before starting.
• Slide the old bin out, release any retaining tabs or stops, then set the new bin into the tracks and slide until it seats.
• Do not force the bin; if it does not engage smoothly, inspect rails, stops and retainers for damage and clean as needed.
• Wear gloves to protect hands from sharp edges during removal and installation.

The Drawer Roller is an OEM part for Whirlpool refrigerators, specifically designed to facilitate the smooth and effortless sliding of drawers within the appliance. This small but crucial component ensures that the refrigerator's drawers open and close with ease, allowing for convenient access to fruits, vegetables, meats, and other items stored inside.

Causes of a bad Drawer Roller can stem from wear and tear over time, accumulation of debris or food particles in the roller mechanism, or damage from overloading the drawer beyond its capacity.

Symptoms of a bad Drawer Roller include:

• Drawers sticking or jamming when you try to open or close them
• A grinding or squeaking noise during drawer movement
• The drawer sagging or not aligning properly within the refrigerator

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This pan roller axle fits refrigerator drawers. It's the small support pin that anchors the roller so the crisper or pantry pan glides smoothly. Replacing a damaged axle restores proper glide and keeps the drawer tracking correctly.

• Secures the drawer's roller to the bin or rail so the pan slides smoothly
• Helps keep the crisper/pantry drawer level and properly aligned
• Common symptoms: drawer hard to open/close, sags on one side, scraping/clicking sounds
• Visible damage or a missing axle/roller at the drawer corner

• Unplug the refrigerator, remove contents, and take out the affected drawer
• Locate the broken axle and gently pry/pull it out
• Seat the new axle fully in the mounting hole; ensure the roller spins freely
• Reinstall the drawer and check for smooth operation

The Crisper Drawer is an OEM part for Whirlpool refrigerators. It provides separated, humidity-controlled storage for fruits and vegetables in the refrigerator compartment.

Causes of a bad crisper drawer include cracks or breaks in the container structure, failing humidity regulation features like gaskets, or damaged slide rails that inhibit smooth operation.

Symptoms of a bad crisper drawer are:

• Inability to properly seal in moisture, causing fresh items to wilt or dry out
• Food spillage due to cracks or breaks

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models

The Door Switch is an OEM part for Whirlpool refrigerators. This switch is crucial for controlling the interior lights and the activation of certain refrigerator functions when the door is opened or closed.

Symptoms of a failing Door Switch include:

• Interior lights staying on when the refrigerator door is closed
• Interior lights not turning on when the door is opened
• The refrigerator unexpectedly starting or stopping
• Alarms or indicators malfunctioning, signaling an open door when it is closed

Causes of a bad door switch can involve mechanical failure due to wear and tear from frequent use, damage from impacts (such as slamming the door), or electrical issues like a short circuit or faulty wiring.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This thermistor cover shields and positions the refrigerator's temperature sensor so it reads cabinet air accurately. Replacing a cracked or missing cover helps restore stable temperatures and normal cooling performance.

• Holds the thermistor in place and shields it from direct airflow for accurate temperature sensing
• Helps prevent erratic temperatures, overcooling/undercooling, or long run times caused by an exposed sensor
• Commonly replaced when the original cover is cracked, loose, or missing
• Supports consistent temperature control by ensuring proper sensor placement

• Disconnect power before servicing
• Remove shelves/bins as needed to access the sensor location
• Align the thermistor and seat the cover fully; engage tabs or reuse existing hardware per model
• Avoid pinching the sensor or wiring and verify the cover is snug

The LED Light Module is an OEM part for Whirlpool refrigerators. It provides illumination inside the refrigerator, ensuring clear visibility of the stored items. The module includes energy-efficient LED lights designed to last longer than traditional bulbs.

Over time, the LED light module can fail due to electrical issues, wear and tear, or damage from power surges. Exposure to moisture or accidental impact can also contribute to its malfunction.

Symptoms of a bad LED Light Module include:

• Dim or flickering light
• Light not turning on at all
• Intermittent lighting issues

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Ice Bin Safety Switch is an OEM replacement part for Whirlpool refrigerators, ensuring safe and efficient operation of the ice maker. Positioned to detect the ice bin, it activates the ice maker when the bin is in place and deactivates it when removed for cleaning or emptying.

Common causes for Ice Bin Safety Switch issues may include physical damage occurring during cleaning or routine use, electrical problems like short circuits, wear on the switch's contacts affecting functionality, and misalignment or incorrect installation of the ice bin causing inaccurate bin detection.

Symptoms of a malfunctioning Ice Bin Safety Switch include:

• The ice maker not producing ice
• The ice maker continuing to operate even without the ice bin in place
• Unusual behavior from the ice maker, such as starting and stopping erratically

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This refrigerator glass shelf sits over the crisper drawers to create a sturdy storage surface and support humidity-controlled bins below. Replacing a damaged shelf restores safe, level storage and helps maintain proper drawer function.

• Provides a flat surface for food storage above the crisper area
• Supports crisper drawers and helps them slide properly
• Replace if cracked, shattered, sagging, or missing
• Can help address spills leaking into drawers due to broken or missing glass

• Unplug the refrigerator and remove contents from the shelf area
• Carefully lift out the old glass; handle broken glass with cut-resistant gloves
• Clean the frame/trim before setting the new glass in place
• Ensure the glass is fully seated and level before reloading food

The Light is an OEM component specifically designed for Whirlpool refrigerators. It illuminates the refrigerator interior to easily view contents.

Causes of bad light include natural bulb burnout, damage to connectors or housing, or failure from moisture exposure.

Symptoms of a bad light include:

• Dim or no light when the door is opened
• Flickering or intermittent illumination
• Broken or detached lighting assembly

This light replacement is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore refrigerators.
