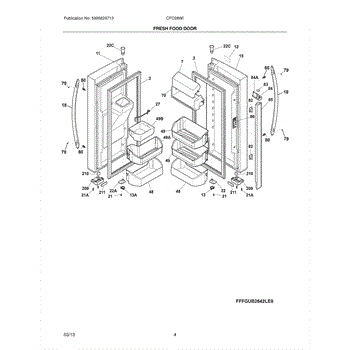

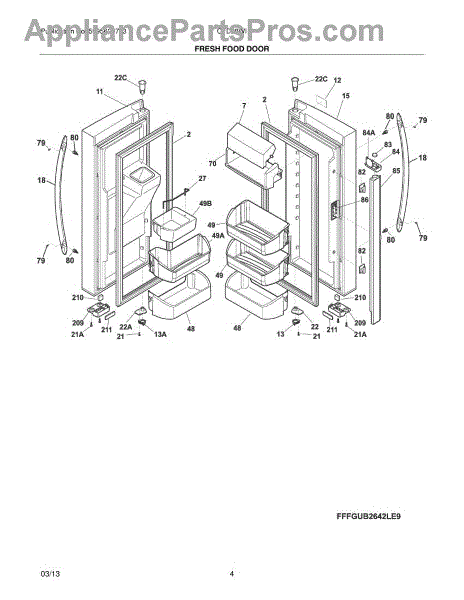

Parts for Frigidaire CFD28WIBB: 05 - Fresh Food Doors Parts

The Water Filter is an OEM replacement part for Frigidaire refrigerators. This PureSource Ultra Ultrawf Refrigerator Water Filter is designed to provide superior filtration, ensuring that your water and ice are clean and refreshing.

With the Frigidaire Refrigerator Water Filter, you can enjoy up to six months of crystal-clear water and ice. For the filter bypass, order part number 242294402. Get the most out of your Frigidaire appliance with a new OEM water filter, and enjoy clean, refreshing water and ice every time!

Causes of a bad part:

• Overused or expired
• Clogged by excessive impurities

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.


The Fresh Food Door Gasket is an OEM replacement part for Frigidaire refrigerators. It creates a seal around the refrigerator door to maintain a consistent temperature by keeping cold air in and warm air out. This helps ensure proper refrigerator conditions and prevents energy loss.

Over time, gaskets can degrade due to wear, exposure to extreme temperatures, or cleaning with harsh chemicals. A damaged or worn gasket may fail to seal properly, affecting the freezer's efficiency and potentially leading to increased energy consumption.

Symptoms of a bad gasket include:

• Frost or ice buildup inside the refrigerator
• Difficulty keeping the refrigerator door fully closed
• Warm air entering the refrigerator, causing temperature fluctuations
• Increased energy bills due to inefficient operation

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

NOTE: GASKET NOW GRAY, NOT WHITE

This piece replaces the flip-up cover for the cheese/butter compartment on your refrigerator door. It restores a tidy, enclosed spot for butter and small dairy items, helping keep contents contained and easy to access.

• Covers the dairy bin on the fresh food door; flips up for quick access
• Helps contain and protect butter/cheese items to reduce spills and mess
• Replace when cracked, warped, missing, or no longer stays attached/closed
• Designed to fit the designated hinge points for the dairy compartment on applicable models

• Disconnect power before servicing
• Allow plastic parts to warm to room temperature to reduce risk of cracking
• Align door tabs with the hinge posts on the compartment and press until fully seated
• Open and close the door to ensure smooth operation

This stop is a small mounting hardware component that positions and limits movement of a nearby part, helping keep doors and panels aligned and preventing overtravel. It's a simple replacement that restores correct stopping action. What it does:

• Provides a fixed contact point to stop or limit movement of a door, panel or linkage
• Keeps parts aligned and prevents banging or overtravel
• Worn or broken stops can cause rubbing, misalignment, or noisy operation
• Restoring the stop often eliminates play and improves fit and function

• Disconnect power or unplug the appliance before starting any repair
• Remove any panels or trim needed to access the mounting location
• Replace the stop using the original fastener(s); hand-tighten then secure as needed

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

Replacement shaft bushing that supports and reduces wear on a rotating shaft or pivot, helping restore smooth, quiet movement and reduce wobble where the original bushing has worn or failed. What it does

• Provides a low-friction bearing surface for a rotating shaft or pivot to prevent metal-on-metal wear.
• Restores proper alignment and reduces shaft wobble that can cause noise or uneven operation.
• Helps stop squeaks, grinding, or rough movement caused by a worn or damaged bushing.
• Protects housing and shaft from accelerated wear by keeping components centered.

• Disconnect power or unplug the appliance before beginning any repair.
• Remove access panels and any fasteners needed to reach the worn bushing; support the shaft while removing the old bushing.
• Inspect the shaft and mating surfaces for wear or damage and clean before installing the new bushing.
• Press the new bushing into place gently and evenly; avoid excessive force. Reassemble and test operation before returning the appliance to service.

This bushing provides a durable, low-friction bearing surface between moving parts in your appliance. It helps components pivot or rotate smoothly, reducing noise and wear so doors, drawers, and mechanisms operate as intended.

• Provides a sleeve/bearing surface between a pin or shaft and its housing
• Maintains alignment to prevent wobble and binding
• Reduces friction, squeaks, scraping, and premature wear
• When worn or missing, movement may feel rough, loose, or noisy

• Disconnect power before servicing
• Support the assembly being serviced before removing fasteners
• Note the orientation of the original bushing; seat the new bushing fully without forcing
• Reassemble and check for smooth, rub-free movement before restoring power

Replace the worn bearing that supports your refrigerator's ice-dispenser auger. This bearing helps the auger spin smoothly so cubes travel to the chute, restoring steady ice dispensing and reducing grinding or jamming.

• Supports the auger shaft within the ice bin/dispenser assembly
• Enables smooth rotation to move ice toward the chute
• Wear can cause slow or failed dispensing and squealing/grinding noises
• Fixes issues with a cracked, worn, or seized auger support

• Disconnect power and remove the ice bin before servicing
• Separate the bin front/cover and auger assembly; note the bearing's orientation
• Transfer the new bearing and reuse existing screws/retainer if present
• After reassembly, confirm the auger turns freely by hand before restoring power

This retainer is a small mounting clip that secures interior components so they stay in place and operate reliably. It prevents parts from shifting or rattling during normal use and restores proper alignment. What it does:

• Holds trim, shelves or small appliance components securely to the cabinet or frame
• Prevents rattling, movement, or dislodging of the secured part
• Helps maintain correct alignment for smooth operation
• Common symptom: loose or wobbling trim, shelf, or component that won't stay seated

• Retainer mounting clip

• Disconnect power to the appliance before servicing to avoid shock or injury
• Use appropriate hand tools; this part typically snaps or slides into place but may require a screwdriver or nut driver
• Inspect mating surfaces and surrounding fasteners; replace any damaged clips or broken mounting features

The Door bin is an OEM replacement part for Frigidaire refrigerators. It is a built-in storage compartment designed to hold commonly used items like eggs, butter, or condiments. The door bin provides convenient access to the refrigerator door.

Causes of a bad door bin can include cracked or broken plastic, damaged sliding tracks that prevent smooth opening and closing, or broken mounting tabs that cause it to become loose or detached from the refrigerator door.

Symptoms of a bad door bin include:

• Items falling out of the bin easily
• The bin not closing or securing properly
• Difficulty opening and closing the bin
• Noise or vibration from a loose or damaged bin

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and some Kenmore models.

Replacement door bin for the refrigerator door. This snap-in shelf restores secure, organized storage on the door so bottles, condiments, and small items stay in place and easy to access.

• Holds items on the refrigerator door; also called a door shelf or rack
• Replaces cracked, broken, or missing bins
• Helps prevent items from tipping or falling when the door opens
• Common symptoms: bin won't stay seated, broken tabs, sagging, or lost door storage

• Remove contents from the old bin; lift it up and off the door mounting tabs
• Align the new bin with the same slots and press down until it clicks firmly into place
• Match the bin to the correct door position—some models use different-width bins by location
• Handle cold plastic gently; let it warm to room temperature to reduce the chance of cracking

The Door Bin is an OEM part for Frigidaire refrigerators. This bin is designed to fit securely on the refrigerator door, providing convenient storage for bottles, jars, and other items. It helps maximize the use of space within the refrigerator, allowing for better organization and accessibility of frequently used products.

Over time, door bins can become damaged or worn out due to regular use, overloading, or accidental impacts. Common causes of a bad door bin include cracks, breaks, or the plastic becoming brittle and snapping off.

Symptoms of a bad door bin include:

• Cracks or breaks in the plastic
• Difficulty in securely attaching the bin to the door
•  Items falling out of the bin
• Reduced storage capacity on the refrigerator door

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This Door Bin is an OEM part for Frigidaire refrigerators. This bin is located on the interior side of the refrigerator door, providing convenient storage space for items such as bottles, jars, and condiments. It helps keep the refrigerator organized and maximizes available storage.

Causes of a bad door bin can include wear and tear, accidental damage, or improper handling.

Symptoms of a bad door bin may include:

• Cracks or breakage in the bin
• Difficulty in securely holding items
• Limited storage capacity due to a damaged or missing bin

This OEM Frigidaire part can also be used on Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore.

This piece replaces the flip-up cover for the cheese/butter compartment on your refrigerator door. It restores a tidy, enclosed spot for butter and small dairy items, helping keep contents contained and easy to access.

• Covers the dairy bin on the fresh food door; flips up for quick access
• Helps contain and protect butter/cheese items to reduce spills and mess
• Replace when cracked, warped, missing, or no longer stays attached/closed
• Designed to fit the designated hinge points for the dairy compartment on applicable models

• Disconnect power before servicing
• Allow plastic parts to warm to room temperature to reduce risk of cracking
• Align door tabs with the hinge posts on the compartment and press until fully seated
• Open and close the door to ensure smooth operation

This part number contains one (1) screw.

The Door Handle Screw is an OEM part for Frigidaire refrigerators. This screw secures the door handle to the refrigerator door, ensuring a firm and stable grip for opening and closing the door.

Causes of a bad door handle screw can include regular wear and tear from frequent use, corrosion due to exposure to moisture, or damage from over-tightening or stripping. A faulty screw can lead to a loose or wobbly door handle, making it difficult to operate the refrigerator.

Symptoms of a bad door handle screw include:

• The door handle feeling loose or coming off
• Difficulty in securely tightening the handle
• Visible rust or corrosion on the screw
• Stripped threads on the screw or handle

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Door Hinge Pin is an OEM part for Frigidaire refrigerators. It is responsible for supporting the mullion or flapper, which is the vertical strip that divides the refrigerator doors. It provides smooth movement and proper alignment of the mullion, allowing it to pivot easily for access to both compartments while maintaining an airtight seal when closed.

Causes of a bad hinge pin can include wear and tear over time, accidental damage, or improper handling. A damaged or worn-out hinge pin may result in difficulties in opening or closing the mullion.

Symptoms of a bad Hinge Pin include:

• Difficulty in opening or closing the doors
• Excessive play or wobbling of the mullion
• Failure to maintain a proper seal between door
• Unusual noises during use

This OEM Frigidaire part can also be used on select Electrolux, Frigidaire, Gibson, Kelvinator, Westinghouse, and Sears/Kenmore models.

This replacement magnet is used in select refrigerator assemblies. It provides the magnetic hold or sensor trigger required so doors, flaps, or rails stay closed and so the controls can accurately detect when components are in position.

• Supplies magnetic retention in the specified assembly to keep parts closed and aligned
• Activates magnetic reed sensors in models that use them for door/position detection
• Weak or missing magnets can lead to door-ajar alerts, air leaks, or components not staying shut
• Visible damage or incorrect orientation can cause intermittent operation or improper sealing

• Disconnect power before servicing; turn off water if working near the dispenser
• Use your model's parts diagram to locate the magnet and note its orientation/polarity
• Press-fit into its holder carefully; do not chip or crack the magnet
• Verify proper closure/sensing operation before returning the appliance to service

The Refrigerator Door Gasket Clips are OEM parts for Frigidaire refrigerators. These clips secure the door gasket in place, ensuring a tight seal to maintain the internal temperature and prevent cold air from escaping. This pack contains 40 clips, which secure the interior trim pieces and hold the gasket and liner to the freezer lid.

Over time, the gasket clips can become damaged or worn out due to frequent opening and closing of the refrigerator door, exposure to moisture, or accidental impacts. If the clips fail, the door gasket may not stay in place, compromising the refrigerator's efficiency.

Symptoms of bad refrigerator door gasket clips include:

• The door gasket not staying securely in place
• Visible damage or wear on the clips
• Cold air escaping from around the door
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Refrigerator Door Gasket Clips are OEM parts for Frigidaire refrigerators. These clips secure the door gasket in place, ensuring a tight seal to maintain the internal temperature and prevent cold air from escaping. This pack contains 40 clips, which secure the interior trim pieces and hold the gasket and liner to the freezer lid.

Over time, the gasket clips can become damaged or worn out due to frequent opening and closing of the refrigerator door, exposure to moisture, or accidental impacts. If the clips fail, the door gasket may not stay in place, compromising the refrigerator's efficiency.

Symptoms of bad refrigerator door gasket clips include:

• The door gasket not staying securely in place
• Visible damage or wear on the clips
• Cold air escaping from around the door
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This mullion assembly forms the front center divider of the refrigerator and includes an integrated anti-sweat heater. It helps keep the area where the door gaskets meet dry, supporting a clean look and a reliable, moisture-free seal.

• Provides the rigid center divider that the door gaskets seal against
• Built-in heater warms the divider to reduce sweating/condensation in humid conditions
• Helps limit air leaks that can lead to moisture, frost, or temperature fluctuations
• Common signs of trouble: persistent condensation on the center divider, visible cracks/warping, or poor gasket contact along the center

• Disconnect power to the refrigerator before servicing; wear cut-resistant gloves
• Remove mounting fasteners, carefully release the assembly, and disconnect the wire harness (note routing/orientation)
• Position the new assembly, reconnect the harness securely, and reinstall fasteners without overtightening
• Verify doors close smoothly and gaskets contact evenly along the divider before restoring power

The Flapper Door Center Hinge is an OEM part for Frigidaire refrigerators. This hinge is essential for the proper operation of the flapper door, which helps seal the gap between the refrigerator doors when they are closed, ensuring efficient cooling and energy use.

Over time, the center hinge can wear out or become damaged due to regular opening and closing of the refrigerator doors. Accumulation of dirt, dust, or debris, as well as physical impact, can also contribute to hinge failure.

Symptoms of a bad flapper door center hinge include:

• The flapper door not closing properly
• Gaps between the refrigerator doors
• Increased energy consumption due to cold air escaping
• The refrigerator doors not aligning correctly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This small permanent magnet is used in supported refrigerator assemblies to actuate a mating reed switch or metal keeper. It helps the appliance recognize a closed position or hold a light cover/door closed for proper operation. What it does:

• Works with a reed switch or ferrous keeper to provide position sensing or magnetic latching
• Helps ensure features dependent on closed position operate correctly
• Can resolve issues where a small cover or door won't stay closed
• Address erratic "door ajar" indications tied to magnetic sensing

• Disconnect power and water before servicing
• Note the original magnet's location and orientation; polarity matters for proper operation
• Seat the magnet fully in its pocket or holder and align with the mating switch/keeper
• Test the related function before reassembling panels and trim

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This genuine replacement screw secures appliance components and restores proper fit and stability. Use it to replace a missing or damaged fastener and stop panels, trim, or parts from shifting or rattling during normal use. What it does:

• Fastens and holds panels, brackets, or small components in place
• Restores secure attachment when an original screw is missing, damaged, or stripped
• Helps eliminate vibration, rattling, or loose-fitting parts
• Matches the OEM fit and function for reliable reassembly

• Use correct screwdriver or driver bit to avoid stripping the head
• Tighten until snug; avoid over-torquing which can strip threads or crack plastic
• Disconnect power and remove food or contents from appliance areas as needed before servicing
• If fastener threads are damaged, replace with the exact OEM screw rather than forcing installation

This is a service wrench used to loosen and tighten appliance fasteners for maintenance and repairs, making access and part replacement easier for technicians and DIYers. Durable tool designed for specific appliance fastener sizes. What it does:

• Provides the correct fit and leverage for removing or installing designated appliance nuts, bolts, and fittings
• Helps safely access internal components during service and part replacement
• Reduces risk of rounding fasteners compared with improvised tools
• Useful for routine maintenance tasks and repair procedures that require a dedicated wrench

• One wrench

• Use the wrench only for its intended appliance fasteners; avoid excessive force
• Disconnect power and water to the appliance before beginning service
• Wear safety gloves and eye protection when working on appliances

This Mullion harness routes electrical connections through the refrigerator door mullion so lights, sensors and control/LED assemblies communicate with the main cabinet wiring. It restores reliable power and signal routing in the door center strip. What it does:

• Carries power and signal between the door/mullion components and the main harness
• Restores non-functioning mullion lights, LEDs or control communication caused by a damaged harness
• Prevents intermittent connections from frayed or broken mullion wiring
• Used when visible wire damage or connector failure is found in the mullion area

• One (1) mullion harness as pictured

• Disconnect power to the appliance before starting work to avoid shock or injury
• Remove the mullion/door trim and any gaskets per service instructions to access the harness
• Inspect connectors and wire routing; replace any clips or retainers to prevent pinching

This water connector links sections of the refrigerator's water supply tubing, maintaining a sealed path to the dispenser and ice maker. Replace a cracked or leaking connector to stop drips and restore reliable water flow and ice production.

• Connects sections of internal water tubing between components (inlet valve, filter, door, ice maker)
• Helps maintain a sealed route for proper dispenser and ice maker operation
• Common symptoms: water leaking behind/under the refrigerator, weak/no dispenser flow, ice maker not filling, visible damage at the fitting
• Direct-fit component built to OEM specifications for the intended application

• Unplug the refrigerator and shut off the household water supply before servicing
• Dispense water to relieve line pressure; place a towel to catch residual water
• Cut tubing ends square and fully insert into the connector until seated; tug gently to confirm engagement
• Restore water, check carefully for leaks, and recheck after the first dispense cycle
