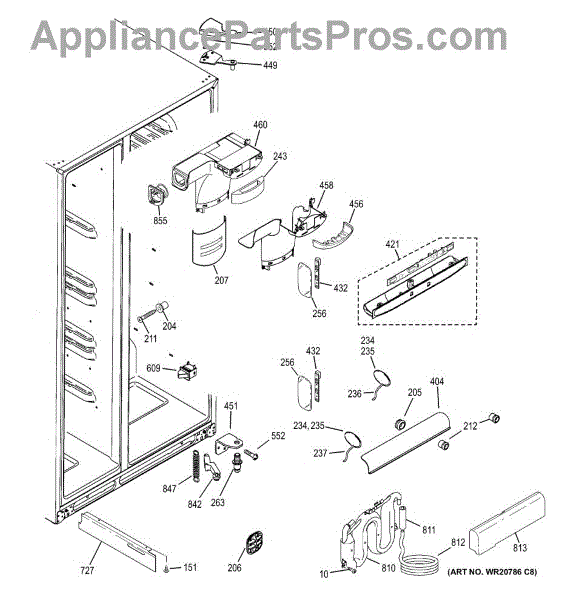

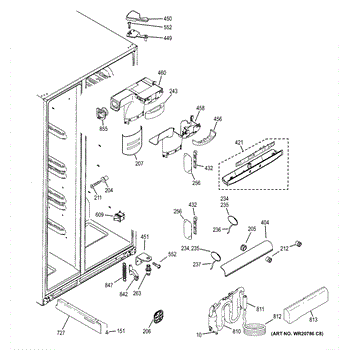

Parts for Ge GCA24KBBAFSS: 06 - Fresh Food Section Parts

This 8-18 x 9/16 screw is a short sheet-metal fastener used to secure panels, trim and small components on appliances. It replaces missing or stripped screws to restore proper fit and reduce noise from loose parts. What it does

• Secures appliance panels, brackets and trim to prevent movement and rattling
• Holds small components in correct alignment for reliable operation
• Replaces lost, worn or stripped screws that cause gaps or loose fittings
• Common symptom link: fixes rattling panels, loose trim, or parts that shift during use

• One 8-18 x 9/16 screw

• Use the correct 8-18 driver bit and hand or low-torque power driver to avoid stripping
• Do not overtighten; snug until secure to prevent thread damage or panel deformation
• Turn power off/unplug appliance when installing near electrical components
• Keep extra screws on hand—hardware often comes in single quantities

This shelf support is the small rear rail clip that secures a refrigerator shelf or drawer rail in place. A worn or broken support can let the shelf tilt or drop, making storage unstable.

• Holds the rear of the shelf or rail securely to the cabinet wall
• Helps correct issues like a sagging, tilting, or loose shelf
• Replaces cracked, missing, or deformed supports causing poor fit
• Restores proper alignment so bins and shelves slide/seat correctly

• Unplug refrigerator before service
• Remove the shelf/bin to access the support
• Depress locking tabs and slide the old support out; snap the new one into the cabinet slot
• Ensure it's fully seated before reinstalling the shelf

Front mounting grommet.

This replacement screw secures refrigerator panels, brackets, and trim to help keep components aligned and quiet. It matches the specified #8-18 thread and 1-1/2 inch length used at designated mounting points.

• Fastens panels, brackets, covers, and hardware as designed by the manufacturer
• Restores a missing or damaged fastener to keep parts secure and aligned
• Correct #8-18 tapping thread and 1-1/2 in. length for specified locations

• Unplug the refrigerator or disconnect power before servicing
• Wear cut-resistant gloves to protect from sharp edges
• Start the screw by hand to avoid cross-threading; tighten snugly without overtightening
• Reuse any model-specific washers or clips originally installed on your unit

This small molded grommet secures the appliance base grille to the cabinet and cushions the grille against vibration and wear. It helps keep the grille seated and reduces rattling or movement for a tidy appearance. What it does:

• Provides a snap-fit mounting point for the lower/base grille
• Cushions grille edges to reduce vibration noise and rubbing
• Keeps the grille aligned and prevents loose or sagging fit
• Commonly replaced when torn, cracked, missing, or allowing grille movement

• Disconnect power before beginning any work on the appliance
• Remove the base grille or access panel to reach the grommet mounting location
• Press the grommet into the grille or cabinet opening until fully seated; replace damaged mounting clips as needed

This rubber grommet secures the appliance's base grille, helping keep the grille fitted and reducing vibration and rattle. It's a simple replacement part to restore a snug, finished look at the appliance base. What it does:

• Cushions and retains the base grille in place to prevent gaps and movement
• Helps reduce vibration noise and rattling from a loose grille
• Restores proper fit where a grommet is cracked, torn, or missing

• One (1) grommet for the base grille

• Disconnect power to the appliance before beginning any service
• Typically installs by pressing into the grille or cabinet opening—no special tools required
• Inspect surrounding grille tabs or mounting points and replace any damaged hardware as needed

The Temperature Sensor Grille is an OEM part for GE refrigerators. This grille covers and protects the temperature sensor, ensuring it accurately measures the internal temperature of the refrigerator.

Causes of a bad grille can include physical damage from impacts, regular wear and tear, or the buildup of dust and debris that can obstruct airflow.

Symptoms of a bad temperature sensor grille include:

• Inaccurate temperature readings
• The refrigerator running continuously or not cooling properly
• Visible damage or obstruction on the grille
• The sensor becoming loose or dislodged

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Temperature Sensor Seal is an OEM part for GE refrigerators. This seal is designed to protect the temperature sensor from moisture and other environmental factors that could affect its accuracy and longevity. By providing a barrier against the harsh conditions within a refrigerator, such as humidity and temperature fluctuations, this seal ensures that the sensor can accurately monitor and control the refrigerator's internal temperature.

Causes of a malfunctioning Temperature Sensor Seal can include wear and tear over time, degrading the seal's effectiveness. Physical damage like tears or punctures can allow moisture to reach the sensor. Improper installation may leave gaps or loose areas around the sensor, compromising the seal.

Symptoms of a bad Temperature Sensor Seal include:

• Inaccurate temperature readings.
• Condensation or frost near the sensor location.
• Frequent cycling or unusual patterns in the refrigerator's cooling process.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This LED light cover protects and diffuses the refrigerator's interior LED lighting, improving light distribution while shielding the lamp from spills and impact. It restores a finished appearance and prevents direct glare from exposed LEDs. What it does:

• Diffuses and softens interior LED light for even illumination.
• Protects the LED module from splashes, dust, and accidental contact.
• Helps prevent direct glare from exposed bulbs for clearer visibility.
• Replaces cracked, yellowed, or missing covers that affect light quality.

• One LED light cover.

• Disconnect power to the appliance before removing or installing parts to avoid shock.
• Typically snaps into place or secures with a small screw; handle gently to avoid cracking.
• Inspect mounting tabs and nearby lamp housing for damage; replace any broken hardware before reinstalling.
• Use gloves or a clean cloth to avoid fingerprints or scratches on the diffuser.

This bottom hinge pin supports and serves as the pivot for the refrigerator door. An accurate, tight-fitting hinge pin helps the door swing smoothly and seal properly to maintain temperature and reduce wear.

• Serves as the lower pivot point for the door on the bottom hinge
• Helps keep the door aligned for proper closing and gasket contact
• Replacing a worn pin can improve door movement and reduce stress on the hinge

• Unplug the appliance before servicing
• Support the door to relieve weight from the hinge before removing hardware
• Transfer any spacers/shims in their original order to maintain alignment
• Tighten fasteners securely and check door swing and seal after installation

This air diverter is a duct component that directs and balances airflow inside the refrigerator. Replacing a cracked or missing diverter helps restore proper cooling performance and reduce frost or condensation around air passages.

• Guides cold air from the evaporator through the intended duct path
• Helps maintain even temperatures between compartments
• Improves airflow seal and direction to reduce warm-air bypass
• Common symptoms: uneven cooling, weak airflow, frost/condensation near ducts, or visible damage to the diverter

• Disconnect power before servicing
• Remove shelves/drawers and the interior panel to access the diverter per your model's service information
• Note orientation and transfer any reusable screws/clips
• Do not overtighten fasteners into plastic; confirm unobstructed airflow before restoring power

The Board LED Light Assembly is an OEM part for GE refrigerators. It provides lighting for the interior refrigerator spaces.

Causes of malfunction include normal wear over time reducing light output, or damage to wiring or circuits from impact or moisture intrusion.

Symptoms of a failing board light include:

• Dimming or flickering LED lights
• Entire lighting circuits shutting off
• Burned spots appearing on the board
• Shadows or dark spots within the refrigerator

This OEM GE  part is also compatible with Hotpoint, RCA, and some Kenmore models.

This hinge top and pin assembly secures the refrigerator/freezer door to the cabinet and provides a stable pivot for smooth opening and closing. It helps keep the door aligned and prevents sagging or uneven gaps. What it does:

• Replaces a worn or broken hinge top and pivot pin that allow the door to pivot
• Restores proper door alignment and sealing when the hinge is the cause of sagging
• Stops noisy or sticky door movement caused by a damaged hinge top or pin
• Helps prevent further wear to the door and cabinet by restoring correct pivoting

• One hinge top and pivot pin assembly

• Support the door securely before removing the hinge to prevent injury or damage
• Disconnect power to appliances with electrical components before working near them
• Tighten mounting fasteners to manufacturer torque recommendations; do not overtighten

A replacement cover hinge that supports and secures an appliance access cover so it opens and closes smoothly. Restores proper cover alignment and helps prevent sagging or unexpected movement for safer operation. What it does:

• Provides a pivot point for the appliance cover, allowing controlled opening and closing.
• Restores proper cover alignment to stop binding, rubbing, or uneven gaps.
• Eliminates rattling or looseness caused by a worn or broken hinge.
• Helps prevent the cover from falling open or closing unexpectedly.

• Disconnect power before inspecting or replacing any cover or access panel.
• Basic hand tools (screwdriver or nut driver) typically required; retain original fasteners.
• Reinstall in the original orientation and verify smooth operation before returning the appliance to service.
• If hinge mounting points are damaged, repair or replace mounting hardware to ensure safe installation.

This inlet cover assembly directs airflow into the refrigerator fresh-food compartment to help maintain even cooling and protect internal components. Replaces a cracked or broken inlet cover to restore proper airflow and fit. What it does:

• Guides cold air from the evaporator into the fresh food section to promote even temperature distribution
• Protects the inlet opening and internal ductwork from damage and debris
• Prevents direct air leaks that can cause warm spots or reduced cooling efficiency
• Restores proper fit and reduces rattling or vibration from a loose or broken cover

• Disconnect power to the appliance before starting any repair
• Remove shelves or liners as needed to access the inlet area
• Handle plastic parts gently to avoid cracking; use basic hand tools for removal/installation

This hex-head screw secures refrigerator components where a 12-24 x 7/8 in fastener is specified. Replacing a missing, stripped, or rusted screw restores a tight, reliable fit for brackets, panels, and assemblies and helps eliminate vibration and rattles.

• Fastens panels, brackets, and other assemblies in the refrigerator at locations calling for this size hardware
• Replaces worn, stripped, or missing screws to restore secure mounting
• Helps correct loose or misaligned components and reduce vibration noise
• OEM size: 12-24 thread, 7/8 in length; hex head

• Disconnect power and, if applicable, shut off the water supply before service
• Match the screw to the original location; replace one at a time to maintain alignment
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use an appropriate nut driver or socket that fits the hex head

The Light Switch is an OEM part for GE refrigerators. It controls the refrigerator's interior light, turning it on when the door is opened and off when the door is closed. This ensures energy efficiency and convenience, illuminating the refrigerator's interior for easy visibility while searching for items.

Causes of a bad light switch include mechanical wear from constant use, damage from an impact, or electrical issues.

Symptoms of a bad Light Switch include:

• The interior light does not turn on when the refrigerator door is opened
• The light stays on when the door is closed, potentially leading to overheating or melted plastic components in the light housing area
• Intermittent functioning of the light, indicating a loose or damaged switch

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Fresh Food Lever Assembly is an OEM part for GE refrigerators. It plays a crucial role in the operation of the refrigerator, enabling the smooth adjustment of settings within the fresh food compartment. This lever assembly is responsible for the user's ability to fine-tune the temperature and humidity levels, ensuring that the food stored inside remains fresh and well-preserved. For the same part in white, purchase WR11X10007.

Over time, the lever assembly may become worn or damaged due to regular use, accidental impacts, or environmental factors such as extreme temperatures or humidity.

Symptoms of a bad Fresh Food Lever Assembly include:

• Difficulty in adjusting the temperature or humidity settings.
• The lever becoming loose or unresponsive.
• Inconsistent temperature control within the fresh food compartment.
• Increased energy consumption as the refrigerator works harder to maintain settings.

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Door Closure Spring is an OEM replacement part for GE refrigerators. It provides balanced tension to assist the door hinges and latch mechanism in securely closing the refrigerator door. The spring helps the door shut fully while preventing it from slamming closed abruptly.

Symptoms of a bad door closure spring include:

• The door not latching securely or remaining slightly ajar
• Difficulty closing the door fully without assistance
• Increased thermal loss as the door does not seal tightly
• Risk of food items falling out from an open door position

Causes of failure include metal fatigue from prolonged use. Springs can also weaken from mineral buildup over many years of repeated openings and closings.

This OEM GE replacement spring is also compatible with models including GE, Monogram, and select Kenmore units.

This molded duct assembly directs cold air from the freezer compartment into the fresh-food section to help maintain proper airflow and temperature balance. It replaces a damaged or cracked transition duct to restore directed air circulation. What it does:

• Channels freezer-cooled air into the refrigerator compartment for even cooling distribution
• Helps reduce warm spots in the fresh-food area when functioning correctly
• Can prevent excessive frost or ice buildup caused by misdirected airflow
• Supports proper operation of the freezer-to-fridge venting system

• Disconnect power to the appliance before service to avoid electrical shock
• Remove shelves, drawers, and access panels as needed to reach the duct
• Handle the duct carefully to avoid cracking plastic tabs; use appropriate fasteners when reinstalling
