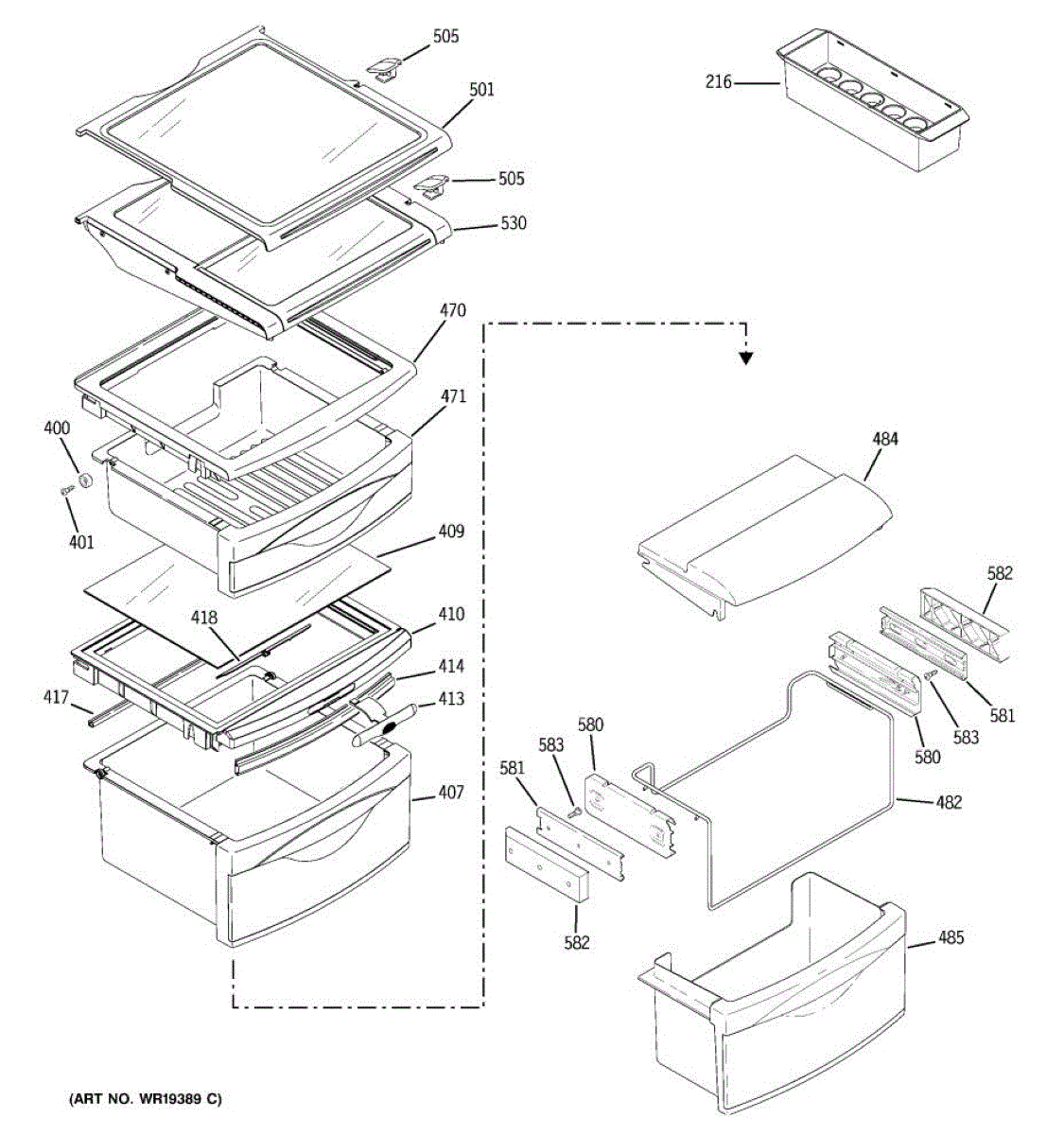

Parts for Ge PCG21SIMHFBS: 08 - Fresh Food Shelves Parts

This in-line water filtration system reduces water contaminants and improves taste of drinking water and ice. Reduces the taste and odor of chlorine through high quality carbon block media without removing minerals beneficial to your health. The filter should be replaced every six months or 300 galleons for best performance. The Quick Connect feature makes filter replacement fast and easy. Flow rate: 0.5 gpm/1.9 lpm. 1/4" quick connect fittings on both ends.

The Pan Cover Wheel is an OEM part for GE refrigerators. It supports the movement of the fresh food section, allowing it to slide smoothly when accessing the refrigerator’s drawers.

Over time, the pan cover wheel can wear out or become damaged due to regular use, exposure to the weight of food items, or accidental impacts. If the wheel is faulty, it can hinder the smooth operation of the pan cover.

Symptoms of a bad pan cover wheel include:

• Difficulty sliding the pan cover in and out
• The pan cover not aligning properly or becoming stuck
• Unusual noises such as grinding or squeaking during movement
• Visible cracks or damage to the wheel

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Screw is an OEM part for GE refrigerators. It serves a crucial function in securing and allowing smooth operation of the refrigerator's drawer rollers.

Causes of a bad or missing screw can include accidental loss during repair or maintenance, stripping of the screw threads due to overtightening, or general wear and tear over time.

Symptoms of a loose or screw include:

• Loose or wobbly refrigerator drawer
• Difficulty opening or closing the drawer smoothly
• Scraping or grinding noises when operating the drawer
• Drawer coming off the track or rollers entirely

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This crisper cover glass is the removable glass panel that fits into the crisper pan cover. It restores a flat, sturdy surface above the drawers and helps keep small spills contained for easier cleanup.

• Forms the shelf surface above the crisper drawers within the cover frame
• Helps contain minor spills and supports stored food items
• Replace if cracked, shattered, bowed, or missing
• Symptoms include broken glass, items tipping, or drawers rubbing the cover

• Disconnect power and clear the shelf area before starting
• Remove crisper drawers and lift off the cover frame to access the glass
• Carefully remove the old panel and seat the new glass fully in the frame channels
• Reinstall the cover and drawers, then restore power

The Humidity Control is an OEM part for GE refrigerators. This component regulates the humidity levels within the crisper drawers, ensuring optimal conditions for preserving the freshness and longevity of fruits and vegetables. By controlling the humidity, it helps to prevent produce from drying out or becoming too moist.

Causes of a bad humidity control can include mechanical failure, damage from spills or impacts, and wear and tear over time. Additionally, issues with the connecting cables or electronic controls can also lead to malfunction.

Symptoms of a bad humidity control include:

• Produce spoiling faster than usual
• Visible condensation or dryness in the crisper drawers
• Difficulty adjusting the humidity settings
• The humidity control lever or switch not functioning properly

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Pan Cover Gasket is an OEM part for GE refrigerators. This gasket provides a tight seal between the pan cover and the refrigerator compartment, helping to maintain proper humidity levels and temperature for the stored food. It is essential for preserving the freshness of fruits, vegetables, and other perishable items.

Causes of a bad pan cover gasket can include regular wear and tear, exposure to food spills, and improper cleaning methods. When the gasket becomes damaged or worn out, it can lead to air leaks, causing the refrigerator to work harder to maintain the correct temperature.

Symptoms of a bad pan cover gasket include:

• Moisture buildup inside the refrigerator
• Reduced freshness of stored produce
• The gasket showing visible signs of wear or damage
• The refrigerator running more frequently

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This rear gasket fits the refrigerator's crisper cover, sealing the back edge of the glass/frame. It helps maintain proper airflow and humidity in the crisper area while cushioning the glass and reducing rattles and gaps.

• Creates a seal along the rear edge of the crisper cover to limit air leaks
• Helps maintain consistent humidity and airflow in the crisper compartment
• Cushions and supports the glass to minimize vibration and noise
• Replace if torn, flattened, missing, or if you see gaps or glass rattle

• Unplug the refrigerator before servicing
• Remove crisper drawers and carefully lift off the glass cover/frame
• Pull the old gasket from the rear channel and clean the mating surfaces
• Press the new gasket fully into the rear channel; reinstall cover and drawers, checking for an even seal

The Humidity Control Slide is an OEM replacement part for GE refrigerators. This slide is responsible for adjusting settings inside the refrigerator such as the crisper humidity levels. Proper functioning of the humidity control slide allows for optimization of storage conditions based on the specific items stored.

Causes of a bad humidity control slide can include normal wear and tear over time, as well as issues like damage or obstruction that prevent the smooth operation of the slide mechanism.

Symptoms of a bad humidity control slide include:

• Inability to adjust crisper humidity levels
• Setting gets stuck on maximum or minimum humidity
• Storage results remain consistently too dry or too moist regardless of the setting

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This cover pan assembly replaces the evaporator drain area to catch and channel defrost water away from the evaporator and into the drain system, helping reduce leaks and ice buildup in the freezer compartment. What it does:

• Covers the evaporator area and collects defrost water for proper drainage
• Channels water to the drain to prevent pooling and potential refreezing
• Protects internal components from moisture and helps maintain normal defrost operation
• Commonly used when you see water pooling, ice buildup around the evaporator, or slow drainage

• Disconnect power to the appliance before starting work to avoid shock or damage
• Handle with care to avoid damaging the evaporator fins or nearby wiring; inspect and clear the drain tube before reassembly
• If gasket clips or mounting hardware are missing or damaged, replace them separately

The Shelf Stop is an OEM replacement part for GE refrigerators. The shelf stop in your refrigerator is what locks the shelf into the refrigerator liner.The shelf stop features a small protruding nub that fits into pre-cut slots in shelf supports, preventing shelves from being inserted too far.

Causes of a bad shelf stop can include wear over many years of shelf adjustment, or damage from impact with shelves.

Symptoms of a bad shelf stop include:

• Shelves no longer fitting tightly or sitting flush in walls
• Ability to insert shelves further than intended design position
• Shelves shifting positions or becoming loose during use

This is a genuine OEM part that works for some models of GE, and Hotpoint models.

The Slide Rail is an OEM part for GE refrigerators. It is designed to support and guide the movement of drawers and shelves within the refrigerator, ensuring smooth and effortless access to stored items. The slide measures approximately 7 inches. This assembly contains 2 slides

Over time, slide rails can become worn out or damaged due to frequent use, exposure to heavy loads, or accidental mishandling.

Symptoms of a bad slide rail include:

• Drawers or shelves not sliding smoothly
• Difficulty in opening or closing drawers or shelves
• The drawer or shelf becoming misaligned or stuck
• Noticeable wear or damage to the rail

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This fastener secures appliance components where a #8-18 AB hex-washer-head screw is specified. At 1/2 inch long, it restores a tight, reliable hold when an original screw is missing, damaged, or stripped.

• Secures brackets, panels, and covers where this size/thread is specified
• Replaces missing, stripped, or corroded screws
• Helps reduce vibration or rattling caused by loose fasteners
• Correct #8-18 AB thread and 1/2-in length for a precise fit

• Disconnect power before servicing; shut off water supply if working near water connections
• Compare to the original to confirm length and thread match
• Start threads by hand to prevent cross-threading; use the correct driver for the head type
• Tighten snugly; do not overtighten into plastic or thin sheet metal

• Thread: #8-18 (Type AB)
• Head: Hex-washer
• Length: 1/2 in
