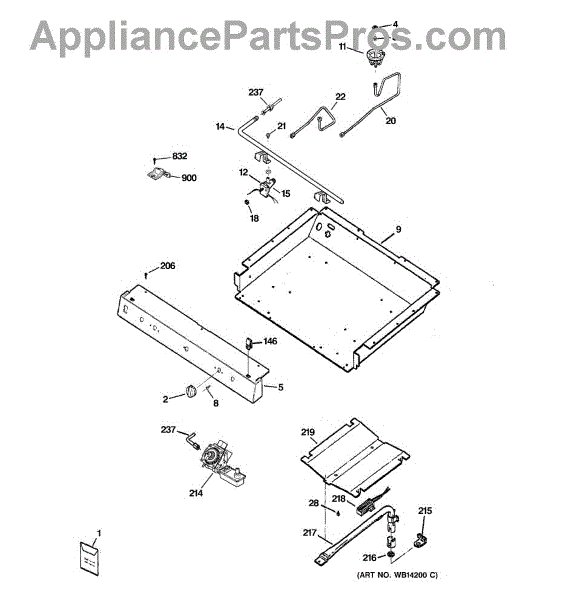

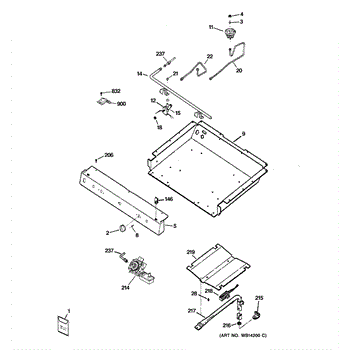

Parts for Ge JGBS21DEM1CC: 01 - Gas & Burner Parts

Color: Bisque

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

Size: 8 - 32 inch.

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

This rotary switch replaces a worn or failed control selector to restore reliable function selection. It provides a direct, mechanical interface for choosing settings so controls respond properly when the knob is turned. What it does:

• Routes user input from the control knob to the appliance's control circuits
• Restores reliable selection when a knob won't change settings or clicks without engaging
• Stops intermittent or no-response behavior caused by worn switch contacts
• Supports normal operation of the affected control bank or function

• Disconnect power (unplug or switch off breaker) before starting any work
• Label or photograph wiring before removal to ensure correct reconnection
• Access may require removing a control panel or trim; keep fasteners and small parts organized
• After installation, restore power and verify all functions operate as expected

A replacement burner valve cover that protects and conceals the gas valve assembly on compatible ranges, helping keep valve components clear of spills and debris for more reliable burner operation. What it does:

• Covers and protects the gas valve area from food, moisture and spills.
• Helps prevent debris from interfering with valve knobs and internal valve parts.
• Can reduce intermittent ignition or burner performance issues caused by contamination.
• Restores the finished appearance around the valve for safer, cleaner operation.

• Always shut off the gas supply and unplug the appliance before servicing.
• Use basic hand tools; handle the valve area gently to avoid disturbing fittings or tubing.
• After installation, check for gas leaks with a soapy-water solution or a proper leak detector—do not use an open flame.

The Rear Orifice Holder is an OEM part for GE gas ranges. This part holds the orifice that regulates the flow of gas to the rear burner, ensuring proper gas distribution and efficient burner operation.

Causes of a bad orifice holder can include wear and tear from regular use, corrosion from exposure to cooking residues, or physical damage.

Symptoms of a bad rear orifice holder include:

• The rear burner not lighting or staying lit
• Uneven or weak flame on the rear burner
• Gas odors around the burner area
• Visible damage or corrosion on the holder

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This surface burner orifice meters gas to the right-front burner, helping maintain the correct flame size for even, reliable cooking performance. Replace if the original is clogged, damaged, or mismatched to restore proper burner operation. What it does:

• Regulates gas flow to the right-front surface burner
• Helps maintain correct flame size and shape for consistent heating
• Can help resolve weak/uneven flame or a burner that struggles to light or stay lit
• Replaces a clogged, damaged, or incorrect orifice during repair

• Turn off gas supply and power; allow the cooktop to cool
• Remove grate, cap, and burner head to access the orifice in the orifice holder
• Use the correct driver; thread carefully and do not overtighten the brass orifice
• Restore gas and check all connections for leaks with a soap-and-water solution; verify proper flame

The Front Orifice Holder is an OEM part for GE gas ranges and cooktops. This part holds the gas orifice in place at the front burner. This part is essential for the proper delivery and distribution of gas to the burner, facilitating precise flame control and consistent cooking performance.

Causes for issues with the orifice holder often involve normal wear and tear, exposure to high temperatures and cooking spills, or physical damage during cleaning or maintenance activities.

Symptoms of a malfunctioning Front Orifice Holder include:

• Inconsistent flame size or shape at the burner
• Difficulty igniting the burner or experiencing uneven heating
• Signs of damage or corrosion on the holder itself

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Size: 10-32 GXTT FLP.595 S

The Control Valve Assembly is an OEM replacement part for GE ranges. It plays a key role in regulating gas flow within the oven burners to provide consistent, even heating across various temperature settings. The control valve monitors and controls gas pressure to the oven burners during baking and broiling functions.

Causes of a faulty control valve can include grime or debris deposit buildup on the valve or its components over time, wear and tear on seals from regular oven use, or damage to internal valve parts.

Symptoms of a bad control valve assembly include:

• Inaccurate or fluctuating oven temperatures
• Uneven or inconsistent baking and cooking results
• Failure or inability to ignite the oven burners
• Gas leaks near the control valve or burner areas

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This oven safety valve bracket secures the gas safety valve in place to keep the valve aligned and stable during operation. It replaces a worn, bent, or broken bracket to help maintain safe, consistent gas valve positioning. What it does:

• Holds the oven gas safety valve securely to the chassis to prevent movement or misalignment
• Helps maintain consistent valve positioning for reliable burner operation
• Commonly replaced when the bracket is cracked, bent, or missing hardware

• Always shut off gas supply and disconnect power before servicing gas components
• Remove access panels to reach the valve; retain all fasteners for reassembly
• Check valve alignment and gas connections after installation; do not overtighten mounting hardware

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.
