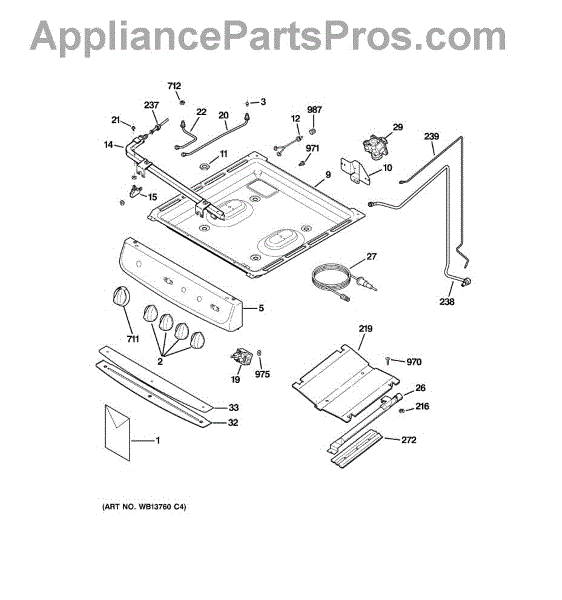

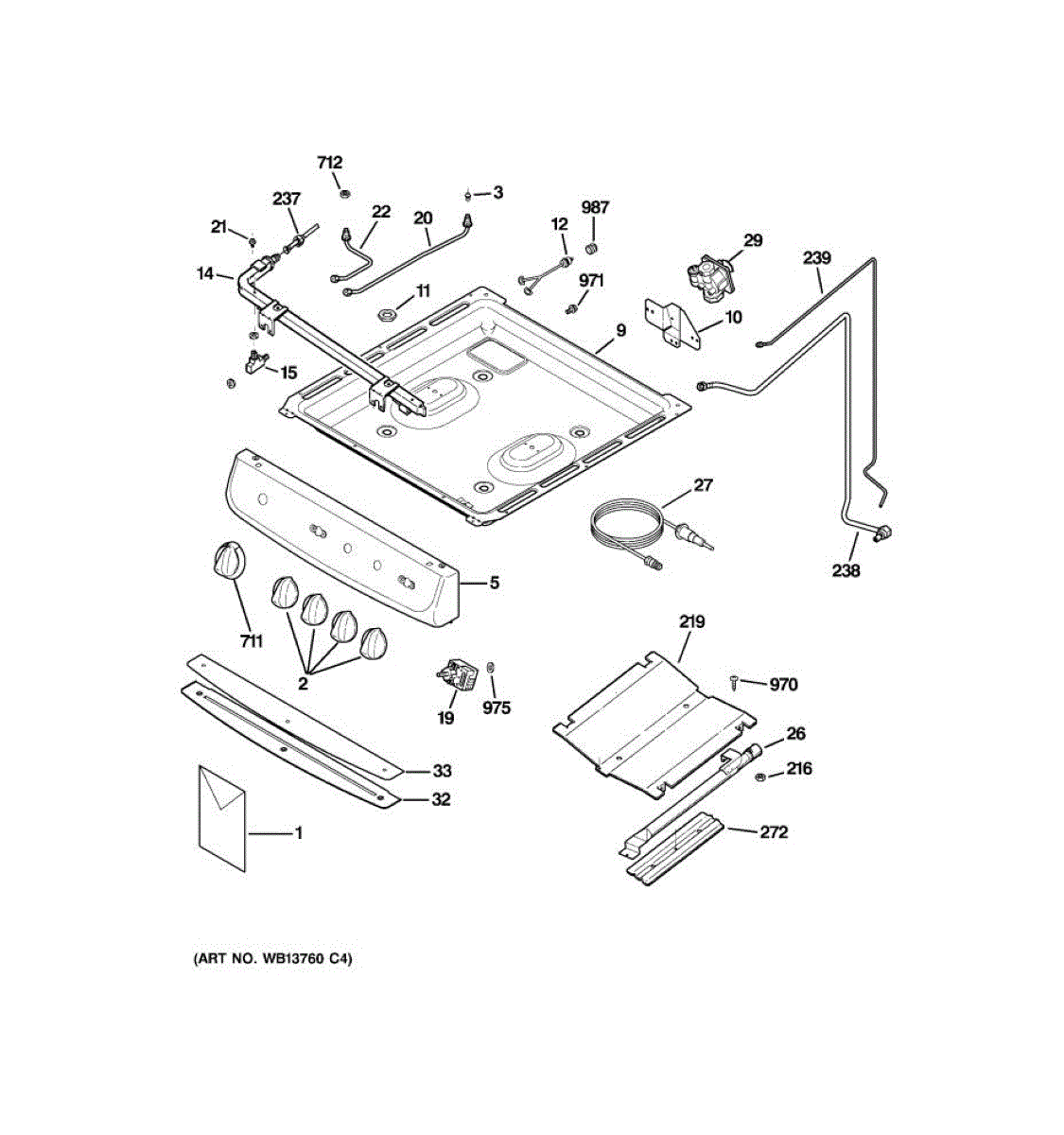

Parts for Hot Point RGA720PK2WH: 01 - Gas & Burner Parts

Color: White. It measures about 2 inches in diameter.

This replacement orifice spud for the cooktop surface burner threads into the orifice holder to meter gas flow, helping ensure proper flame size and reliable ignition for consistent cooking performance. What it does:

• Meters gas flow to the surface burner through a calibrated opening
• Helps produce stable, properly sized flames for even cooking
• Replace if the original spud is clogged, stripped, or damaged
• Common symptoms include weak/low or no flame, yellow/orange flames, uneven heating, or delayed ignition

• 1 orifice spud

• Turn off the gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, burner caps, and burner heads to access the orifice holder
• Use the correct spud for the specific burner position and gas type per your model documentation
• Start threads by hand and tighten snugly without overtightening; after reassembly, check for leaks with a soapy-water solution and verify ignition and flame

This double burner assembly restores proper gas flow to a two-burner section of the cooktop so it lights reliably and heats evenly. Replace a worn or damaged assembly to correct ignition issues and irregular or weak flames.

• Routes gas to two burner outlets under the main top
• Provides the orifice-holder structure that mates to the burner head(s) and igniter(s)
• Aligns and supports burner heads for stable mounting
• Typical symptoms: one or both burners won't light, flames are weak or uneven, or the assembly shows cracks, corrosion, or stripped threads

• Turn off gas supply and disconnect power; allow the appliance to cool completely
• Remove grates, caps, and burner heads; raise or remove the main top to access the assembly
• Note tubing and component positions; install the new assembly and tighten all fittings securely
• After reassembly, check all gas joints with an approved leak-detection solution and verify proper ignition and flame

This surface burner valve regulates gas flow to a single top burner on your range, delivering smooth flame control. Replace a worn or leaking valve to resolve ignition problems and uneven flame performance.

• Regulates gas flow to the surface burner as you turn the knob
• Works with the igniter/orifice to light the burner
• Failure symptoms include: burner won't light or delayed ignition; flame won't adjust or is uneven
• Other signs: knob hard to turn or gas odor at the valve stem

• Disconnect power and shut off the gas supply before servicing; allow the appliance to cool.
• Remove the knob and access panel; note the valve's orientation and label igniter wire and gas tube locations.
• Transfer the orifice holder and any mounting hardware from the old valve if required.
• After reconnecting, restore gas and check all joints for leaks with a noncorrosive leak-detection solution before use.

This right rear burner tube assembly routes gas to the right-rear cooktop burner so the burner lights and produces a steady flame. It restores correct gas flow to the right-rear burner on compatible ranges. What it does:

• Directs gas from the manifold to the right-rear burner for ignition
• Helps maintain an even, stable flame at the right-rear cooktop location
• Commonly replaced when the right-rear burner fails to light or has an irregular flame pattern
• Designed to fit as a single complete tube assembly for the right-rear burner

• Turn off gas supply and electrical power to the range before starting any work.
• Use caution when removing and installing gas components; replace gaskets or seals as needed.
• After installation, check all connections for leaks using a soap solution or a leak detector.

This is the screw that secures the burner valve to the appliance, keeping the valve and associated controls fastened for reliable operation. Replaces a worn or missing mounting fastener to restore proper valve alignment and support. What it does:

• Secures the burner valve assembly to the appliance frame or manifold
• Keeps valve position stable to help maintain reliable burner operation
• Helps prevent movement that can cause loose connections or intermittent function
• Used when original screw is stripped, missing, or corroded

• One burner valve mounting screw

• Turn off power and gas supply to the appliance before starting any repair
• Use the correct size driver and avoid over-tightening to prevent stripping the screw or damaging the valve
• Confirm valve and surrounding components are properly aligned before final tightening

This left front tube assembly directs gas to the left-front cooktop burner for reliable ignition and steady flame control. It replaces a damaged or corroded tube to restore proper burner operation and safe cooking. What it does:

• Channels gas from the manifold to the left-front burner for consistent flame delivery
• Helps ensure correct burner ignition and stable heat output
• Replaces tubes that are bent, clogged, corroded, or leaking
• Useful when the left-front burner fails to light or burns unevenly

• One left front tube assembly

• Turn off gas supply and unplug the appliance before starting work
• Use appropriate hand tools; avoid forcing fittings to prevent damage
• Inspect nearby gaskets and fittings; replace if signs of wear or leakage

This right front tube assembly routes gas to the range's front-right burner, restoring proper gas flow for reliable ignition and flame control. Use when the front-right burner sputters, won't light, or produces uneven flame. What it does:

• Channels gas from the valve to the front-right burner for consistent combustion.
• Helps restore proper ignition when the front-right burner fails to light or burns poorly.
• Prevents gas leaks and misdirected flames when installed and sealed correctly.
• Matches factory shape and fittings to align with the front-right burner and valve.

• One right front tube assembly

• Turn off gas supply and disconnect power to the appliance before starting.
• Inspect mating fittings and gaskets; replace any damaged seals for a leak-free connection.
• Tighten connections to manufacturer torque recommendations; check for leaks with a soap solution after installation.

This thermocouple sits in the pilot flame and signals the oven safety valve that a flame is present. Replacing a weak or open thermocouple restores safe ignition and consistent burner operation on standing-pilot gas ranges.

• Detects heat from the pilot flame and generates a small millivolt signal to allow the oven safety valve to remain open
• Common symptoms of failure: oven won't heat, burner lights then goes out, pilot won't stay lit, intermittent oven shutdown
• Confirms flame presence to help prevent unlit-gas flow during operation
• Intended for standing-pilot style gas ovens/ranges

• Disconnect power and shut off gas before servicing; allow the appliance to cool
• Route and secure the new thermocouple exactly like the original; avoid sharp bends and kinks
• Position the tip correctly in the pilot flame; hand-start threads and snug fittings—do not overtighten
• After installation, check all connections for leaks with a soap-and-water solution and verify proper burner operation
