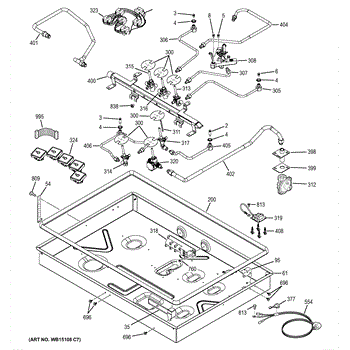

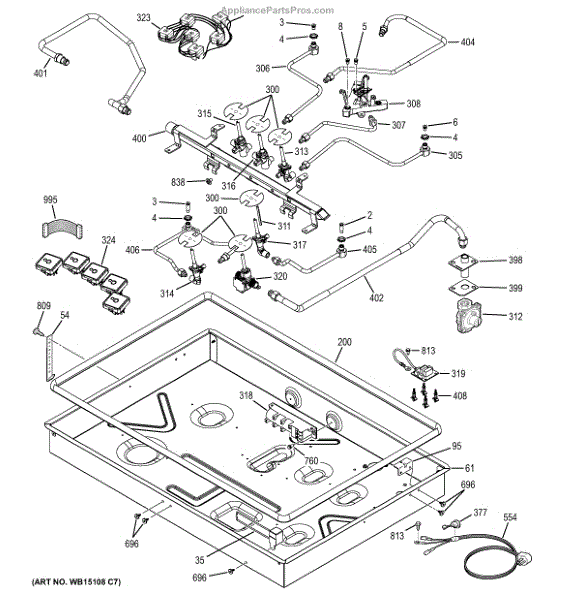

Parts for Ge PGP986SET2SS: Gas & Burner Parts

This orifice spud controls propane gas flow to a single range burner, allowing correct LP burner performance and flame size. It's a direct-fit replacement used when the burner needs the LP-specific orifice. What it does:

• Metering point that regulates propane (LP) gas to the burner so the flame burns correctly
• Required when converting a natural gas appliance to LP or replacing a worn LP orifice
• Sized for 9.1K (LP) flow rating to match the burner's designed output

• One orifice spud (LP 9.1K)

• Turn off gas supply and disconnect power before servicing
• Replace only with the exact LP orifice specified for the burner
• Hand-start the part, then tighten to manufacturer torque if provided; avoid over-tightening
• After installation, check all gas connections for leaks with a soap solution or a gas leak detector

This economic nut is a small replacement fastening nut that restores secure connections for appliance components. It replaces worn or missing hardware so panels and internal parts stay firmly seated and reduce vibration. What it does:

• Secures components and panels by threading onto the matching stud or bolt to hold assemblies in place
• Prevents loose or rattling panels and hardware caused by a missing or damaged nut
• Restores proper fit for user-accessible panels and internal brackets where this nut is specified
• Simple hardware replacement to regain stable mechanical connections

• Disconnect power and water (if applicable) and follow basic electrical safety before servicing the appliance
• Use the matching size wrench or socket; thread-on by hand first to avoid cross-threading, then snug—do not overtighten
• Inspect mating stud or bolt for damage; replace hardware that is stripped, corroded, or deformed

This orifice spud secures the gas orifice to the oven burner tube, directing the fuel for proper combustion and a steady flame. It helps restore correct burner performance and consistent heating in gas ovens. What it does:

• Holds the gas orifice in place on the oven burner tube for proper fuel delivery
• Ensures a consistent, centered flame for even oven heating
• Can help address weak, uneven, or fluctuating burner flames
• Prevents gas leakage at the orifice connection when installed correctly

• Turn off the gas supply and unplug the appliance before beginning work
• Use basic hand tools; avoid overtightening to prevent thread damage

This LP orifice meters propane to a surface burner, ensuring the correct gas flow for proper flame size and efficient cooking. It's used when converting a compatible gas cooktop or range burner to LP or replacing a worn or damaged spud.

• Regulates LP gas flow to the burner for proper flame height and combustion
• Helps address issues like weak, uneven, or yellow flames on the affected burner
• Needed when converting a specific burner from natural gas to LP
• Exact-fit component; use only the correct orifice for the designated burner position

• Disconnect power and shut off gas before service; allow the cooktop/range to cool
• Access the burner assembly; remove old orifice with a properly sized wrench
• Install and snug the new orifice—do not overtighten; reassemble and perform a leak check with approved solution
• After installation, verify flame appearance and adjust air shutters if applicable

This orifice spud controls LP gas flow to a cooktop burner, restoring proper flame size and reliable ignition. It's a direct-fit replacement designed for safe operation of the burner when the original spud is damaged or missing. What it does:

• Directs and meters liquid propane (LP) to the burner for correct flame characteristics
• Helps restore steady ignition and consistent, even flame distribution
• Common fix for weak, uneven, or no-flame burner symptoms
• Matches factory orifice sizing to maintain designed burner performance

• One orifice spud (LP, 5K)

• Turn off gas supply and power before servicing the appliance
• Only install on compatible burners using the correct LP orifice size for your appliance
• Use proper tools; do not force or cross-thread the spud
• After installation, check for gas leaks per local codes and manufacturer instructions

This orifice spud is the small gas inlet fitting that secures the burner orifice to the burner base, helping direct fuel to the burner for safe, consistent ignition and flame control. It replaces a worn or damaged inlet fitting to restore normal burner operation. What it does:

• Holds the burner orifice in the correct position so gas flows to the burner tube
• Helps produce a stable, even flame for reliable cooking performance
• Can correct symptoms such as weak, uneven, or hard-to-light burners
• Works with the burner assembly to maintain safe gas flow

• Turn off gas supply and disconnect power before servicing
• Allow the appliance to cool completely; use basic hand tools for removal/installation
• Hand-start and tighten threads carefully; avoid cross-threading or overtightening
• After installation, check for gas leaks at the connection using a soap-and-water solution (do not use an open flame)

This orifice spud for the simmer burner directs gas flow to produce a lower, steady flame for gentle cooking. It restores proper low-heat performance so small pots and delicate foods cook evenly. What it does:

• Positions the simmer burner orifice to control low flame size for simmering
• Helps maintain an even, low flame for delicate cooking tasks
• Can correct low, uneven, or inconsistent simmer flames when worn or damaged
• Works as the mounting point for the burner orifice on compatible gas cooktops/ranges

• Turn off gas supply and power before beginning any service
• Remove burner cap and grate to access the spud; reinstall parts in reverse order
• Do not overtighten; snug fit is sufficient. Check for proper flame after installation

This 120V appliance buzzer provides the audible alert for cycle completion and user notifications, restoring clear beeps when your appliance's buzzer has failed or gone silent. Ideal for ovens, ranges, and similar appliances that use a 120V signal. What it does:

• Produces audible alerts for cycle end, error notifications, and timer signals
• Commonly replaces units that are silent, intermittently loud, or emit distorted/weak tones
• Matches the OEM electrical rating to ensure proper signalling at 120 volts
• Designed for direct replacement of the original buzzer assembly

• Disconnect power to the appliance before servicing to avoid shock hazard
• Minimal tools typically required; handle the part and wiring carefully to avoid damage

This hold-down bracket secures a designated component inside your appliance, keeping it firmly anchored during use. Replace a bent, broken, or missing bracket to stop movement and rattling and restore proper alignment and a stable, factory fit. What it does:

• Anchors the specified part to the appliance frame/cabinet to prevent shifting
• Reduces vibration and rattling noises during operation
• Helps maintain correct alignment and spacing for reliable performance
• Replace if the bracket is bent, cracked, corroded, or missing

• 1 hold-down bracket

• Disconnect electrical power; for gas appliances, also shut off the gas supply
• Note the original orientation and screw locations before removal (a quick photo helps)
• Reuse existing mounting hardware unless your model specifies new fasteners
• Do not overtighten; verify the secured component is aligned and stable before restoring power

This plug valve stem fits the surface burner gas valve, forming the shaft the knob turns to open, close, and adjust flame levels. Replacing a worn or stripped stem restores smooth, precise burner control and feel.

• Links the control knob to the plug-style surface burner valve
• Rotates to regulate gas flow for on/off and flame modulation
• Wear can cause wobbling, slipping, stiffness, or poor flame adjustment
• Helps when the knob turns without changing flame or is hard to turn

• Disconnect power and shut off the gas supply before servicing
• Remove the control knob and access the valve from the control panel area
• Note stem orientation and reassemble per OEM guidance; use only approved valve grease
• After reassembly, leak-check with an approved solution and verify burner operation

This gas pressure regulator controls and stabilizes incoming gas pressure to your appliance. A properly regulated supply helps ensure steady flames and consistent heating performance when cooking or baking.

• Regulates and maintains correct gas pressure to the range/oven
• Convertible design for Natural Gas or LP setups
• Issues may include weak or uneven flames, burners not lighting, or oven temperature problems
• Can help address gas odor concerns when the source is an internal regulation fault

• Disconnect power and shut off gas before service; verify no leaks after installation
• Follow the appliance's conversion/installation instructions for NG/LP configuration
• Use approved thread sealant on threaded fittings as directed by the manufacturer
• After installation, perform a leak test and verify proper burner operation and flame quality

The Single Valve is an OEM part for GE ranges. This part controls the flow of gas to the burners on the cooktop, ensuring precise and safe operation during cooking.

Causes of a bad valve can include wear and tear over time, exposure to high heat, or damage from improper handling or installation.

Symptoms of a bad Single Valve include:

• Burners not igniting or having a weak flame
• Gas smell near the valve or cooktop
• Inconsistent burner performance
• No gas flow to the burners

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Valve Gas is an OEM part for GE ovens and ranges. This valve controls the flow of gas to the oven or range burners, ensuring that the appliance can ignite and maintain a stable flame for cooking. It is a critical component for the safe and efficient operation of gas-powered cooking appliances.

You should replace the valve gas if it becomes faulty. Causes of a bad gas valve can include wear and tear over time, corrosion from exposure to gas, or damage from electrical surges. A malfunctioning gas valve can prevent the appliance from igniting, result in irregular flame patterns, or pose a safety hazard due to gas leaks.

Symptoms of a bad Valve Gas include:

• The oven or burners not igniting
• Irregular or unstable flame patterns
• The smell of gas near the appliance
• The appliance turning off unexpectedly during use

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Dual Valve is an OEM part for GE gas cooktops. It is a key component responsible for controlling the flow of gas to the dual burner.

Causes of a bad dual valve can include wear and tear over time, freezing or other weather damage, or issues from debris buildup or clogging.

Symptoms of a bad dual valve include:

• Inability to turn burners on or off
• Burners that will not light or that light but with an unstable flame
• Inconsistent or irregular flame size that cannot be controlled
• Gas leaks from the valve area

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This dual valve is the refrigerator water inlet assembly that controls water flow to the ice maker and dispenser. It restores proper water delivery so the ice maker and dispenser get water when called. What it does:

• Directs water to the ice maker and the dispenser via two solenoid valves
• Commonly replaces a failed valve that causes no water to the ice maker or dispenser
• Can stop intermittent or continuous water flow when a solenoid leaks or sticks
• Helps resolve low or no-water delivery symptoms when filter and supply are OK

• One dual solenoid water inlet valve assembly

• Turn off refrigerator power and shut off the water supply before replacing
• Inspect and replace any damaged inlet tubing or fittings when accessible
• Tighten connections securely but do not overtighten; check for leaks after restoring water

This gas valve controls and safely regulates the flow of gas to your range/oven's burner system. Replacing a failed valve helps restore reliable ignition and consistent heat for proper preheating and cooking performance.

• Opens to supply gas to the burner only when signaled by the ignition/control system
• Regulates flow for a stable flame and even heating
• Helps with: oven not heating or preheating slowly; bake/broil burner won't light; igniter glows but no flame; intermittent heating

• Disconnect electrical power and shut off the gas supply before servicing
• Support fittings with two wrenches to avoid twisting or kinking gas lines
• Transfer any brackets or tubing from the original valve in the same orientation, as required by your model
• After installation, check all connections for leaks using an approved leak-detection solution (never an open flame)

The Spark Module is an OEM part for GE cooktops. Located within the cooktop's control unit, this module is responsible for generating electric sparks to ignite the burners. Consisting of electronic components and wiring, the spark module works with other systems to reliably and safely light the gas or electric burners.

Symptoms of a bad spark module include:

• Burners not lighting or lighting intermittently
• Repeated flashing of the burner indicator lights
• Clicking or buzzing sounds coming from the control unit

Causes of a failed spark module can be exposure to moisture, dust or debris accumulating inside the control unit over time as well as mechanical or electrical degradation of the ignition components.

This genuine OEM GE replacement part is also compatible with some Kenmore cooktop models that use GE's control systems.

This LED control board is the refrigerator's electronic display and interface module that lets you view settings and status. Replaces a faulty display board to restore visible indicators and electronic control feedback. What it does:

• Powers and drives the LED display so temperature and status information is visible
• Provides the user interface signals for touchpads/buttons on the control panel
• Can cause dim or no display, unresponsive control panel, or missing status indicators when failing
• Works with the main control system to communicate user commands to the refrigerator electronics

• Disconnect power to the appliance before starting work to avoid shock or shorting circuits
• Handle the board by its edges and avoid touching components to reduce risk of ESD damage
• Remove the control panel or console trim as needed; keep track of screws and connectors
• Verify proper connector seating and test functions before reassembling the appliance

LED board assembly that powers and controls the appliance's LED status lights and display backlighting, restoring readable indicators and panel illumination. Replaces a failed LED module on compatible control panels. What it does:

• Supplies power and signal control to LED status lights and display backlighting.
• Restores dim, flickering, or non-functioning LEDs and panel illumination.
• Helps recover visible control indicators used for status and user feedback.
• Matches standard connector locations and mounting points on the console.

• Disconnect power to the appliance before servicing to avoid shock.
• Remove the console or control panel to access the board; keep screws and small parts organized.
• Handle the board by the edges and avoid touching LED lenses or circuit components.
• Verify connector orientation and secure all wire harnesses.

Right angle

This silicon controlled rectifier (SCR) is an electronic switching component that controls current flow in appliance control circuits, helping regulate power to heaters, motors, or other loads for stable operation. What it does:

• Switches and regulates current in control boards and power circuits
• Can prevent power from reaching a heater, motor, or element when failed
• Helps protect downstream components by controlling surge/current flow

• Disconnect power to the appliance before servicing to avoid shock.
• Handle the SCR carefully to avoid electrostatic discharge (ESD) damage.
• May require board-level replacement or soldering skills.

This is a replacement screw that can be used with many different types of household appliances. Screws fasten various pieces of machines together. They can also help to reduce the amount of vibration in the machine. If a screw is missing or damaged, it could cause a machine to stop working properly, or to vibrate more than it should.The screws are made from metal and will typically last for a long time. However, the threads and other parts of the screw can wear down with use. The screws could also become lost when making other repairs to the appliance. Replacement of the screws is generally easy, but it will depend on where it is placed.This item can replace certain screws found in various models of ranges, ovens, dryers, and microwaves from General Electric, Hotpoint, Whirlpool, and Kenmore. This is a genuine OEM replacement part sourced from the manufacturer. It is sold individually. Owners may want to have several replacements on hand in case they need them.

Replacement fastener used to secure appliance components. If a screw is missing or damaged, panels and brackets can loosen or rattle. Installing a new screw restores a tight fit and helps keep parts properly aligned.

• Fastens panels, brackets, or internal components as designed for the model
• Replaces missing, stripped, or corroded hardware
• Helps reduce vibration/rattling and restores proper fit
• Maintains alignment and a secure assembly after service

• Disconnect power; shut off gas if applicable before servicing
• Support components while removing/installing fasteners
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Replace all required screws in a location for even clamping and proper fit

This replacement screw secures appliance components and helps keep panels, brackets, and controls firmly attached for reliable operation. It's a simple, direct fix when a mounting screw is missing, loose, or stripped. What it does:

• Fastens panels, trim, brackets or electrical components to reduce movement and rattling.
• Restores proper alignment of parts that shift when a screw is missing or worn.
• Helps maintain electrical and mechanical connections by keeping components seated.
• Common symptom: loose or vibrating panels, trim gaps, or visibly missing hardware.

• Disconnect power to the appliance before accessing internal components.
• Use the correct screwdriver or driver bit to avoid stripping the head.
• Thread gently and avoid overtightening to prevent stripping the mating threads or cracking surrounding parts.
• Keep any removed hardware organized to ensure placement of all required fasteners during reassembly.

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage
