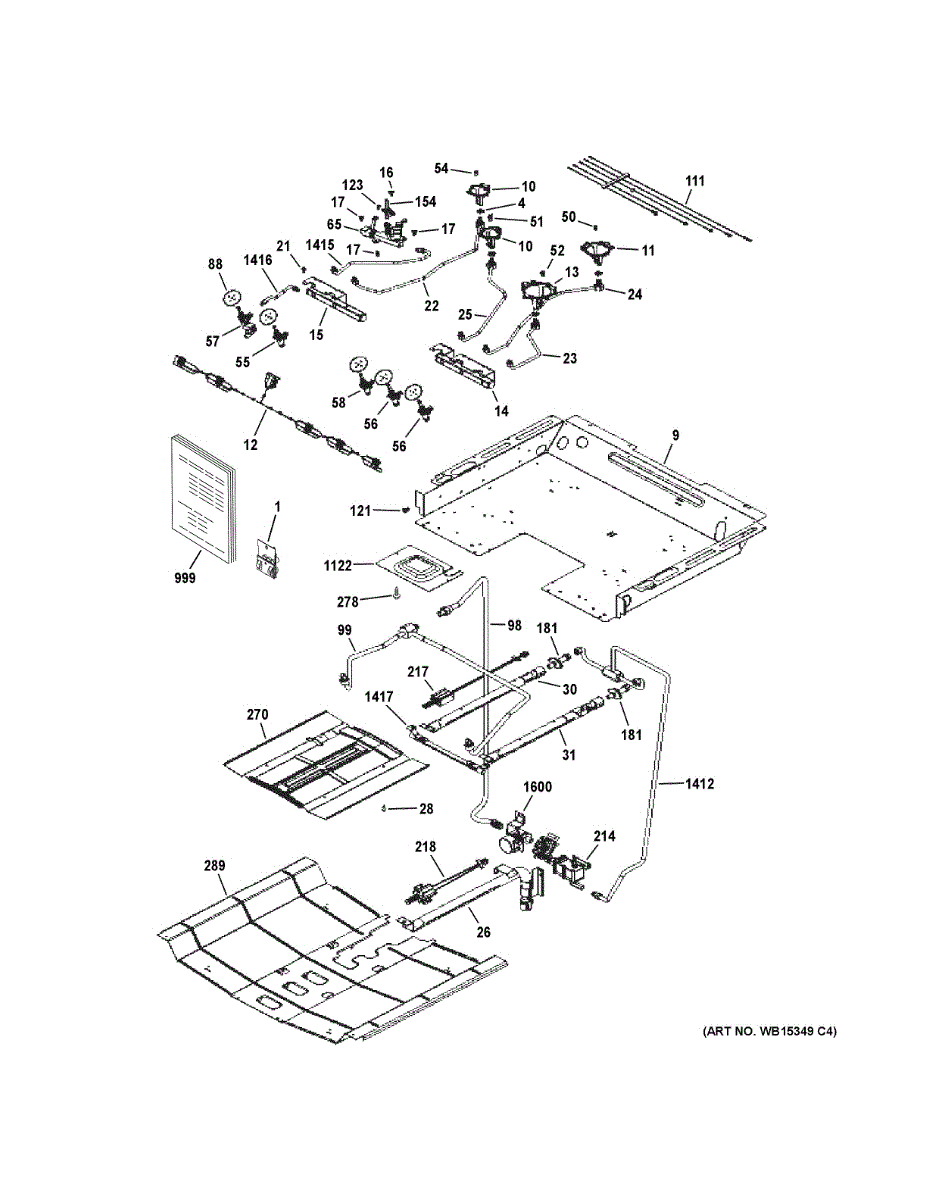

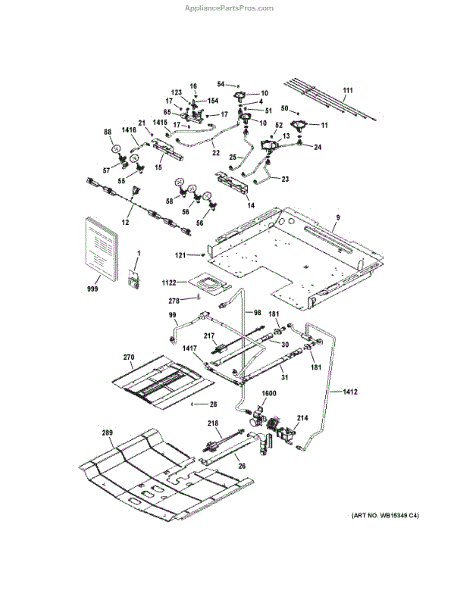

Parts for Ge PGS920SEF3SS: Gas & Burner Parts

This oven duct and burner box assembly houses the lower burner and channels heat and combustion gases away from internal components to help maintain proper oven operation and safe combustion. It restores correct burner positioning and heat routing. What it does:

• Holds and secures the lower burner in the correct position for reliable ignition and consistent heating.
• Channels combustion gases and hot air away from controls and wiring to protect components.
• Helps prevent heat-related damage and reduces hot spots that can cause uneven baking or broiling.
• Supports proper airflow under the oven floor, which can improve overall temperature stability.

• One duct and burner box assembly.

• Disconnect electrical power and shut off the gas supply before beginning service.
• Installation requires access to the oven cavity and removal of oven floor panels; follow OEM disassembly steps.
• Check for proper alignment and secure all mounting fasteners; inspect seals/gaskets and replace if damaged.
• After installation, restore gas and electrical supply and check for proper ignition and any gas leaks.

This small cooktop bracket secures designated components beneath the cooktop surface, keeping them properly positioned and stable. Replace a damaged or missing bracket to restore alignment and reduce movement or rattling during use.

• Provides mounting support for specific under-top components, per model design
• Helps maintain proper alignment and stability of cooktop parts
• Replace when visibly bent, cracked, or corroded

• Disconnect power; for gas models, also shut off gas and allow the unit to cool
• Remove surface components as required (grates/caps/heads for gas; elements/panels for electric) to access under the top
• Lift or remove the cooktop as directed in your model's service information and secure the new bracket with existing hardware
• Reassemble, verify alignment, and for gas units check for leaks if any gas connections were disturbed

This circuit board mounting bracket secures an electronic board or module inside the appliance. It prevents movement, vibration damage, and wiring interference so the component stays correctly positioned for reliable operation.

• Mounts and supports a small circuit board or module within the chassis
• Maintains proper spacing and alignment to reduce chafing or electrical short risks
• Replace if bent, cracked, or missing tabs, or if it no longer holds the board securely
• Common signs include a loose/rattling board, visible bracket damage, or intermittent operation when the panel is bumped

• Disconnect power at the breaker; shut off gas supply if applicable
• Remove the necessary access panel(s) to reach the board and bracket; note orientation and wiring
• Transfer the board/module to the new bracket and reinstall using existing hardware
• Watch for sharp metal edges; route wires to avoid pinching and verify clearances before restoring power

The Spark Ignition Switch and Harness is an OEM part for GE ovens and ranges. This switch and harness work together to safely ignite the gas burners by providing power from the control unit to the burners.

Causes of a bad switch or harness include wear and tear over time from repeated use or aging components. It could also be damaged from liquid spills or cleaning chemicals getting inside the unit.

Symptoms of a bad switch or harness include:

• Gas burners not lighting properly or at all
• Irregular or no ignition of the burners
• Safety issues with gas leaks if the switch fails to ground properly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This bracket secures the cooktop/main top to the appliance chassis to keep the surface stable and properly aligned. Replacing a bent or missing bracket can eliminate looseness, rattles, and visible gaps so the top seats correctly.

• Anchors the cooktop/main top to the frame
• Maintains proper spacing and alignment of the top
• Helps prevent vibration and movement during use and cleaning
• A damaged or missing bracket can cause a loose, uneven, or rattling cooktop

• Disconnect power and, for gas units, shut off the gas supply before servicing
• Access the bracket location per your model's service procedure (top may need to be lifted or removed)
• Transfer and reuse mounting screws/clips from the original bracket if required
• Install in the same orientation, check alignment, and tighten fasteners securely before restoring service

This manifold pipe assembly directs gas from the supply to the range's burners and oven, restoring proper fuel delivery for reliable ignition and even flames. Designed to replace a failed or corroded manifold in compatible gas ranges. What it does:

• Routes gas to individual burners and the oven burner so each flame can ignite and burn correctly.
• Helps restore even flame pattern when a damaged manifold causes weak or uneven flames.
• Addresses symptoms such as burners failing to light, low flame, or gas flow issues.
• Works as the main gas distribution tube between the valve assembly and burner orifices.

• One manifold pipe assembly as shown.

• Turn off the gas supply and electrical power to the appliance before starting work.
• After installation, test all connections for leaks with a soap solution or approved leak-detection method and verify proper burner ignition.
• Additional mounting hardware, gaskets, or related components may be required.

LP orifice spud that meters propane to a single burner for correct flame size and efficient combustion after converting a cooktop or oven to LP. Restores proper burner performance and safer operation. What it does:

• Meters propane flow to one burner to establish the correct flame for LP fuel.
• Used when converting a range or oven from natural gas to propane (LP).
• Helps correct flames that are too large, yellow, uneven, or won't stay lit.
• Replaces a worn, damaged, or incorrect LP orifice spud for improved burner control.

• Shut off the gas supply at the appliance and service valve before servicing.
• Follow OEM conversion instructions.
• After installation, check all gas connections for leaks with an approved method; do not operate the appliance if you detect a gas leak.
• Use only the exact orifice specified for LP conversion—do not substitute unverified parts.

This LP orifice spud meters propane to a burner on compatible gas ranges/cooktops. Replacing a clogged, damaged, or incorrect spud helps restore proper flame size and consistent burner performance after conversion or service. What it does:

• Threads into the gas system to control LP gas flow to the burner
• Corrects flame characteristics after LP conversion when the proper size is used
• Common symptoms of a wrong/failed spud: yellow-tipped flames, flames too high/low, uneven heating, poor simmering
• Helps maintain stable blue flames for efficient combustion on LP

• 1 LP orifice spud

• For LP (propane) use only; do not use with natural gas
• Turn off gas supply and power before servicing; allow the appliance to cool
• Match each burner position to the specified orifice per your model's conversion chart; tighten snugly without overtightening
• After installation, leak-check with a soap solution and verify flame characteristics per the manual

This 1/4-20 screw secures panels, brackets, and other assemblies in your appliance. It restores a tight, reliable hold when an original fastener is missing, stripped, or corroded.

• Fastens components that require a 1/4-20 threaded screw
• Helps keep panels and assemblies aligned and rattle-free
• Direct replacement for worn, rusted, or lost hardware
• Common symptoms: loose or vibrating parts, misaligned brackets, missing fastener

• Disconnect power; turn off gas supply before servicing
• Allow the appliance to cool; wear gloves and eye protection
• Start threads by hand to avoid cross-threading; use the correct driver/tool
• Tighten snugly—do not overtighten to prevent stripping or damage

The Igniter Mounting Screw is an OEM replacement part for GE ovens and ranges. This screw secures the igniter to the burner assembly, ensuring it remains firmly in place for consistent and reliable ignition. Its precise fit and durable design help maintain the stability and functionality of the igniter.

Over time, mounting screws can become corroded, stripped, or lost during repairs or maintenance. A missing or damaged screw may result in a loose igniter, affecting the appliance's ability to ignite properly.

Symptoms of a bad or missing igniter mounting screw include:

• The igniter becoming loose or misaligned

• Difficulty securing the igniter during installation or repair
• The burner fails to ignite reliably or consistently
• Increased noise or movement of the igniter during operation

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Orifice Spud is an OEM part for GE ranges and cooktops. It is a small, precise component responsible for regulating the flow of gas to the burner, ensuring a controlled and efficient flame for cooking. This spud is essential for maintaining the correct gas pressure and flame size.

Over time, orifice spuds can become clogged or damaged due to residue buildup, corrosion, or improper cleaning. These issues can lead to inefficient burner performance or safety hazards.

Symptoms of a bad orifice spud include:

• Uneven or weak burner flames
• Difficulty in igniting the burner
• Yellow or flickering flames
• Gas odors near the burner area

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

Medium LP orifice

This LP orifice spud meters gas to a range burner when using liquid propane. Replacing a worn or incorrect jet helps restore proper flame size and clean combustion during LP setup or conversion.

• Meters LP gas to the burner for correct flame height and color
• Helps resolve large yellow flames, soot, and poor simmering caused by an incorrect/blocked spud
• Supports safe operation when converting from natural gas to LP per the manufacturer's instructions
• Can improve ignition and flame stability when the original jet is damaged or clogged

• Disconnect power and shut off the gas supply; allow the appliance to cool before servicing
• Remove the existing spud with the correct wrench and install the replacement snugly—do not overtighten
• Perform any required air-shutter/burner adjustments per the service instructions
• After installation, leak-check with a soapy water solution; LP conversions should comply with local codes

This orifice spud meters gas to a burner in your range or cooktop. Replacing a clogged or damaged spud helps restore correct flame size and reliable ignition for consistent cooking performance.

• Regulates gas flow from the valve to the burner head for proper combustion
• Helps restore consistent flame height and even heating on the burner
• Sized for the burner rating and fuel type specified by your model; always match the correct part

• Disconnect power and shut off gas supply; allow the appliance to cool completely before servicing.
• Access the burner orifice and replace with the correct, model-specified spud using an appropriate wrench; do not overtighten.
• Restore gas and check all connections for leaks with a soap-and-water solution.
• Use only the spud specified for your fuel type (NG or LP); do not attempt conversion without the approved kit and instructions.

The Burner Valve Assembly 270 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

The Valve Burner is an OEM component for GE gas ranges. Located below the grates atop each cooktop burner, it precisely mixes gas and air to provide controllable flames. A valve adjusts gas flow while perforated metal distributes the flame evenly.

Symptoms of a faulty valve burner include:

• Difficulty obtaining or maintaining set flame levels
• Unstable or intermittent burner operation
• Yellow fire or flame that produces excessive soot
• No ignition or fire when the knob is turned

Causes can be wear of internal valve components, debris, or clogs in gas ports restricting flow over time. Damage from spills or dropped objects may also crack the burner.

This OEM GE burner is also compatible with models from Hotpoint and RCA.

This burner valve controls gas flow to the 3R/310 burner on compatible gas ranges, restoring proper ignition and flame control for reliable cooking performance. Designed as a direct-replacement service part. What it does:

• Regulates gas to the designated 3R/310 burner for correct flame size and heat
• Helps resolve a burner that won't light or has a weak or uneven flame
• Replaces a worn or leaking valve that may cause pilot or ignition issues
• Restores normal burner operation when valve failure is the confirmed cause

• Turn off gas supply and disconnect power to the appliance before servicing
• Verify correct valve orientation and secure mounting per OEM instructions
• Use appropriate tools and test for leaks with a soap solution after installation

The Burner Valve Assembly 270 is an OEM part for GE gas ranges. It controls gas flow to individual burners to deliver precise heating levels.

Causes of a bad burner valve assembly include worn rubber diaphragms, debris inside valve channels, or damage from repeated heating cycles.

Symptoms are:

• Uneven cooking temperatures across burners
• Inability to ignite or adjust certain burners
• Fluctuations in flame height/cooking output

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore gas range models.

This small seal fits around the control valve stem where it passes through the cooktop/range top panel. It helps keep spills and debris out of the valve area, supporting smooth knob operation and consistent burner performance.

• Seals the opening around the valve stem at the top panel
• Helps protect the valve/manifold from moisture, grease, and debris
• Common signs: cracked or missing seal, spills seeping beneath the knob, intermittent ignition after a spill

• Disconnect power and shut off gas; allow the appliance to cool completely
• Pull the knob straight off; remove any trim/bezel as needed
• Lift out the old seal and seat the new seal in the same orientation around the valve stem
• Some models require lifting the cooktop for access; avoid disturbing gas connections.

This factory screw secures components on GE cooking appliances. Replacing a lost or stripped fastener helps keep parts tight and aligned for safer, rattle-free operation.

• Fastens brackets, panels, trim, or burner components on a range, cooktop, or wall oven
• Replaces missing, corroded, or stripped hardware
• Helps reduce looseness, vibration, or rattling noises
• Restores proper alignment after service or cleaning

• Disconnect power and shut off gas supply. Allow the appliance to cool completely.
• Match this screw to the original and install in the same location.
• Use the correct driver; hand-tighten and avoid overtightening to prevent stripped threads or cracked parts.
• If mating threads are damaged, repair or replace the affected component before reassembly.

This gas valve controls the flow of fuel within your gas range or cooktop, ensuring safe, consistent delivery to the burner system. Replacing a worn valve restores reliable ignition and steady flame performance during cooking.

• Controls and shuts off gas flow to the burner system as designed
• Helps maintain proper flame size and stability for cooking
• Common symptoms of a failing valve: burners won't ignite or won't stay lit
• May present weak/uneven or yellow flames, or a gas odor near the valve

• Shut off gas supply and electrical power before servicing; allow appliance to cool
• Support fittings with two wrenches to avoid stressing the manifold
• Use only manufacturer-approved, gas-rated thread sealant where specified
• After installation, leak-test all connections with an approved method; follow local codes and the model's tech sheet

The Igniter Glow Bar is an OEM part for GE gas ovens and ranges. It is responsible for igniting the gas by heating up to a high temperature, which then lights the gas burner to start the cooking process.

You should replace the igniter glow bar if it becomes faulty or fails to ignite the gas. Common causes of a bad igniter glow bar include wear and tear from frequent use, electrical issues, or physical damage to the igniter element.

Symptoms of a bad igniter glow bar include:

• The oven not heating up
• The gas burners not igniting
• A clicking sound without ignition
• Visible cracks or damage to the igniter

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Oven Igniter is an OEM replacement part for GE ovens, designed to ignite the bake igniter to start the heating process. This part is responsible for creating the spark that ignites the gas, providing the heat needed to cook and bake food. Over time, the oven igniter can wear out or become damaged, which can prevent the oven from heating.

Symptoms of a bad Oven Igniter include:

• The oven not heating up at all.
• The oven taking longer than normal to heat.
• Gas smell in the oven due to gas being released without ignition.
• A clicking sound without the oven igniting.

Causes of a bad igniter can include normal wear and tear over time, exposure to excessive heat or moisture, or physical damage from impact or mishandling.

This OEM GE part can also be used on Hotpoint, RCA, and Kenmore/Sears appliances.

IMPORTANT: The connector plug may need to be cut off and igniter wires connected to range wires using porcelain wire connectors.

This replacement screw fastens appliance components to restore secure fit and reduce vibration or panel movement. Simple, direct replacement for a missing or stripped fastener to help maintain proper assembly and operation. What it does:

• Secures panels, brackets or trim to keep parts aligned and prevent rattling
• Restores mounting where a lost or damaged screw causes loose or sagging components
• Helps maintain electrical and mechanical connections by keeping parts properly seated
• Small hardware solution for cosmetic and functional stability

• Use the correct sized screwdriver or driver bit to avoid stripping the head
• Inspect mating threads and replace if damaged; do not force a stripped screw
• Tighten until snug — avoid over-tightening which can crack plastic or strip threads
• If accessing areas near power or controls, disconnect appliance power first and follow all safety precautions

This lower heat shield is a stamped metal shield that protects the oven's lower cabinet area and surrounding components from excessive heat. It helps maintain safe operation and reduces heat transfer to nearby parts. What it does:

• Shields the oven's lower cavity and insulation from direct heat
• Prevents heat-related damage to the range cabinet and nearby components
• Can reduce hotspots that cause smoking or burning odors
• Restores proper airflow and clearance under the oven when damaged or missing

• One lower heat shield

• Disconnect power (and gas, if applicable) before servicing the appliance
• Remove oven drawer and access panels to reach and replace the shield
• Use gloves to protect hands from sharp metal edges during installation
• Tighten fasteners securely but do not overtighten—replace any damaged mounting hardware

This cover latch secures the appliance's top access cover so it stays closed during use and lets you open the cover for service or maintenance. It restores a positive, smooth-closing latch action for safe access. What it does:

• Holds the top/access cover closed to prevent accidental opening during operation
• Provides a solid engagement point for the cover to snap or latch into place
• Replaces a broken, worn or loose latch that causes rattling or an unsecured cover
• Helps ensure proper alignment of the cover for safe servicing and operation

• Disconnect power (unplug or shut off breaker) before beginning any service
• Typically installs with simple snap-in or screw fasteners; keep fasteners from the original part

This valve lockout mounting clip secures the appliance's gas valve actuator to help prevent unintended valve movement and ensure consistent operation. It replaces a worn or broken lockout clip to restore reliable valve positioning. What it does:

• Secures the gas valve actuator or linkage to keep the valve in its intended position
• Helps stop intermittent or loose valve movement that can cause inconsistent ignition or burner operation
• Restores proper mechanical alignment after the original clip has cracked, bent, or broken
• Small replacement part used where a damaged lockout clip prevents stable valve function

• One valve lockout mounting clip

• Disconnect power and shut off gas supply before servicing; follow all safety precautions
• Inspect adjacent fasteners and actuator for damage; replace any additional damaged parts as needed
• Basic hand tools typically required; handle small plastic clips carefully to avoid breakage
