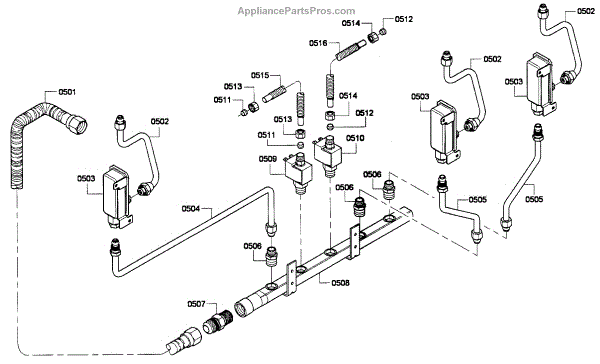

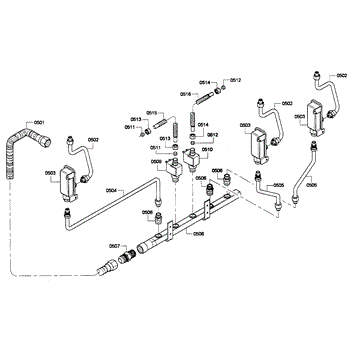

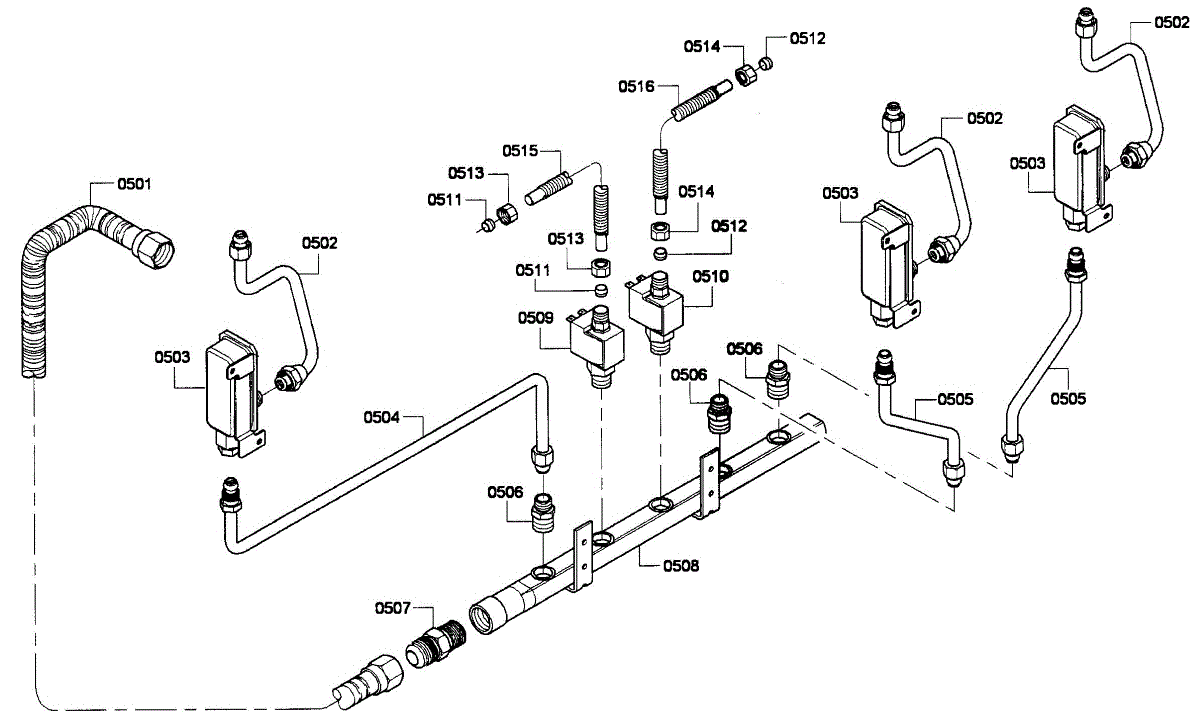

Parts for Thermador PRG486EDPG/01: Gas Supplay 2 Parts

This replacement valve outlet directs fluid from a control valve into the appliance's plumbing, restoring correct flow and stopping leaks caused by cracked or worn outlets. It's a direct-fit service part when the outlet is damaged. What it does

• Channels water or other fluid from the valve to the appliance inlet tubing or spray assembly
• Replaces brittle, cracked, or clogged outlets that can cause leaks
• Restores normal flow when a damaged outlet is restricting supply downstream
• Helps stop intermittent filling or draining problems related to a broken outlet piece

• One valve outlet

• Disconnect power and shut off the water supply before starting repairs
• Inspect surrounding gaskets, seals and connecting tubing; replace if worn
• Hand-fit then snug fittings—avoid overtightening plastic fittings to prevent cracking
• After installation, restore power and water, then run a test cycle and check for leaks

The Broil Solenoid is an OEM part for Bosch ranges. The solenoid receives a signal from the range’s control board and operates based on internal coil and plunger mechanisms. When activated, it opens the gas valve or switches electric current to energize the broil element positioned above the oven cavity.

Symptoms of a faulty broil solenoid can include:

• Inability to initiate or sustain broiling despite selecting the function
• Delayed broil ignition or shutoff not matching timer settings
• Gas smell or abnormal burner activity from improper valve control

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This bake solenoid controls gas flow to the main oven's bake burner. When energized by the control, it opens the safety valve so the igniter can light the flame and the oven can heat and maintain your set temperature. What it does:

• Opens and closes gas flow to the bake burner during a call for heat
• Works with the igniter/flame-sensing system to light the bake flame
• Helps maintain set temperature by cycling gas flow during bake
• Typical symptoms of a failing solenoid: bake burner won't ignite, igniter glows with no flame, or the burner lights then shuts off

• One bake solenoid for the main oven

• Disconnect power and shut off the gas supply before servicing
• Access the oven valve/solenoid assembly per your unit's service manual
• Transfer electrical connectors one at a time; ensure proper orientation and secure fit
• After reassembly, restore gas and check all connections for leaks with a soap-and-water solution

This compression sleeve forms the sealing ring for a 5/16-inch tubing compression joint, restoring a watertight connection when used with a matching compression nut and fitting. Ideal for stopping leaks and restoring reliable water lines. What it does:

• Creates the compression seal on 5/16" tubing when installed with a compatible compression nut and fitting.
• Stops leaks or drips at compression-style water connections.
• Used on appliance water lines (ice makers, water inlets) and other 5/16" tubing joints.
• Replaces worn or damaged sleeves that fail to hold a tight seal.

• Shut off the water supply and relieve pressure before working on water lines.
• Inspect and cut tubing squarely; slide the sleeve onto the tube before threading the compression nut and fitting.
• Tighten the compression nut per the fitting manufacturer's instructions and check the joint for leaks.
• Replace the sleeve if damaged or deformed.

This compression sleeve seals 3/8-inch refrigeration or water tubing where a compression fitting is used, restoring a tight, drip-free connection. It's a simple replacement to stop leaks and ensure a secure joint. What it does:

• Acts as the ferrule inside a compression fitting to compress against tubing and create a seal
• Restores a worn or flattened sleeve that causes leaks at nuts or fittings
• Used with a matching compression nut and fitting to secure 3/8" tubing
• Commonly replaced when connections leak, weep, or fail to hold pressure

• One compression sleeve sized for 3/8 in. tube

• Turn off and depressurize the system (water or refrigeration) before removing fittings
• Cut tubing square and deburr before installing the sleeve for best seal
• Slide the nut then the sleeve onto the tube, seat against the fitting, and tighten to manufacturer torque
• Inspect the joint for leaks after pressurizing and retighten if needed; replace sleeve if damaged during installation

This is a compression nut for 5/16-inch tubing. It secures the tubing to a compatible compression fitting to create and maintain a tight, reliable connection.

• Clamps 5/16-inch tubing onto a matching compression fitting when tightened
• Helps restore a secure seal at a leaking or loose compression joint
• Useful when threads are stripped, the original nut is cracked, or the connection won't hold tension
• Common signs include drips at the fitting, inability to tighten, or visible thread damage

• Shut off the supply and allow the system to depressurize before service
• Use appropriately sized wrenches; avoid overtightening to prevent damage
• Inspect the ferrule/olive and tubing end; replace if worn or distorted
• After installation, restore supply and check for leaks at the connection

This compression nut secures 3/8 in. refrigeration or water tubing to a matching compression fitting, creating a tight mechanical seal for supply lines. It's a simple, serviceable fastener used on valves and pipe connections. What it does:

• Threads onto a compression fitting to hold ferrule and tubing in place
• Helps create a leak-resistant joint on 3/8 in. tubing connections
• Commonly used on water supply, ice maker, or refrigeration line fittings
• Replaces a worn or damaged nut that causes loose or leaking connections

• Turn off water or power to the appliance and relieve system pressure before servicing
• Hand-start threads to avoid cross-threading; tighten snugly with appropriate wrenches
• Inspect ferrule and tubing; replace ferrule or cut tubing square if reusing connection
• If you see persistent leaks after tightening, stop and check components.

This 48-inch gas supply tube routes fuel from the appliance inlet to the internal gas valve, providing a direct replacement for damaged, corroded or bent factory tubing. Restores safe gas flow when the original tube is compromised. What it does:

• Directs gas from the inlet to the appliance gas valve for ignition and burner operation.
• Replaces tubing that is cracked, bent, corroded or otherwise leaking.
• Addresses symptoms like a persistent gas odor near the appliance, burners that won't light, or visible damage to the original tube.
• Provides the correct length and routing to match the appliance's original configuration.

• Turn off the gas supply and electrical power to the appliance before beginning work.
• After installation, test all connections for leaks with a soap-and-water solution or a calibrated gas leak tester; do not use an open flame.
• Do not modify or shorten the tube; use the correct routed length and fittings for a proper seal.
