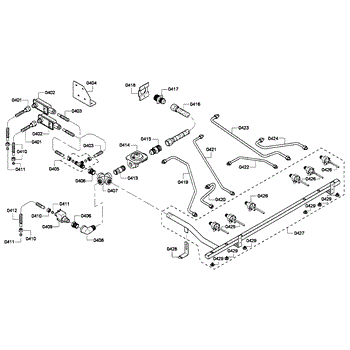

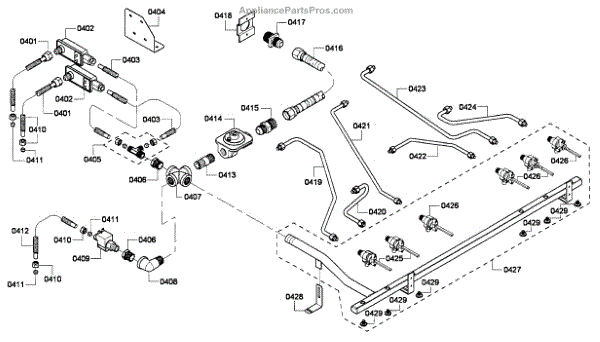

Parts for Thermador PRG366EPG/01: Gas Supplay Parts

This two-way valve controls water flow into the appliance, restoring proper fill and cycle operation when the valve fails. Direct-fit replacement designed to match OEM function and restore reliable water routing. What it does:

• Opens and closes to direct water to the correct circuit during wash/fill cycles
• Stops water flow when the appliance is off or when a fill cycle is complete
• Commonly replaced for symptoms like no fill, continuous filling, or leaking at the valve
• Provides the solenoid-actuated shutoff function used by the appliance control system

• Disconnect power and water supply before starting; verify the appliance is completely de-energized
• Drain remaining water and take photos of hose/electrical connections before removal to aid reassembly
• Use hand tools and avoid overtightening fittings to prevent damage; inspect inlet hoses and seals while replacing

This replacement mounting bracket secures internal panels or assemblies to restore proper alignment and reduce movement. It provides a simple, durable fix when a broken or worn bracket lets panels shift or rattle. What it does

• Secures panels or appliance assemblies to their mounting points to maintain alignment and stability.
• Keeps doors, panels, or control housings from shifting or sagging.
• A damaged bracket can cause rattling, loose panels, or misalignment during operation.
• Replacing the bracket restores proper fit and reduces noise from loose components.

• Disconnect power (and water for dishwashers/wet appliances) before starting any repair.
• Use basic hand tools (screwdriver, nut driver) to remove fasteners and swap the bracket.
• Keep removed fasteners and any clips to reinstall; inspect mating surfaces for damage.

This bake solenoid controls gas flow to the main oven's bake burner. When energized by the control, it opens the safety valve so the igniter can light the flame and the oven can heat and maintain your set temperature. What it does:

• Opens and closes gas flow to the bake burner during a call for heat
• Works with the igniter/flame-sensing system to light the bake flame
• Helps maintain set temperature by cycling gas flow during bake
• Typical symptoms of a failing solenoid: bake burner won't ignite, igniter glows with no flame, or the burner lights then shuts off

• One bake solenoid for the main oven

• Disconnect power and shut off the gas supply before servicing
• Access the oven valve/solenoid assembly per your unit's service manual
• Transfer electrical connectors one at a time; ensure proper orientation and secure fit
• After reassembly, restore gas and check all connections for leaks with a soap-and-water solution

This compression nut secures 3/8 in. refrigeration or water tubing to a matching compression fitting, creating a tight mechanical seal for supply lines. It's a simple, serviceable fastener used on valves and pipe connections. What it does:

• Threads onto a compression fitting to hold ferrule and tubing in place
• Helps create a leak-resistant joint on 3/8 in. tubing connections
• Commonly used on water supply, ice maker, or refrigeration line fittings
• Replaces a worn or damaged nut that causes loose or leaking connections

• Turn off water or power to the appliance and relieve system pressure before servicing
• Hand-start threads to avoid cross-threading; tighten snugly with appropriate wrenches
• Inspect ferrule and tubing; replace ferrule or cut tubing square if reusing connection
• If you see persistent leaks after tightening, stop and check components.

This compression sleeve seals 3/8-inch refrigeration or water tubing where a compression fitting is used, restoring a tight, drip-free connection. It's a simple replacement to stop leaks and ensure a secure joint. What it does:

• Acts as the ferrule inside a compression fitting to compress against tubing and create a seal
• Restores a worn or flattened sleeve that causes leaks at nuts or fittings
• Used with a matching compression nut and fitting to secure 3/8" tubing
• Commonly replaced when connections leak, weep, or fail to hold pressure

• One compression sleeve sized for 3/8 in. tube

• Turn off and depressurize the system (water or refrigeration) before removing fittings
• Cut tubing square and deburr before installing the sleeve for best seal
• Slide the nut then the sleeve onto the tube, seat against the fitting, and tighten to manufacturer torque
• Inspect the joint for leaks after pressurizing and retighten if needed; replace sleeve if damaged during installation

This 48-inch gas supply tube routes fuel from the appliance inlet to the internal gas valve, providing a direct replacement for damaged, corroded or bent factory tubing. Restores safe gas flow when the original tube is compromised. What it does:

• Directs gas from the inlet to the appliance gas valve for ignition and burner operation.
• Replaces tubing that is cracked, bent, corroded or otherwise leaking.
• Addresses symptoms like a persistent gas odor near the appliance, burners that won't light, or visible damage to the original tube.
• Provides the correct length and routing to match the appliance's original configuration.

• Turn off the gas supply and electrical power to the appliance before beginning work.
• After installation, test all connections for leaks with a soap-and-water solution or a calibrated gas leak tester; do not use an open flame.
• Do not modify or shorten the tube; use the correct routed length and fittings for a proper seal.

This gas pressure regulator controls and stabilizes incoming supply pressure to the appliance manifold, helping ensure consistent burner flames and reliable ignition. Replace if the original regulator is sticking or no longer maintaining correct pressure.

• Regulates incoming gas to the appliance's rated manifold pressure
• Helps maintain even flame height and proper combustion
• Supports reliable burner ignition and reduces flame-out from pressure swings
• Common symptoms include weak or uneven flames, yellow tipping, burners not lighting or not staying lit, or flames that are too high

• Disconnect electrical power and shut off the gas supply before servicing
• Observe the flow-direction arrow; install with outlet toward the appliance manifold
• Use approved gas-rated thread sealant on male threads only and leak-test all joints with a non-corrosive solution after installation

The Tube is a genuine OEM part for Bosch ranges. This part facilitates the delivery of gas to the surface burners, ensuring that they operate efficiently and safely.

Over time, the Tube may exhibit signs of wear or damage due to rusting, physical damage or natural degradation.

Symptoms indicating the need for a new Tube include:

• A decrease in burner flame quality or uneven flames, which can affect cooking performance.
• The smell of gas in the vicinity of the range, signaling a potential gas leak.
• Difficulty igniting the surface burners or experiencing incomplete combustion.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement tube routes water safely through the appliance to the drain or internal reservoir, restoring proper flow and preventing leaks. It's a direct-fit service part when the original tube is cracked, split, or clogged. What it does

• Channels wastewater or condensate away from the appliance to the drain path
• Restores sealed water flow to prevent leaking or pooling inside the unit
• Stops symptoms like visible leaks, water under the appliance, or interrupted drain cycles
• Replaces brittle, cracked, or clogged tubing that no longer seals properly

• One replacement tube as shown

• Turn off power and shut off the water supply before starting any repair
• Inspect clamps, fittings, and nearby hoses; replace damaged hardware as needed
• Use proper clamps and ensure all connections are secure to prevent leaks

The Tube is a genuine OEM part for Bosch ranges. This part facilitates the delivery of gas to the surface burners, ensuring that they operate efficiently and safely.

Over time, the Tube may exhibit signs of wear or damage due to rusting, physical damage or natural degradation.

Symptoms indicating the need for a new Tube include:

• A decrease in burner flame quality or uneven flames, which can affect cooking performance.
• The smell of gas in the vicinity of the range, signaling a potential gas leak.
• Difficulty igniting the surface burners or experiencing incomplete combustion.

This genuine OEM Bosch part is also compatible with Thermador, Gaggenau and select Kenmore models.

This replacement tube routes water inside the appliance to restore proper flow and prevent leaks. It's a direct-fit service part when the original tube is cracked, split, or clogged and needs replacement. What it does:

• Channels water between internal components to maintain normal operation
• Restores proper water flow when the OEM tube is damaged or leaking
• Helps prevent water damage and interruption of appliance cycles caused by split or clogged tubing
• Compatible with the appliance's existing fittings and mounting points when used as a factory replacement

• One replacement tube as shown

• Recommended for users comfortable with basic appliance disassembly; follow manufacturer service manual for access steps
• Turn off power and shut off water supply before starting work
• Inspect clamps, seals and surrounding hoses while replacing; replace any worn fasteners or gaskets

This is a replacement appliance tube that routes water or air inside compatible Bosch appliances to maintain proper operation and prevent leaks. Durable plastic construction restores the original pathway for fluids or airflow. What it does:

• Replaces a worn, cracked, or damaged internal tube to stop leaks or seepage
• Restores proper routing of water or air so the appliance can operate as designed
• Helps eliminate symptoms like visible leaking, pooling, or unusual odors from trapped moisture
• Works as a direct-fit replacement where the original tube has failed or deteriorated

• One replacement tube

• Disconnect power and turn off the water supply before beginning any repairs
• Compare the new tube to the original for length, fittings, and orientation before installing
• Use proper clamps or retainers as required by the appliance; secure connections to prevent leaks

Replacement water inlet valve that controls an appliance's incoming water flow for reliable fill and cycle operation. Replacing a faulty valve can stop no-fill, slow-fill, or continuous-fill issues and restore normal performance. What it does:

• Opens and closes to regulate water entering the appliance during fill cycles.
• Helps ensure correct water levels for proper washing or rinsing.
• Common symptom fixer for appliances that won't fill, fill slowly, or keep filling.
• May cause visible leaks at the valve or trigger fill-related fault behavior if failed.

• Turn off power and shut off the water supply before starting any work.
• Open a cycle or relieve pressure to drain residual water before removing the old valve.
• Inspect and replace any worn seals or inlet hoses when installing the new valve.
• Follow the appliance service manual for specific removal/installation steps.

This replacement screw secures appliance panels and components in their proper position. Installing this screw restores a solid, factory fit and helps prevent vibration and misalignment.

• Fastens panels, brackets, or internal parts to the appliance chassis
• Maintains alignment to reduce vibration and rattling noises
• Replaces missing, rusty, or stripped hardware
• Typical symptoms include loose panels, gaps, rattles, or a screw that won't tighten

• Disconnect power (and shut off water or gas, if applicable) before servicing
• Support panels and watch for sharp edges and pinch points
• Use the correct driver size/type for your model to avoid stripping
• Start threads by hand to prevent cross-threading; tighten snugly without over-torquing
