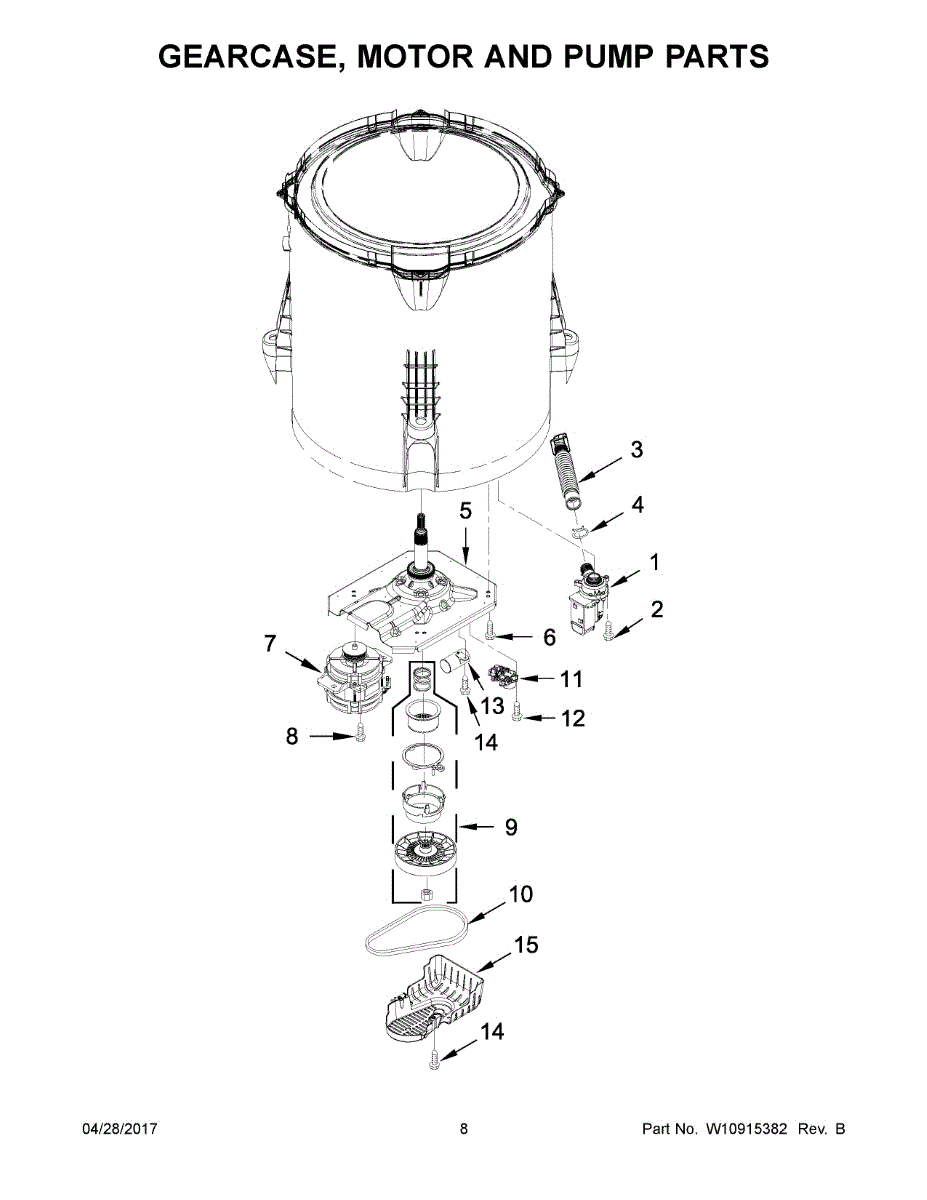

Parts for Maytag 3LMVWC415FW0: 05 - Gearcase, Motor And Pump Parts

The Pump-Water is an OEM part for Whirlpool washing machines. This part facilitates the removal of water from the wash tub at the end of each cycle. This drains used water and ensures that clothes are properly rinsed and ready for the drying process.

Causes of a bad water pump can include clogging from small garments, lint, or debris, wear and tear on the pump's moving parts, or electrical faults that impair the pump's functionality.

Symptoms of a bad Pump-Water include:

• Water not draining out of the washing machine, leaving clothes soaked
• Noisy operation or unusual sounds coming from the pump area, indicating a malfunction
• The washer failing to proceed to the spin cycle due to water not being evacuated

This OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper and some Kenmore models.

This factory fastener secures appliance panels and components for a tight, rattle-free fit. Replace a missing, stripped, or corroded screw to keep assemblies aligned and performing as intended.

• Fastens panels, brackets, or assemblies in place
• Helps reduce vibration and rattling caused by loose hardware
• Maintains proper alignment of parts to prevent premature wear
• Common signs you need it: missing screw, loose panel, vibration/buzzing noises, or hardware that won't tighten

• Disconnect power; for gas or water-connected appliances, shut off supply lines before service
• Match the screw to the original; verify size, length, and thread before installation
• Start threads by hand to avoid cross-threading; use the correct driver bit
• Snug only—do not overtighten, especially into plastic or thin sheet metal

The Internal Drain Hose is an OEM replacement part for Whirlpool washing machines. It routes used wash water from the tub to an external drain source.

Causes of a faulty internal drain hose can include cracks developing from constant use or obstructions blocking effective drainage.

Symptoms of a bad internal drain hose include:

• Water leaks inside or around the base of the washer
• Incomplete drainage of water at the end of cycles
• Accumulation of dirty water inside the machine

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Hose Clamp is an OEM part for Whirlpool washing machines. This clamp secures the hose in place, ensuring a tight connection and preventing leaks during operation. It is essential for maintaining the integrity of the washing machine's water system, securing hoses that carry water to and from the washer.

Common causes of a bad hose clamp include rust, physical damage, or loosening from repeated tightening and loosening.

Symptoms of a bad hose clamp include:

• Water leaks around the hose connection points
• The hose slipping off the fitting
• Visible rust or wear on the clamp
• Difficulty in tightening the clamp to secure the hose

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and some Kenmore models.

The Washer Gear Case is an OEM part for Whirlpool washing machines. It is essential for the proper functioning of the washer's transmission system, which controls the drum's agitation and spinning motions during the wash and spin cycles. This gear case ensures that your washing machine operates smoothly and efficiently.

Causes of a bad gear case can include mechanical wear and tear from prolonged use, exposure to excessive loads, or internal component failure. Such issues can hinder the gear case's ability to manage the drum's movements effectively.

Symptoms of a bad gear case include:

• The washer not agitating or spinning properly
• Loud grinding or clunking noises during operation
• Oil or grease leaks from the bottom of the washer
• The washer failing to complete cycles

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement 7-2-1 screw secures components in compatible Whirlpool appliances, providing a dependable fastener for panels and assemblies. Use it to restore proper fitment and reduce rattling or loose parts. What it does

• Fastens trim, panels, brackets, or internal assemblies to keep parts secure
• Helps stop vibration-related noise from loose components
• Restores correct mounting where the original screw is missing or damaged
• Matches the form and fit of the OEM fastener for intended attachment points

• One replacement 7-2-1 screw

• Use the correct driver to avoid stripping the screw head
• Hand-start threads before tightening to prevent cross-threading
• Tighten until snug—do not over-tighten to avoid damaging plastic or sheet-metal parts
• Disconnect power to the appliance before accessing internal areas

This replacement cam is a small rotary actuator used in the appliance's mechanical control assemblies to transfer motion and engage linked parts. Replacing a worn cam restores reliable mechanical engagement and smooth operation. What it does:

• Transfers rotational motion between control components so linked parts move when commanded
• Helps engage or time mechanical actions in the control or drive assembly
• Worn or broken cams can cause intermittent operation, failure to engage, or noisy movement
• Prevents slipping or improper timing when replaced before significant wear

• One replacement cam

• Disconnect power (and water if applicable) before starting any repair
• Access may require removing panels or control housing; keep fasteners organized
• Inspect adjoining parts (pins, levers, bushings) and replace if worn to prevent repeat failure
• Test operation after reassembly and restore panels/guards for safe use

This drive belt connects the washer's motor to the drive system so the basket agitates and spins as designed. Replacing a worn or broken belt restores reliable power transfer and helps stop slipping, squealing, and no-spin issues.

• Transfers motor power to the drive system for proper agitation and spin
• A stretched, glazed, or broken belt can cause no spin, no agitation, slow or intermittent spin
• Squealing/chirping noises or a hot rubber smell often indicate belt slippage
• Visible cracks, fraying, or glazing are signs the belt should be replaced

• Disconnect power and water; move the washer to access the base safely
• On many models, access is from below—tip the unit back carefully per service instructions
• Walk the old belt off the pulleys; route and seat the new belt by rotating the pulleys; ensure it's centered and untwisted
• Inspect motor and drive pulleys/splutch for wear or misalignment before test-running an empty cycle

This factory screw secures appliance panels and components, keeping them properly aligned and quiet during operation. Replace a stripped, corroded, or missing fastener to restore a snug fit and dependable performance in the original mounting location. What it does:

• Fastens brackets, panels, trim, or internal hardware to the cabinet/frame as specified by the manufacturer
• Helps maintain proper alignment and reduce rattling or vibration when a screw is worn or missing
• Direct replacement for damaged, stripped, or rusted hardware
• Used in various locations per the service diagram; match to the original position

• 1 screw

• Disconnect power (and shut off water or gas, if applicable) before servicing.
• Compare length and thread style to the original; install in the same location.
• Start threads by hand to avoid cross-threading; tighten until snug—do not overtighten.
• Reinstall any brackets or panels in the correct order.
