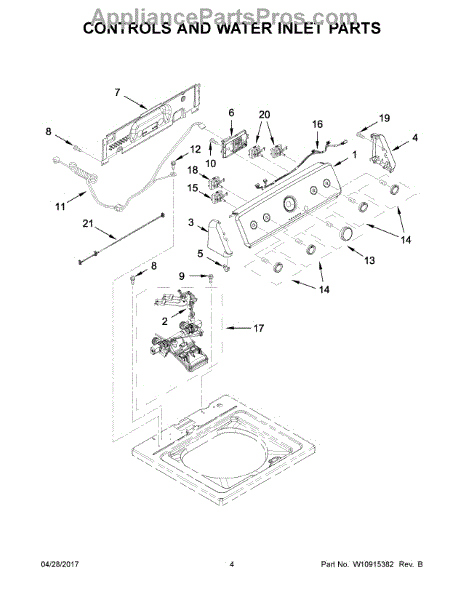

Parts for Maytag 3LMVWC415FW0: 03 - Controls And Water Inlet Parts

The Console Clip is an OEM part compatible with Whirlpool dryers. This clip secures the control console assembly to the top panel, ensuring it is firmly mounted during operation. Properly functioning clips are necessary to maintain the correct alignment of controls and prevent detachment.

Causes of a bad clip can include wear and fatigue from repeated opening and closing of the dryer door. Excessive force or impact could also bend or break the clip over time.

Symptoms of a bad clip include:

• Loose console assembly that is not securely fastened
• Misaligned or dangling controls that do not sit flush
• Dislodged console at risk of detaching from housing
• Missing clip leaving an open mounting point

This OEM Whirlpool replacement clip is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

Size: 1/4 inch hex head, 10-12 x 1/2 inch.

Number-8, 18-thread screw used to secure panels, brackets and small assemblies in Whirlpool appliances. Replacing a missing or damaged screw restores secure mounting and helps stop rattling or loose parts. What it does:

• Fastens trim, panels, brackets or small appliance components that use a #8-18 threaded fastener
• Restores secure mounting when a screw is lost, stripped or damaged
• Helps eliminate vibration-related noise from loose parts
• Simple replacement part for basic fastening needs

• Disconnect power to the appliance before servicing and work on a cool, stable surface
• Use the correct screwdriver or driver bit to avoid cam-out or stripped heads
• Thread in straight and tighten until snug; do not over-torque to avoid stripping threads or damaging components
• Replace with the identical screw type and size for proper fit and function

The Whirlpool screw is an OEM replacement part responsible for securing various components or parts on different types of Whirlpool appliances. The screw is designed to provide a secure and reliable fastening connection, ensuring that different parts of the appliance stay in place. It is commonly used in different locations within the appliance, such as the cabinet, panels, or other structural elements.

This part fixes the following symptoms:

• Loose or wobbly components within the appliance
• Panels or parts that are not securely attached
• Rattling or unusual noises due to loose parts
• Damaged or missing screw

The Whirlpool screw can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Screw is an OEM component compatible with Whirlpool washing machines. This screw secures the rear bulkhead to the tub, ensuring vibrations are reduced through solid mounting points. Properly installed screws dampen oscillating movement.

Causes of a bad screw include damage from water exposure like corrosion or breakage from stress concentrations if the tub bangs around during imbalanced loads.

Symptoms of a bad screw include:

• Loose or detached rear bulkhead allowing side-to-side play
• Excessive noise and shaking felt through the surrounding walls
• Development of micro-cracks around screw holes over time
• Potential leak paths if holes are no longer sealed

This Whirlpool replacement screw restores a stable suspension system. It is compatible with additional brands like Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The Knob is an OEM replacement part for Whirlpool dryers. This part is what you turn to select different drying cycles, temperatures, or settings on your machine. The knob is designed to fit onto the dryer's control panel and is used for manual operation of the appliance.

Symptoms of a bad Knob include:

• Difficulty in turning or setting the knob
• The knob slipping or coming off the control panel
• Inability to select or change cycles
• Visible cracks or damage to the knob itself
• Causes for a deteriorating knob can be frequent use, which may lead to wear and tear, or accidental damage from impact or mishandling.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

This replacement control knob restores smooth, reliable turning on your appliance's control panel so you can select settings accurately again. It's designed to slide onto the control shaft and provide a secure, easy-grip interface. What it does

• Attaches to the control shaft to let you select settings
• Replaces cracked, stripped, or missing knobs
• Helps ensure the switch or valve engages properly when turned
• Improves grip and appearance on the front panel

• 1 control knob

• Disconnect power; if servicing a gas appliance, also shut off the gas supply
• Pull the old knob straight off the shaft—do not pry against the panel
• Align the new knob with the shaft flats/splines and press straight on without forcing
• Test operation to ensure the knob fully engages the control

Rotary encoder that restores precise cycle selection and reliable knob feedback on the control panel. Replaces a worn or unresponsive cycle switch so the control board can detect the chosen program correctly. What it does:

• Senses knob/shaft position and sends cycle-selection signals to the control board.
• Restores tactile detents and accurate position indexing for the user control knob.
• Commonly fixes symptoms like the control not recognizing selected cycles, intermittent cycle changes, or a loose/unresponsive selector.
• Works as the electronic/mechanical cycle switch used by the control assembly to select programs.

• Disconnect power to the appliance before starting any service.
• Access typically requires removing the control knob and control panel—note screw and connector locations during disassembly.
• Handle the part and nearby PCB/terminals carefully to avoid bending contacts or ESD damage.
• Reassemble panels and test cycle selection through several positions to confirm correct operation before finishing.

This rotary encoder mounts behind the washer's cycle knob and tells the main control which setting you select. When it fails, selections may be erratic or unresponsive. Replacing it restores accurate, dependable cycle selection. What it does

• Detects the position of the cycle selector knob
• Sends selection signals to the main control board
• Enables precise cycle and option changes
• Common symptoms: knob turns but lights don't follow, random/incorrect selection, can't select a cycle, won't start

• One rotary encoder

• Disconnect power to the washer before servicing
• Access the control console and remove the knob/dial to reach the encoder
• Note orientation, unplug the harness, release tabs/screws, and swap in the new encoder
• Handle electronics carefully and avoid static discharge; verify knob-to-light tracking before reassembly

This factory fastener is a #8-18 x 5/8-inch Type AB screw designed for appliance assembly. It secures panels and components to restore a tight, rattle-free fit and dependable alignment. What it does:

• Thread-forming Type AB design engages thin metal or plastic components
• Secures panels, brackets, trim, or covers to reduce looseness and vibration
• Replaces missing, stripped, or corroded fasteners
• Helps maintain alignment for proper operation and reduced noise

• One screw

• Disconnect power before servicing; shut off water supply if working near water lines
• Use the correct driver for the screw head; start by hand to avoid cross-threading
• Tighten until snug—do not overtighten to prevent stripping or cracking plastic
• Repair damaged holes or replace worn clips/inserts before installing the new screw

• Size: #8-18 x 5/8 in (length 0.625 in)
• Thread type: Type AB, thread-forming

Restore precise cycle selection with this rotary encoder cycle switch. Mounted behind the control knob, it sends your chosen setting to the washer's control, resolving unresponsive or erratic knob behavior so the correct cycle and indicators engage.

• Translates knob rotation into signals the main control uses to select a wash cycle
• Helps ensure the selected cycle registers accurately on the user interface
• Wear or internal faults may cause an unresponsive or erratic cycle knob
• May also lead to incorrect indicator lights, intermittent selection, or a no-start condition

• Disconnect power before servicing
• Pull the knob straight off; open the console to access the encoder
• Release locking tabs and transfer wiring one connector at a time; align the keyed shaft
• Reassemble and verify the indicators respond to knob rotation before running a load
