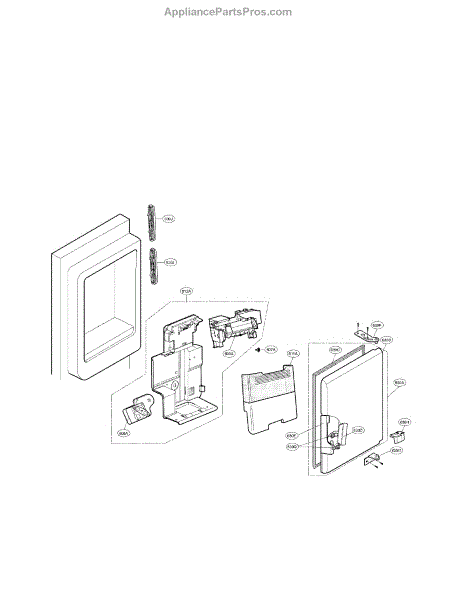

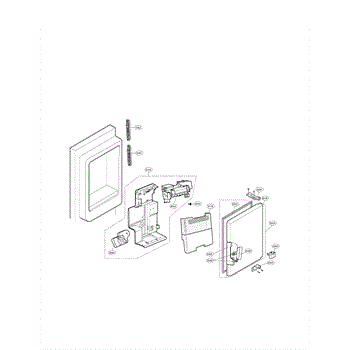

Parts for Lg LFX28979ST / 05: Ice Maker And Ice Bin Part Parts

The Water Filter is an OEM replacement part for LG refrigerators. It is designed to remove impurities, contaminants, and unwanted particles from the water supply, ensuring that the water dispensed and used for ice making is clean and fresh.

Symptoms of a need to replace the water filter:

• Unpleasant taste or odor in the water or ice
• Decreased water flow from the dispenser
• Discoloration or sediment visible in the dispensed water

Causes of a faulty water filter can include general usage over time, exposure to high levels of contaminants in the water supply, or physical damage or clogging of the filter media.

This OEM LG part is also compatible with some Kenmore refrigerator models.

NOTE: For 3 wire connectors, see part number AEQ73110203

The 14 Cube Ice Maker is an OEM part for LG refrigerators. This ice maker is responsible for automatically producing batches of cube ice on demand to keep extra ice readily available in the freezer.

Causes of a bad ice maker can include failures from usage over time, clogged lines preventing proper water flow, or impaired mechanical components.

Symptoms of a bad ice maker include:

• Reduced or no ice production at all
• Water buildup or overflowing due to malfunctioning fill valves
• Grinding or crunching noises from impaired mechanical parts
• Error codes or fault messages for ice production issues

This OEM LG replacement is also compatible with Sears/Kenmore refrigerator models.

The Ice Dispenser Auger Motor is an OEM part for LG refrigerators. This part is designed to drive the auger that moves ice from the ice bin into the dispenser chute. This motor ensures that ice is available on demand through the door dispenser.

Causes of a bad Ice Dispenser Auger Motor can include electrical issues such as a burnt-out motor, wear and tear on the motor's components over time, or damage from moisture or ice buildup that can affect the motor's functionality.

Symptoms of a bad Ice Dispenser Auger Motor include:

• The ice dispenser not dispensing ice, even though the ice bin is full.
• A humming or buzzing sound from the motor area without any ice being dispensed, indicating the motor is receiving power but failing to turn the auger.
• Intermittent or inconsistent dispensing of ice, which can suggest a failing motor.

This OEM LG part is also compatible with Sears/Kenmore.

This holder assembly is a structural mounting piece that supports and secures an internal component in your appliance. Replacing a cracked or worn bracket helps restore proper alignment and keeps parts stable during everyday use.

• Provides a rigid mounting point for the attached component
• Keeps parts aligned to reduce movement and vibration
• Helps prevent rattling or noise from loose mounts
• Common signs of failure: visible cracks/broken tabs, looseness, or parts that won't stay seated

• Disconnect power and, if applicable, turn off the water supply before service
• Note the orientation of the original part to match fitment
• Reuse existing mounting screws or hardware unless the manufacturer specifies otherwise
• Do not overtighten fasteners; the secured component is fully seated and stable

The Ice Bucket Assembly is an OEM part for LG refrigerators. It is designed to collect and store ice produced by the icemaker, ensuring a convenient and organized storage solution within the freezer.

Causes of a bad ice bucket assembly can include damage from frequent handling, cracks or breaks due to impact, or issues with the internal components such as the auger or motor. Over time, these issues can impair the functionality of the ice bucket, leading to inefficient ice storage or dispensing problems.

Symptoms of a bad ice bucket assembly include:

• Cracks or visible damage to the bucket
• Ice not dispensing properly
• The bucket not fitting securely in place
• Excessive noise during ice dispensing

This OEM LG part is also compatible with Sears/Kenmore.

This AC fan motor drives the cooling fan that moves air through your appliance's heat-exchange coils, helping maintain stable temperatures. Replace a failed motor to restore reliable airflow and reduce noise or inconsistent cooling.

• Powers the fan blade to move air across the coils for efficient heat transfer
• Helps maintain steady compartment temperatures and overall cooling performance
• Common symptoms include: fan not running, weak or no airflow, loud humming/squealing, or intermittent cooling
• Replaces a seized, slow, or burnt-out motor to restore proper circulation

• Disconnect power before servicing; allow moving parts to stop completely
• Access the fan assembly; note wire positions and mounting orientation
• Transfer the fan blade, bracket, and grommets from the old motor if required
• Secure the motor, route wiring as original, ensure the blade spins freely, then restore power and verify operation

This is a complete freezer door assembly that replaces a damaged or worn freeze-room door to restore sealing and cold retention. It helps improve temperature consistency and prevents frost buildup when the door is intact and sealing properly. What it does:

• Replaces the outer and inner door components used to open and close the freezer compartment.
• Restores a proper door seal to help maintain consistent freezer temperature and reduce compressor run time.
• Addresses common symptoms like visible door damage, poor sealing, or cold loss from the freezer compartment.
• Helps stop moisture ingress that can lead to frost buildup and food spoilage.

• One complete freezer door assembly as shown.

• Handle with care to avoid scratching finished surfaces; support the door during removal/installation.
• Disconnect power to the appliance before starting work to prevent electrical hazards when the door has sensors or wiring.
• Verify fasteners, hinges, and any attached wiring/gaskets are present and secure after installation.

This lower ice bank door hinge secures and pivots the freezer's ice bank door so it opens and closes smoothly, helping maintain proper sealing and ice dispensing alignment. Designed as a direct replacement for the original hinge. What it does:

• Supports the ice bank door, providing a stable pivot point for opening and closing
• Keeps the ice bank door aligned to maintain an effective seal and proper operation
• Prevents sagging or binding that can interfere with ice dispensing or door function
• Restores correct door movement after hinge wear or damage

• Use basic hand tools; keep power to the appliance off and unplug before starting
• Handle the ice bank and door carefully to avoid damaging the trim or ice chute
• Reuse original fasteners only if undamaged; replace damaged screws to ensure secure mounting

This door gasket seals the refrigerator door to the cabinet to keep cold air in and moisture out. Replacing a worn or deformed gasket restores a tight seal for proper cooling and helps reduce frost and condensation around the door opening. What it does:

• Forms an airtight seal between the door and cabinet frame
• Helps maintain stable internal temperature and humidity
• Helps prevent frost, icing, and condensation near the door
• Helps with symptoms like visible tears, gaps, poor door sealing, or warm spots/frost near the gasket

• 1 refrigerator door gasket

• Disconnect power before servicing
• Warm the new gasket (soak in warm water or gently heat) to improve flexibility
• Remove the old gasket and clean the mounting groove/sealing surface
• Press the new gasket fully into the groove/retainer; adjust door alignment if needed

The Ice Door Handle is an OEM replacement part for LG refrigerators. It allows users to easily access ice and water from the external ice/water dispenser. Handles experience substantial daily use as people frequently obtain water/ice. Over the years, plastic hinges can degrade from repeated opening/closing stresses.

Causes include fatigue cracks along hinge points from perpetual flexing. General wear and tear as well as occasional impacts also deteriorate structure.

Symptoms of a bad ice door handle include:

• Loose, wobbly, or dysfunctional opening/closing capability
• Cracks around mounting brackets compromise integrity
• Detached handle pieces preventing access to ice/water dispenser
• Excessive opening force required or inability to fully open/close

This OEM LG replacement is also compatible with select Sears/Kenmore refrigerators.

The Ice Bank Door Gasket is an OEM part for LG refrigerators. This gasket is designed to seal the ice bank door, ensuring a tight closure to maintain optimal temperatures inside the ice compartment. By preventing warm air from entering, it helps preserve the quality and quantity of ice produced by the icemaker.

Causes of a bad gasket can include wear and tear from frequent opening and closing of the door, physical damage from cleaning or mishandling, or degradation over time due to exposure to temperature changes.

Symptoms of a bad Ice Bank Door Gasket include:

• Ice melting or clumping in the ice compartment
• Frost buildup around the ice bank door
• Increased energy consumption
• The gasket appearing cracked, brittle, or deformed

This OEM LG part is also compatible with Sears/Kenmore.
