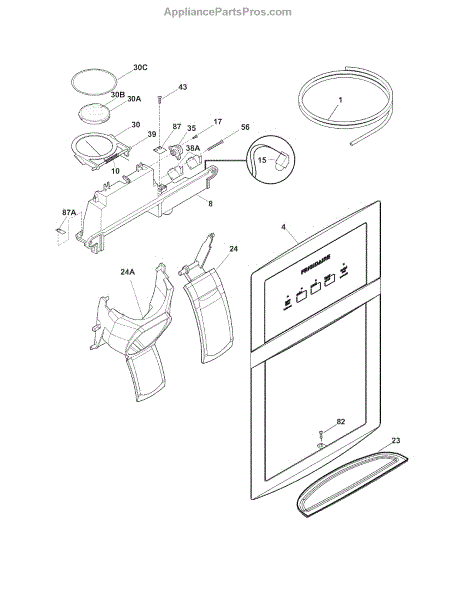

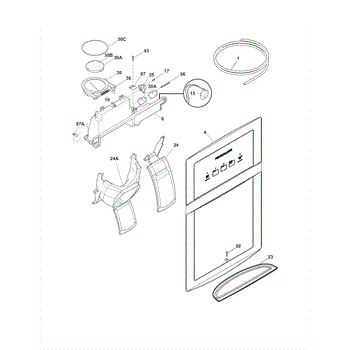

Parts for Crosley CRSH237LS2: Ice & Water Dispenser Parts

The Water Tube is an OEM part for Frigidaire refrigerators. It is responsible for transporting water from the supply line to various components such as the ice maker and water dispenser. Ensuring a steady and reliable flow of water, this tube is essential for the proper functioning of these features.

Causes of a bad water tube can include cracks or splits due to temperature fluctuations, clogging from mineral deposits, or damage from bending and kinking.

Symptoms of a bad water tube include:

• Water leaks inside or outside the refrigerator
• Reduced or no water flow to the ice maker or water dispenser
• Visible cracks or kinks in the tube
• Water tasting off due to contaminants

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

This torsion spring mounts in the dispenser to return the ice chute door/flapper to the closed position after dispensing. Replacing a weak or broken spring helps stop warm air leaks, frost, and ice clumping in the chute.

• Provides the closing force for the dispenser ice door
• Helps seal the ice chute to reduce frost and moisture intrusion
• Typical symptoms: ice door won't close fully, frost/ice buildup around the chute, cubes dropping after dispensing, or air leakage at the dispenser
• Replace if the spring is broken, deformed, or has lost tension

• Disconnect power before servicing; shut off water if working near the dispenser area
• Remove dispenser trim/bezel and control panel to access the ice door assembly; support wiring harnesses
• Note spring orientation and preload before removal; install the new spring on the same hinge posts in the same direction
• Manually cycle the flapper to ensure smooth return and a full seal before reassembly

This refrigerator light socket holds and powers the interior bulb so you can clearly see inside. Replace a cracked, heat-damaged, or loose socket to restore reliable illumination when the interior light won't work or flickers.

• Provides the electrical connection and mounting point for the compartment light bulb
• Fixes symptoms such as no interior light with a known-good bulb
• Addresses intermittent flickering when the door is opened or closed
• Helps resolve visible charring, melting, or broken contacts on the socket
• Corrects a loose bulb that won't stay seated or lit

• Disconnect power to the refrigerator before servicing; remove the light lens/cover and bulb
• Note wire positions; release the old socket from its mount
• Transfer wires to the new socket one lead at a time and seat the socket fully
• Reinstall the bulb and cover; restore power and test
• Use only the bulb type and wattage specified for your model

A single replacement mounting screw used to secure appliance panels and components. Restores proper fit and prevents rattling or loose parts so trims and panels stay aligned during normal use. What it does:

• Fastens panels, brackets or trim pieces to the appliance frame
• Replaces worn, stripped or missing screws that cause loose or rattling parts
• Helps restore secure alignment for doors and access panels
• Works where the OEM lists a basic machine/fastener screw

• Disconnect power and water before beginning any repair
• Use the correct screwdriver or driver bit to avoid stripping the head
• Thread by hand to start, then tighten until snug—do not overtighten
• Keep small parts away from children and pets during installation

This dispenser drip tray fits beneath the refrigerator's water/ice dispenser to catch minor drips and spills, helping keep the freezer door area clean and dry.

• Collects drips from the dispenser to prevent puddles and staining on the door
• Helps reduce moisture that can lead to odors or mineral buildup
• Common signs it's needed: cracked or missing tray, water collecting on the door, tray no longer seating securely
• Color: black

• Unplug the refrigerator and remove the existing tray by lifting straight out
• Clean the recess before installing the new tray
• Align and press the new tray into place until fully seated
• Check fit and ensure it's level so water drains into the tray

This dispenser drip tray sits beneath the refrigerator's ice/water dispenser to catch drips and small spills, helping keep the area cleaner and reducing moisture on the door and surrounding surfaces.

• Collects water and ice drips under the dispenser
• Helps contain minor spills during dispensing
• Protects the door surface from moisture and staining
• Common signs of wear: cracked or missing tray, water pooling in the dispenser area, tray not sitting flush

• Disconnect power before working around the dispenser area
• Lift the old tray straight up and out of the recess
• Clean and dry the dispenser pocket to remove residue
• Align and press the new tray down until it sits flat and secure

This replacement actuator operates the refrigerator air damper to direct airflow between compartments, helping restore balanced temperatures and proper cooling when the damper won't move or air distribution is inconsistent. What it does

• Moves or positions the air damper to control airflow between the freezer and fresh-food sections.
• Helps correct uneven temperatures or poor cooling caused by a stuck or failed damper.
• Stops clicking or prevents the damper from remaining in one position when faulty.
• Works with the temperature control system to regulate compartment cooling as commanded.

• One actuator

• Always unplug the appliance before starting work to avoid electrical shock.
• Access usually requires removing interior panels or the control housing; keep track of screws and trim.
• Do not force plastic gears or tabs; verify alignment before securing the new actuator.
• Test damper operation and temperature response before reassembling interior panels.

The Ice Chute Door Insulation is an OEM replacement part for Frigidaire refrigerators. It is installed on the ice chute door to prevent warm air infiltration and moisture buildup around the ice dispenser.

Causes may include compression or cracking of insulating foam/material from normal use stress. Spills exposing it to liquid are also damaging.

Symptoms of defective insulation consist of:

• Ice accumulating within the chute cover area
• Condensation visible on exterior chute surfaces
• Inefficient icemaker performance due to altered temperatures

This OEM Frigidaire replacement part is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Center is an OEM part for Frigidaire refrigerators. This component is part of the ice dispenser system, managing the release of ice through the dispenser chute. It helps prevent cold air from escaping the freezer, maintaining energy efficiency and preserving the ice supply.

You should replace the ice door center if it becomes damaged or fails to seal properly. Causes of a bad ice door center can include regular wear and tear, damage from repeated use, or build-up of ice and debris obstructing its movement.

Symptoms of a bad ice door center include:

• Ice dispenser not working correctly
• Ice build-up around the dispenser area
• Warm air entering the freezer, causing ice to melt or clump
• Increased energy consumption due to poor sealing

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Seal is an OEM part for Frigidaire refrigerators. This seal is designed to create an airtight barrier around the ice dispenser door, preventing warm air from entering the freezer and maintaining optimal temperature inside the ice compartment. Please note, this listing is for the seal only, other components are sold separately.

Over time, the ice door seal can become worn out or damaged due to frequent use, exposure to varying temperatures, and regular opening and closing. Causes of a bad ice door seal include cracking, tearing, or loss of elasticity, which can lead to air leaks.

Symptoms of a bad ice door seal include:

• Frost or ice buildup around the ice dispenser
• Warm air entering the freezer compartment
• Increased energy consumption
• Water or condensation around the ice dispenser area
• The ice door not closing properly or sealing tightly

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

The Ice Door Bracket is an OEM part for Frigidaire refrigerators. It is a critical component of the ice dispenser mechanism, designed to support and align the ice door properly. This bracket ensures the ice door opens and closes smoothly, maintaining an airtight seal to prevent warm air from entering the freezer compartment and causing frost buildup.

Symptoms of a bad Ice Door Bracket include:

• The ice dispenser door failing to close completely, which can lead to ice melting and freezer burn.
• Excessive frost or ice accumulation near the dispenser area.
• Unusual noise when the dispenser is activated, indicating misalignment or instability.

Causes of a bad ice door bracket can include mechanical stress from repeated use, accidental damage from impact, or wear and tear that weakens the structural integrity of the bracket.

This OEM replacement is also compatible with Electrolux, Gibson, Kelvinator, and Kenmore models.

A replacement micro switch that senses door or actuator position to allow the appliance to start or to stop operation for safe control. Fits applications that use a small snap-action switch for door or control interlocks. What it does:

• Acts as a small snap-action switch to detect door open/closed or actuator position
• Restores proper start/stop behavior when a faulty switch prevents the appliance from powering or running
• Common symptom: appliance won't start, control panel unresponsive, or cycles unexpectedly
• Works as a low-voltage signal switch for safety interlocks and control circuits

• Disconnect power before accessing panels or replacing the switch to avoid shock or injury
• Access may require removing a console or inner door panel; handle panels and wiring gently
• Verify switch function with a multimeter (continuity) before and after installation

This door hinge pin forms the pivot for the refrigerator door hinge, keeping the door supported and aligned. Replacing a worn or missing pin restores smooth door movement and consistent sealing.

• Acts as the hinge's pivot shaft to support the door
• Helps maintain door alignment so the gasket can seal properly
• Reduces wobble and scraping at the hinge point
• Typical failure symptoms: door sagging, misalignment, poor closing, or a loose/wobbly hinge

• Unplug the refrigerator and remove items from the door to reduce weight.
• Support the door; remove hinge cover and screws, then lift the door off the hinge.
• Replace the hinge pin in the hinge bracket; transfer any existing spacers/bushings as designed.
• Reinstall and align the door; tighten hardware and verify smooth operation and seal contact.

This replacement screw secures appliance panels, brackets, and internal components. It restores a tight, rattle-free fit and proper alignment when an original fastener is missing, stripped, or corroded.

• Fastens metal or plastic parts to the cabinet/frame
• Helps maintain alignment and reduce vibration or rattling
• Direct replacement for lost, damaged, or rusted hardware
• Keeps covers and brackets safely in place

• Disconnect power before servicing; for gas appliances, also shut off gas supply
• Match one-for-one with the original screw; verify length/type before installation
• Start threads by hand to avoid cross-threading; tighten snugly without overtightening
• Use the correct driver bit to prevent stripping the screw head

This dispenser heater kit warms the dispenser area to help prevent ice build-up and keep the water/ice dispenser operating reliably. Replaces a failed heater assembly to restore proper dispenser function. What it does:

• Heats the dispenser chute/valve area to reduce frost and ice clogging
• Helps restore reliable water or ice dispensing when the dispenser intermittently freezes
• Prevents repeated thaw cycles that can cause leaks or inconsistent dispense flow
• Works as the direct replacement heater component used in the dispenser assembly

• Disconnect power to the appliance before beginning any work
• Access may require removing the dispenser housing or control panel
• Handle electrical connections carefully and secure wiring per OEM routing

This replacement tube routes water inside the refrigerator to the dispenser or ice maker, restoring proper water flow and preventing leaks when the original tubing is cracked or worn. Simple direct-fit replacement when the OEM tubing fails. What it does:

• Carries water between the refrigerator supply and the dispenser or ice maker
• Replaces cracked, split or collapsed tubing that can cause leaks
• Helps restore steady water flow and proper ice-making or dispensing
• Prevents water damage from deteriorated or pinched lines

• Designed for refrigerator models that use this exact OEM tube
• Disconnect power and shut off the water supply before replacing tubing
• Inspect connections and seals; replace any damaged clips or fittings to ensure a watertight seal

This replacement refrigerator water tube routes water or condensate between components and maintains a sealed path. Replacing cracked, kinked, or brittle tubing helps stop leaks and restore proper water movement through the system.

• Provides a sealed path to carry water within the refrigerator assembly
• Maintains proper routing to help prevent kinks and restrictions
• Typical failure signs: water leaking inside or underneath, pooling water, visible cracks/brittleness, restricted flow
• Replacing damaged tubing helps prevent water damage to surrounding parts

• Disconnect power and shut off the water supply before servicing
• Note the original routing and connection points; match the length and path during installation
• Fully seat tube ends into existing fittings; transfer any clips/ferrules from the original as required and avoid sharp bends
• Restore water and power, then run and inspect all connections for leaks

This refrigerator seal restores a tight barrier between internal components. Replacing a worn or damaged seal helps prevent air leaks and moisture intrusion, supporting proper airflow, stable temperatures, and reduced frost or condensation around the joint.

• Creates an air-tight barrier between mating surfaces
• Helps maintain correct airflow and temperature balance between compartments
• Reduces frost, condensation, and warm/cold spots near the sealed area
• Common signs of failure: visible gaps, loose/crumbled seal, rattling panel, moisture or frost at the joint

• Disconnect power before servicing
• Remove the related cover or housing to access the old seal
• Clean contact surfaces; install the new seal in the same orientation without stretching or pinching
• Reassemble and verify an even seal and normal airflow before returning to service

This refrigerator electronic control board manages key cooling and defrost functions. Replacing a failed board helps restore accurate temperature regulation and responsive operation so the appliance runs as designed.

• Regulates compressor and fan operation based on temperature sensor inputs
• Controls the automatic defrost cycle to prevent frost buildup
• Coordinates signals to the user controls/display and other components
• Common failure symptoms: not cooling or intermittent cooling, unit won't run, excessive frost/ice, unresponsive or erratic controls

• Disconnect power to the appliance before service
• Use anti-static precautions; handle the board by the edges only
• Photograph wiring; move connectors one at a time to the matching terminals on the new board
• Ensure all connectors are fully seated before reassembly and testing

The Ice Maker Fill Tube Assembly is an OEM replacement part for Frigidaire refrigerators. As a component of the automatic icemaker, this fill tube assembly transports water from the water supply line into the ice molding chamber.

Causes of a bad fill tube assembly can include cracks, leaks, or blockages developing over time due to mineral buildup or mold growth inside the plastic tubing. Constant bending during ice production also leads to tubing fatigue.

Symptoms of a bad fill tube assembly include:

• Icemaker not filling with water or producing ice
• Water leaks in the freezer compartment
• Mineral residue or mold observed inside the tubing

This OEM Frigidaire part is compatible with models including Electrolux, Gibson, Kelvinator, and some Kenmore units.
