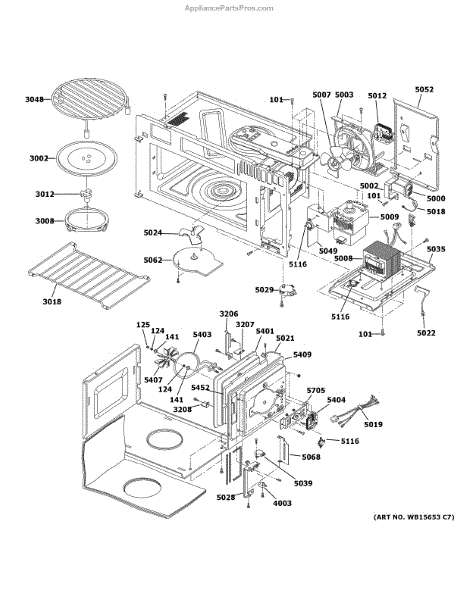

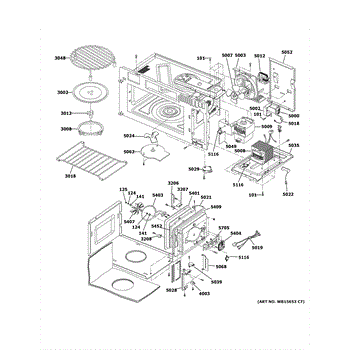

Parts for Ge PVM9179DK5BB: Interior Parts (1) Parts

This is a binding-head screw used to fasten panels and components on compatible GE appliances. It provides secure, low-profile fastening where a binding head design is required for proper fit and alignment. What it does

• Secures panels, brackets, or small assemblies to prevent movement or rattling.
• Replaces a missing or stripped screw that causes loose parts or squeaks.
• Restores proper alignment for components that rely on the binding-head profile.
• Works where a shallow, rounded head and threaded shaft are specified.

• Use the correct driver size to avoid cam-out or head damage.
• Do not overtighten; snug until secure to avoid stripping threads or damaging parts.
• Disconnect power and follow all appliance-specific safety procedures before accessing panels.

This glass tray is the rotating plate inside your microwave that supports dishes and helps food heat evenly. Replace a cracked, chipped, or missing tray to restore safe, steady rotation and consistent cooking performance.

• Supports dishes and engages the turntable drive to rotate food for even heating
• Replace when cracked, chipped, scratched, or missing
• Helps address wobbling, slipping, or food not rotating when the tray won't seat properly
• Inert glass surface allows microwaves to pass through while food heats

• Disconnect power before servicing and allow the appliance to cool
• Remove the old tray; wipe the turntable support ring and drive coupler clean
• Align the new tray's center hub with the drive and seat it flat on the support
• Verify the tray sits level and rotates smoothly before cooking

This turntable shaft connects the microwave's turntable motor to the glass tray, keeping the tray centered and rotating smoothly for even cooking. Durable replacement for worn or damaged shafts. What it does:

• Couples the turntable motor to the glass tray so the tray spins during operation
• Centers and supports the glass tray to prevent wobbling or scraping
• Restores smooth rotation if the tray slips or turns intermittently
• Stops grinding or scraping noises caused by a bent or worn shaft

• Disconnect power before attempting any service.
• Remove the glass tray and roller support, then lift out the old shaft.
• Seat the new shaft onto the motor drive pin and reinstall the roller support and glass tray, ensuring proper alignment.
• Test operation at short intervals to ensure smooth rotation and no unusual noise.

This oven rack restores a stable, level surface for cookware inside your range. Replace a bent, missing, or hard-sliding rack to maintain safe support and proper spacing for baking, roasting, and broiling.

• Provides a sturdy, level platform for pans and dishes on adjustable oven positions
• Slides on the side rails to change rack height as recipes require
• Replace if bent, rusted, or missing to prevent unstable cookware
• Common signs: won't slide smoothly, wobbles or sags, damaged wires

• Disconnect power and let the oven cool completely before installing
• Tilt the front up, align the rear of the rack with the side rails, then lower and slide fully in
• Wear gloves to protect hands from sharp edges

The Switch Monitor Interlock is an OEM replacement part for GE microwaves. This safety component ensures that the microwave operates only when the door is securely closed. It prevents the microwave from running if the door is open, providing a critical safety feature to protect users from exposure to microwave radiation.

Causes of a bad switch monitor interlock can include wear and tear over time, mechanical damage from frequent door opening and closing, or electrical malfunctions that impact its performance.

Symptoms of a bad Switch Monitor Interlock include:

• The microwave not starting or operating intermittently
• The microwave running with the door open
• Error messages or safety warnings displayed on the control panel
• Unusual clicking or buzzing noises when the microwave door is opened or closed

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

The Capacitor High Voltage is an OEM part for GE microwaves. It stores and releases high voltage electrical energy to power the magnetron, which generates the microwaves for cooking.

Over time, capacitors can deteriorate due to prolonged exposure to high voltage, excessive heat, or electrical surges. A malfunctioning capacitor can lead to inefficient cooking or complete failure of the microwave.

Symptoms of a bad capacitor include:

• The microwave not heating food properly
• A loud humming or buzzing noise during operation
• The microwave shutting down unexpectedly
• Visible damage or leakage from the capacitor

This GE replacement part is also compatible with Hotpoint, RCA, and some Kenmore models.

This suction guide positions and supports the appliance's suction component to help ensure proper fit and reliable operation. Replacing a damaged guide restores alignment so the suction assembly can work as intended. What it does:

• Holds and guides the suction component or cup into the correct position
• Prevents misalignment that can cause vibration, rubbing, or reduced suction performance
• Helps maintain a consistent seal where the suction component interfaces with the appliance
• Useful when the original guide is cracked, broken, or worn

• Disconnect power (and water, if applicable) before servicing the appliance
• Access may require removing an outer cover or access panel and a few fasteners
• Handle plastic parts carefully to avoid cracking during removal and installation

This replacement blower fan mounts on the blower motor to move air through the appliance's ventilation path and cool internal components. It restores proper airflow to help clear steam/smoke and reduce noise from a cracked or warped wheel. What it does:

• Couples to the blower motor to push/pull air through the exhaust or recirculation ducts
• Helps cool internal parts while venting cooking steam and odors
• Typical failure signs: scraping/rattling noises, reduced or no airflow, poor venting performance, or intermittent overheating shutdown

• 1 blower fan wheel

• Disconnect power at the breaker or unplug before servicing
• If over-the-range or built-in, support the unit and follow manufacturer procedures to access the blower housing
• Match the original wheel orientation and seat fully onto the motor shaft
• Spin by hand to ensure free rotation and clearance; reassemble and test all fan speeds

This magnetron is the microwave's RF generator—the tube that creates the microwave energy used to heat food. Replacing a failed unit restores proper heating performance so your oven reliably cooks, reheats, and defrosts as intended. What it does:

• Produces high-frequency microwave energy to heat food inside the cavity
• Common failure symptoms: runs but no heat, loud humming/buzzing, burning odor, breaker trips or shutting off shortly after start
• Resolves weak heating and unusually long cook times when the magnetron has degraded

• 1 magnetron

• Unplug the microwave and discharge the high-voltage capacitor before servicing; high voltage can remain even when unplugged
• Handle the tube by the metal body; avoid stressing the ceramic insulators or antenna
• Reinstall using the original mounting hardware; ensure correct orientation and reconnect wires as noted
• Test with a cup of water after reassembly; if no heat persists, further diagnosis of the HV diode, capacitor, or transformer may be required

This AC fan motor is the refrigerator fan motor that circulates air to maintain proper cooling and airflow. It replaces a worn or failed fan motor to help restore steady airflow and consistent temperatures. What it does:

• Spins the evaporator/condenser fan blade to move air through the refrigerator cooling system
• Restores airflow when fan has stopped running or runs intermittently
• Reduces unusual fan noise or vibration caused by a failing motor
• Helps correct uneven cooling or frost build-up linked to poor air circulation

• Disconnect power to the appliance before starting any work
• Handle the fan blades carefully to avoid bending or injury
• Verify fan blade seating and clearances during reassembly to prevent rubbing

The Diode Cable Assembly is an OEM part for GE microwaves. This part converts AC power to DC power, which is crucial for the microwave's operation.

Causes of a bad diode cable assembly can include electrical surges, overheating, or general wear and tear.

Symptoms of a bad diode cable assembly include:

• Microwave not heating food
• Unusual noises during operation
• Burning smell or visible damage to the cable
• Microwave shutting off unexpectedly

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This temperature thermistor is the sensor that lets the control board monitor and regulate appliance temperature for reliable cooling performance. Replacing a failing thermistor can restore proper temperature control and cycling. What it does:

• Senses internal temperature and sends readings to the control board
• Helps the compressor, fans, and defrost system run at the right times
• Commonly linked to symptoms like incorrect temperatures, overcooling, or frequent on/off cycling
• A faulty thermistor can cause improper defrost timing or erratic cooling behavior

• Disconnect power before inspecting or replacing the sensor to avoid shock
• Handle the sensor and wiring connector gently to avoid damage
• Mount the sensor in the original location and secure wiring per OEM routing

This bracket damper supports the appliance damper assembly to ensure controlled movement and stable positioning. It replaces a worn or broken bracket to restore smooth vent/door operation and reduce rattling or misalignment. What it does:

• Holds the damper assembly in the correct position so it can open and close smoothly
• Prevents excessive vibration or rattling from a loose damper bracket
• Helps maintain proper venting/airflow by keeping the damper aligned
• Commonly replaced when the bracket is cracked, bent, or fails to secure the damper

• One bracket damper (single support bracket)

• Disconnect power before servicing to avoid shock or injury
• Basic hand tools required; may need access to the vent/door trim or rear panel
• Handle sharp edges carefully and retain all mounting hardware unless noted otherwise

This AC synchronous motor powers the microwave's rotating mechanism—such as the mode stirrer or, on some models, the turntable—to circulate energy for more even cooking. Replacing a noisy, seized, or non-turning motor restores smooth rotation and consistent heating.

• Provides steady, low-speed rotation to drive the internal stirrer or turntable
• Promotes more uniform heating by distributing microwave energy
• Common symptoms of a failing motor: uneven heating, rattling/grinding from the cabinet, or the rotating component not turning
• Direct replacement for the original synchronous drive motor

• Disconnect power before servicing; microwaves contain high-voltage components that can retain a charge
• Access and location vary by model; remove the outer cover/grille to reach the motor
• Note shaft orientation and transfer any coupler; reuse existing mounting hardware
• Do not operate the unit with covers removed; after reassembly, test with a microwave-safe cup of water

This AC synchronous motor drives timed or fixed-speed rotations in compatible appliances to restore reliable timing and rotation. Ideal when a worn motor prevents timers, clocks or small gear-driven functions from operating. What it does:

• Turns at a constant, AC-synchronous speed to drive timers, clocks or small mechanical linkages.
• Replaces a failed or noisy timer/clock motor to restore timed functions.
• Common symptoms: appliance clock or timer won't advance, no rotation of small mechanisms, or intermittent timer operation.
• Operates as a direct replacement for the listed part number when matched to the appliance's OEM specification.

• Always disconnect power at the breaker or unplug the appliance before starting any repair.
• Note or photograph original wire locations and mounting orientation to ensure correct reconnection.
• Use basic hand tools; some models require removing a control panel or control box to access the motor.

The Stirrer Fan Cover Assembly is an OEM part for GE microwaves. It covers and protects the stirrer fan, which distributes microwave energy evenly within the cooking cavity, ensuring food is heated uniformly.

Causes of a bad stirrer fan cover assembly can include exposure to high heat, physical damage from improper handling, or buildup of food particles and grease over time.

Symptoms of a bad stirrer fan cover assembly include:

• Uneven cooking or heating of food
• Rattling or unusual noises during operation
• Visible damage or warping of the cover
• The cover not fitting securely in place

This OEM GE part is also compatible with Hotpoint, RCA, and some Kenmore models.

This heater sheath is the protective metal sleeve that surrounds a dryer/oven heating element, helping protect the element and focus heat where needed for reliable appliance heating performance. What it does:

• Protects and supports the heating element inside the appliance
• Helps direct and contain heat for efficient operation
• Can prevent direct contact between the element and surrounding components
• Commonly replaced when the sheath is corroded, dented, or damaged
• Linked to uneven heating or visible element damage

• High-level replacement only; disconnect power before servicing to avoid shock hazard
• Inspect surrounding components (element, terminals, mounting clips) and replace any damaged parts
• Use proper fasteners and ensure sheath is seated securely to avoid contact with other components

This plate side heater is the oven heating element that produces heat along the oven side to help maintain even cooking temperatures. Designed to restore proper heating when the side element is worn or failed. What it does:

• Heats the side area of the oven cavity to support even cooking and baking.
• Replaces a damaged or open side heating element that can cause weak or uneven oven heat.
• Helps address symptoms such as oven not reaching set temperature, uneven baking, or visible element damage.
• Works as a direct replacement when the original side plate heater fails.

• One plate side heater

• Disconnect power to the appliance at the breaker before starting any repair.
• Allow the oven to cool completely and use proper PPE when handling the element.
• Remove mounting screws and electrical connectors carefully; note wire locations for reinstallation.
• Reconnect securely and test the oven on a low heat setting to verify proper operation.
