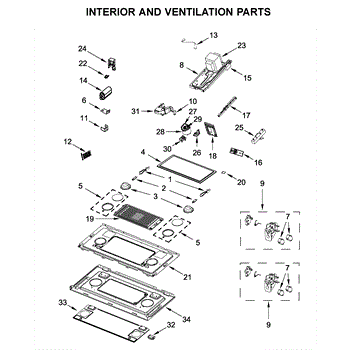

Parts for Jenn-Air JMV9196CS4: Interior And Ventilation Parts

The Light Bulb is an OEM part for Whirlpool microwaves. It provides illumination within the microwave cavity, enhancing visibility so you can monitor your cooking without opening the door. This feature is essential for convenience and to ensure proper cooking, as it helps to prevent heat loss and maintain the microwave’s energy efficiency.

Symptoms of a bad Light Bulb include:

• The microwave interior remaining dark despite the appliance being in use.
• Flickering or inconsistent lighting when the microwave is operating.
• The bulb not turning on, indicating it may be burnt out or there is a connection issue.

Causes of a bad light bulb can include filament wear out due to prolonged use, damage from moisture or grease exposure inside the microwave, or electrical surges that can shorten the bulb's lifespan.

This OEM part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models, ensuring it fits a wide range of microwave models.

The Grease Filter is an OEM part for Whirlpool microwaves, designed to enhance the performance of over-the-range units. This filter maintains the appliance's efficiency and the kitchen's air quality by capturing grease and other particles from the air that circulates through the microwave during cooking.

Signs of wear and tear or damage can affect not only the microwave's performance but also the cleanliness of your kitchen environment. Regular maintenance, including cleaning and replacing the grease filter as necessary, is essential for keeping your microwave functioning optimally and ensuring the air in your kitchen remains clean.

Symptoms that indicate a need for replacement:

• Decreased ventilation efficiency, resulting in lingering cooking odors
• Reduced airflow, which can cause the microwave to overheat
• Visible grease buildup and difficulty cleaning the filter

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Interlock is an OEM part for Whirlpool microwaves. It is an important safety mechanism that monitors the door latch and prevents microwave operation when the door is open.

Symptoms of a faulty interlock include:

• The microwave fails to start or run when the door is open
• Buzzer sounding indicating a blocked safety device
• Door unable to latch or stay closed securely

Causes can be due to worn contacts within the interlock from repetitive door opening cycles. Over time, this safety component becomes fatigued.

Replacing with this new OEM interlock protects against unintentional microwave exposure by ensuring the door remains closed during operation. Peace of mind is restored with a working safety mechanism.

This OEM Whirlpool part can also be used on Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore/Sears brand appliances.

The Diode is an OEM part for Whirlpool microwaves. The diode plays a key role in regulating power flow and protecting other sensitive components from voltage fluctuations.

Causes of a bad microwave diode can include component failure due to age or heat exposure over time. Diodes are also susceptible to electrical damage if exposed to power surges.

Symptoms of a bad diode can include:

• The microwave failing to power on or having intermittent power
• Food not heating up properly or unevenly
• Strange sounds like buzzing or humming emanating from inside
• The door lock mechanism not engaging or release properly
• Repeated tripping of fuses or circuit breakers

This genuine OEM Whirlpool part is also compatible with Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore models.

The High Voltage Capacitor is an OEM part for Whirlpool microwaves. This component allows the microwave to store and discharge high voltage current to the magnetron tube for generating microwave energy.

Symptoms of a faulty capacitor include:

• Slow or incomplete cooking even on high power levels
• Inconsistent or uneven heating inside the microwave cavity
• Sparking, burning or smoke emitting from inside components
• An appliance that fails to start or runs intermittently

Causes can be regular wear and tear over many years of use. The capacitor endures heat stresses each time the magnetron operates.

 This part is also compatible with select Maytag, KitchenAid, Jenn-Air, Amana, Magic Chef, Admiral, Norge, Roper, and Kenmore brand microwaves.

This thermistor is a fridge temperature sensor that monitors internal air temperature so the control board can regulate cooling. Replacing a faulty thermistor restores accurate temperature readings and more consistent refrigerator performance. What it does:

• Detects interior temperature and sends readings to the control board
• Helps the compressor and fans cycle correctly to maintain set temperatures
• Common symptom: erratic or incorrect temperature inside the refrigerator
• Common symptom: refrigerator runs constantly or cooling is inconsistent
• Common symptom: temperature-related error codes or temperature alarm messages

• Disconnect power to the appliance before starting any repair
• Handle the sensor and wiring harness carefully to avoid damage
• Route and secure the wiring as original; ensure connectors are fully seated

This thermostat is a temperature-limiting control that helps regulate oven/cooking temperature and prevents overheating for safer operation. It replaces a failed limiter to restore proper temperature control and reliable heat cycling. What it does

• Opens or interrupts power when oven temperature exceeds the set limit to prevent overheating
• Restores normal thermostat cycling when the original limiter fails or sticks
• Common symptom: oven runs too hot or will not maintain set temperature
• Common symptom: oven shuts off or will not heat because limiter has opened

• One thermostat (temperature limiter) as shown

• Disconnect power to the appliance before attempting any service
• Access location, removal, and wiring vary by model; refer to your model-specific service instructions
• Handle the sensing element carefully; do not kink or damage the capillary/tube

This resistor is an OEM electrical replacement that helps regulate current to a refrigerator/dryer appliance circuit so components operate reliably. Replacing a faulty resistor restores proper electrical control and can stop intermittent component failures. What it does

• Limits or regulates electrical current to a specific circuit so motors, heaters, or control circuits operate correctly
• Can cause an appliance component to run weakly, intermittently, or not at all when failed
• Commonly linked to symptoms such as component failure, intermittent operation, or related error codes
• Works as the direct replacement part for the original listed Whirlpool resistor

• One resistor

• Disconnect power to the appliance before attempting service to avoid shock
• Handle electrical connections carefully; ensure secure, correct reconnection before restoring power

This fan wheel spins inside the appliance to move air through the system, restoring proper airflow for heating and cooling. It replaces a cracked, worn, or unbalanced wheel to reduce noise and improve performance. What it does:

• Circulates air through the appliance to support heating, cooling, or ventilation
• Helps maintain consistent temperatures and prevents motor overload from restricted airflow
• Reduces rattling or grinding noise caused by a warped or broken wheel
• Restores proper airflow when the original wheel is damaged or missing

• One fan wheel

• Disconnect power to the appliance before starting any repair
• Access may require removing an access panel or cabinet components; follow the manufacturer's service instructions
• Inspect the blower housing and mounting for damage; replace any damaged clips or fasteners
• Ensure the wheel spins freely and is seated correctly on the motor shaft before reassembly

This evaporator fan motor circulates cold air through the freezer and refrigerator compartments to maintain even temperatures and consistent cooling. Replaces a failed or noisy motor to help restore airflow and temperature stability. What it does:

• Spins the evaporator fan blade to move cold air across the evaporator and into the cabinet.
• Helps prevent warm spots and uneven cooling when operating correctly.
• Commonly replaced for noisy operation, failure to run, or intermittent airflow.
• Compatible with refrigerators that use this OEM-style fan motor design.

• Disconnect power to the appliance before starting any repair.
• Access typically requires removing interior panels or the evaporator cover; keep screws and fasteners organized.
• Inspect the fan blade and housing for ice buildup or obstructions before installing the new motor.
